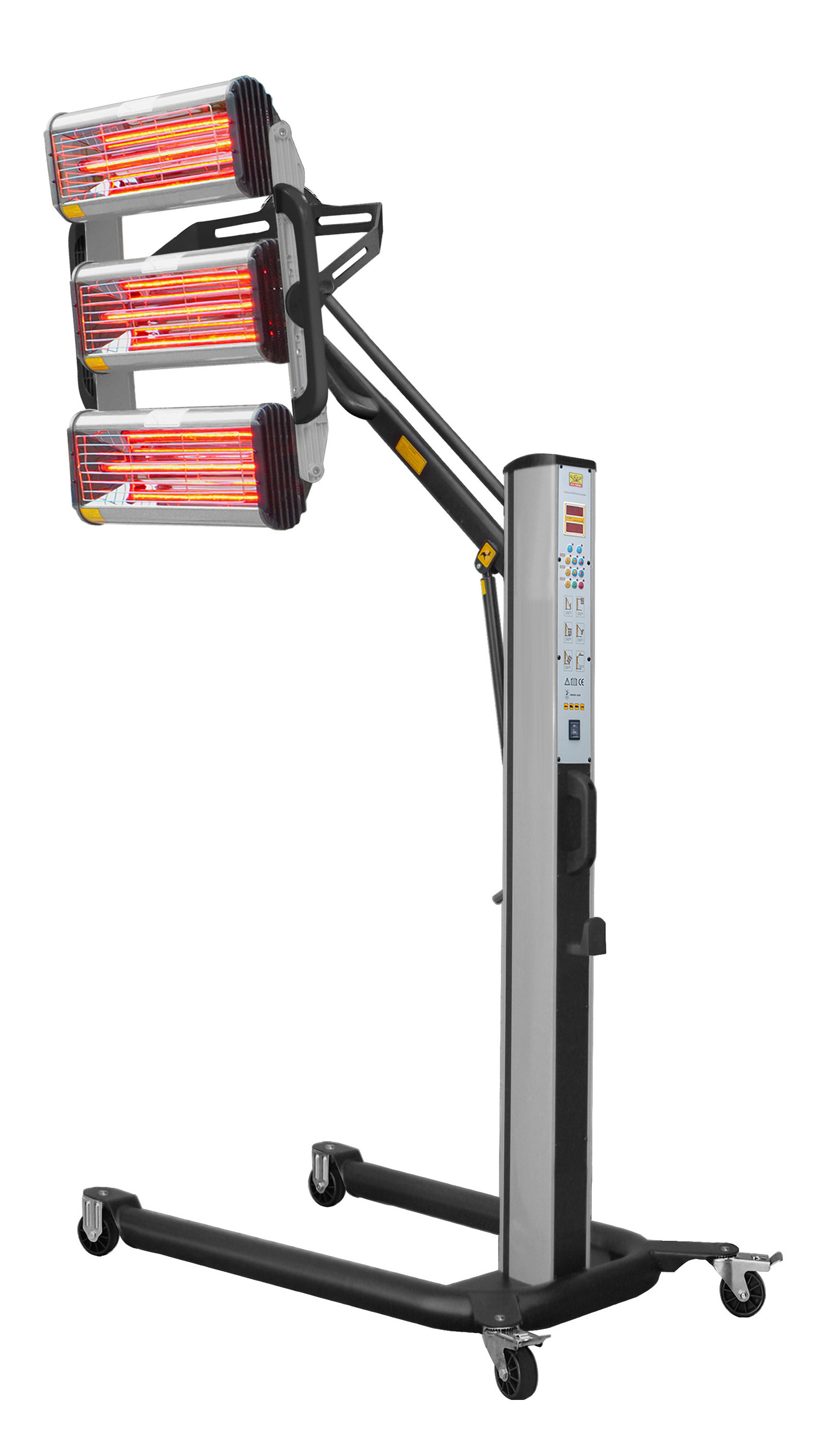

FY-3W has a control system made using the PET hot press molding technique and has a touch key panel design. It displays the time and tempreature in the dual window digital display for accurate settings according to the body paint requirements.

FY-3W is equipped with shortwave infrared doubled-layer halogen lamps that are specifically designed for curing body paint. They have the advantage of giving a good distribution of heat to cure more effectively and only have a gentle light intensity light tube prevents damage to the paint surface caused by problems with the emmiter.

Made from aluminium alloy and 304 grade bright stainless steel reflectors.

Equipped with VPOWER' s 21'' quatz short wave infrared halogen lamps.

Automatic device, qquipped with LED electronic timer and power settings.

Hydraulic lifter with independent switch and 360° rotation.

With pulse ultrasonic paint curing fuction.

Power supply of 220-400V, 50/60Hz and 3*1100W.

Curing area of 1200mm*1000mm.

Adjustable timer of 0min-99mins.

Temperature setting is available.

Automatic overload protection.

Each emmiter can be independently controlled.

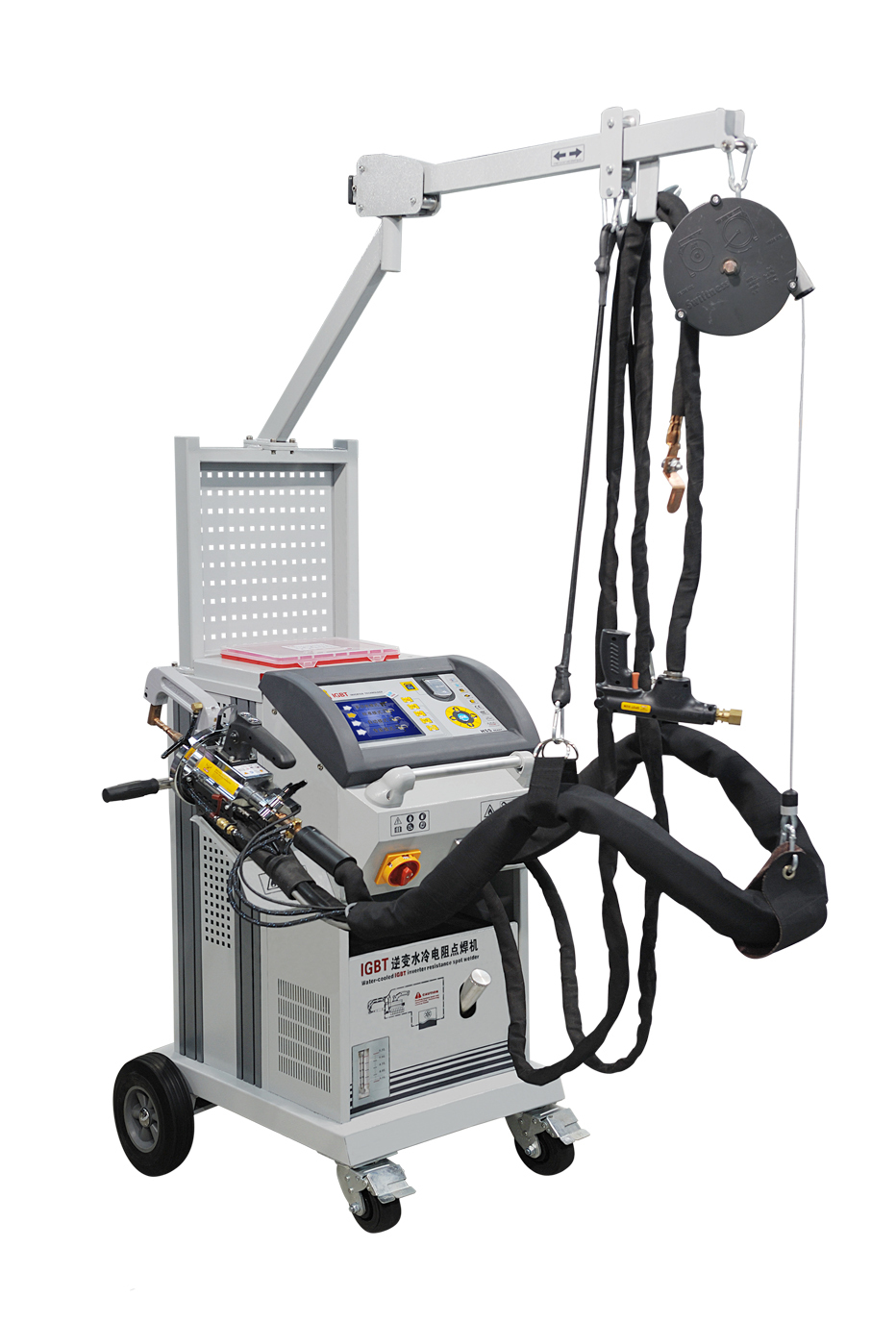

FY-28DC water-cooled spot welder adopts the most advanced SEMIKRON IGBTinverter with dual full bridge soft switching circuit technology providing quality spot welds with all new high-strength steels. The spotter features a large 5'' LCD monitor and PET hot press formed control panel that is capable of displaying welding material, time, power and thickness of various welding modes. Easy to learn how to use. Sophisticated circuitry ensures the highest accuracy in reading data. The core components are imported from European premium brands to enhance overall performance and for quality assurance. FY-28DC inverter spot welder with double-sided C-type gun keeps you in pace with the world.

Technical data:

Input Voltage: AC 380V/3ph 50/60Hz

Input Power: 30kW

Input Current: 38A

Max Welding Current: 16000A

Dimensions: 80*68*203cm

Weight: 130kg

Welding thickness: 3.0+3.0+3.0mm

Inverter frequency: 2000Hz

Protection grade: IP21

Air supply pressure: 4-8kg

Welding time: 0-700ms

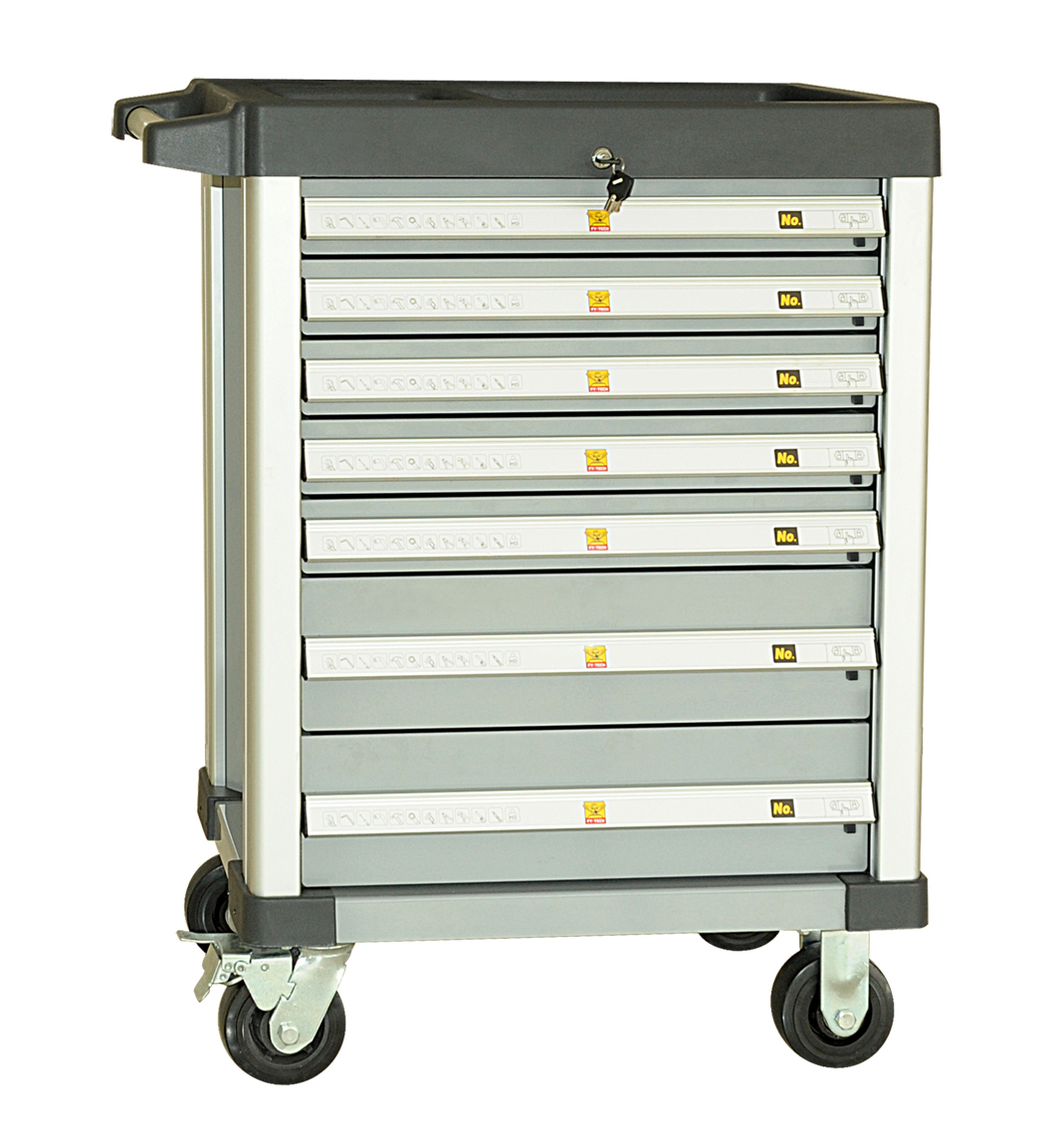

Handle is made of die-cast formed aluminium alloy, exquisite and durable.

Corners are reinfored with one time extrusion molded aluminium alloy structures. Two reinforceing ribs at the rear panel prevent tool cabinets from vibrating.

Complete with advanced central locking system.

Heavy duty casters with two-way brakes with a loading capacity of 800kg.

Small drawer size: 590*435*72mm

Large drawer size: 590*435*150mm

Overall demensions: 800*485*1010mm

Small drawer loading capacity: 50kg

Large drawer loading capacity: 100kg

Overall loading capacity: 600kg

Net weight: 81kg

Gross weight: 93kg

Drawer extension: 100%

Meterial thickness: 1.0-2.0mm

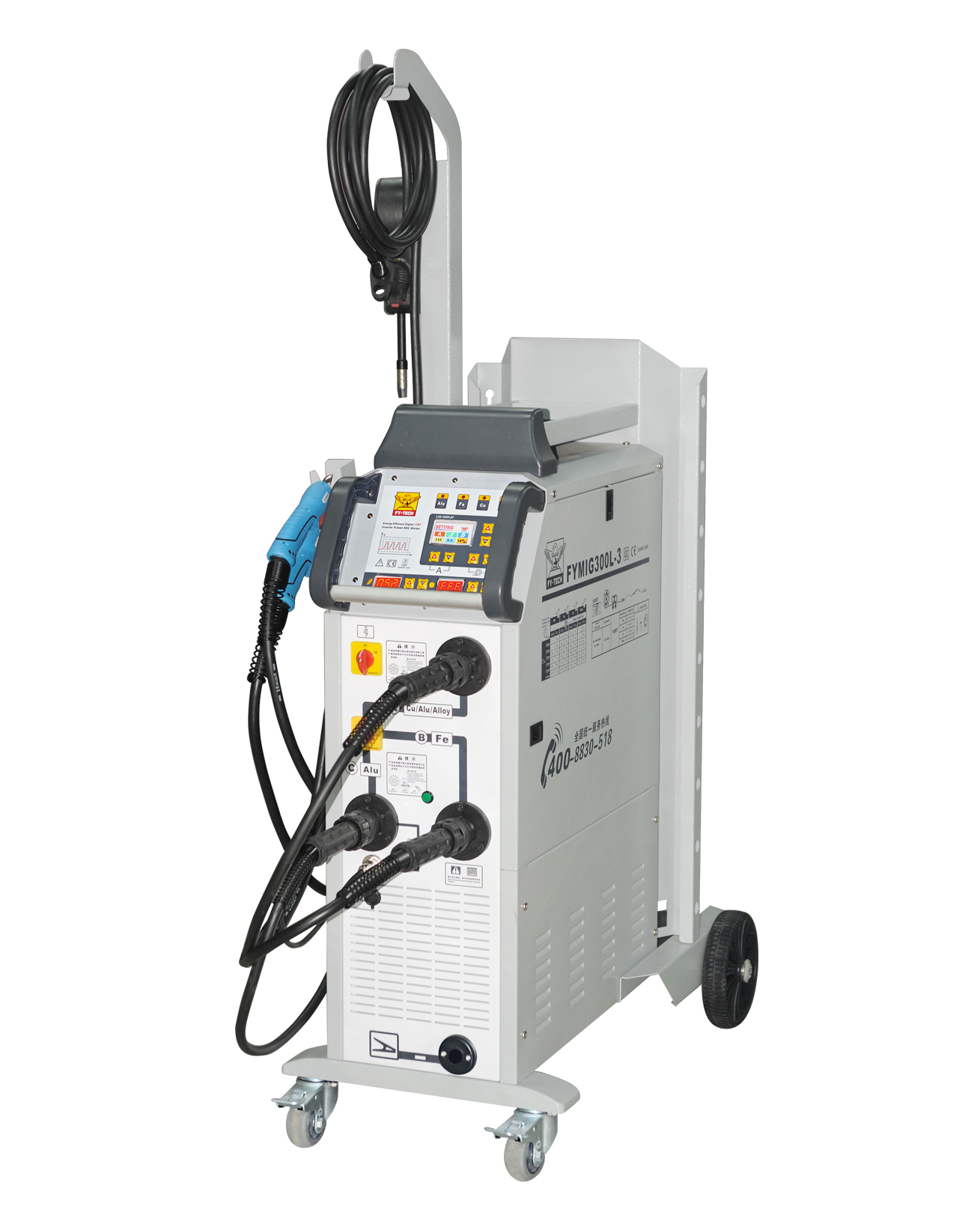

IGBT inverter pulsed and soft switching control technology allows for energy efficient steady welding with fast arc ignition. Materials' mechanical properties are maintained with less welding deformation and spatter. User can quickly and easily weld car bodies with various materials and achieve a perfect performance. There is also less post welding treatment aork and less welding sparks.

Technical data

Input voltage: AC400V or 230V

Rated input power: 10.5KVA

Rated input current: 15A

Duty cycle: 200A/100%-310A/65%

No-load output voltage: 50V

Efficiency: 90%

Power factor: 0.95%

Insulation grade: F

Wire feeder: Four-roll drive

Main machine: 92kg, 93*35*83cm

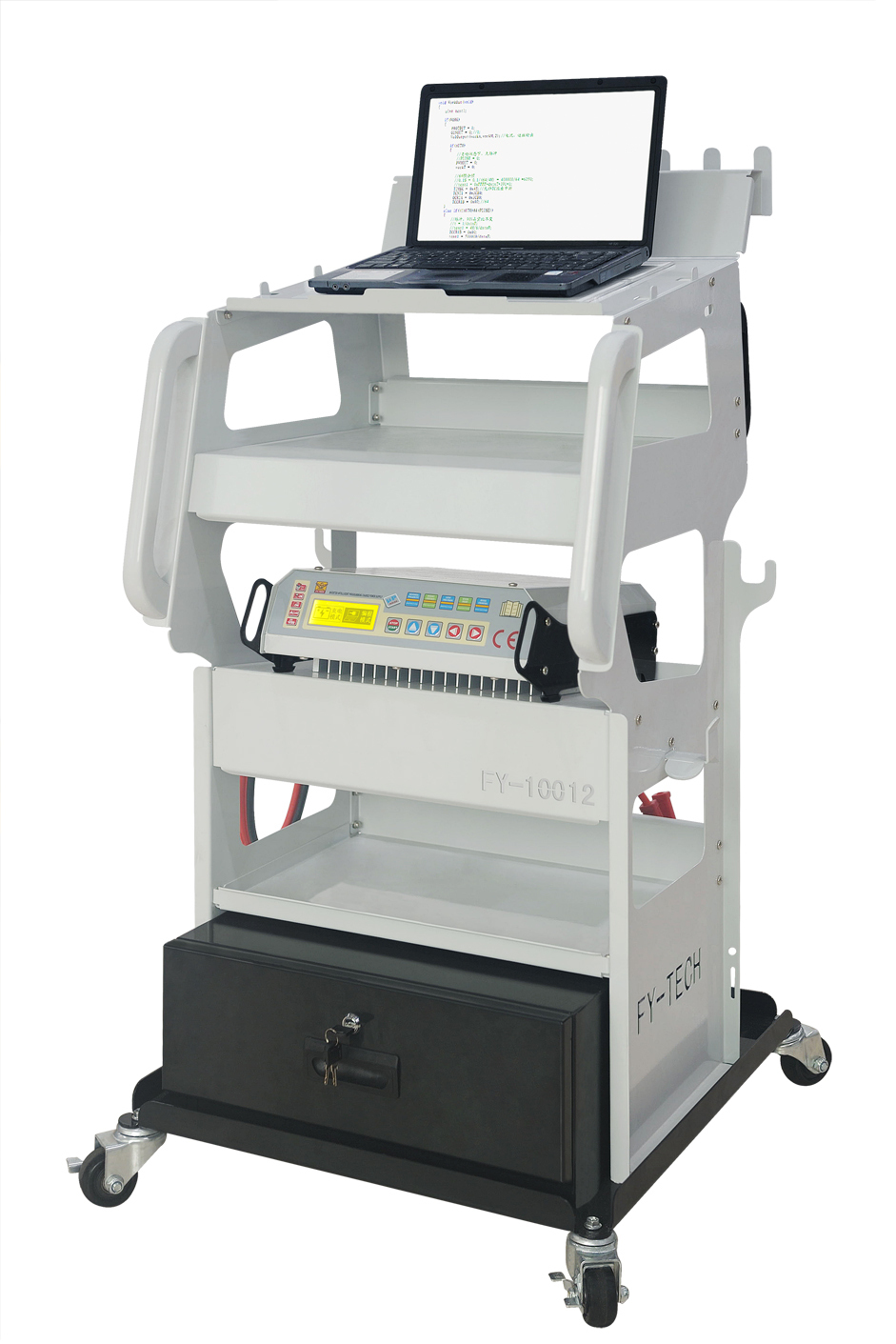

Inverter energy sfficient battery charger is a new kind of advanced pulse battery charger which comes with yellow-green backlit LCD display and can automatically detech, analyze, charge and maintainbatteries, and intelligent programming.

Over-voltage and over-current protection, power down alarm, short circuit protection, reverse polarity protection, high temperature alarm and auto repair battery during charging process.

Detect, analyze, charge and maintain different types of batteries, applying to advanced charging devices at garages and repair workshops.

Used in the maintenance, detection and electronic control system programming process of cars in static state to prevent damage of control elements and loss of data caused by cars running out of battery during programming or other detection processes.

With reverse connection reminder and no touch spark, the charger is applicable to all battery technologies to perform charging curves and charging detection.

Technical data

Input voltage: AC200-240V

Input power: 2700W

Charging Voltage: 12/24V

Max Starting Current: 100A

Dimensions: 50*52*68cm
