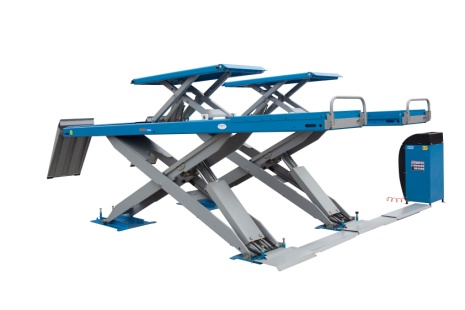

Features

*With one key leveling function, one key platform synchronization.

*The whole machine is designed by Italian team, using double oil circuit 8 oil cylinders design, equipped with double motor and double pump station, The scissor does not have any wires and electrical components connected to the control cabinet.

*The two-way side sliding plate has a one-button pneumatic unlocking function to facilitate rear wheel chassis adjustment.

*Control cabinet electrical parts modular, convenient later maintenance.

*The secondary platform has a lifting capacity of 4 tons and can be pulled and extended in two sections, suitable for vehicles with different wheelbases.

* Reinforced extended power-assisting arm for smooth and smooth lifting

Technical Parameters

Capacity of the main lifting 4000kg

Platform length of the main lift 4600mm

Platform Width of the main lift 663mm

Distance between platforms 800/900mm

Capacity of the lift table 4000kg

Platform length of the lift table(Two-way pull) 1499/1839/2309mm

Platform width of the lift table 663mm

Lifting time 45s

Lowering time 50s

Motor of the main lift 400/230V/3Kw /3ph /50Hz

Motor of the lift table 400/230V/ 1.5kw/2.2kw /3ph /50Hz

Lifting height main lift2060mm

Lifting height lift table 535mm

Minimum height main lift210mm

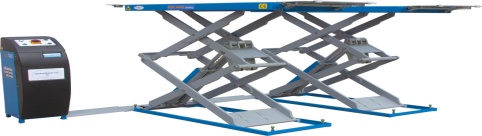

Features

*With one key leveling function, one key platform synchronization.

*It adopts the design of double oil circuit and 4oil cylinders, 90% of the solid X arm and platform are made of 16 manganese material ,and the whole machine has super high strength.

*The slider is made of UPE material, which is maintenance-free for life.

*Control cabinet electrical parts modular, convenient later maintenance.

*Ramp extension can extend the platform 590mm,suitable for more car models.

* Reinforced extended power-assisting arm for smooth and smooth lifting

Technical Parameters

Capacity of the lifting 3500kg

Platform length 1540/1850/2130mm

Platform Width 660mm

Distance between platforms 800mm

Lifting time 40s

Lowering time 40s

Motor of the main lift 400/230V/2.2/3Kw /3ph /50Hz

Lifting height 1930mm

Minimum height 103mm

Features

*More than 90%of the 16manganese material.

*Use chain leveling to avoid the safety hazards extension and break of the wire rope

*Corbel self-locking mechanism, equipped with encryption lock teeth.

*The main chain wheel adopts double roller bearing design, fully sealed state, no oil injection, permanent maintenance free.

* T-shaped corbel full-welded full encircle design, ultra-high strength, unique in the industry.

*Corbel labor-saving unlocking device, adjust the position more convenient and quick.

*24V safety power supply, control cabinet electrical parts modular, convenient later maintenance.

Technical Parameters

Lifting weight 4000kg

Lifting height 1957mm

Minimum height100mm

Column height2837mm

Width between column2820mm

Frontal load lifting 58s

Load drop time 52s

Passing car width2490mm

Features

*More than 90%of the 16manganese material. Two step arms increase with height stopper.

*Use chain leveling to avoid the safety hazards extension and break of the wire rope

*Corbel self-locking mechanism, equipped with encryption lock teeth.

*The main chain wheel adopts double roller bearing design, fully sealed state, no oil injection, permanent maintenance free.

* T-shaped corbel full-welded full encircle design, ultra-high strength, unique in the industry.

*Corbel labor-saving unlocking device, adjust the position more convenient and quick.

*24V safety power supply, control cabinet electrical parts modular, convenient later maintenance

Technical Parameters

Lifting weight 4000kg

Lifting height 1977mm

Minimum height112mm

Column height3650/3816/4416mm

Width between column2820mm

Frontal load lifting 58s

Load drop time 55s

Passing car width2490mm

The main body uses 1.0mm steel plate, durable

Modular design, nearly 100kinds of collocation arbitrary combination

Stainless steel countertop, lighting, power, air, garbage, and other configuration options

Corner cabinet is optional
