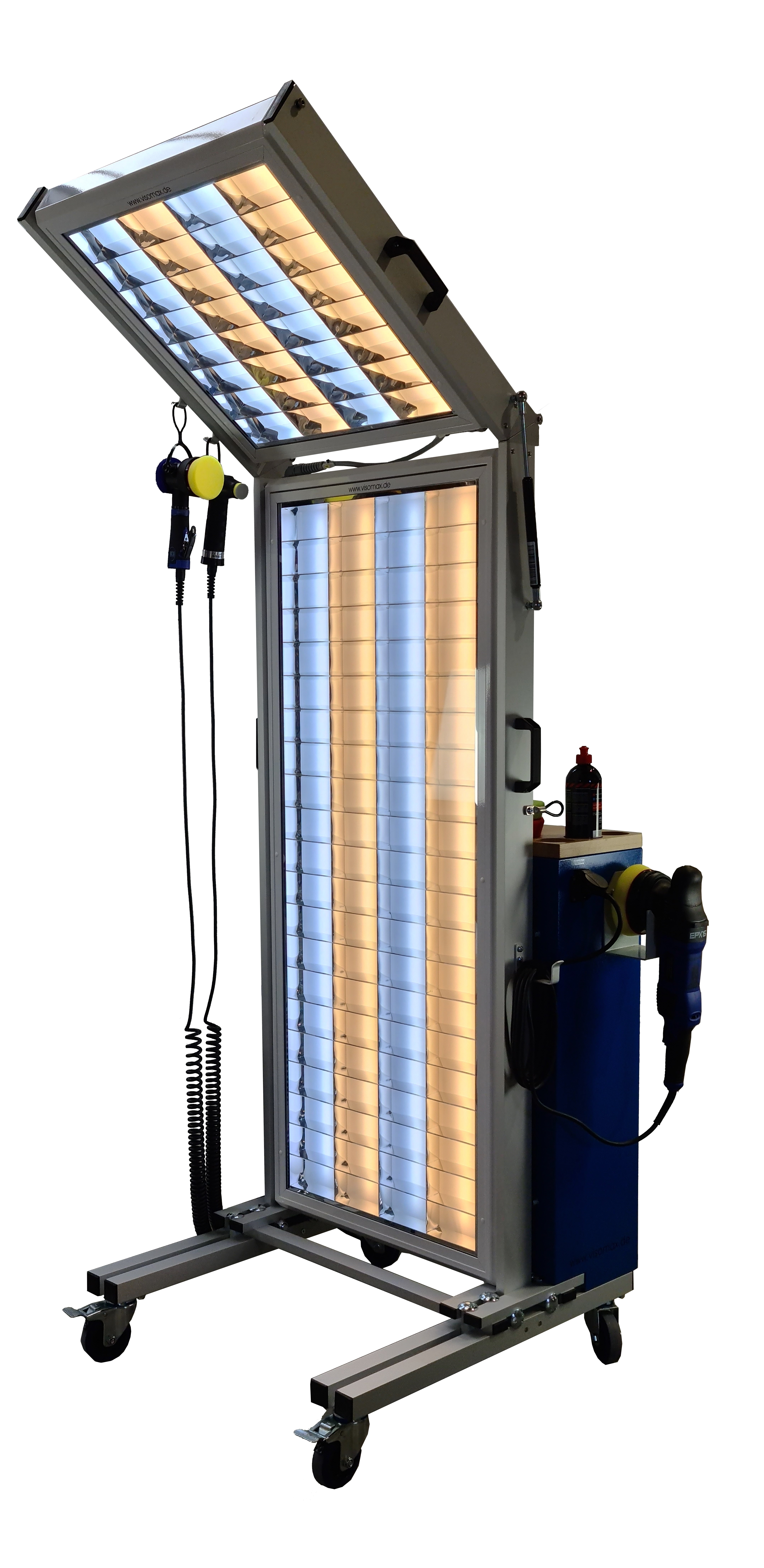

The Visomax Finish Station is a user-oriented product. It equally combines aesthetics, efficiency,
quality and occupational safety. The modular conceptualized system keeps the workplace
clean and allows an easy and ergonomic handling of the attached tools.

The Visomax Finish Station has solid swivel castors that enable an easy and fast re-location to a
new workplace if needed.
All components used at the Visomax Finish Station have been designed, developed and put
together in a sensible way for the designated area of application which is the surface finish.

The innovative LED grit light in particular is equipped with two different colour temperatures
to ensure optimized light conditions at the workplace. They enormously improve the lighting
conditions of the finish area in each paint shop and allow a fast and effective visual localisation
of the surface defects by the operator.

Our used materials are of high-quality and meet all requirements of a mobile finish workstation
for surface corrections. They fit harmoniously together, making the Finish Station a unique product
in the category tool equipment.

Advantages of LED Finish Station:
-Professional illumination of painted surfaces
-Increase of surface quality
-Reduction of customer complaints
-Reduction of the rework rate
-Resource-saving material and energy consumption
-Individually adjustable lighting scenarios for different object colors
-Increased work safety due to low trip hazards
-Centralized power supply for all tools
-Tidiness & cleanliness at the workplace

Technical datas:

LED Finish Station
Art. N°: PZ-MLW-ECO-45-WSL01

Width 950 mm
Depth 800 mm
Height 2260 mm
Folded dimensions 1830 mm
Weight incl. tool cabinet 100 kg
Swivel castors 2
Swivel castors (with brakes) 2
Mains connection 230 V/AC, 50 Hz
Top illuminant 4 x 10 W
Bottom illuminant 4 x 32 W
Power 186 W illumination
Socket at the tool cabinet 1.500 W (max.)
Predection class IP54
Dimmable yes
Color rendering level 80-89 (class 1B)
Color temperature 3000 K & 6500 K

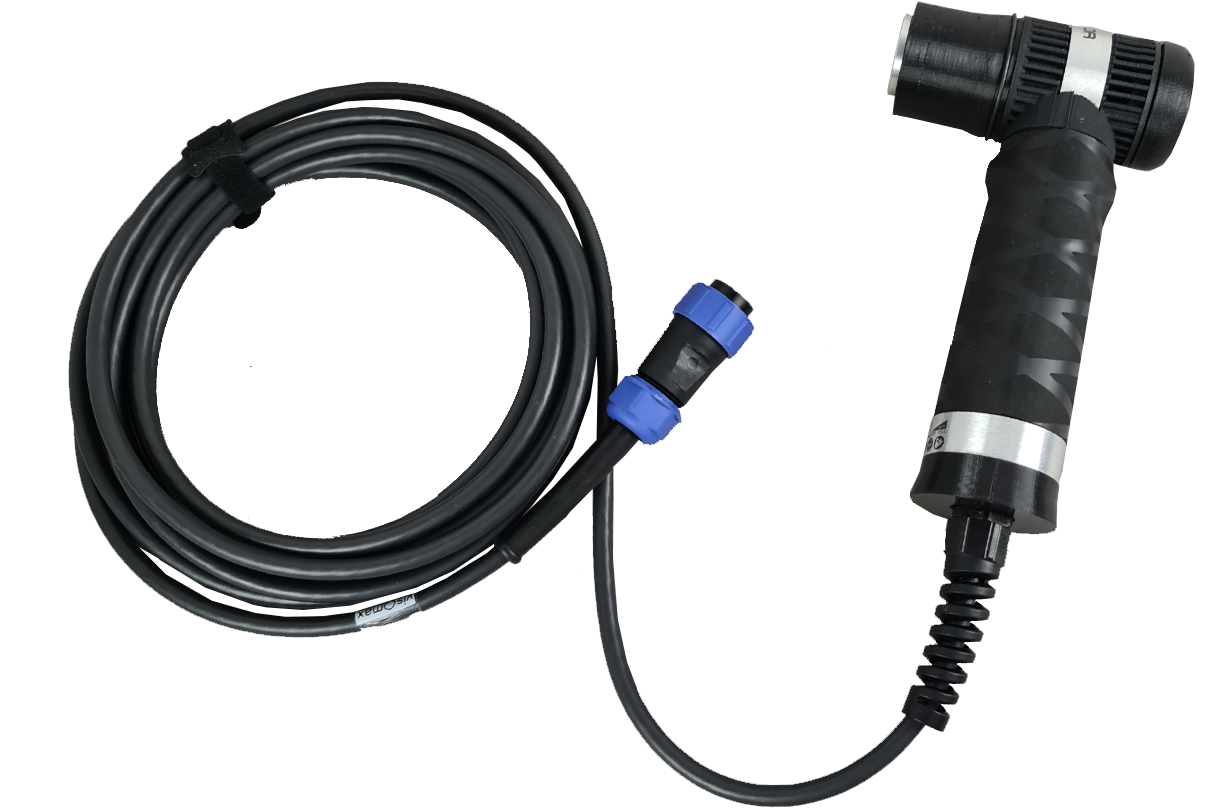

Small. Powerful. Silent. – now with cable.

Like the Cordless Series models, the new Sandinator from the PrometoolZ family impresses with its easy handling, compact design and intuitive operation.

The small, powerful and silent Sandinator of our Cordless Series is your perfect partner at the Spot Repair. Thanks to its compact design you can sand easily and perfectly overhead and at areas difficult to access. Thanks to the practical cable, you can work with a continuous power supply. Like this you are independent of the charging time of a battery and are therefore more flexible.

According to your requirements we have the right tool for you – the SandinatorCL is available with 3 mm offset vibration or 5 mm offset orbital.

Technical data ESV03

Article n° PZ850-A-30-NV-8-S

Weight 415 g

Dimensions 180 x 105 x 45 mm

Colour black/aluminium

Drive vibration

Volume55 dB(A)

Vibration1,4 Ah [m/sec²]

Offset 3 mm

Speed 5000 – 8500 rpm continuously adjustable

Voltage 24 V

Power supply 24 V

Technical data ESX05

Article n° PZ850-AE-50-NV-8-S

Weight 415 g

Dimensions 180 x 105 x 45 mm

Colour black/aluminium

Drive orbital

Volume 55 dB(A)

Vibration 3,2 Ah [m/sec²]

Offset 5 mm

Speed 5000 – 8500 rpm continuously adjustable

Voltage 24 V

Power supply 24 V

Scope of delivery

1x Tool (vibration or orbital)

1x Power supply (Art. Nr.: PZ003BS)

1x Ø 30 mm Backup-Pad medium, velcro (Art. Nr.: PZ030-532-174)

1x Ø 30 mm Backup-Pad medium, stick-on (Art. Nr.: PZ030-532-172)

1x Cable standard 5 m (Art. Nr.: PZ006-5S)

FINEST HIGH PERFORMANCE SANDING

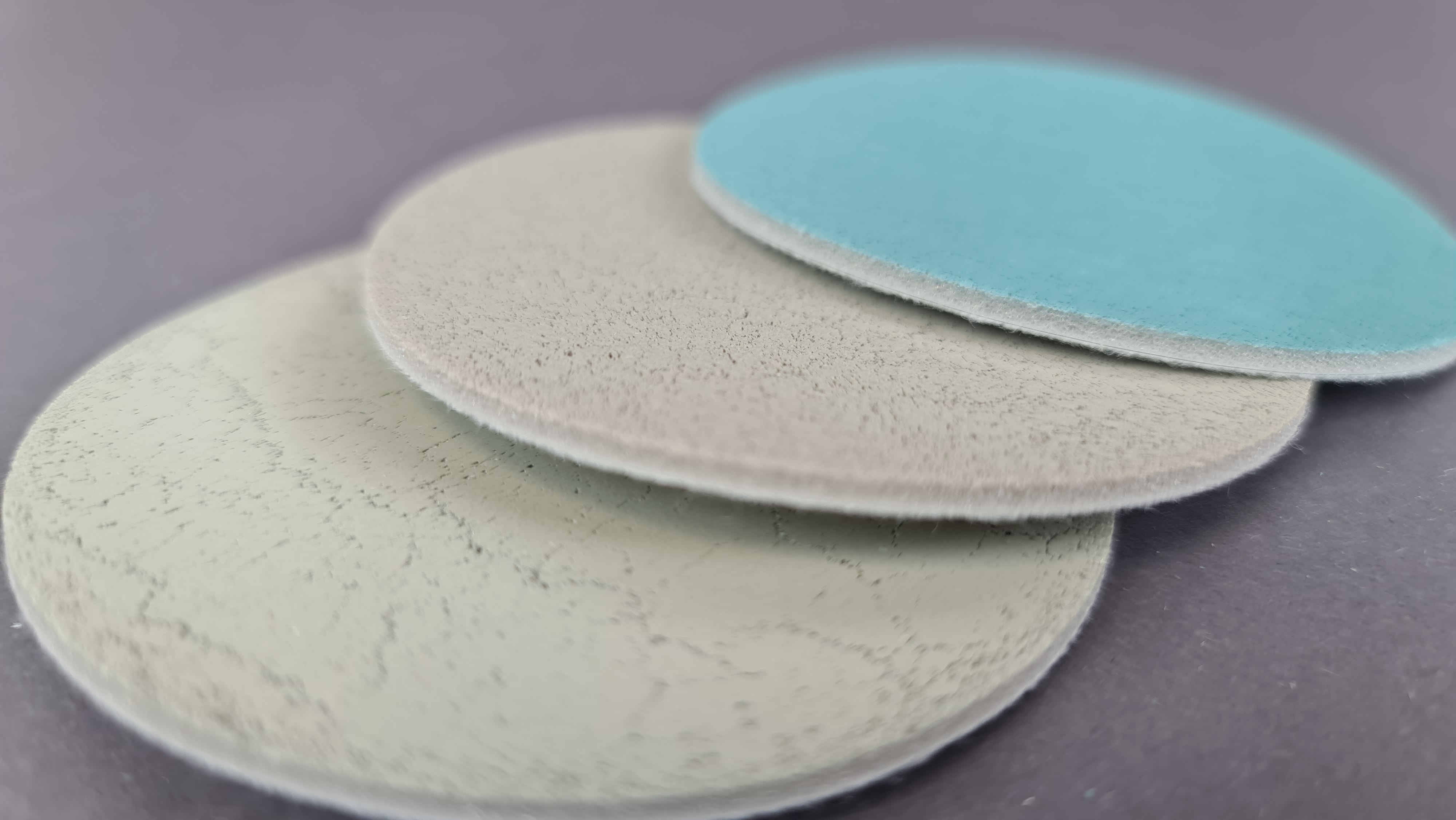

The final sanding step before polishing is one of the most important steps in entire process. It requires very fine and efficient sanding discs of the highest quality. A task for our new High Performance (HP) Soft Discs, available in the grits P3000, P4000, and P5000!

MAIN APPLICATION

The HP Soft Discs are the perfect upgrade when a pre-sanding step with the grits P1200, P1500, P2000, P2500 or P3000 was used beforehand. The HP Soft Discs refine the given sanding patterns and prepare the surface at its best for an easy polish afterwards. The existing paint structure will be even finer and visually smoother. Furthermore, the HP Soft Discs can also be used for the pre-/ and after sanding process in fade-out areas.

The product’s application is only wet and without extraction. There is no further interface-pad needed. For the optimal result we recommend the use of the Visomax Sanding Liquid AX1750.

WHY HP SOFT DISCS?

 – efficient refining of common sanding patterns
– homogeneous and consistent pattern
– easy to polish
– long life properties
– Velcro backing
– perfect match with the Visomax Sandinators

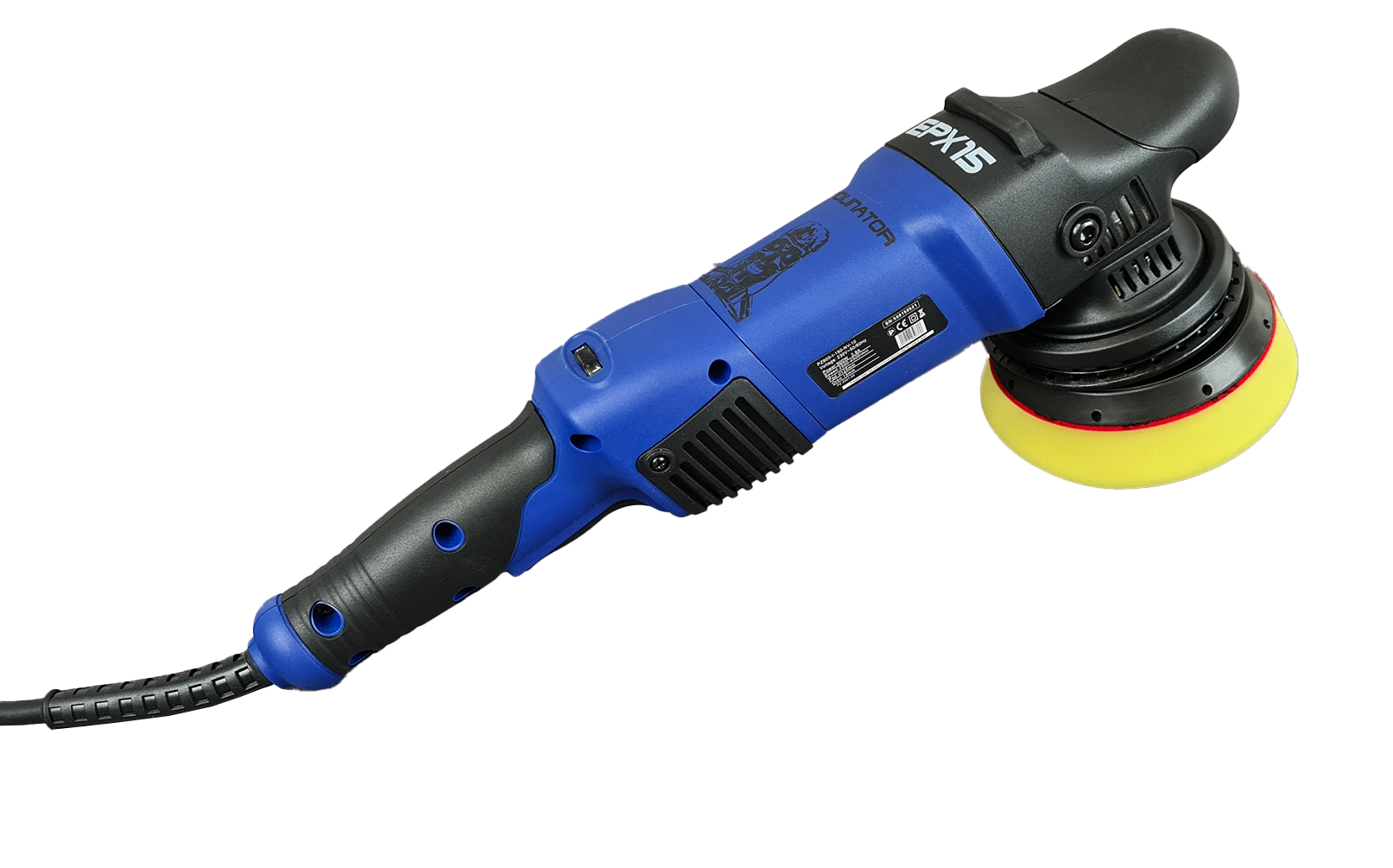

Leistungsstarker Elektro-Exzenterpolierer mit 15,0 oder

21 mm Hub.

Artikel Nr. PZ600-I-150-NV-10 15mm Hub oder

Artikel Nr. PZ600-K-210-NV-10 21 mm Hub

Technische Details

Länge 500 mm

Tiefe/Breite 80 mm

Höhe 140 mm

Gewicht 2950 g

Schutzart IP54

Backup-Pad Größe 125 mm (5‘‘)

Antrieb stufenlos, exzentrisch

Hub 15.0 mm

Leistungsaufnahme

maximal

900 W

Stromaufnahme max. 4 A

Max. Drehzahl 4800 U/min

Ausgangsspannung 220-240 V/AC

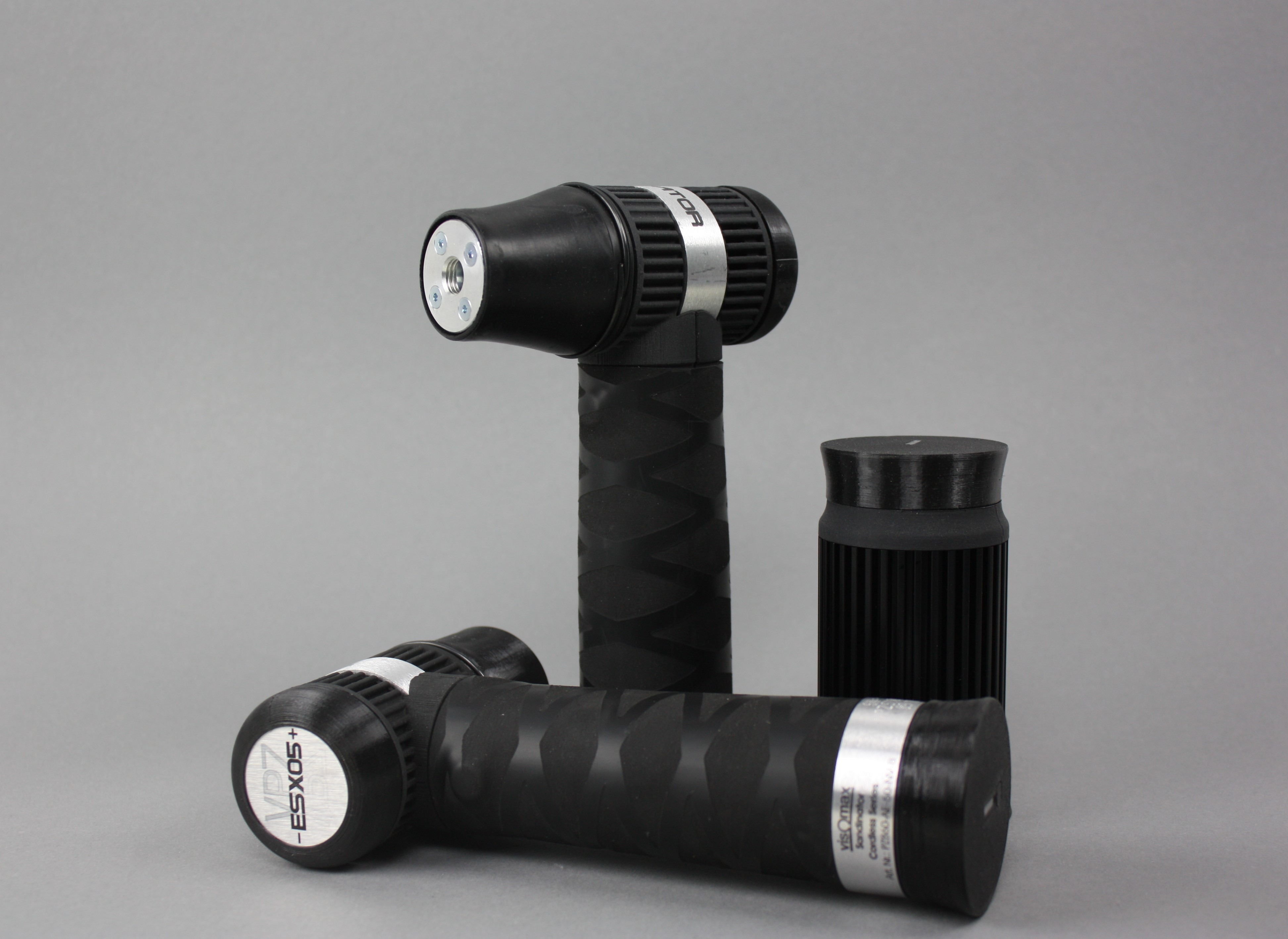

The small, powerful and silent Sandinator of our Cordless Series is your perfect partner at the Spot Repair. Thanks to its compact design you can sand easily and perfectly overhead and at areas difficult to access.

According to your requirements we have the right tool for you – the SandinatorCL is available with 3 mm offset vibration or 5 mm offset orbital.

The noble Sandinator runs with changeable lithium-ion battery. While charging them, the charging station with its Magnet Connection can be easily added to all metallic objects.

Scope of delivery

1x Tool (Vibration or Orbital)

1x Backup Pad – medium – yellow – Velcro – Ø 30 mm

1x Backup Pad – medium – yellow – stick-on – Ø 30 mm

2x Lithium-Ion Batteries1x Charging Unit with Magnet Connection

1x Power supply

1x Operating Manual
