TurboScope NG

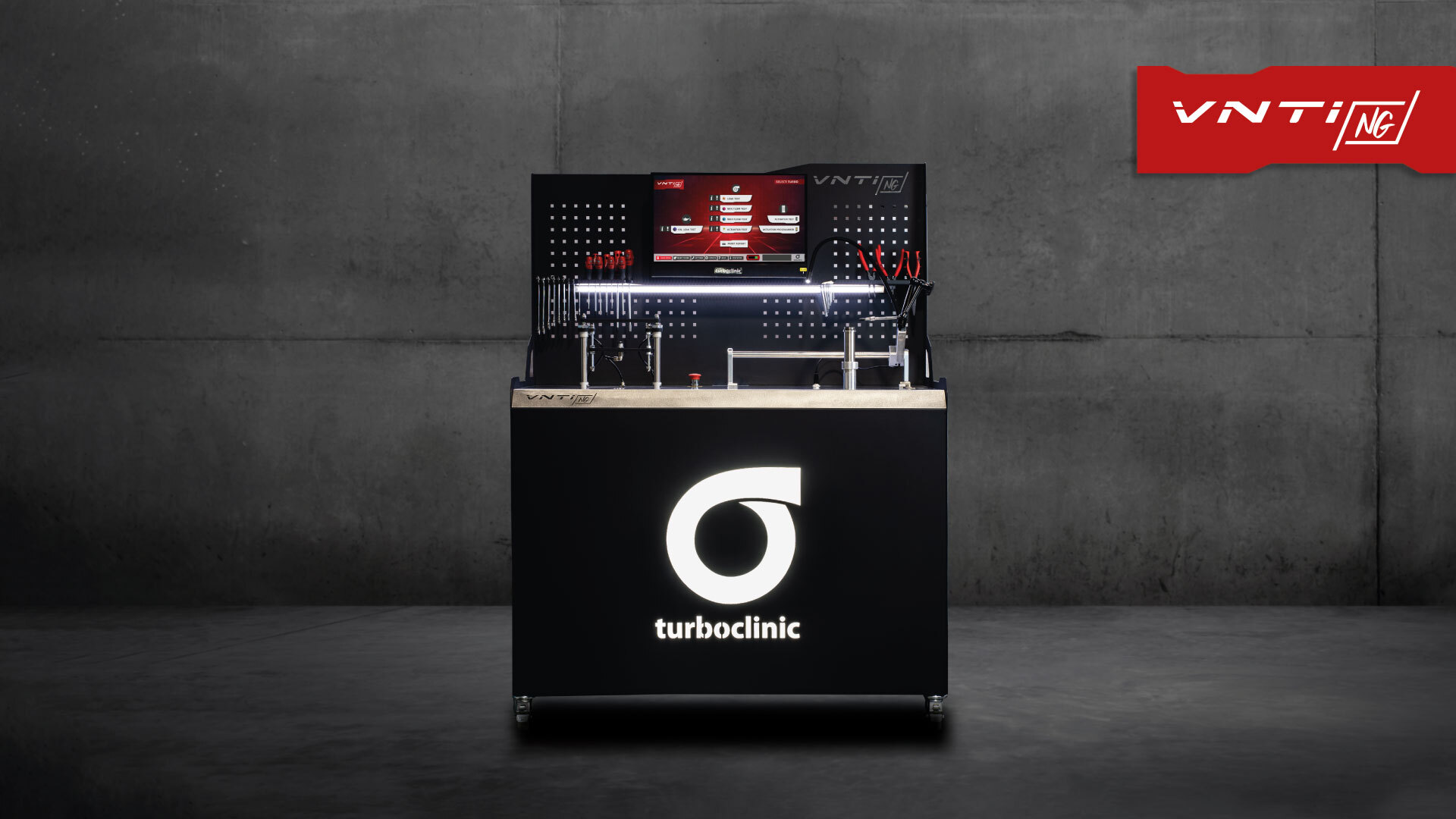

The VNTi NG is the most complete equipment on the market to adjust variable nozzles turbochargers for light vehicles with pneumatic or electronic actuators. Designed for user ergonomics and optimized for efficiency, the VNTi NG maintains all the VNTi’s functions but with great news: auto-calibration whenever the equipment starts, the introduction of a new precision module, and the integration of the new ACM. This new generation of equipment comes with greater integration with the TurboClinic 4.0 Platform, allowing remote monitoring and updating of the equipment.

• Adjustment of light vehicles’ VNT turbochargers with pneumatic and electronic actuators
• Test electronic actuators as well as the electronic position sensor of pneumatic valves
• Program electronic actuators from light vehicles
• Tests the wastegate valves (vaccum/pressure)
• Test cartridges for leaks (with Pneumatic Oil Leak Tester integrated)
• Autocalibration
• New Compressor Wheel lockout System
• 21,5’ adjustable touchscreen
• Equipped with the New ACM
• Higher precision with 2 independent working modes: Standard and Precision
• Integration with the Platform TurboClinic 4.0 (remote monitoring and update of equipment)
• Several modules are available with the Pay-per-Use option

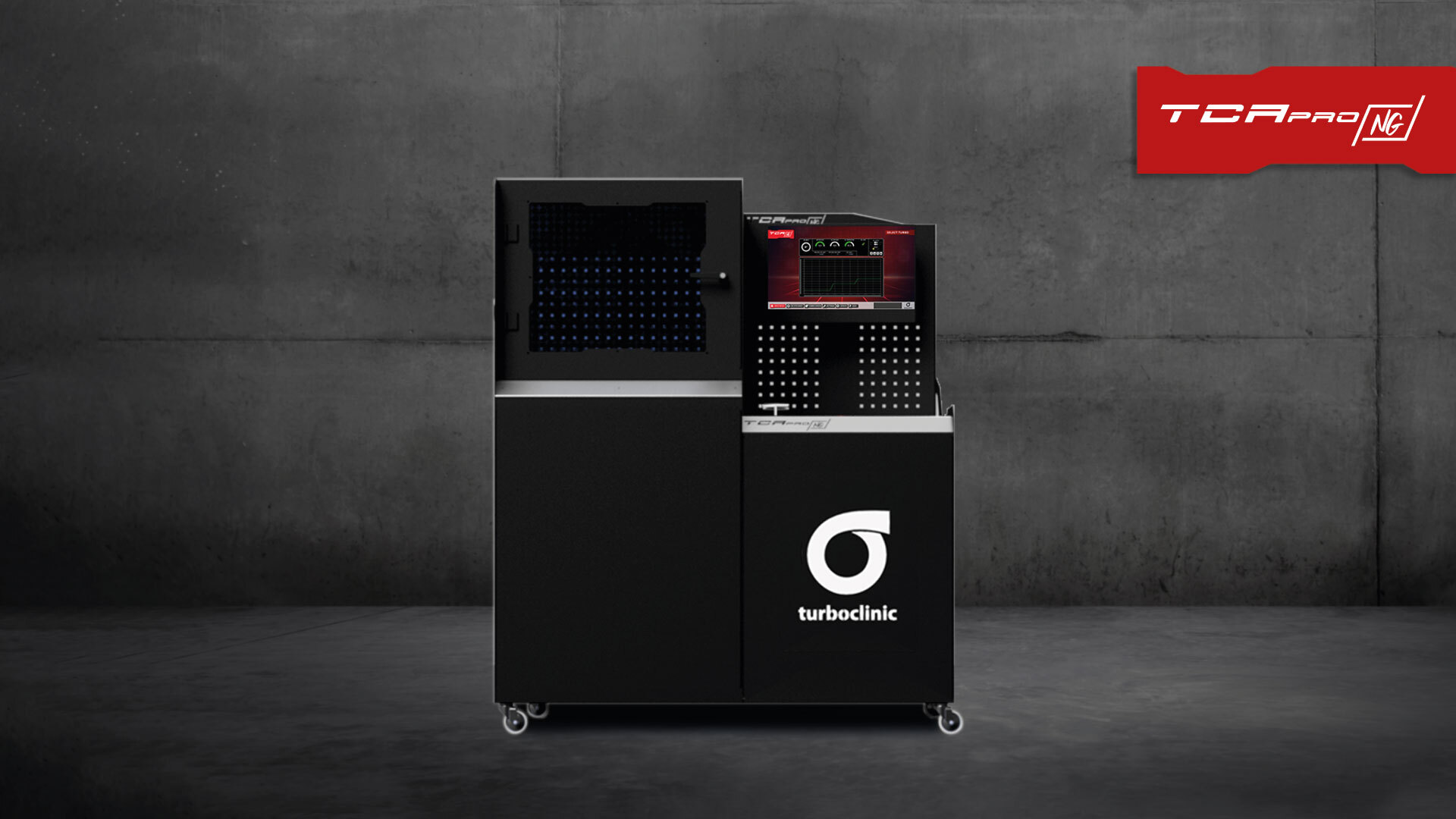

The TCA PRO NG is the first turbochargers’ balancing equipment that allows to measure the efficiency of the compressor wheel.

The TCA PRO’s innovative design was conceived regarding the user’s comfort. With a large and strong work space, the TCA PRO NG is also equipped with the innovative fixing platform that allows to balance turbochargers from light and heavy vehicles.

Using the same balancing principles and data acquisition system of the TC Workbench NG and the exclusive software developed for all TurboClinic’s balancing equipment, the TCA PRO NG is the new turbocharger balancing option on the market.

• Measure the efficiency of the compressor wheel
• New fixing platform that allows to balance turbochargers from light and heavy vehicles
• Use of the original exhaust (turbine housings) or of the Universal Exhaust Housing* for best test simulation
• Large and strong workbench
• Test speeds over 300.000 RPM
• Intuitive graphical interface

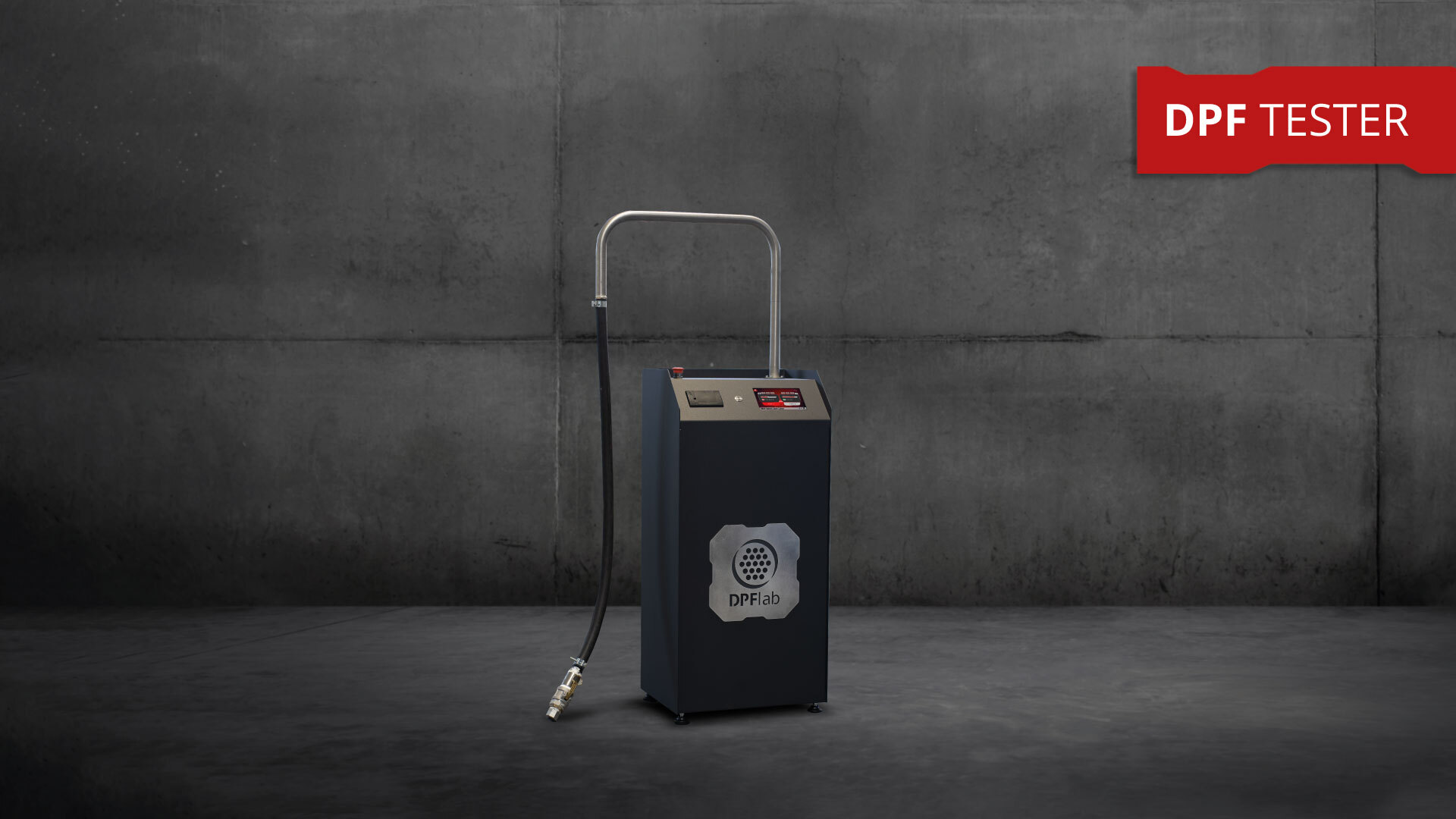

The DPF Tester allows to test the effectiveness of particle filters before and after a cleaning process.

The diagnostic results from measuring the internal pressure in the filter under an airflow similar to an operating engine. Excess internal pressure represents a clogged filter – this result is easily detected in the test report, automatically printed after the test.

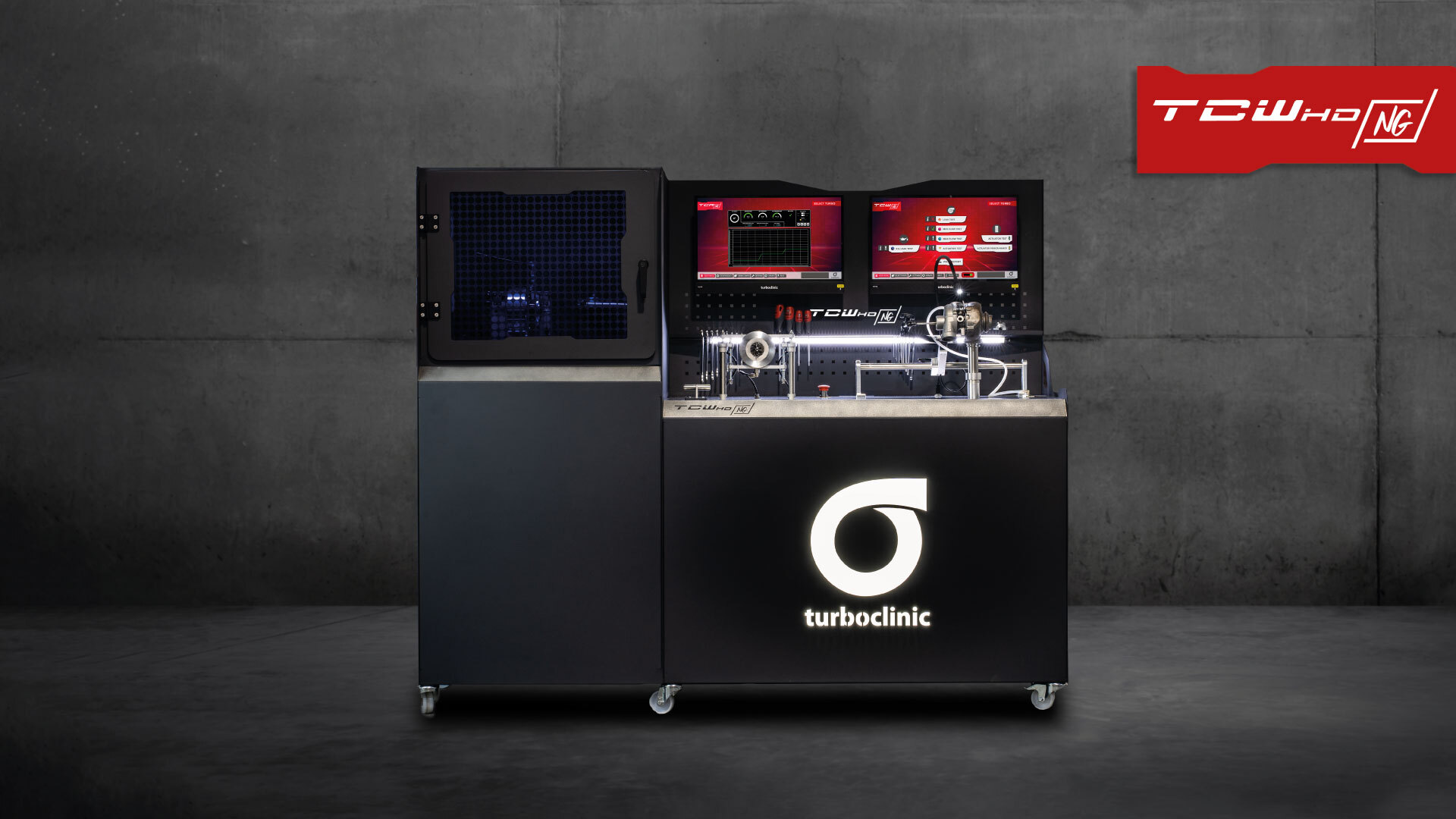

The most complete equipment on the market for repairing light and heavy turbochargers has entered into the next generation and is even more precise and efficient.

The TCWorkbench HD NGinnovates with the autocalibration function at startup, Standard Mode and Precision Mode and a more ergonomic work area with 2 adjustable touchscreens. In this new generation, the equipment can be monitored and updated remotely, there is greater integration with the Platform TurboClinic 4.0 and the possibility of adding modules according to the needs of each business.

These features join the pre-existing turbocharger balancing function, the adjustment of the geometry, test of light and heavy vehicle electronic actuators, program of light electronic actuators and the measurement of the efficiency of the compressor wheel.

• Autocalibration
• Higher precision with 2 independent working modes: Standard and Precision
• Balancing of the turbochargers from light and heavy vehicles
• Variable nozzles adjustment from light and heavy vehicles
• Tests electronic actuators from light and heavy vehicles
• Programs electronic actuators from light vehicles
• Measures the efficiency of the compressor wheel
• Equipped with the New ACM
• New Compressor Wheel lockout System;
• Tests the wastegate valves (vaccum/pressure);
• Pay-per-use options
• These Next Generation equipment offer greater integration with the TC 4.0 platform
• Equipped with 2 adjustable touchscreens, allowing two users simultaneously

The VNTi NG is the most complete equipment on the market to adjust variable nozzles turbochargers for light vehicles with pneumatic or electronic actuators. Designed for user ergonomics and optimized for efficiency, the VNTi NG maintains all the VNTi’s functions but with great news: auto-calibration whenever the equipment starts, the introduction of a new precision module, and the integration of the new ACM. This new generation of equipment comes with greater integration with the TurboClinic 4.0 Platform, allowing remote monitoring and updating of the equipment.

• Adjustment of light vehicles’ VNT turbochargers with pneumatic and electronic actuators
• Test electronic actuators as well as the electronic position sensor of pneumatic valves
• Program electronic actuators from light vehicles
• Tests the wastegate valves (vaccum/pressure)
• Test cartridges for leaks (with Pneumatic Oil Leak Tester integrated)
• Autocalibration
• New Compressor Wheel lockout System
• 21,5’ adjustable touchscreen
• Equipped with the New ACM
• Higher precision with 2 independent working modes: Standard and Precision
• Integration with the Platform TurboClinic 4.0 (remote monitoring and update of equipment)
• Several modules are available with the Pay-per-Use option

The TCA PRO NG is the first turbochargers’ balancing equipment that allows to measure the efficiency of the compressor wheel.

The TCA PRO’s innovative design was conceived regarding the user’s comfort. With a large and strong work space, the TCA PRO NG is also equipped with the innovative fixing platform that allows to balance turbochargers from light and heavy vehicles.

Using the same balancing principles and data acquisition system of the TC Workbench NG and the exclusive software developed for all TurboClinic’s balancing equipment, the TCA PRO NG is the new turbocharger balancing option on the market.

• Measure the efficiency of the compressor wheel
• New fixing platform that allows to balance turbochargers from light and heavy vehicles
• Use of the original exhaust (turbine housings) or of the Universal Exhaust Housing* for best test simulation
• Large and strong workbench
• Test speeds over 300.000 RPM
• Intuitive graphical interface

The DPF Tester allows to test the effectiveness of particle filters before and after a cleaning process.

The diagnostic results from measuring the internal pressure in the filter under an airflow similar to an operating engine. Excess internal pressure represents a clogged filter – this result is easily detected in the test report, automatically printed after the test.
