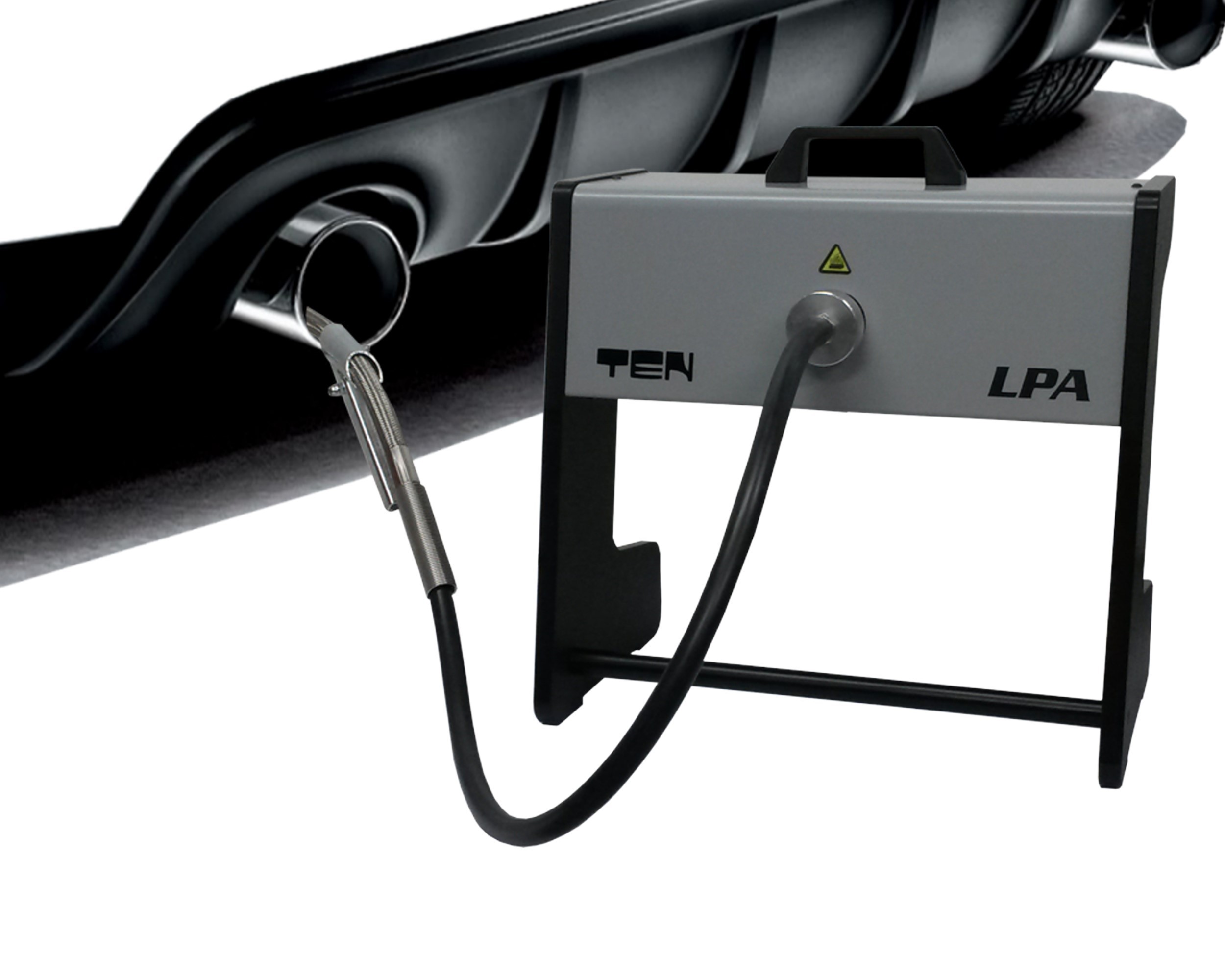

TEN Automotive Equipment presents a complete new high resolution diesel smoke meter, the TEN LPA. The European Commission requires that new diesel vehicles comply with the European EURO 5 and 6 norm to reduce smoke particulate emission in order to improve the air quality. Excisting smoke meters have a low resolution, too low to measure the very low emission levels of EURO 5 and 6 diesel vehicles.
The LPA is able to measure very low levels. Using the latest technology, the LPA is able to detect DPF malfunctioning or other engine systems failures that cause higher emissions. Modern diesel vehicles have advanced exhaust systems that possess a DOC, wall-flow DPF and SRC to reduce up to 99.9% of the harmful emissions. To detect defects in one of these components, a measuring range of 0.5 m-1 in high resolution is required. No problem for the LPA.
The TEN LPA is a partial flow smoke meter. Reliable, robust and dynamic, following each acceleration without any problem. The TEN LPA measures according to the light absorption principle. Equipped with an InGaN led, an accurate heating system to condition to smoke chamber and various sensors, the TEN LPA ensures a precise measurement. The full aluminum chamber and other A-quality components ensure a trouble free operation for passenger cars, light commercial vehicles and trucks.

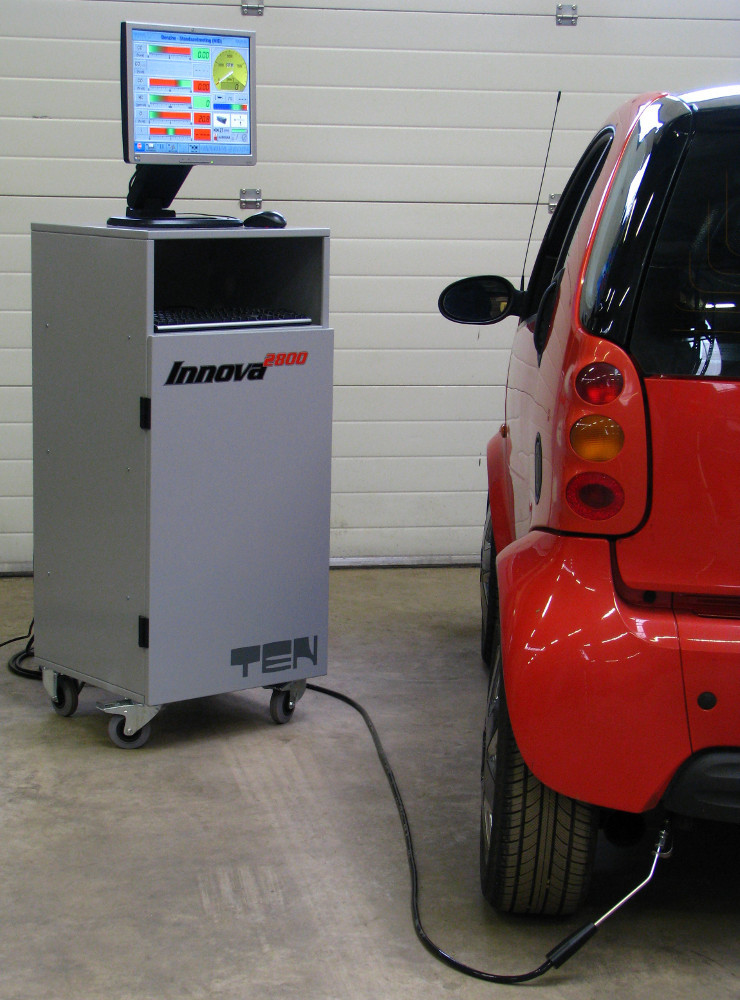

The INNOVA series is a "State of the Art" exhaust emission analyzer incorporating the latest microcontroller technology and is designed to meet the highest standards and demands for tomorrow. The fully digital infrared gas bench technology provides rapid analysis of a vehicles performance with pinpoint precision of the exhaust measurement.
The INNOVA series is equipped, as standard, with test features such as a RPM and Oil temperature sensor, for a complete comprehensive diagnosis of petrol, LPG and CNG vehicle emissions. Test results can easily be analyzed. The displays of the multigas analyzer makes it simple to operate. Taking only a few minutes of the vehicle technicians time to complete a full emission test.

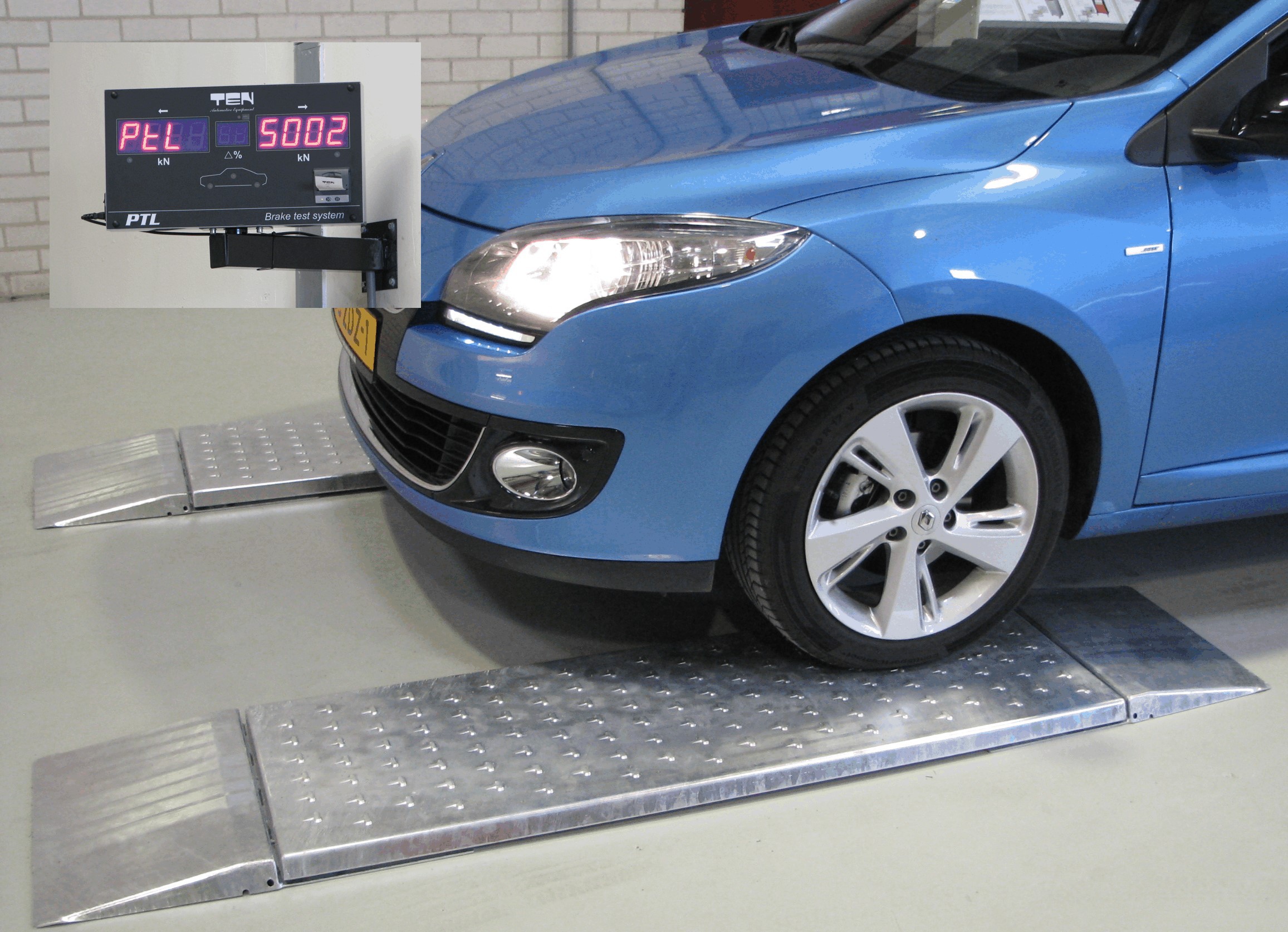

The TEN PTL platform brake tester measures the brake force dynamically and individual for each wheel. These are the only values that represent the actual situation as it occurs in reality. Every TEN PTL brake tester operates with a fully automated test sequence, the remote control is not needed for testing. After each test, it is possible to print out the results. From here, a further analysis of the brake system can be made.
The PTL console incorporates large LED displays for a clear and quick presentation of the results and, as an option, an IR remote control and thermal printer are available. The platforms are made of solid steel and fully galvanized. Due to the unique slide system of the platforms with polyamide rollers, the PTL needs a minimum of maintenance.
The TEN PTL can be supplied with two (TEN PTL 5002) or four platforms (TEN PTL 5004).
With the last software update, TEN included several new functions. The Automatic Test Sequence has been introduced. The front, rear and parking brakes are tested during 1 procedure, the brake efficiency will be calculated automatically after entering the vehicle weight. The results can be printed with the optional available integrated thermal printer. The Vehicle Weight Indication has been introduced for an optimized test performance. A special program has been implemented to test the Roll Resistance of a vehicle, brake failures can be detected in a split second. And last but not least the Automatic Transmission Detection.

During the last years TEN Automotive Equipment have developed a new concept for Mobile Test Equipment to perform the periodic test inspections of automobiles. A concept that is extremely easy to use, operating with low power consumption and a competitive price compared to other available equipment!
A mobile road test that is fully operated by one person. The test platform is placed and transported in a closed trailer with tilt able floor. Rolling out the platform and ready to operate within 15 minutes, it allows the user to test vehicles in isolated areas or with a low vehicles density.
The integrated electrical generator supplies the necessary electrical power. With help of the built in electric winch, the platform can easily be loaded out and into the trailer. During the loading the platform uses movable transport wheels. The platform with an anti-slip layer underneath, will be put directly on the ground.
Power and signal leads can be easily connected by quick couplers. All measured test data is collected by a PC executing the TEN test lane software. A full test report will show all collected test results.
An official test can start with the vehicle headlight test before entering the platform. Then the vehicle moves forwards onto the platform to the brake tester. First the front brakes are tested, secondly the rear brakes and finally the parking brake. After the brake test the vehicle will have it's emission test with the gas analyzer or the smoke meter.


TEN Automotive Equipment develops and manufactures a comprehensive range of MOT Testing Equipments for the automotive industry. As a member of the Andriessen Group the company has, within the last 40 years, experienced growth from a modest 3-man service utility into a multi-division 'high-tech' operation, exporting to a dealer network all over the world. Now, we intend to expand further afield!
TEN Automotive Equipment is based in the Netherlands, near our capital city Amsterdam and the main airport Schiphol. With a total of 29 employees, we can proudly say “Made in Holland”!
Throughout the years TEN Automotive Equipment have built on their reputation for reliability in design and quality in manufacturing of exhaust emission analyzers and MOT testing equipment. With environmental issues forever becoming more of consequence and vehicle emissions testing being mandatory in most countries, TEN Automotive Equipment have become a leading manufacturer and supplier of MOT testing equipments all over the world.
TEN Automotive Equipment continues to develop and supply MOT Testing Equipments to major car & equipment manufacturers under license, as OEM in addition to their own brand name. The current range of equipment is marked and is fully approved to MID and individual government legislative requirements in countries where vehicle Periodic Technical Inspection is mandatory. The company is ISO 9000:2015 certified and meets the highest quality standards.
We distinguish ourselves by a no nonsense attitude and short communication lines. We always think along with the client, to find solutions to overcome the challenges provided by our industry.
