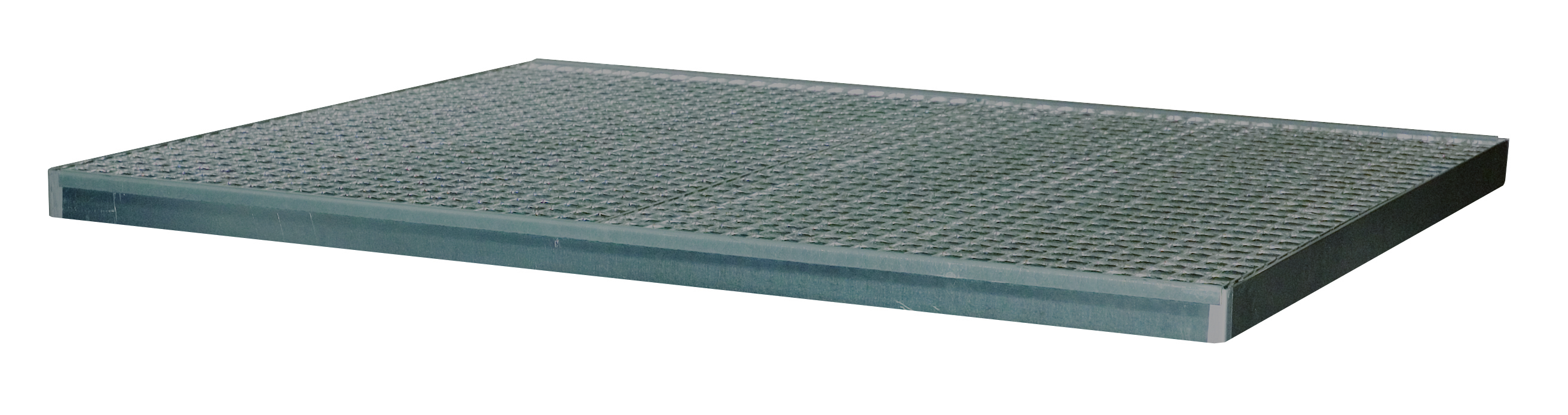

Collecting pan with grid and without feet, galvanized. For all mobile oil- and grease dispenser machines in idle state, in order to comply with regulations according to Water Resources Act (WHG).

• Ideal for the storage of ÖAM models in idle period
• capacity of pan 270 ltr
• Load max. 2t wheel pressure on load area 200 x 200 mm
• Dim. approx. 2840 x 1340 x 82 mm (L x W x H)

• Autom. hose reel cast aluminum drum with swivelling outlet stirrup
• Multiple detent per round
• lncl. special flex hose DN 10 and stopper
• pressure max. 15 bar / 20°C
• Incl. Rapid SCS - Controlled reeling . SCS is a registered trade mark with an intelligent safety system for spring operated automatic hose reels. The system limits the retraction speed to an unhazardous extent and prevents the hose to roll up accidentally uncontrolled and so, avoids damages and injuries.

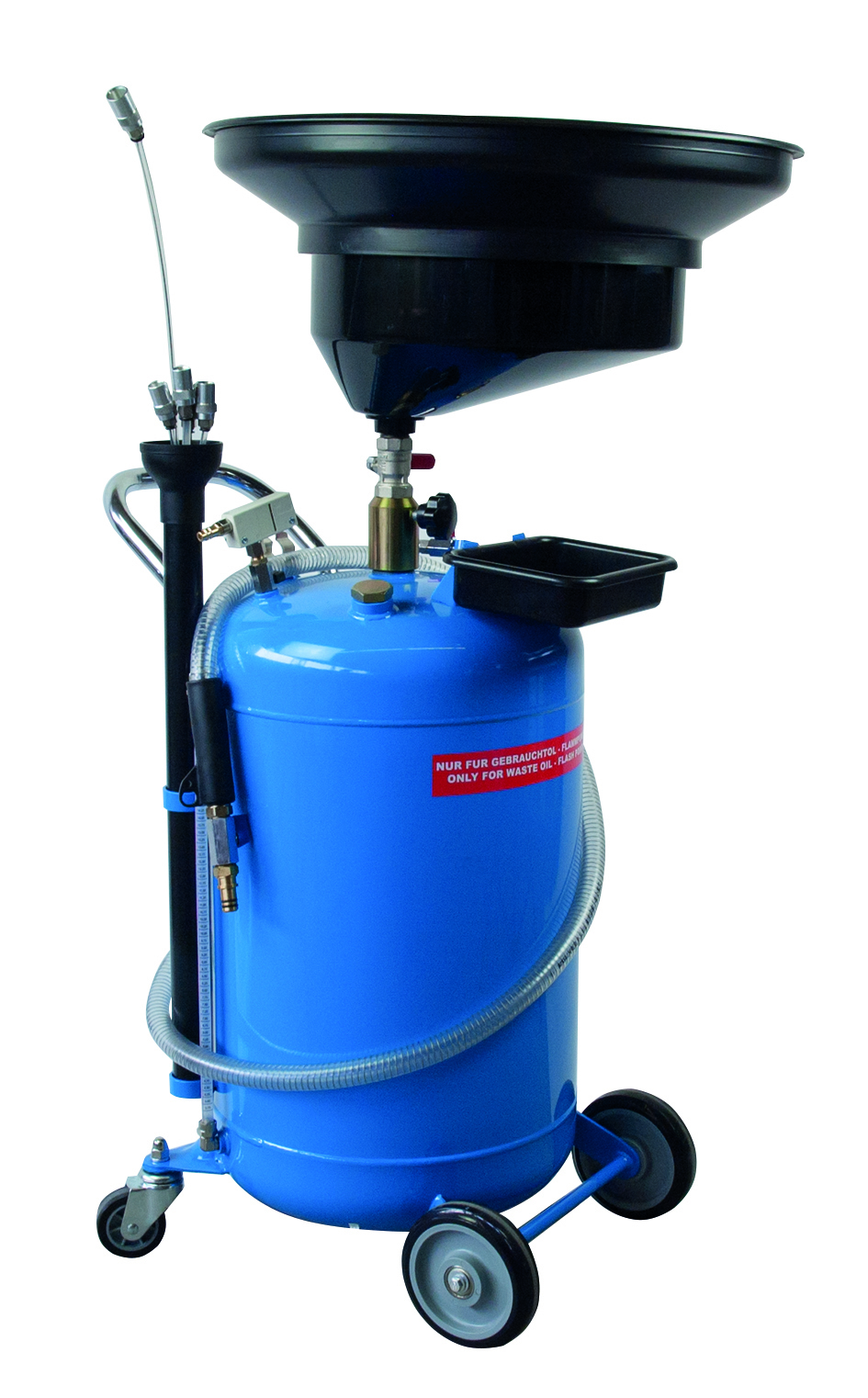

These containers are suitable for waste oil collection (GF AIII VbF) from machines and vehicles. Emptying by a principle of vakuum. Volume 80 ltr. Suction speed: Approx. 3 ltr./min, at a oil temperature of 80 °C. Emptying: with compressed air. Multi purpose unit for suction and collection of waste oil:

• Vertically adjustable rubber grip handle
• 4 rollers, 2 of them steering rollers
• Emptying by compressed air
• Incl. suction probe type SO-kit
• collecting waste oil below carlifts
• Incl. funnel Ø 600 mm
• Vertically adjustable 1200 - 1600 mm
• Dim. approx. 600 x 600 x 1200 mm (LxWxH), 35 kg

This special dispenser set is designed to optimise your oil supply. It is ready to use and can be employed nearly everywhere. The carrying unit can be fitted with electrical or pneumatic pumps.
1 to 6 different kind of oils can be dispensed via oil bar. Drain pan confirming VAWS is included.

Specification of Model GTK 60/6-P:

• 1 x carrier unit type W 11 T for 6 x 60 ltr. barrels and
• 6 x pneum. pumps type OP 90D30/1, incl. suction
• 2 x oil bar with 6 spigots totally
• 1 x drain pan type W 11
• Dim. 1800 x 800 x 1755 mm ( L xW x H)

• Extremly short body for working tight Spots
• Durable and powerful TWIN-HAMMER impact mechanism
• One band operated in orderto control running direction and torque.
• 3 stages in forward and reverse
• Vibration reduced cushion grip, airexhaustthrough handle
• Max.Torque: 1.485 Nm / Nut busting torque: 2.215 Nm

Speed (min-1)
5.500

Square Drive (Zoll)
3/4“

Working Torque (Nm)
200 - 900

Max. Torque (Nm)
1.485

Length (mm)
159

Weight (kg)
2,9

Air Consumption (l/s)
2,0

Air Inlet (Zoll)
BSP 1/4"

Vibration (m/s2)
4,2

Sound Pressure (dB (A))
83,0
