The PicoDiagnostics NVH kits from Pico Technology are the cost-effective answer to the many NVH problems facing technicians today. The software provides a real-time diagnosis to the technician, in the form of either: a bar graph, a frequency chart, a 3D frequency chart, RPM order, road speed view or a time domain view. The ability to start the recording before a road test and playback and analyze the recording back in the workshop, ensures that the driver's attention remains on the road. Saving the recordings couldn’t be easier: Much like our other automotive software, you can simply save the file to your laptop’s hard drive.

The PicoDiagnostics NVH kits make use of the PicoScope Automotive oscilloscopes and are available in a number of configurations to suit your needs. You can be sure that your investment in the PicoDiagnostics NVH kit will benefit your business without the need for further spending. If you already have a PicoScope Automotive oscilloscope, you’re halfway there.

Typical uses

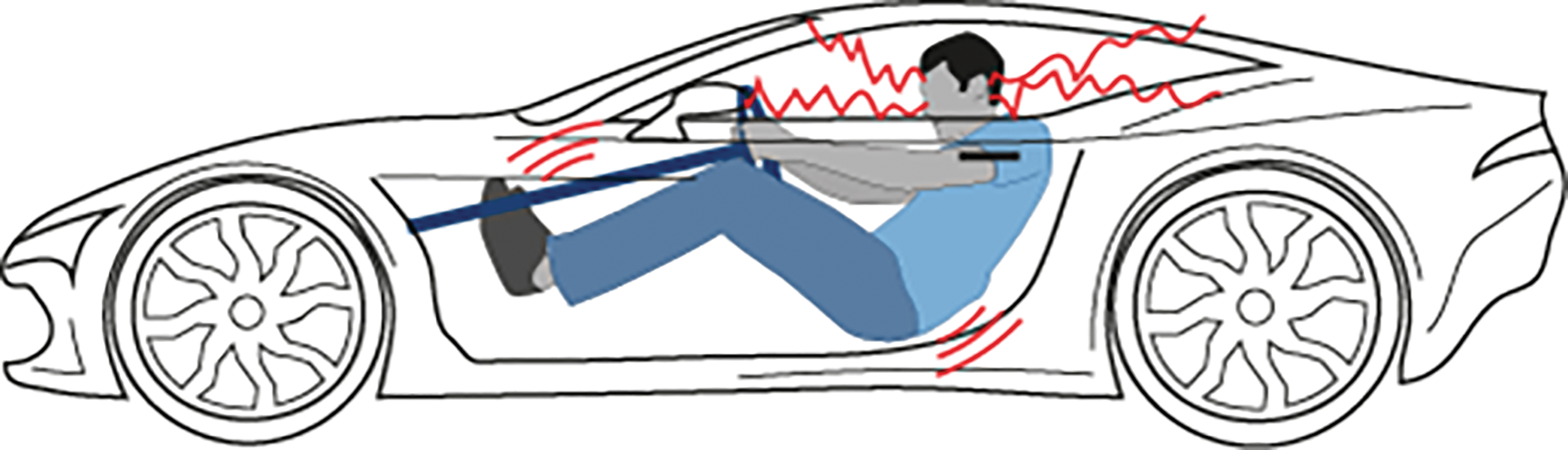

Customer complaints surrounding noise/vibration are subjective at best and present technicians with a challenge even before they can begin diagnosing and rectifying. By applying an NVH kit to the vehicle, the technician has the ability to road-test the vehicle with the customer to obtain all vibration and noise levels. Once this valuable data has been collected, it can be analyzed and compared to previous captures or against donor vehicles. Often what is perceived by the customer to be a “problem vibration” could, in fact, be a characteristic. Now you can present and compare objective data with test results from donor vehicles to reassure your customer that everything is normal. Alternatively, comparing data may highlight a problem with the vehicle and the measurements taken can give the technician the information needed to confidently proceed with a repair. Below are just a few of the typical scenarios where an NVH kit can save you time and money:

• Cabin vibrations at speed
• Engine vibrations throughout the entire RPM range
• Clutch judder or vibration
• Transmission and bearing whine
• Auxiliary drive noise
• Brake judder
• Steering vibrations

BNC+ Optical balancing kit (PQ316)

The purchase of our BNC+ Optical Balancing kit allows on-vehicle balancing in order to rectify first order shaft vibrations. Included as part of our PicoDiagnostics software, the Propshaft balancing test provides clear advice and guides you through analysis and test procedures:

• Support for pinion flange, single weight, and hose clamp balancing weights
• Step-by-step procedures with help and graphical displays

Workshops, aftersales networks, and technicians must be sufficiently trained and equipped to repair Battery Electric Vehicles (BEVs), Hybrid vehicles, and Internal Combustion Engine (ICE) vehicles. BEVs bring with them new technologies and therefore new measurement and diagnostic challenges. They also bring new hazards into the workshop and the associated risks must be properly handled. With its PicoScope 4425A EV Kit, Pico Technology offers technicians and workshops an all-in-one solution to many of these new problems, as well as covering ICE and Hybrid systems.

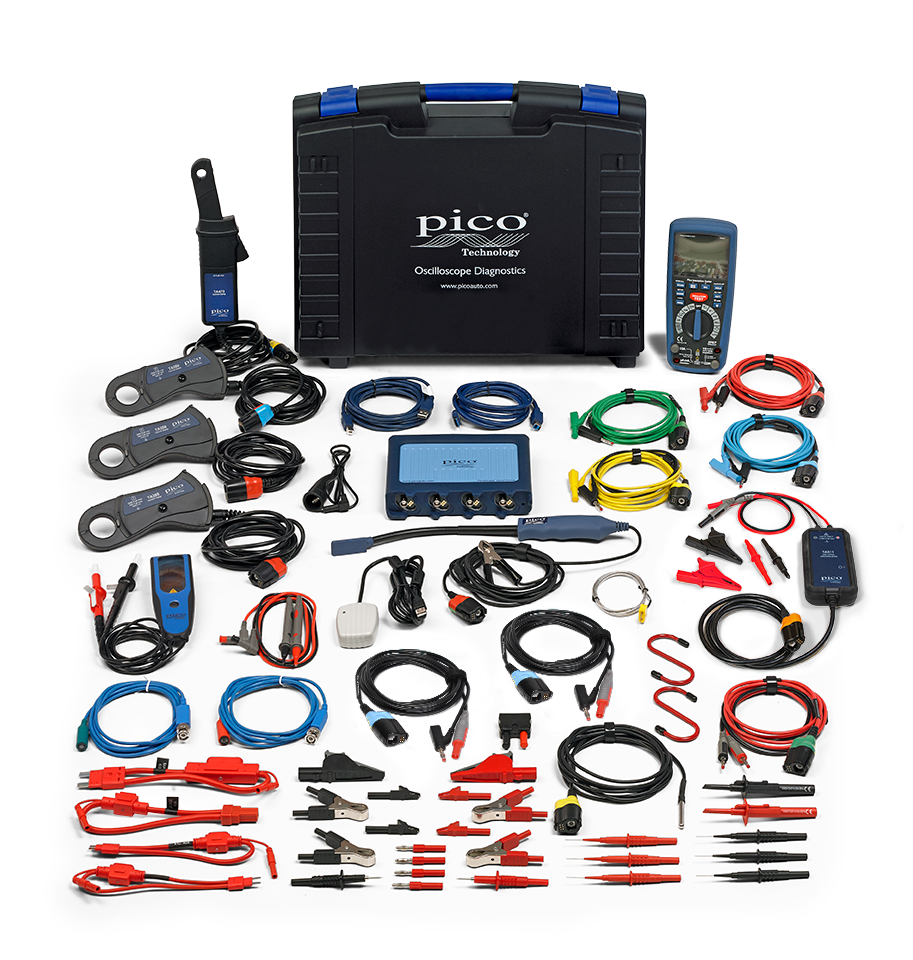

The PicoScope 4425A EV kit provides comprehensive diagnostics capability for all types of EV (BEV, MHEV, PHEV, Fuel-cell), and ICE (Diesel, Gasoline, LPG). In combination with the extensive range of Pico accessories, the 4425A covers engines/motors, sensors, actuators, communications buses, noise vibration & harshness (NVH), and basic measurements in a user-friendly system that includes extensive guidance for the technicians. The PicoScope 4425A EV Diagnostics Kit contains all the test equipment required to ensure safety during work on an EV and to investigate any faults that are likely to cause safety issues.

This kit has been designed to provide the essential measurement tools you need for both high- and low-voltage systems, including insulation testing and safety testing. It is based on the market-leading PicoScope 4425A with PicoBNC+® technology and is supported by special EV-guided tests in the PicoScope 7 Automotive software.

What’s included in the Kit?

• PicoScope 4425A with PicoBNC+
• 3 x PicoBNC+ 2000A current clamps
• 4 x PicoBNC+ Premium test leads
• PicoBNC+ 1400V Differential Probe
• PicoBNC+ x10 scope probe
• PicoBNC+ Resistance lead
• PicoBNC+ COP probe
• PicoBNC+ 60 A clamp
• Pico Insulation tester with PC link
• Pico Two-pole voltage tester for 0 V potential

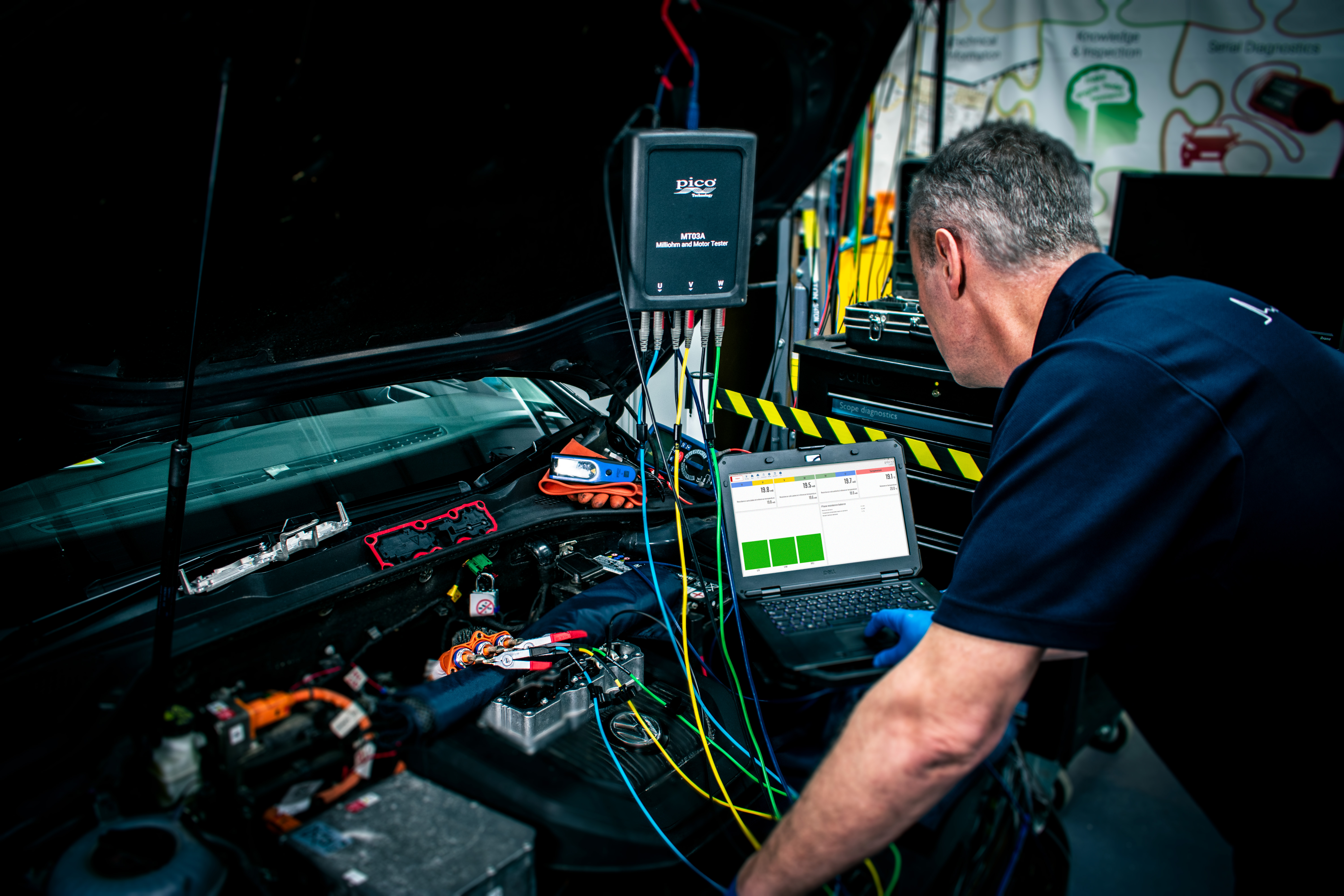

MT03A Milliohm and Motor Tester kit

A complete 3-phase motor winding resistance test in less than one minute!

The MT03A Milliohm & Motor Tester is a revolutionary device capable of changing the way low-resistance testing is performed. The MT03A offers resistance testing of all windings on a 3-phase motor in under a minute, producing highly accurate results that can automatically compensate for temperature using the included sensor.

Designed to meet the needs of technicians and engineers in a wide range of industries, including automotive, off-highway, heavy-duty, industrial, marine, rail, mining, heavy equipment, access machines, and renewable energy, the MT03A is the ultimate low-resistance testing tool. With its earth-bond testing in compliance with UN ECE R100 regulations and a minimum test current of 200 mA, the MT03A has widespread applications, including fuel pumps, air-conditioning motors, regeneration pumps, blower motors, camshaft controls, EGR valves, turbo actuators, and more.

This innovative device is also perfect for checking grounds to ECUs, earth straps, starter motor cables, safety grounds, weld contact quality, and earth bond testing. The MT03A features USB connectivity for easy integration with a PC, without needing any external power supply, and comes encased in a durable rubber boot with a hanging bracket for ease of use, while the included S-hook allows for effortless mounting.

The dedicated Windows software application provides a clear user interface that provides simplicity, speed, and complete control over the tester. The highly accurate milliohm values can be automatically temperature-compensated, and the MT03A ensures precision and reliability even in varying temperature conditions. The Kelvin clips are also included to minimize contact resistance effects when connecting the measurement unit to the component under test.

PicoScope is a powerful automotive diagnostic tool that gives detailed insights into your vehicle’s systems. It’s user-friendly, with advanced features like waveform comparison, easy data sharing, and non-invasive testing, ensuring you can diagnose issues accurately and efficiently. Whether you’re a seasoned technician or just starting, PicoScope helps you get to the root of problems faster and more reliably.

While a scan tool reads error codes and monitors sensor data, it often misses the root cause of issues, especially intermittent faults or rapid events. A PicoScope provides precise, real-time waveform analysis, allowing technicians to observe electrical signals and component behaviors closely. This helps diagnose complex issues like voltage drops, signal interference, and faulty components. Using both tools together ensures thorough diagnostics, leading to more accurate repairs and reduced diagnostic time.

Oscilloscope testing is non-invasive, allowing for detailed signal analysis without disturbing the system, ensuring accurate and safe diagnostics. Whether you want to check your vehicle's electrical or fuel circuits, suspension and drivetrain, communication systems, or engine/motor, a PicoScope acts like an X-Ray machine allowing you to see and capture changing signals as they happen.

A PicoScope can help you increase first-time fix rates, shorten fault resolution times, and greatly improve your customer satisfaction. PicoScope is trusted by the automotive industry, and used by over 30 major vehicle manufacturers.

To fit with the varied and changing experience levels within a global aftersales network, PicoScope is user-friendly for all skill levels with intuitive easy-to-navigate menus and controls, built-in step-by-step guided tests that set up your scope, and smart probes that configure your software for you. No other scope helps you get started like a PicoScope.

PicoScope includes a market-leading, waveform library with over 10,000 reference waveforms to compare with your captures, helping you quickly determine if there’s a fault in your vehicle

PicoScope makes collaboration easy by letting you directly share and tag waveforms within its library, print them for reports, and export them as images or data files. This flexibility makes it the perfect tool for workshops, teams, and communities.

In addition to giving a rapid return on your investment, PicoScope also continues to improve after the initial purchase with free software updates for the life of your product.

Pico Technology has heavily invested in extensive training materials and content to help PicoScope users start and grow throughout their oscilloscope diagnostic career. The knowledge base includes application notes, case studies, and many videos showing you how to get the most out of your PicoScope. The PicoScope user community is unrivaled. As the de-facto diagnostic oscilloscope, PicoScope users can benefit from the countless support and collaboration opportunities provided by access to the numerous available social and industry forums and communities.

PicoScope gives long-term value due to the advanced diagnostics for Electric Vehicle systems, built-in support for the latest vehicle communication systems (like CAN-FD, CAN-XL, and 10BASE-T1S), and ongoing feature updates.

Fix it right first time with PicoScope

PicoScope products are designed to save you, and your customers, money by improving both the accuracy and efficiency of fault diagnosis. PicoScope complements serial diagnostics as an essential part of improving customer satisfaction. Using PicoScope to verify problems and repairs ensures that you fix it right first time, reducing warranty claims.

With built-in help and preconfigured Guided Tests, PicoScope is easy to use and a seamless part of your diagnostic process. PicoScope shows your technicians what is actually happening, building improved understanding and diagnostic skills.

PC-based PicoScope allows your technical hotline to instantly investigate any vehicle that comes in for repair or service. Combined with the serial decoding features, complex CAN problems can be diagnosed on any car in the field by HQ staff using PicoScope, improving your responsiveness, accuracy and efficiency.

PicoScope covers electrical and electronic systems, and can also reveal mechanical problems, and measure fluid pressures and temperatures. We also provide a market-leading Noise, Vibration & Harshness solution for service technicians to reduce warranty and resolve customer complaints in this area.

Custom software for manufacturers

PicoScope offers a range of customizations to ensure that you have the most appropriate solution for your network. Corporate colors and branding, kit contents, special interfaces to protect legacy investment and combined test solutions including third-party accessories and equipment are all part of the service from Pico.

We have the in-house engineering capability to handle system integration, and PicoScopes are included as part of complete diagnostic systems.

Aftersales support

Our commitment to you doesn’t end with the design and deployment of your customized diagnostic kit: we will provide full aftersales support to ensure you get the maximum benefit from your Pico automotive diagnostic solution. Our standard 2-year warranty can be extended to fit your program, and we already work with a range of VM distribution and support partners worldwide.

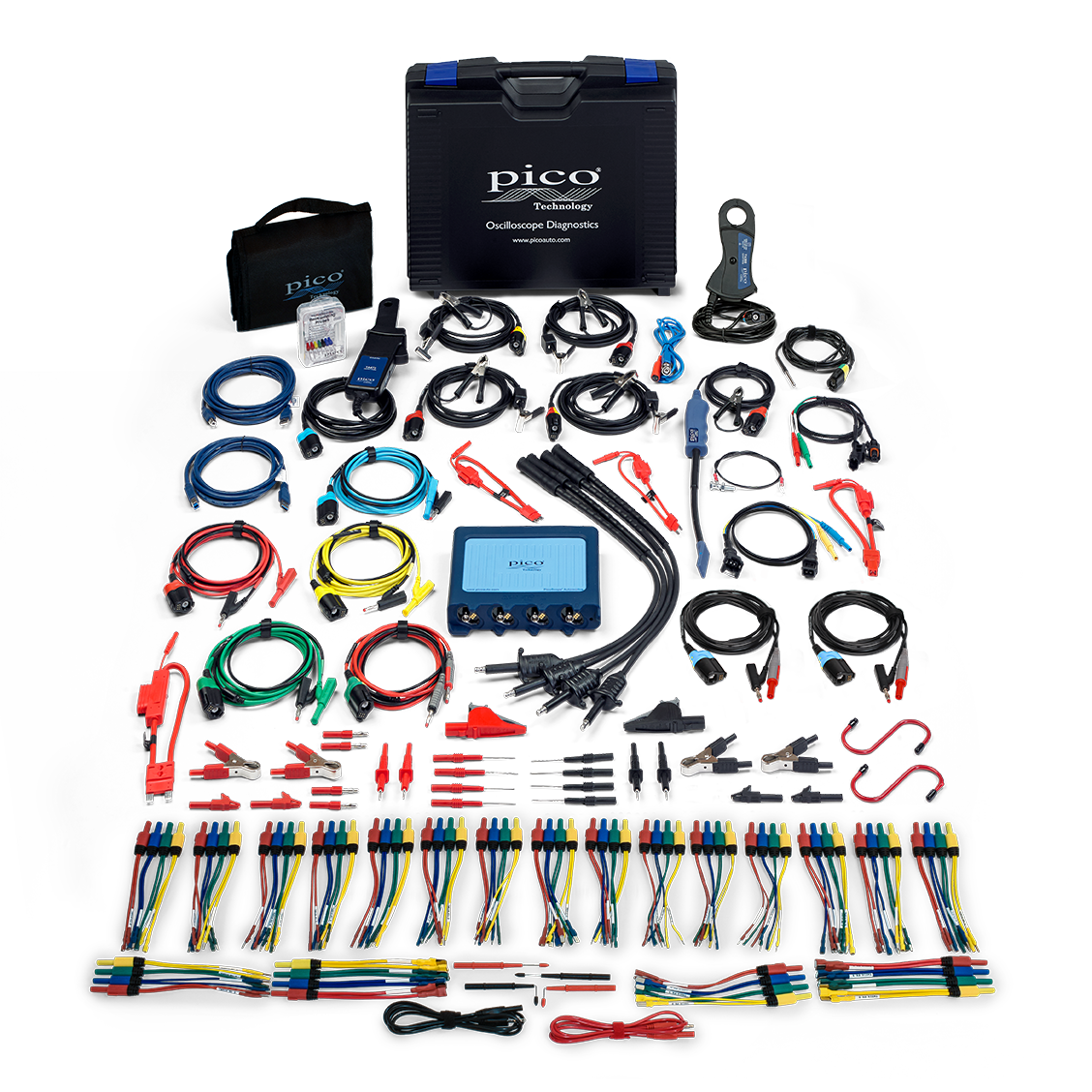

Automotive oscilloscope kits

For any engineers working on the design of electronic systems, one of the standard automotive oscilloscope kits is ideal. These kits can be expanded to measure NVH, perform shaft balancing or test pressure. As standard, they can decode the following serial protocols:

• CAN bus
• LIN bus
• FlexRay
• SENT
• 10Base-T1S

There are obvious advantages to using the same tools to help develop vehicles as the dealer network uses to diagnose and repair. Many vehicle manufacturers have taken advantage of this and especially in the early days of a new model's introduction the ability to send waveforms and data back from the field has proved invaluable.

More information on Automotive Oscilloscope kits >>

Full range of PicoScope oscilloscopes

As well as automotive oscilloscopes, Pico manufactures a wide range of PC oscilloscopes to suit the most demanding applications. These are less suited for general diagnostic work and more to specialist R&D. Models are available with the following characteristics:

• Bandwidths up to 30 GHz for RF measurements
• TDR / TDT options for connector & loom characterization
• Optical inputs
• Resolutions to 16 bits for audio and NVH testing
• Memory depths to 2 GS for long captures at high speeds
• Up to 8 analog channels and 16 digital channels

Hydraulic and mechanical issues

PicoScope is not just for diagnosis of electrical signals; hydraulic, mechanical, vibration, noise, timing, battery, charging and starting problems are all covered by our comprehensive range of hardware and software solutions. From ensuring the synchronization of hydraulic clutch shifts to valve and PTO checks, and interface with flow meters, PicoScope forms the heart of an integrated diagnostic solution suitable for use in the field.

More information on our Hydraulic pressure kits >>

Noise, vibration and harshness

The PicoDiagnostics NVH Kit from Pico Technology is the cost-effective answer to the many NVH problems facing technicians today. It provides real-time diagnosis to the technician in the form of a simple bar graph, frequency chart, 3D frequency chart, RPM order or road speed view. The ability to start the recording before a road test, and play back the recording for analysis on your return, ensures that driver attention remains on the road. Saving the recordings couldn’t be simpler: much like our other automotive software you simply save the file to your laptop’s hard drive. With a host of advanced features, comprehensive testing is translated into information and guidance designed for service technicians.

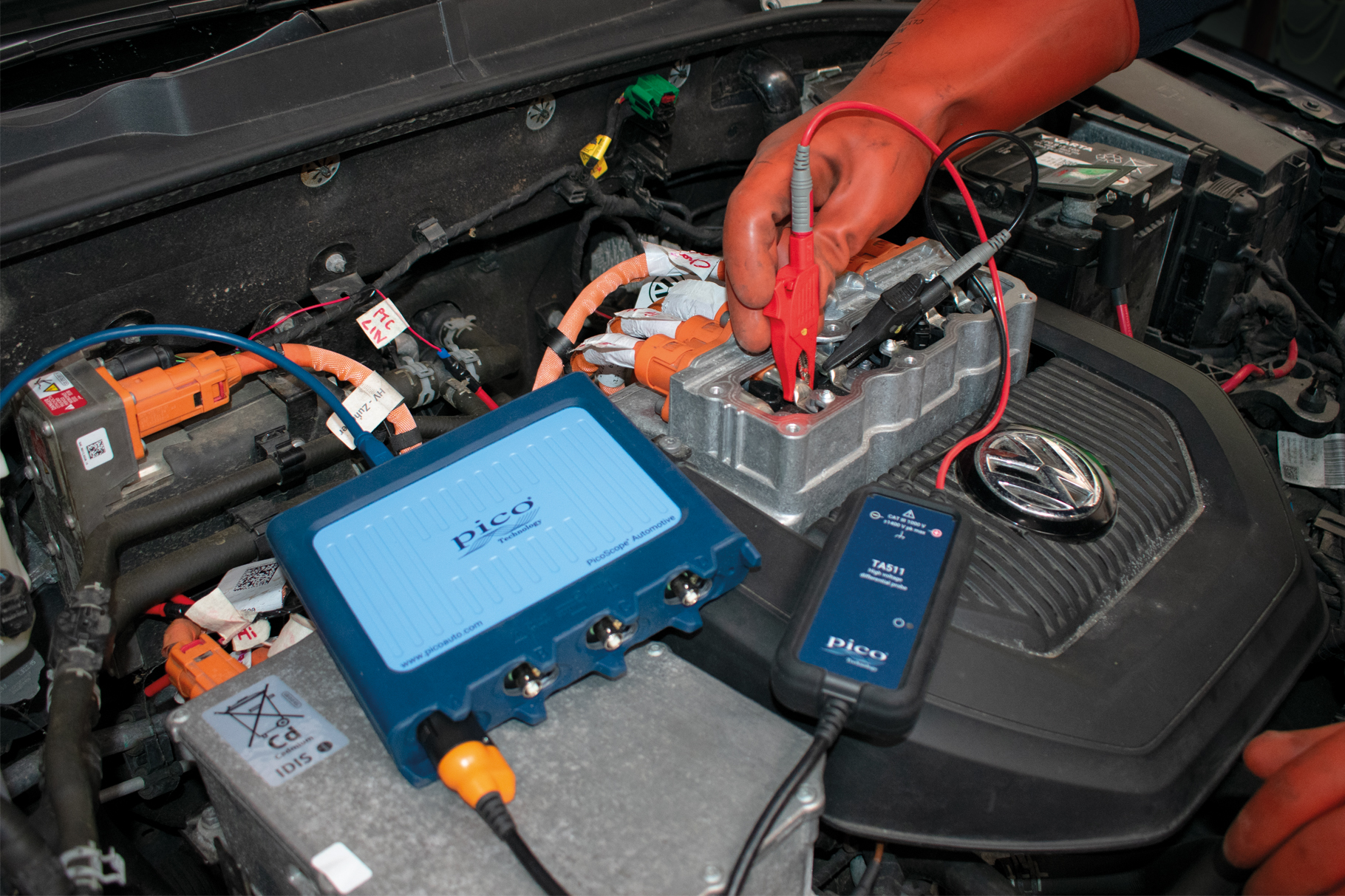

High-voltage testing

If you are mainly working on Internal Combustion and Hybrid systems, then the PicoScope 4425A is the ideal choice for you. This can be combined with one of our isolated, differential probes for those times when you need to test higher voltage systems.

If you are a vehicle manufacturer and are looking for a custom test solution then please contact us directly as we are not offering those systems for the general market.
