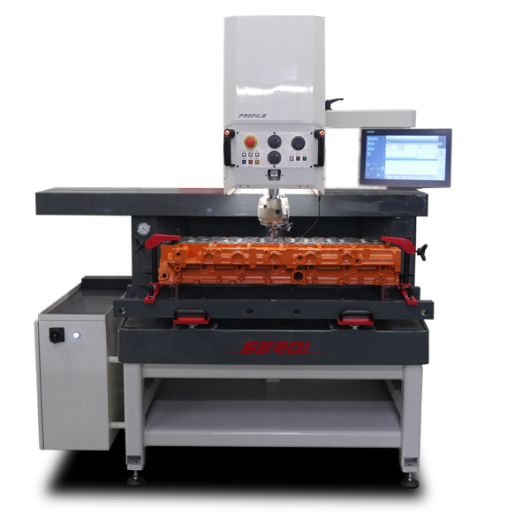

SERDI PROFILE LARGE

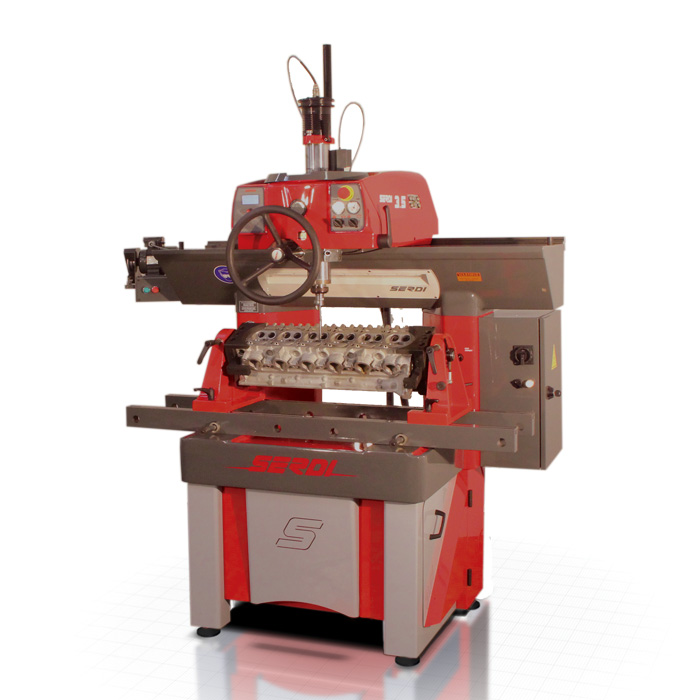

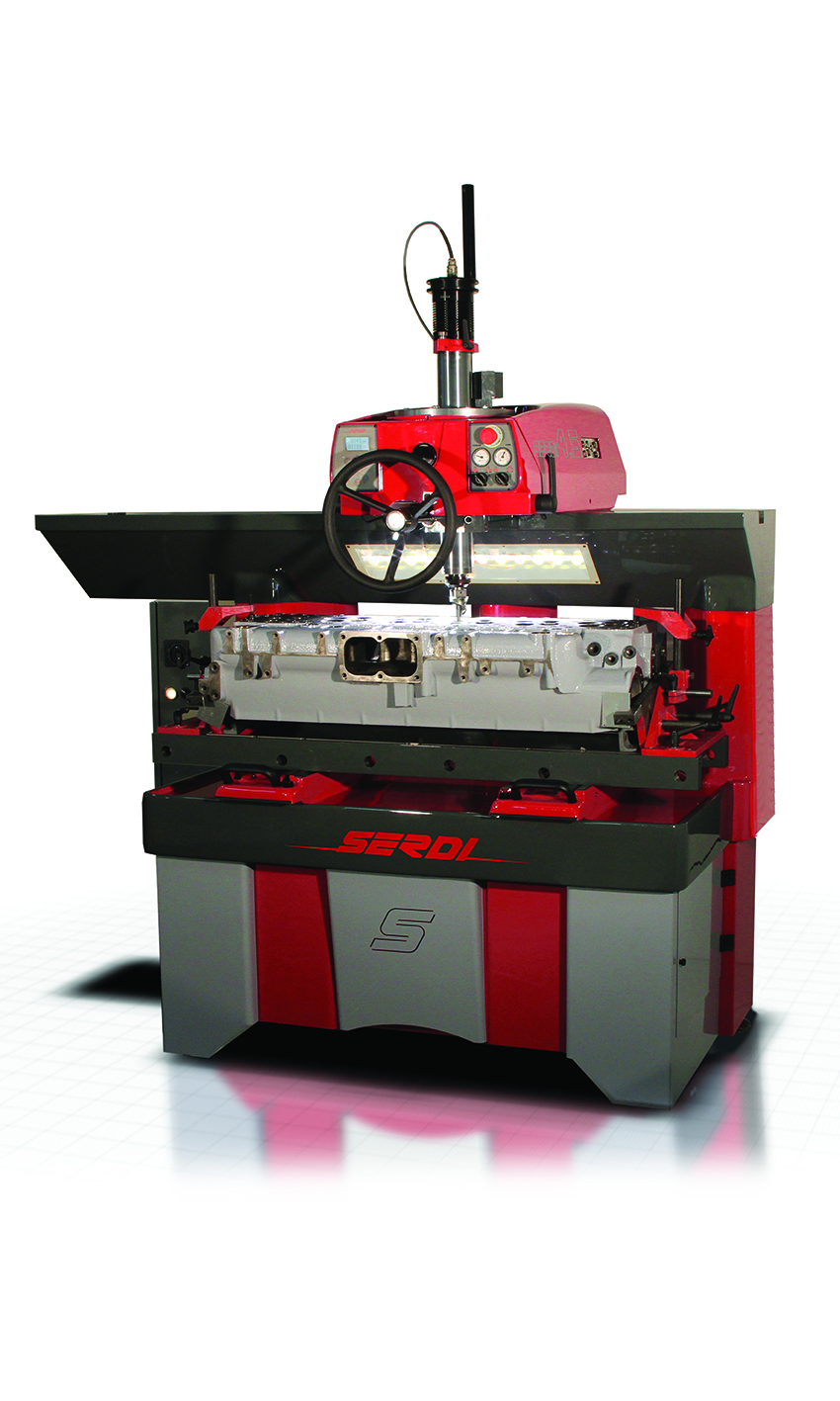

Highly versatile machine to ream the guides and cut the valve seats.

Triple air-float patented centering system and powerful spindle with built-in motor.

Machine producing an accurate machining of the valve seats from the smallest (micro engine) to the biggest diameters (stationary engines). The light-weight floating assembly can machine cylinder heads with guide diameters as small as 4 mm (0.16’’).

Available with an optional extended BEAM (+500mm) to ease the loading and unloading of large and heavy cylinder heads on the floating table and a high torque spindle LONG, allowing the machining of high cylinder heads without dismounting the cutting tool moving from one seat to another.

High precision valve seat and valve guide cutting machine especially designed for multi-valve cylinder heads.

Achieves excellent levels of concentricity even in guide sizes as small as 3 mm/0.12”.

Triple air-float centering system and built-in spindle motor.

Digital spindle speed rotation and machining deppth read-out.

Perfect machine for the most demanded motorcycle and automotive multi-valve cylinder heads.

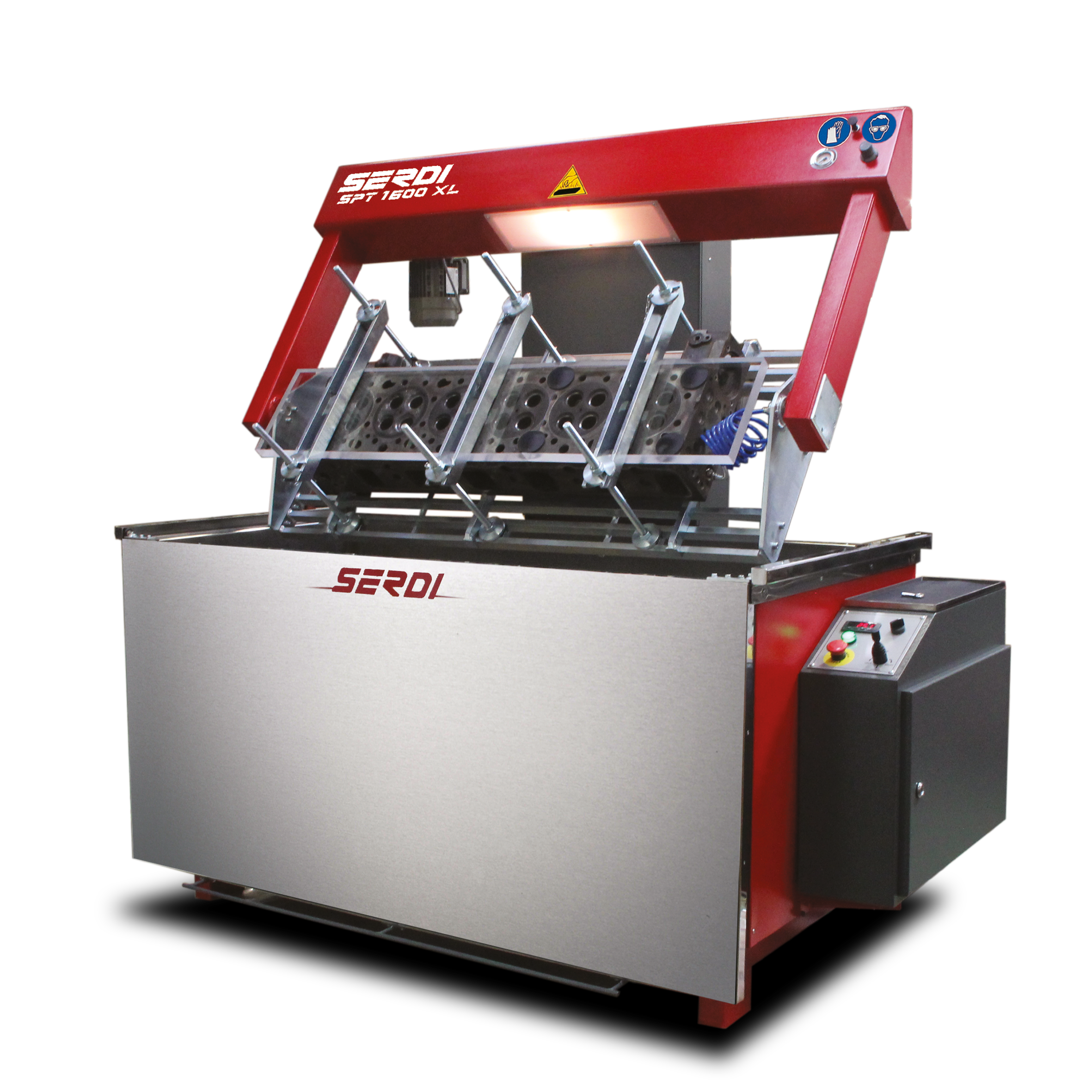

Easy and efficient pressure teste of cylinder head and cylinder block coolant circuit.

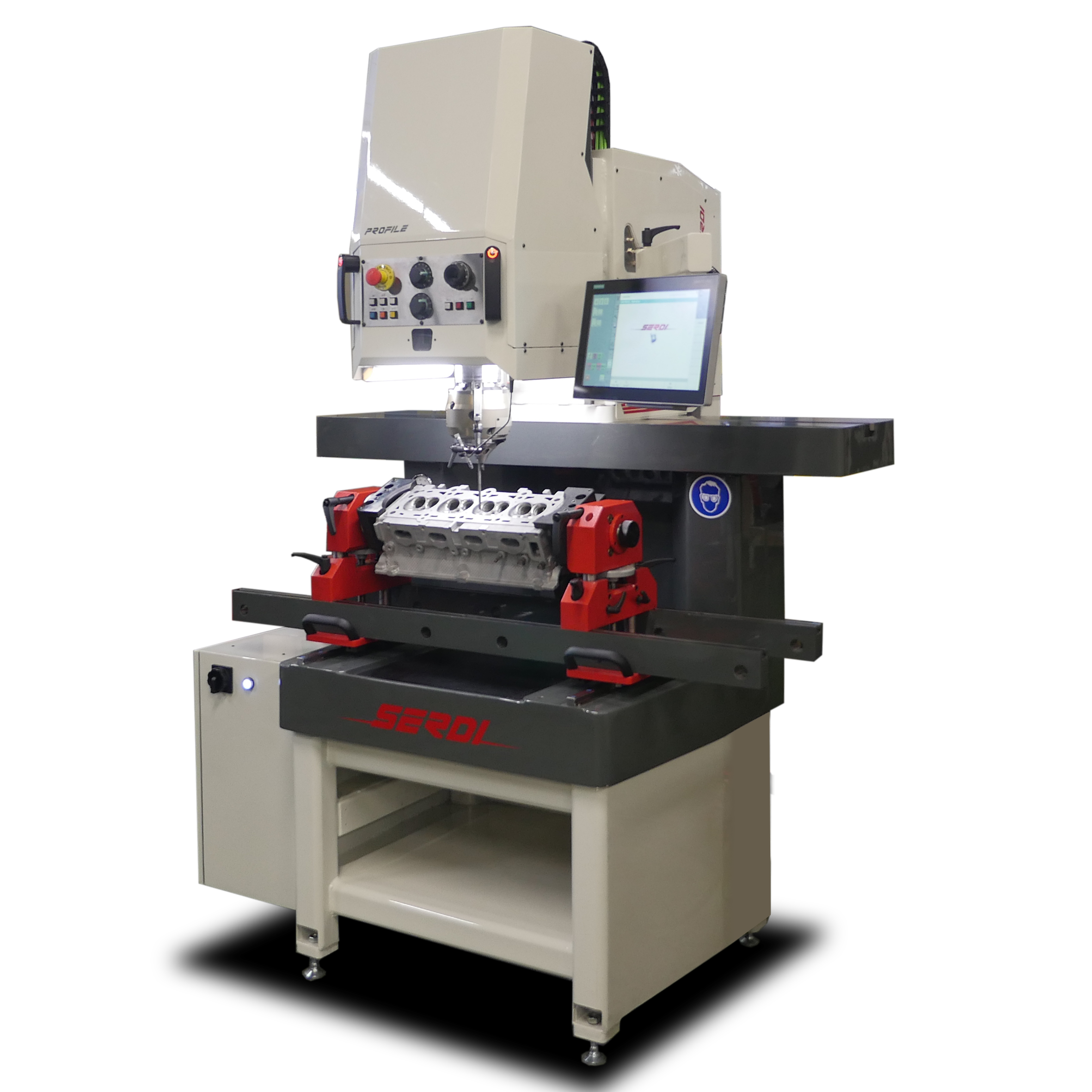

The most advanced single point machine in the market, extremely versatile machine with CNC driven Z, U and S axes, appropriate for machining any type of cylinder head from small motorcycle to large stationary engine and particularly dedicated to racing engines or engine prototyping.

Semi-automatic valve seat cutting machine working by interpolation between the cutting tool radius and spindle axis. The single point cutting tool generates the profile of the valve seat through the integrated design system, using radius and straight segments.

Gantry machine architecture for a perfectly balanced spindle whatever the working height.
