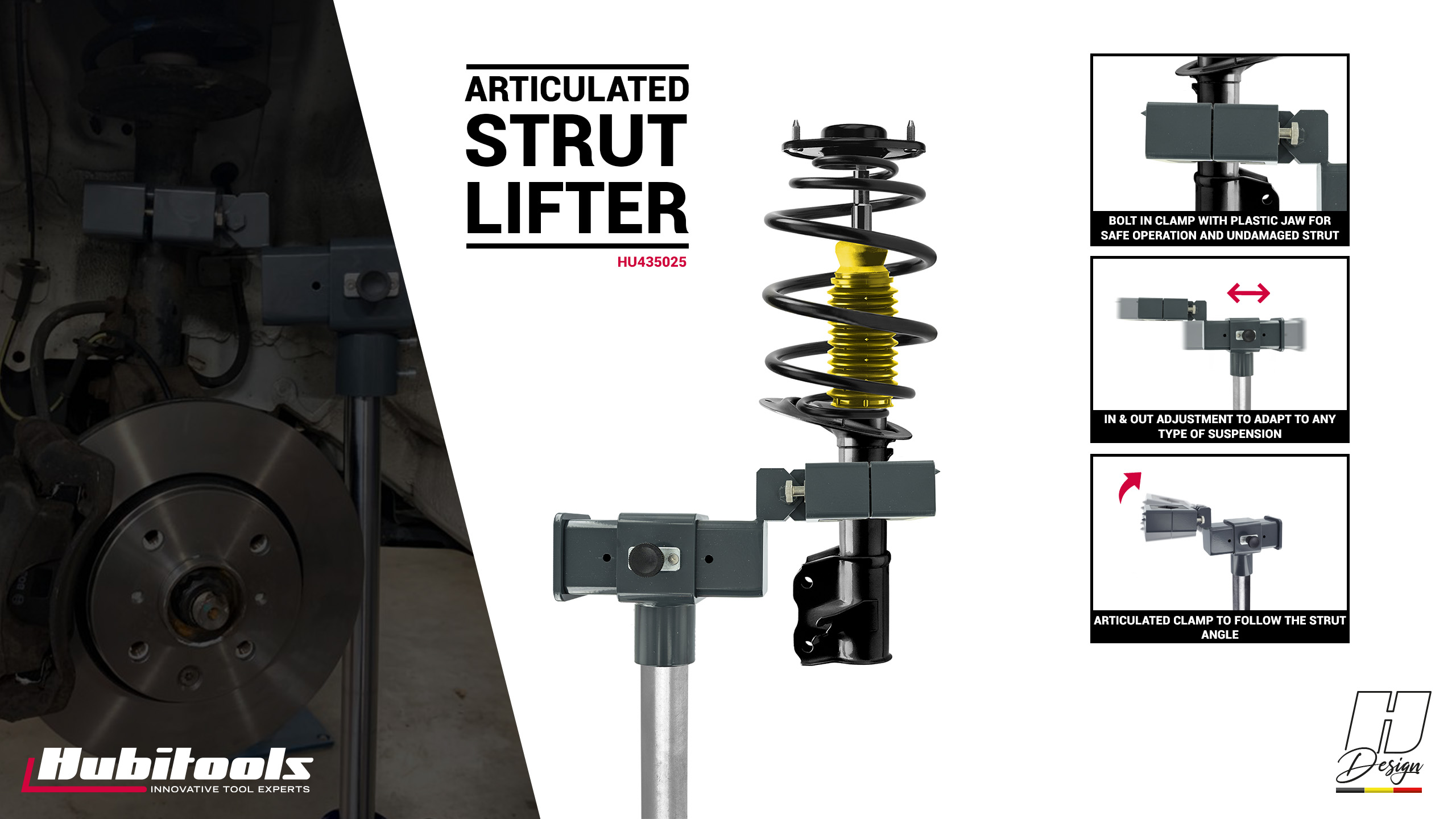

Works on electric vehicles (Tesla, Zoe, Leaf, Hyundai, Kia, etc.).
Ideal for modern vehicles with double triangulation.

• Supports the strut on the vehicle: 500 kg
• To be mounted on 30 mm hydraulic transmission
• POM (polyoxymethylene) clamping jaws to avoid damage to the strut. 3 sizes of jaws (light vehicle, light commercial vehicle, rear shock absorbers)
• Depth and tilt adjustment

Ideal for the following operations :

• Removal and installation of struts
• Removal and installation of drive shaft
• Removal and installation of arms and hub ball joint separation
• 100% safe work
• Operator has both hands free to work safely

No risk of damage to parts as  :

• Sensors
• Wiring harness
• Plastic protection, body

Security :

• Once the tool is placed, the operator has both hands free to work safely.
• The tool supports up to 500 kg of pressure

Productivity :

• The tool is placed in less than a minute
• Dismantling of a strut in 7 to 8 minutes
• No risk of damage to mechanical parts or bodywork

Creativity :

• Patented tool
• Axial adjustment in 5 positions
• 120° articulation to respect the geometry of the suspension

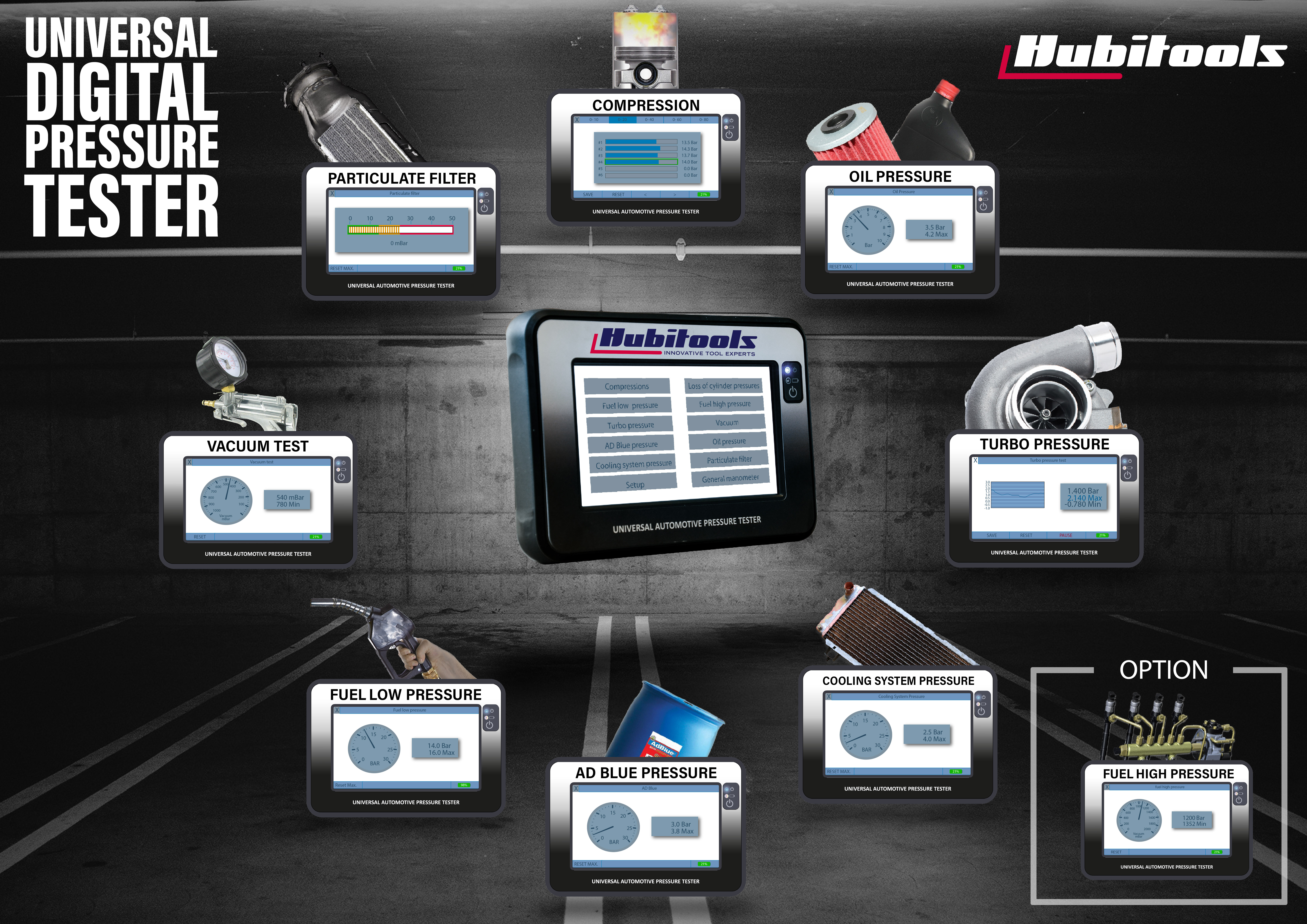

The HU35025 digital pressure tester replaces dozens of standard diagnosis kits in just one set.

This kit can measure Diesel and petrol compression, oil pressure, turbo pressure, cooling system pressure, AdBlue pressure, fuel low pressure, vacuum pressure and particle filter pressure and as an option, fuel high pressure.

The kit includes :

• Tester
  • 7” color TFT display with resistive touch panel
  • Battery: LiPo 3,7 V / 2000 mA
  • USB smart battery charge with led indicator
  • PC connection by USB port
  • ABS enclosure with rubber bumper (Hubitools Design)
  • All screws are mounted on brass inserts
  • 1/4 thread brass insert at back to fix suction cup, etc.
  • Possible recalibration
  • User-friendly touchscreen
• Sensor 0 to 300 bar
• Sensor 1 > 3 bar
• Universal Diesel compression adaptor
• Universel petrol compression adaptor
• 8 specific professional quick coupling adaptors
• Vacuum adaptors

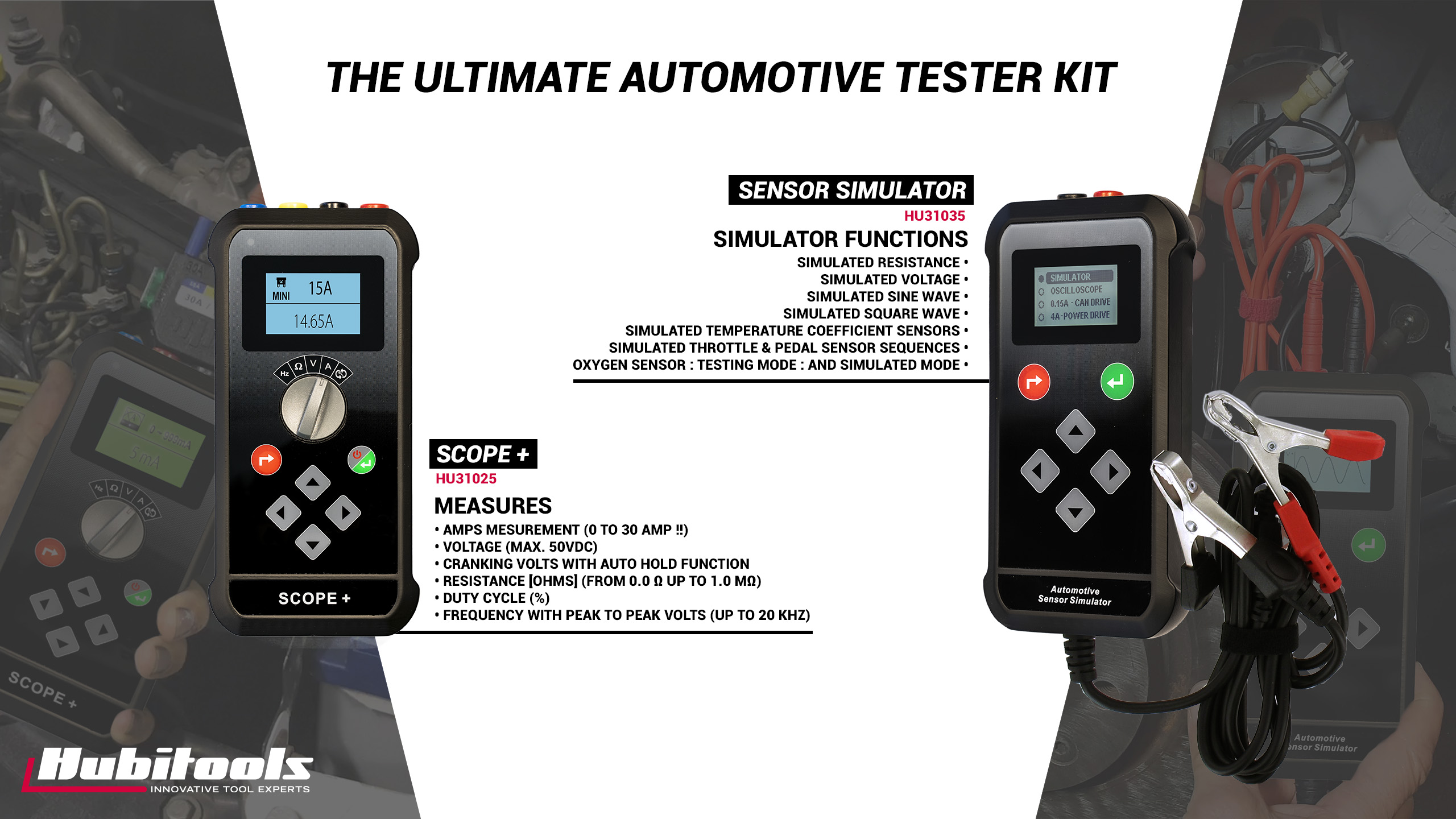

SCOPE + (HU31025)

• Solely designed for automotive electrical circuit’s troubleshooting.
• Easy and simple to use, no extensive electrical knowledge needed.
• Fully protected. It will not cause damage, even accidentally using OHM measurement to measure Volts.

     Measures:

• Amps draw (mini, ATC or maxi) without removing the fuses from the fuse box
• Voltage (max. 50 VDC)
• Cranking volts with auto HOLD function
• Resistance [Ohms] (from 0.0 Ω up to 1.0 MΩ)
• Frequency with peak to peak volts (up to 20 KHz)
• Duty cycle (%)
• Continuity test + Diode/ LED test

_____________________________________________________________________

SENSOR SIMULATOR (HU31035)

The ideal tool to simulate and actuate the output signal from automotive sensors : frequency, voltage and test sequences

• It will help you in your diagnostic when scan tool diagnosis ends. Sensors, injector actuators will inform the scan tools that there is a problem, but the sensor simulator will allow the technician to know if the faulty operation is a faulty sensor, a problem in the car computer, a defect in the wiring, etc.
• The device is specially used for wiring tests. It can simulate the correct signal and compare it to the scan tool.
• Allows you to eliminate the need to replace sensors that work perfectly fine (investment quickly pays for itself).

  Simulator functions
  1. Simulated resistance
  2. Simulated voltage
  3. Simulated sine wave
  4. Simulated square wave
  5. Simulated temperature coefficient sensors:
  6. Simulated throttle & pedal sensor sequences
  7. Oxygen sensor : testing mode and simulated mode


• You can simulate most sensors, injectors or actuator as ABS sensor, lambda sensor, EGR sensor, CKP sensor, knock sensor, map sensor
• To be used in combination with the HU31025 Scope +

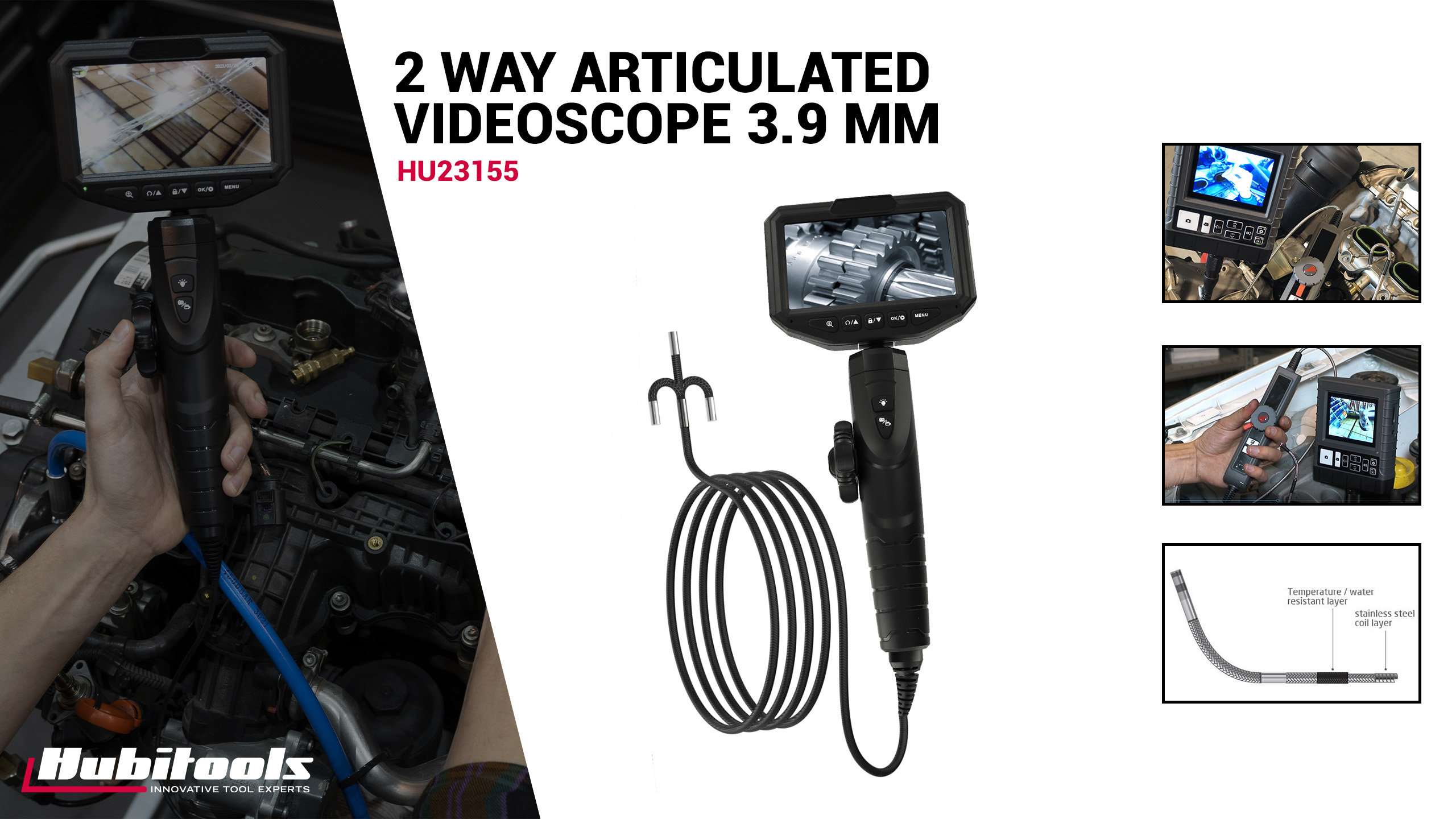

The high end automotive diagnostic videoscope !

Thin ⌀3,9mm and 2 ways, 180° articulated camera to get the best possible view in the tightestareas.
Snaps pictures, records movies for traceability and customer proof or oem warrantyclaims.

• 3,9mm diameter, 2 ways articulated probe
• 6 leds – 3 adjustables levels of brightness
• 5’’ detachable screen with 1280 x 1080 pixels resolution
• Temperature displayed on screen
• Rechargeable 5Ah - 3,7V Li-Ion Battery
• Depth of optimal sharpness : 20 to 80mm
• Camera angle of view : 80°
• 2A – 5V charging plug, usb to usb-c cable and 32gb memory card included
• Digital signal 2 mega pixel lens
• Image rotation function, with photo and video storage function
• The screen can be rotated 90 degrees from left to right, suitable for left-handed operation
• The screen can be tilted back or forward for viewing from different angles

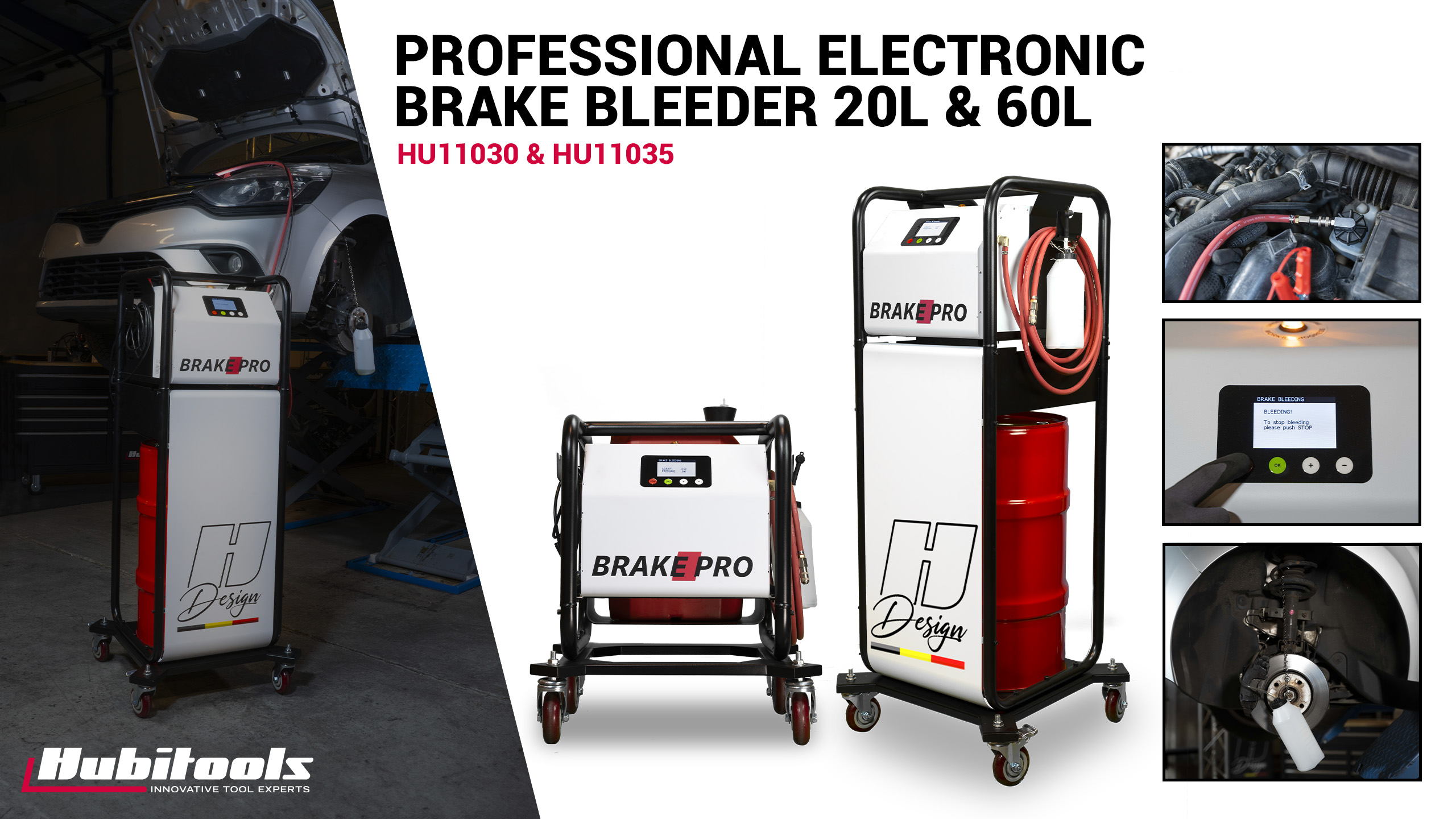

Hubitools reinvents the brake bleeder !

Professional brake bleeder available in 2 configurations, 3 possible power supply modes, fully electronically managed and designed with one goal : reliability and robustness.

• LCD color screen and user-friendly 4 button touch panel
• Bleeding with adjustment from vacuum 0,5 bar to,pressure 4,5 bar
• Automatic leveling of the master cylinder’s reservoir
• 5 languages
• Psi and bar
• Automatic stop when the new DOT drum/can is empty
• Many safety functions such as automatic stop when the bleeder detects an abnormal pressure
• Works for brake and clutch bleeding
• Pulsating pressure
• Interchangeable drum/dan and flushing mode for different DOT use
• Flexible length : 5 m
• Includes EU standard master cylinder cap adaptor
• Includes old fluid retreiving bottle with nip adapter and chain

What makes it different ?

• Uses a EU made high quality gear pump
• Clever managment of the hydraulic system thanks to the specific software, making it highly reliable
• One-piece hydraulic system without return line
• Robust design with quality material to withstand tough garage environment
• Versatile (configuration – power supply – capacity...)

Configurations:

• HU11030: Portable version up to 20 L
• HU11035: On trolley version up to 60 L

Also available :

• HU11036: Trolley only (to upgrade the portable version to on trolley version)
