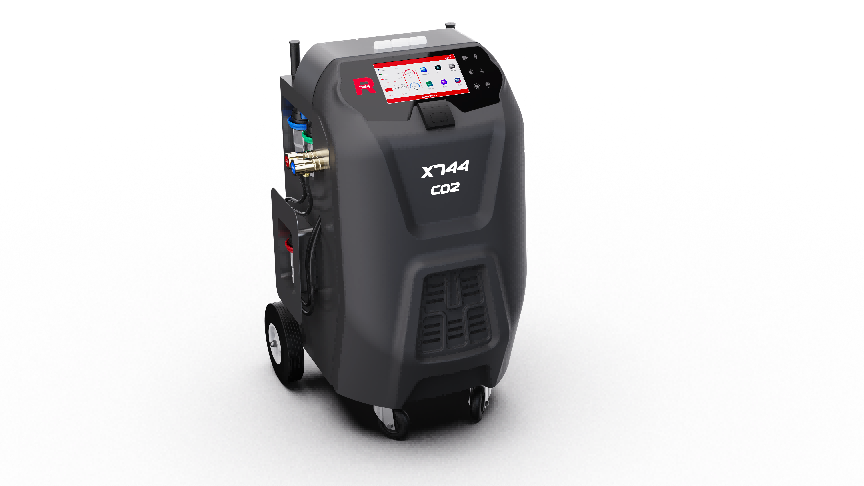

According to the latest AVC system which uses R744 (CO2) as the refrigerant, 744 has implemented a series of innovative design and manufacturing solutions. The new station is specially designed for the latest A/C system using R744 (CO2) as refrigerant, which exactly complies with the strictest industry standards of A/C maintenance and recharge systems for the new R744 (CO2) refrigerant.This station is designed to minimize contamination and reduce the risk of AC system maintenance and operation risks caused by Co2 refrigerant due to high pressure.The unique patented technology of the R744 refrigerant machine can realize the high-pressure leak detection of the A/C hoses through N2.

Exchange over 80% compressor oil.
The fully automatic X568 combine all maintenance functions of recovery, vacuum, charge, flushing and leak test. Features a 10 inches’ swiveling touch screen, X568 provides the system pressure, temperature, recovery and charge amount in digital display. Equipped with the sight glass, which make the cleaning operation process visualized. The flow of the refrigerant is visible and the cleaning effect before and after can be compared.Thanks to the new design program and oil separator, the wasted oil draining rate is over 80%, which make the efficient oil exchange efficiency.

1. Compatible for R134a and 1234yf.
2. Fully automatic recovery, vacuuming, charging and leak detection.
3. Compatible with the petrol/hybrid/electric vehicles.
4. Automatic internal system cleaning to avoid the mixing.
5. 10-inch touch screen: fully digital display and control, with service prompts.
6. "5" high-precisive electronic scales: the R134a tank, 1234yf tank, PAG oil, POE oil, used oil bottles.
7. Deep recovery mode improves the efficiency up to 95%.
8. Selectable charging mode: HP/LP/HP+LP.
9. Built-in refrigerant database of 60,000+ vehicle models. The database can beupdated as required.
10. Printer: print out the operation results as required.
11. Real-time eugipment operations record: check the operation record at any time.
12. Patent design oil bottle: avoid the contamination of the new oil in contact withthe air and humidity.
13. Using high-sensitivity sensors to realize accurate leak detection.
14. Intelligent prompts for filter and vacuum pump oil replacement.

Premium equipment for A/C service

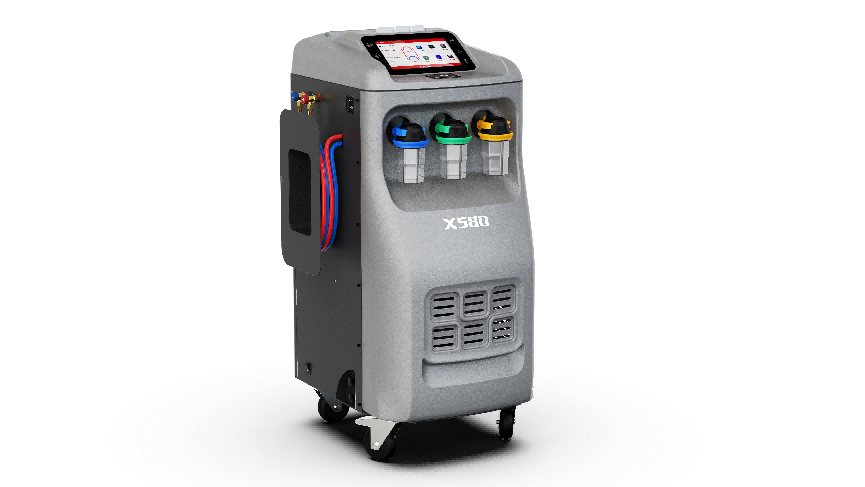

The fully-automatic R1234yf service unit meet the highest requirements for A/C systems. Equipped with a 10 inches touch-pad screen, 5 digital scales, 4 hermetically sealed oil bottles, 4 pressure transducers, X580 combine all maintenance functions in a single device. R1234yf refrigerant has been classified as being “highly flammable” and this must be acknowledged by the operator. Thanks for the leak test function, dual ventilation system and over 95% recovery efficiency, X580 eliminates any possible refrigerant build up in the unit or refrigerant leakage without warning.

Recovery efficiency over 95%

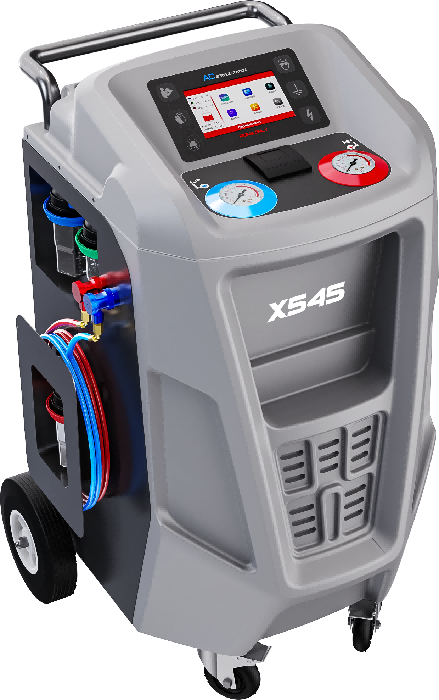

X545 features a 7 inches touch pad display and an advanced graphic interface that presents images and information in an easy to understand way. Recovery, vacuum, recharge and leak detection are completely automatic and require no manual valve control. Benefit from the deep recovery program, the recovery efficiency is in excess of to 95%.
The unique features of this model include hermetically sealed oil bottles, up to 60000 vehicle A/C service data base, Print-out of completed services.
