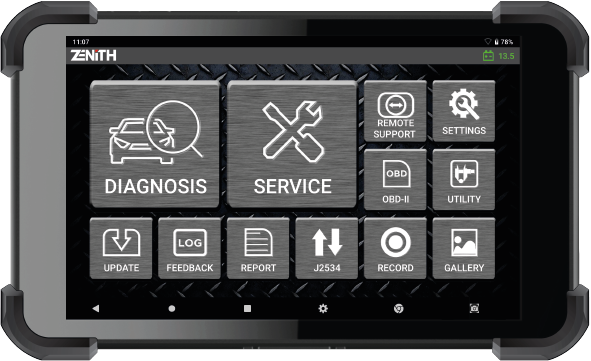

Zenith Z5 is a multi-brand diagnostic scan tool from EZDS.

It is used for checking the electronic control systems for errors or malfunction of the system, and communicates with the car’s electronic control systems through the diagnostic OBD port. It tells you why the warning lamps are turned on by showing the “diagnostic trouble codes”.  The mechanic can simply and easily identify the cause of the problem and fix the car efficiently and correctly. It also helps you to monitor the live data from the entire electronic control system by showing the input and output data to and from the ECU. In addition, it allows you to activate the moving components under the control of ECUs so that you can test for correct operation. In the late model vehicles, you MUST use a scan tool to do the resetting, coding, configuring the ECUs which are required for general workshop repairs these days.

It’s a “must have” item for every workshops, and many of the workshops have one, two or more scanners for different brand cars.

Specification:

• CPU: Octa Core Processor @ 2.0 GHz
• Operating System: Android 9
• System Memory: Internal 32GB, RAM 3GB
• External Memory: Micro SD Card
• LCD: 8.0 inch FHD (1920 x 1200)
• Input Devices: Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
• Camera: 8 megapixel auto-focus with LED flash
• Sound: Loud Speaker | 1 Microphone; 3.5 pi standard audio jack
• Rechargable Battery: Li-ion 3.8V 3200mAh
• Operating Voltage: DC9 ~ 30V
• Sensors: Ambient Light, Proximity, Gyroscope, Accelerometer
• Dimension: 225 x 136 x 33mm
• External Port: USB 1ea, USB C 1ea
• Network: RJ45 Ethernet, WiFi 802.11 a/b/g/n, Bluetooth 4.2
• Supported Vehicle Communication Protocols :
  • CAN (High speed, Low speed, Single), ISO-9141, ISO-9141-CARB, KWP-2000, SAE-J1708, SAE-J1587, J1850(PWM/VPW), Melco Pull-Down

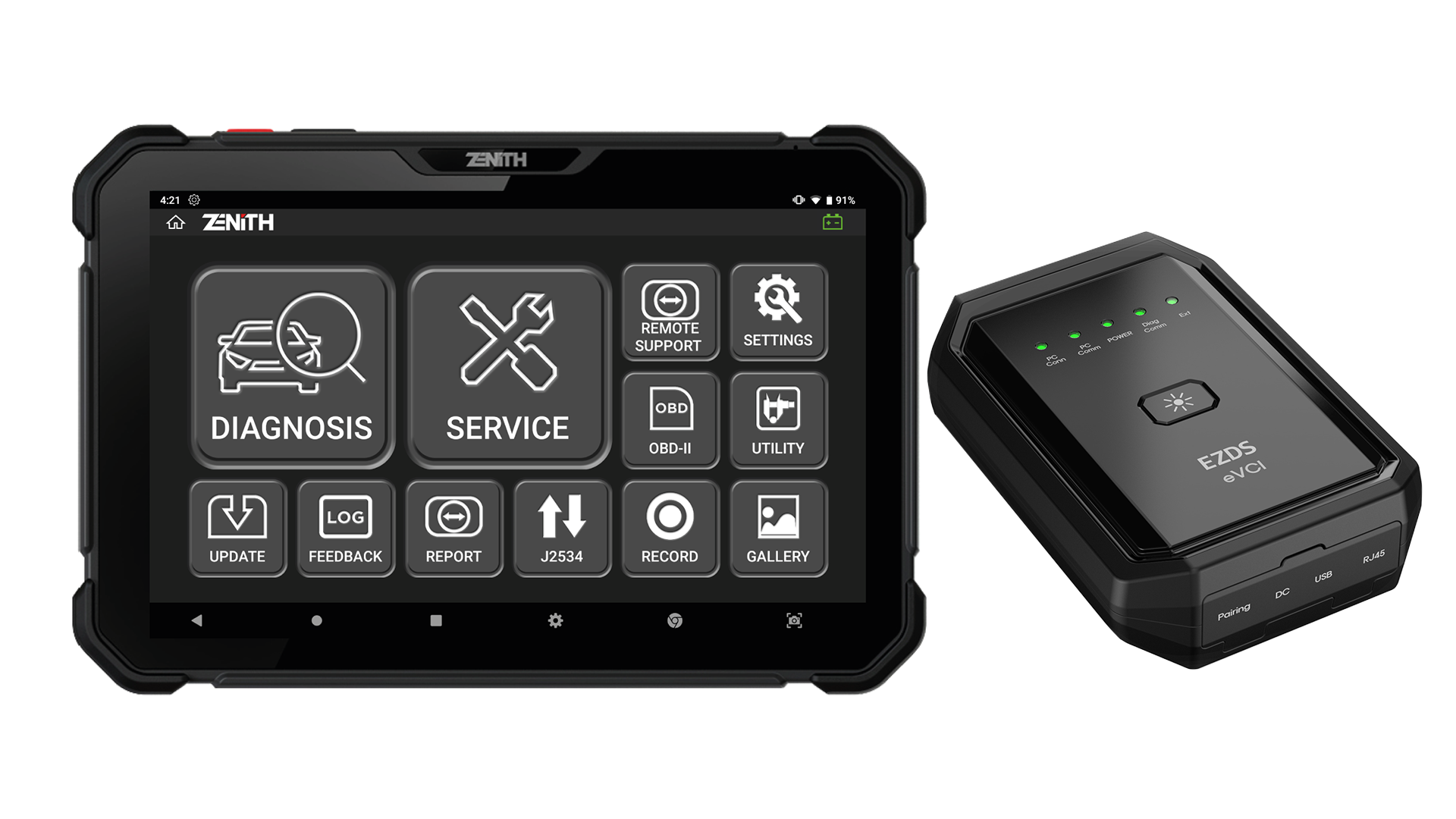

Zenith Z7 is a new multi-brand diagnostic scan tool from EZDS.

Z7 inherits wide vehicle coverage and advanced diagnostic software from Z5. Its bigger LCD screen and more rigid housing will ensure the best diagnostic experience at any harsh shop condition.  Z7 allows users to connect vehicle with the DLC cable or vehicle communication interface module via Bluetooth communication.

Experience our reliable diagnostic software with latest technology.

Specification:

• CPU: Octa Core Processor @ 2.2 GHz
• Operating System: Android 11
• System Memory: Internal 64GB, RAM 4GB
• External Memory: Micro SD Card
• LCD: 10.1 inch FHD (1920 x 1200)
• Input Devices: Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -)
• Camera: 13 megapixel auto-focus with LED flash
• Sound: Loud Speaker | 1 Microphone
• Rechargable Battery: Li-ion 3.85V 5800mAh
• Operating Voltage: Terminal(DC5V), VCI(9~30V)
• Sensors: Ambient Light, Gyroscope, Accelerometer
• Dimension: About 275 x 187 x 31.5mm
• External Port: USB 1ea, USB C 1ea
• Network: RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0
• Supported Vehicle Communication Protocols :
  • CAN (High speed, Low speed, Single), ISO-9141, ISO-9141-CARB, KWP-2000, SAE-J1708, SAE-J1587, J1850(PWM/VPW), Melco Pull-Down

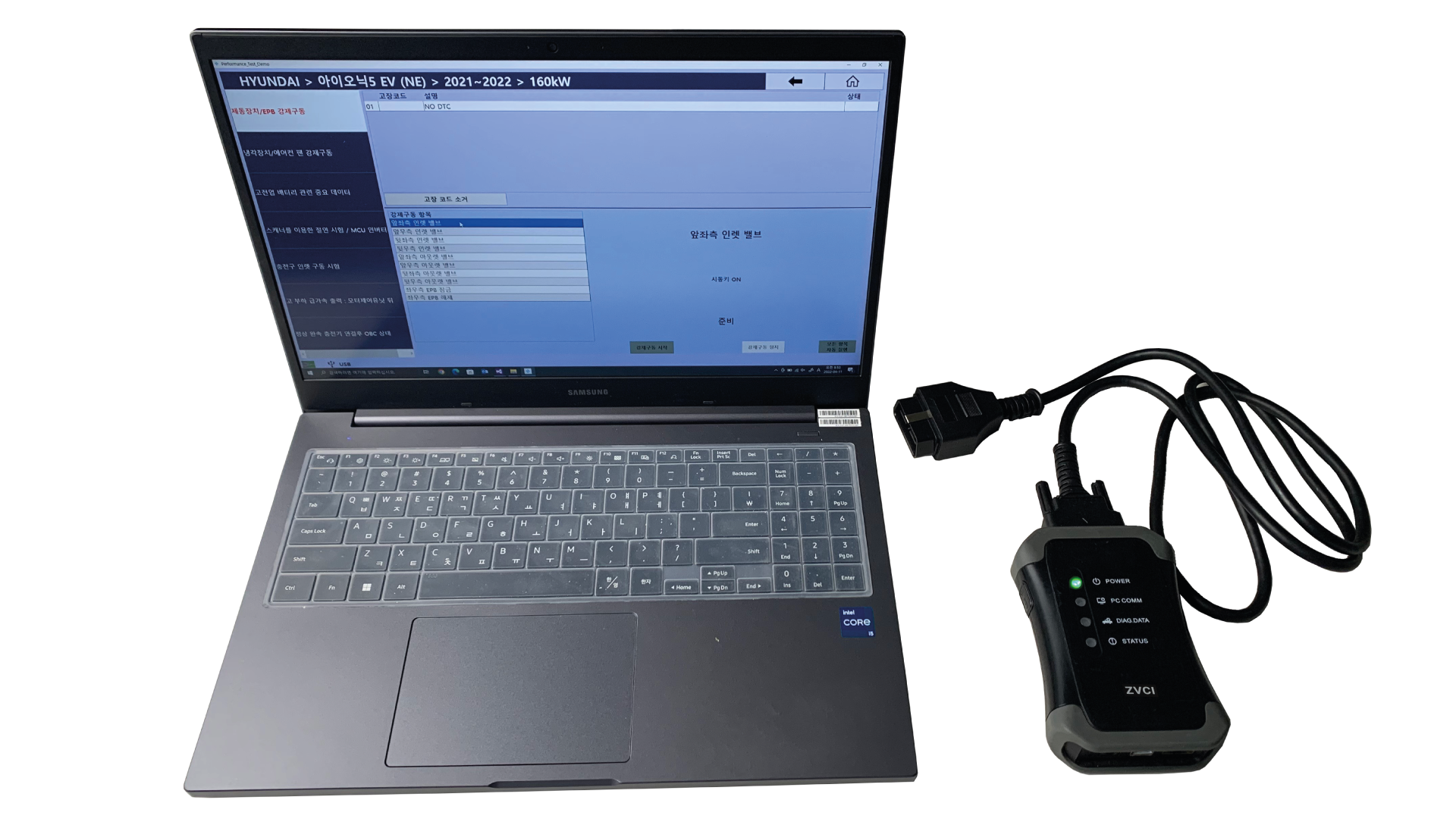

Zenith Z3; also known as "ZVCI" can be used via a bluetooth dongle for his own PC, laptop or a table PC that runs on standard Windows. It covers Asian, European, and American passenger vehicles just like Zenith Z5, however OBD-I generation models and comemerical vehicles are excluded in the coverage.

The Zenith Z3 package includes just these 3 components: ZVCI module, Extension Cable and Quick Guide.

ZVCI is the main product that is paired with a Windows device via Bluetooth for communication with the vehicles. A extension cable is used when the vehicle side OBD2 socket cannot be reached by the ZVCI, i.e. Audi.  Quick Guide is just a simple installation manual for ZVCI.

• Bluetooth Connectivity ( Class 1 chip on board )
• Runs on Windows only ( Recommend Windows 10 )
• Intuitive, Simple and Easy to use
