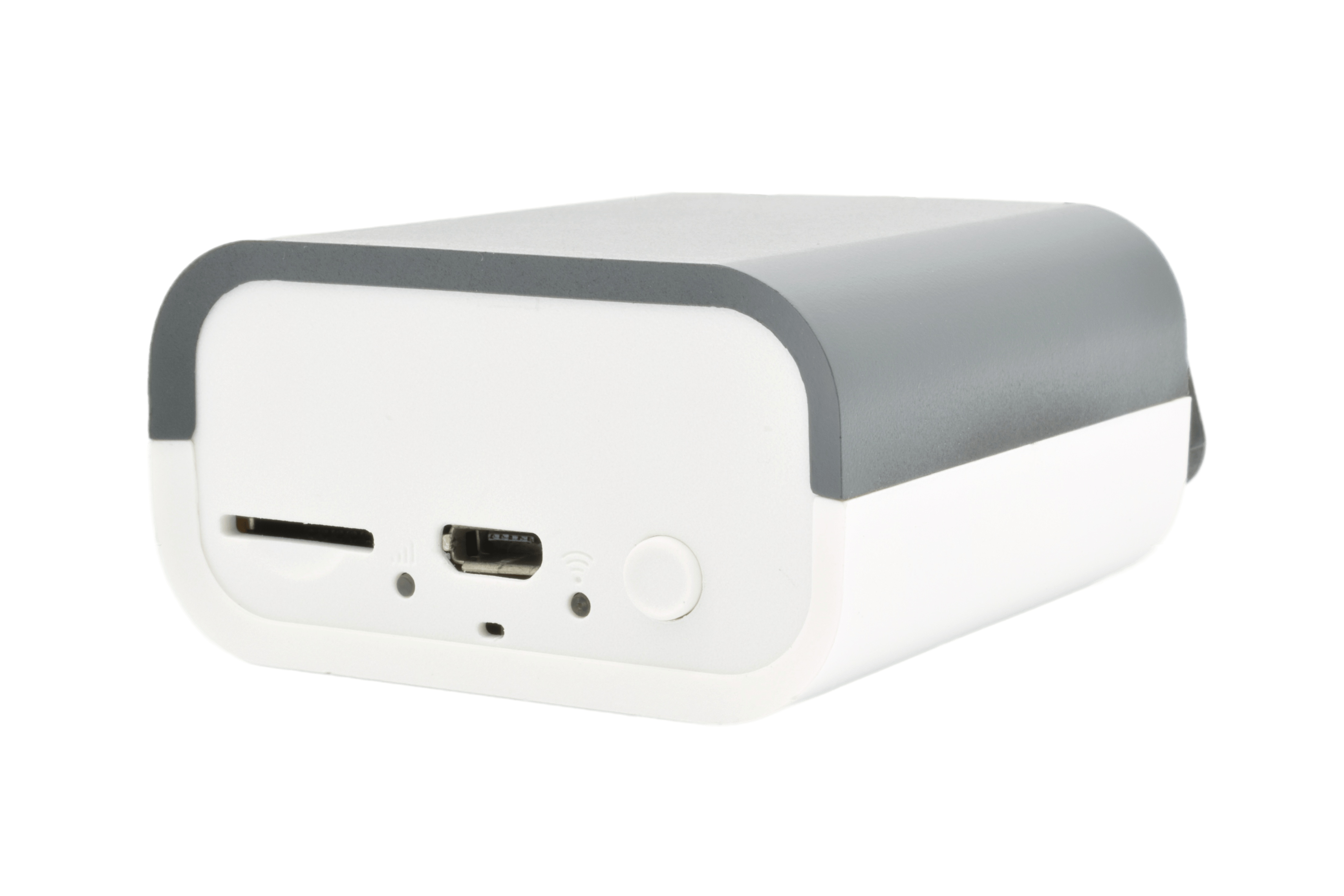

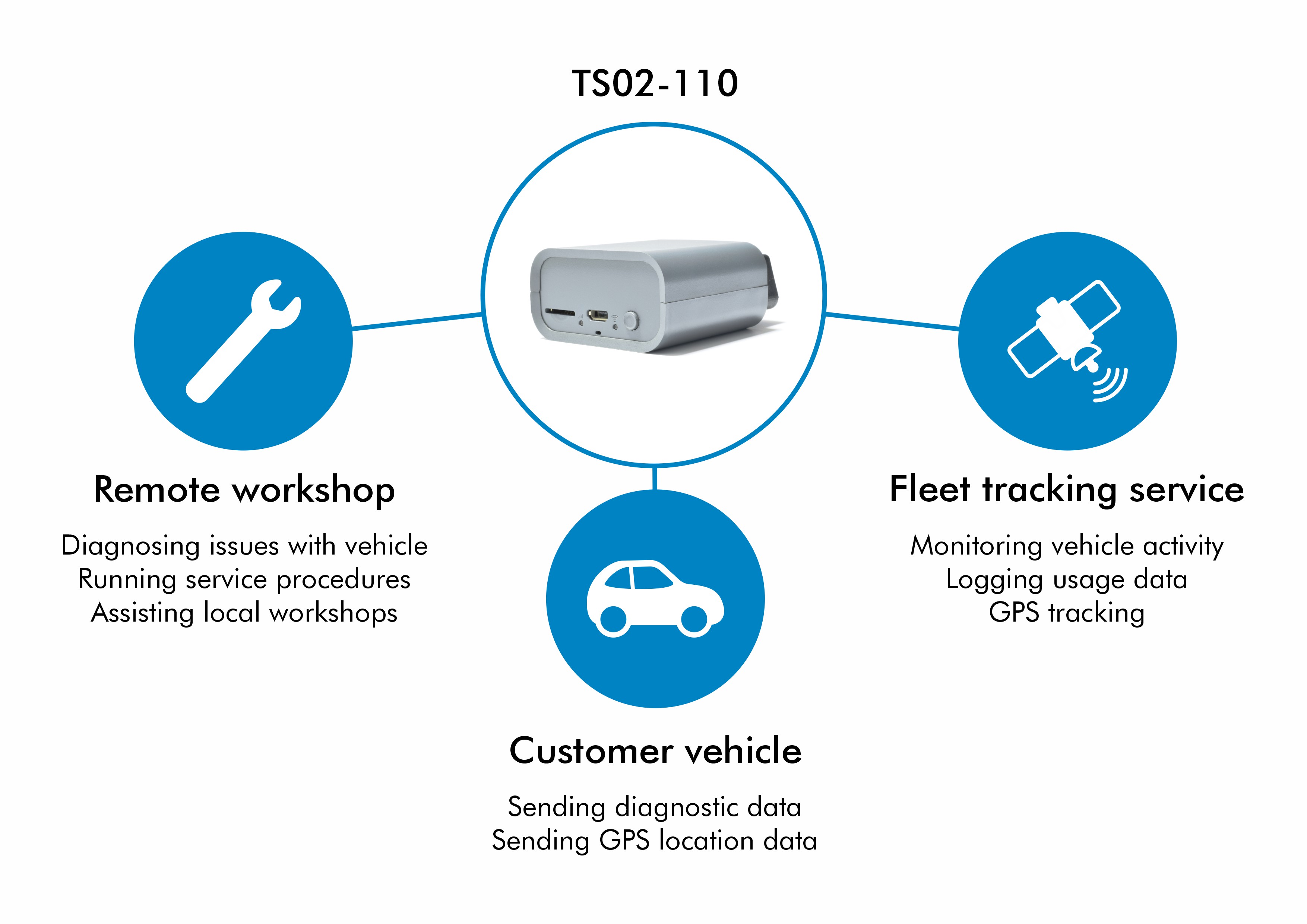

This interface is used to communicate with the vehicle control unit. The unit can request standard OBD data, read faults and track the vehicle's position. The unit handles up to 6 simultaneous CAN and K-Line connections to read telematics data specific to each vehicle. It also sends the information obtained from the vehicle to a selected remote server or to a Bluetooth/Wi-Fi connected device. The device is ideal for fleet tracking, monitoring, electronic logbooks, and other projects requiring constantly available vehicle information.

In addition to its detailed fleet tracking capabilities, the TS02-110 can be switched on the fly to a remote diagnostics mode. This mode allows full diagnostic access to a remote workshop, which is especially useful when the vehicle is in the field with limited access to authorized workshops and qualified technicians. This feature leads to significant savings on operating costs, particularly in terms of technician visits to the vehicle.

DevCom s. r. o. focuses on the analysis of communication protocols, internal processing of CAN BUS data, interpretation and visualization of the information obtained and searching for sporadic errors and latencies. We have access to an extensive database of current vehicle manufacturers and models with an ever-growing range of diagnostic data. This enables us to perform the most detailed analysis of information flows quickly and efficiently.

DevCom also has extensive hands-on re-engineering experience, capitalizing on more than 20 years of research experience in vehicle communications, ECU protocols and SW processes. We have access to test vehicles from most European, American and Asian manufacturers for research purposes.

DevCom has long experience with EOBD-II, ISO 9141, ISO 9141-2, ISO 14230-1, ISO 15765-4,SAE J2480, SAE J1850 VPW, SAE J1850 PWM, SAE J1939, DPDU, RS 1210, MQTT, CAN, VAN and K-Line communication protocols. All of our development, engineering and data acquisition processes are ISO 9001 quality compliant.

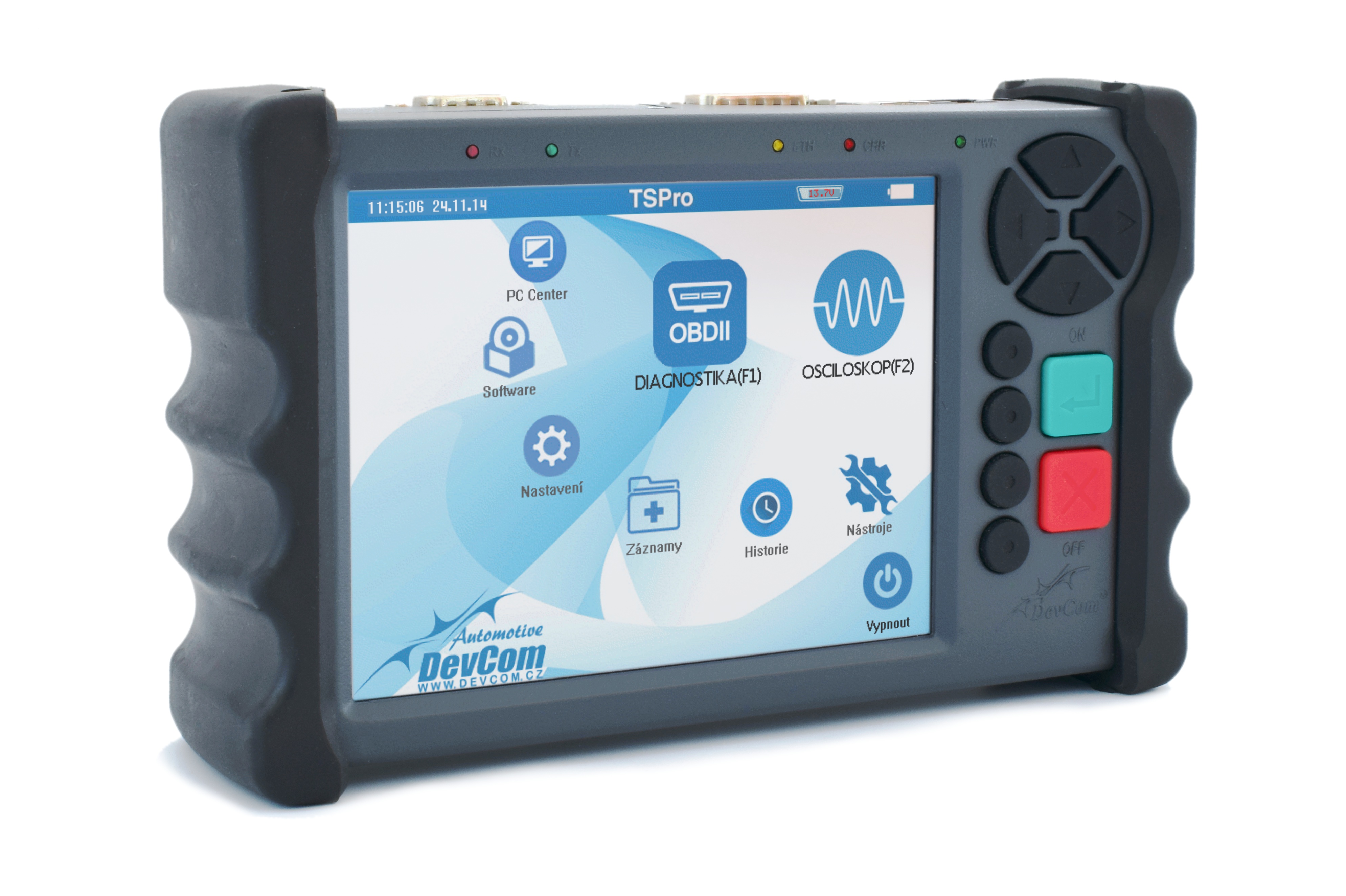

Compact standalone vehicle diagnostics

The main advantage of the TSPro Color diagnostic tester is the combination of the advantages of a portable diagnostic device and an interface to connect to a personal computer. The TSPro Color has a display and a simple keyboard - so it can be used to perform diagnostics even in challenging conditions or in the field, without a personal computer.

At the same time, when the TSPro Color is connected to a personal computer, all diagnostic functions can be performed using the software supplied with the TSPro Color. In this configuration, the TSPro Color serves as an adapter (interface) between the control unit and the personal computer.

Whichever way you choose to use the unit, either stand-alone or connected to a PC, you will always have access to all of its functions.

Key features:

• Compact rugged scan tool
• More than 75 brands and 1600 supported vehicles
• Optional SW updates
• Service diagnostics - reset service intervals and other advanced features
• Made in the EU (Czech Republic)
• 2 years warranty
• Extended product and customer support

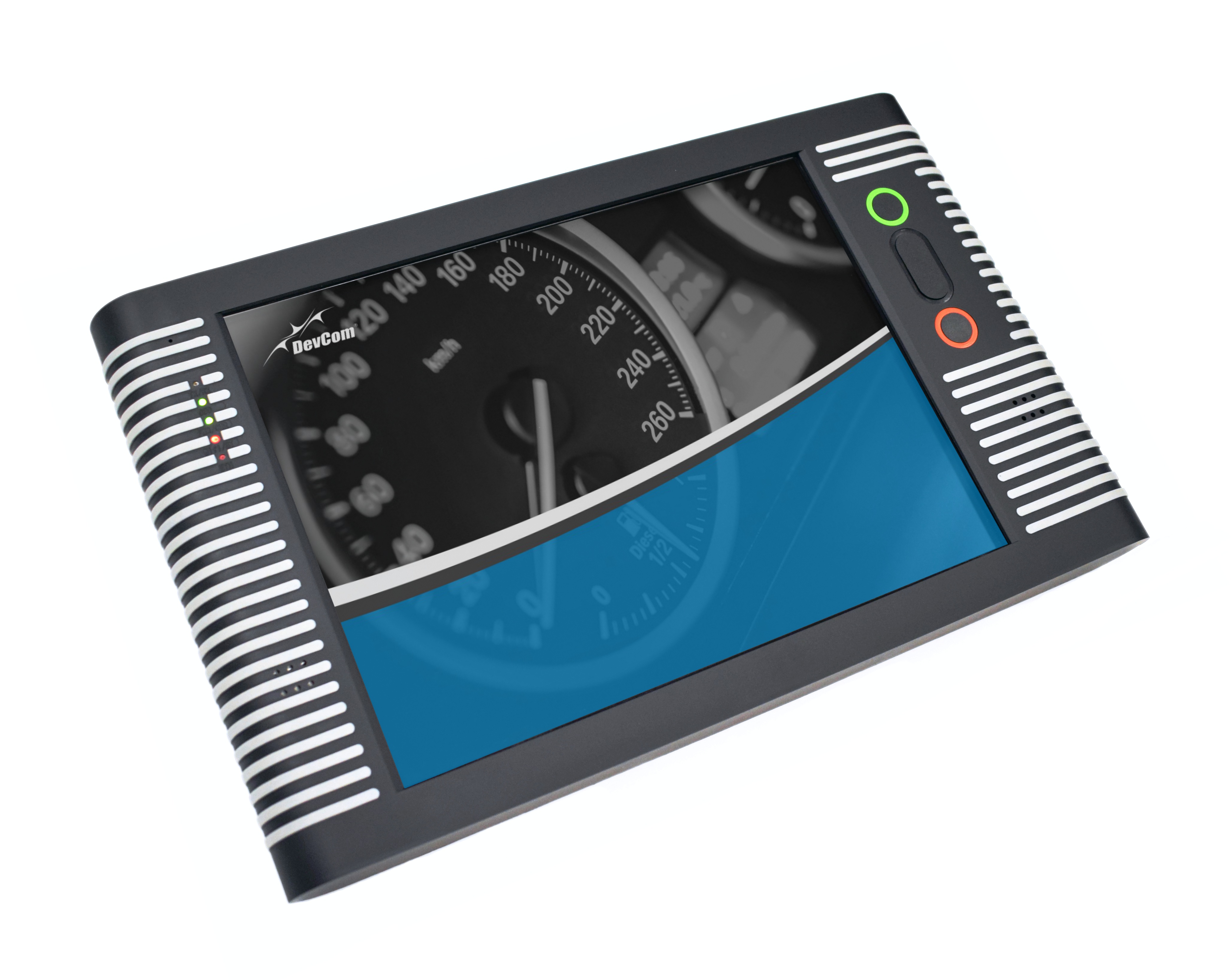

Modern diagnostic scan tool

The latest generation of TSPro diagnostic scan tools. The goal in developing the new device was to improve our existing diagnostic devices and expand their functionality in line with current technological trends. At the same time, we have retained the popular features of the older devices to make your transition to the new version as easy as possible. Like the previous generation of the TSPro Color, the new TSPro Tablet has a robust surface, and the display itself is protected by tempered glass.

In terms of connectivity, the new device offers optional 4G/LTE support, Wifi 802.11 a/b/g/n and Bluetooth 4.0, and comes with an integrated 13MP camera that can be used, for example, to take photos and videos to document vehicle repairs. Of course, as with previous models, an optional module for up to a 4-channel oscilloscope is also available.

Key features:

• Durable diagnostic tablet
• More than 75 brands and 1600 supported vehicles
• Diagnostics via OBD and advanced Ethernet DoIP
• Optional SW updates
• Service diagnostics - reset service intervals and other advanced features
• Made in the EU (Czech Republic)
• 2 years warranty
• Extended product and customer support

Troodon OBD diagnostic PC interface

Universal OBD diagnostic interface for all types of vehicles. This communication module opens up possibilities for complete serial vehicle diagnostics; it can be used to access every control unit in the vehicle and perform all advanced diagnostic functions. The new interface can be connected to any personal computer with a modern Windows operating system via USB, Wifi, or Bluetooth. It is also possible to connect to the interface through a mobile application available for Android operating systems (currently in development).

Extensive diagnostic software allows serial diagnostics of all vehicle control units supported by the customer's chosen diagnostic software suite. Basic and advanced diagnostic functions are supported, such as unit configuration, sensor calibration, component replacement, service interval reset, coding, brake bleeding, and many others.

• PC Interface compatible with Windows based personal computers
• More than 75 brands and 1600 supported vehicles
• Optional SW updates, long term updates
• Service diagnostics - reset service intervals and other advanced features
• Made in the EU (Czech Republic)
• 2 years warranty
• Extended product and customer support
