Trade fair innovationMTBR|X
The Innovative Standalone Solution for the Diesel Specialist, capable to test every Automotive, Commercial, Industrial and Marine Injection System available in the market today…
CRDi – CRp - EUi - EUp - HEUi

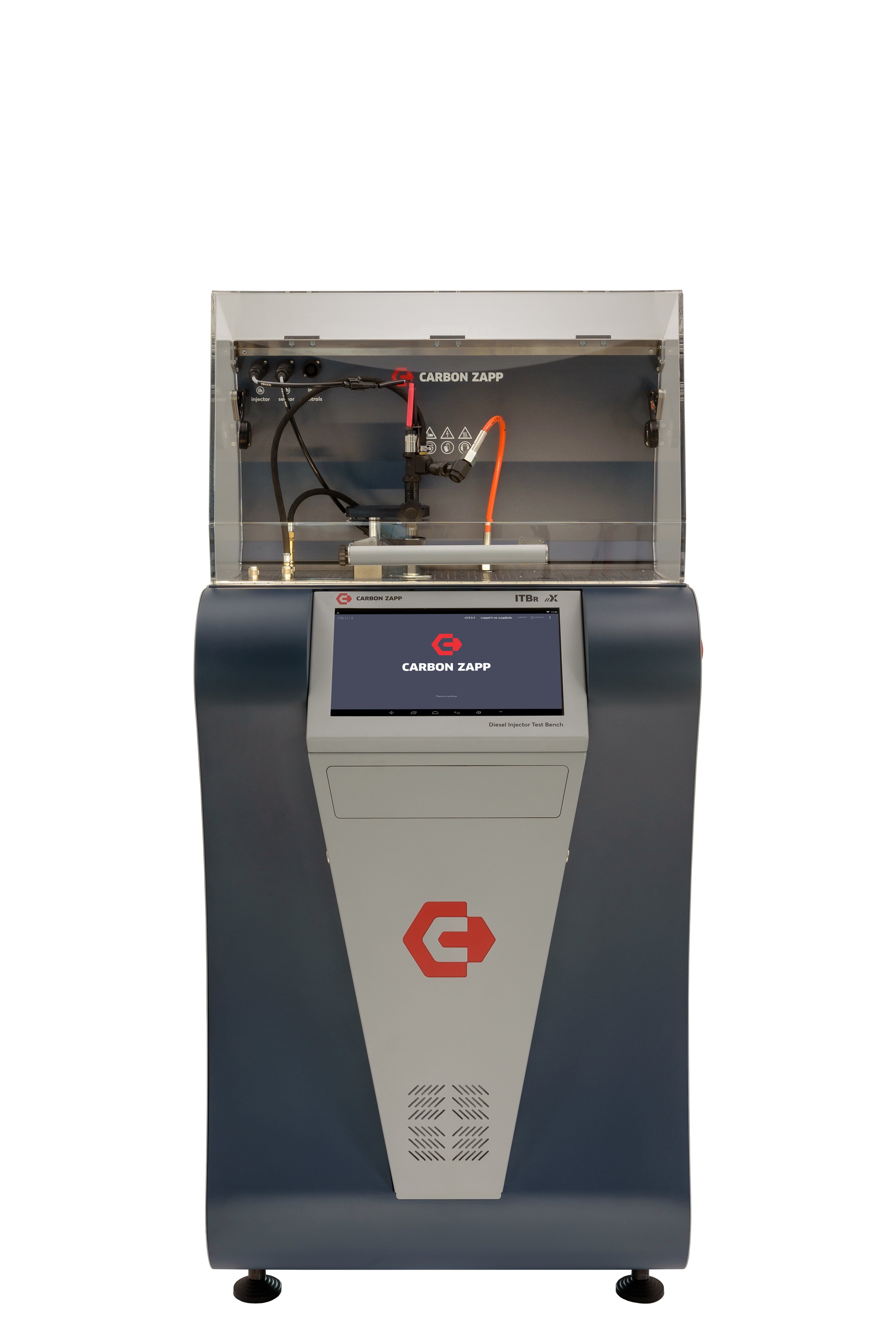

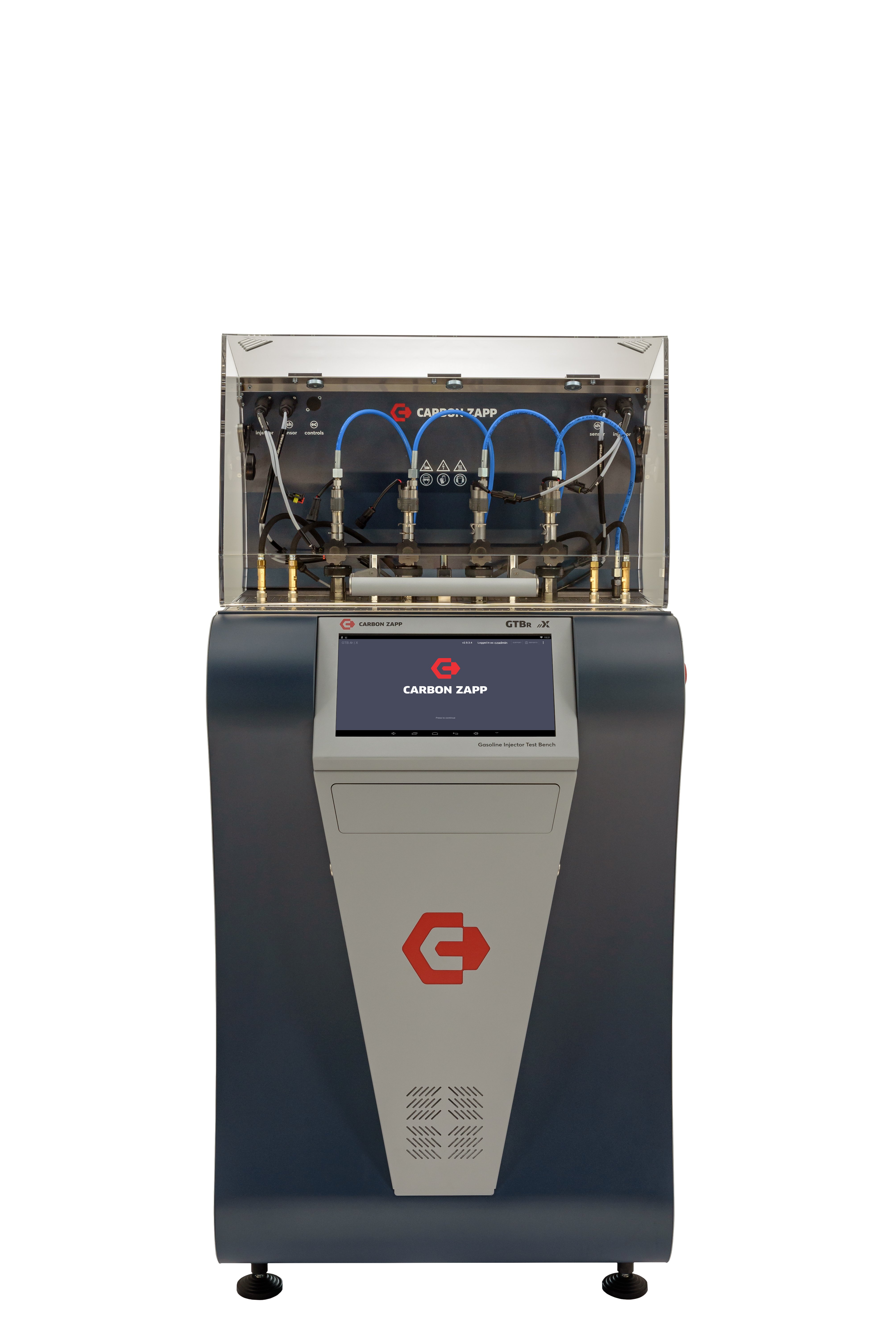

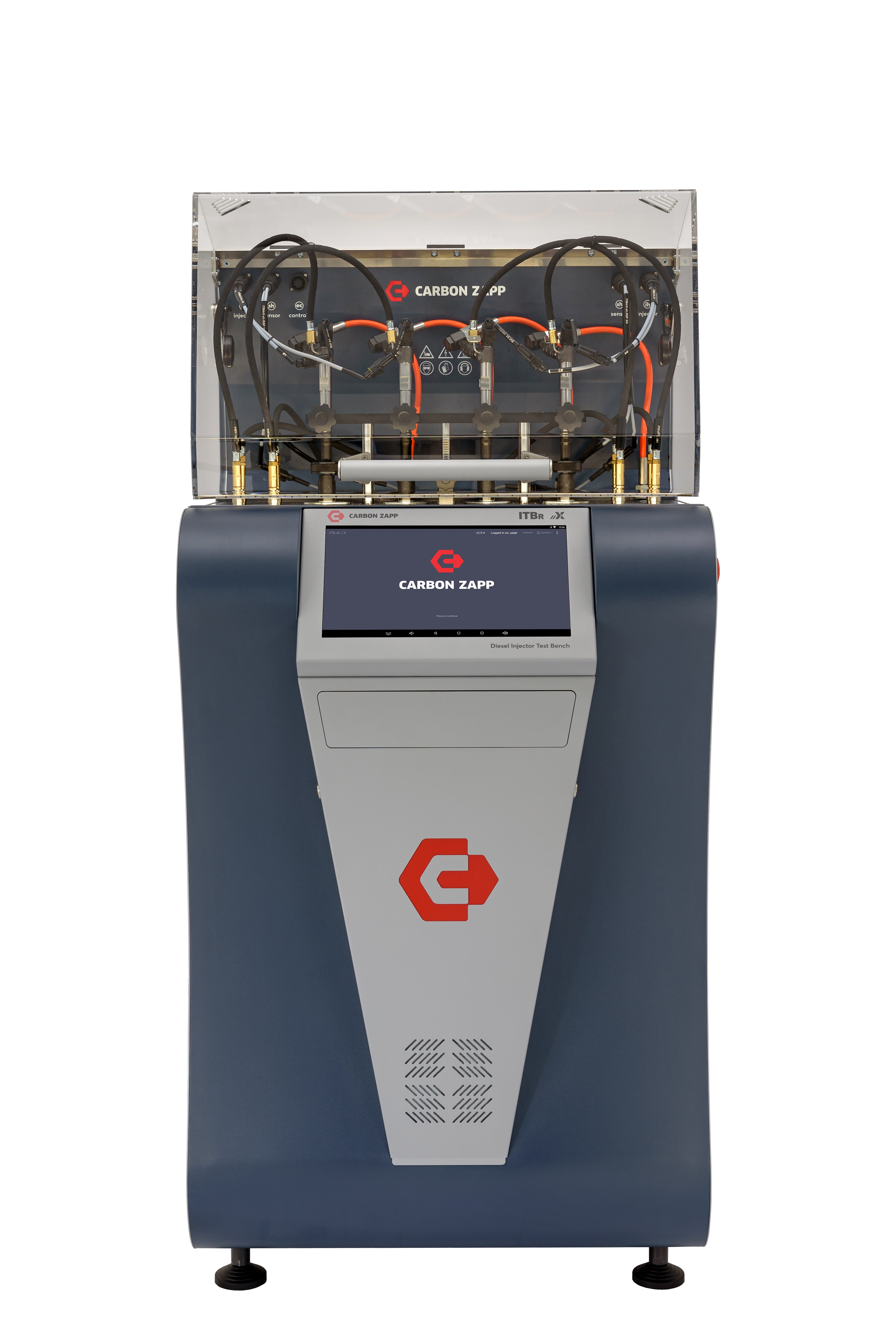

Compact Standalone Diesel Test Bench
High Pressure Testing up to 2800Bar (EU6)
Controls NEW Generation CRI3-25 and CRI3-27 injectors with NCC and VCC technology
EU5 and EU6 sysrtems testing [Denso I-Art (6-pin), VDO PCRS5, etc...]
Injector Coding VDO IIC, Delphi C2i/C3i, Bosch IMA/ISA and Denso QR
VDO CR injectors (EU5) testing only with Energy Control
4 CRi/CRiN solenoid or piezo and up to 2 CRiN 4.2 injectors
Nozzle reaction time measurement for all systems via o-RSP sensor
Actuator Valve measurement via RSP/BIP sensor
All Makes/Types of CR pump. Special Applications CP4/ CAT/ CB18/ CB28/ CP2 etc…
Connects to any Cambox. Automatic function with complete database and test plans (Coding*) with the Hartridge HK-1400A Cambox powered by Carbon Zapp
Compact and Rοbust Unit. 180o Efficient Working Area with Protective Hood fully opening
Controls all Types and Makes of Injectors & Pumps. Includes OEM Database and Test Plans
Connects to Carbon Zapp’s HEUI-KIT.M2 solution for testing up to 4 HEUI's
Fully Automatic and fast testing phase through a 15” Touchscreen HMI with AZO software
CRDi Piezo Stack Regeneration function
Blue Limits Diagnosis for Diesel Specialists
Dynamic Electronic Mass (BK) Measurement (CRDi, HEUI, EUI/EUP)
Static Electronic Mass (DFAP) Measurement (CRp)
SPAR: Piezo Stack Filler after repair & re-Assembly (optional)
CGL: Automatic Piezo Stack Valve Lift Gap Measurement (future update - optional)
Internal cooling system (No water connection needed)
Emergency Stop function (Instantaneous electric brake)
