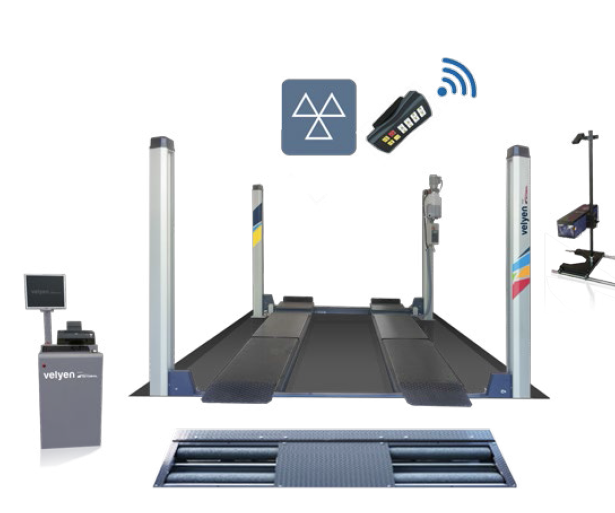

MOT ATL equipment

Made in Spain.

No air required.

Auto bleading (electronic)

• Hidraulic Lift 3500 Kg
• Motor 2.2 kw
• Max Voltage AC 400 or 230V ±5%
• Max electricity 400V:5A / 230V:10A
• Max frequencia 50Hz
• Speed 1450 rpm/min
• Lifting Time +/-50 seg
• Pump 4.3 cc
• Work temp 5-40ºC
• Bore humidity 30-95%
• Noise+/-79 db

Our 4 post lifts, worldwide patented fully electro hydraulic safety (no air & no spindles).

4-post for cars 3.5ton to 5.5ton

4-post for commercial vehicles 8ton to 30ton

ANSI 30000 Lbs = 12 Tns CE 4ED0700 ANSI 40000 Lbs = 18 Tns CE 4ED0760 ANSI 50/60000 Lbs = 25/30 Tns CE 4ED0800

Not many manufacturers offer a heavy duty tonnage lift, a total success.

These vehicle lifts are manufactured 100% in Spain, with a superb quality, and supplied to more than 40 countries.

Year after year orders continue to come in for this lift.

Why?

Because it's electro-hydraulic in operation (with cables, pulleys & pins) Because there are no noisy spindles or gearboxes to go wrong!!!! Because it's fitted with a patented safety system meaning no air supply required. Because its manufactured 100% in Spain Because its very reliable. Because its very competitively priced. Because Velyen is looking exclusivity dealers in USA that will make a big difference x state.

If you are looking to sell something different, with a nice PROFIT MARGIN, offer the Velyen Lift.

Up to 9200mm platform length.

• 100% it’s fitted with a patented safety system meaning no air supply required electro-hydraulic in operation (with cables, pulleys & pins).
• No noisy spindles or gearboxes.
• Available in 25 T as standard or optional 30 T version.
• Available with 8000 mm platforms as standard or optional 9200 mm platform version.
• Innovative design of columns without longitudinal welds.
• Electro-hydraulic lifting system operated by a special double piston cylinder.
• Suspension systems and safety devices against wedges.
• Safety system against obstacles and breakage / loosening of cables.
• Hydraulic cylinder equipped with valve that regulates the speed of descent.
• Safety valve in the hydraulic unit in case of overpressure.
• 24 V operating switches. “Dead man” type, separate up / down switches, and general switch that can be padlocked.
• Protection in the areas of the pulleys.
• Rear and front safety against vehicle slipping.
• Height limitation.
• Automatic releasing of the safety wedges by pressing the “DOWN” button.
• World patent in the security and elevation system.

✔️ Is your workshop truly equipped to handle the critical demands of EV battery service?

✔️ Ensure total safety with a plug-and-play, 2-ton Lifting Table designed for precision and stability.

✔️ The robust, high-capacity solution made in Spain to lead the future of automotive repair.

✔️ When your team handles battery replacements or heavy EV components, what is currently your biggest concern regarding the stability of the load and the safety of the technician?

Possibly the world’s most versatile lift made in Europe.

Now available in 3t - 3.5t - 4t and 6t with EV version and sport-cars version.
