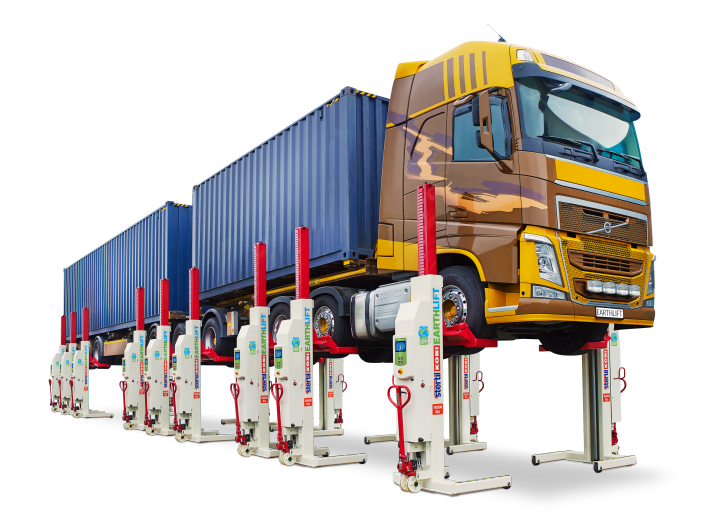

Wireless Mobile Column Vehicle Lifts EARTHLIFT 8.5 tons to 10 tons
Wireless Mobile Column Vehicle Lifts EARTHLIFT 8.5 tons to 10 tons
Description
The superior solution for saving energy
Stertil-Koni EARTHLIFT column lift, uses the patented Active Energy Retrieval System. This provides you with an ecological, mobile wireless lifting solution for all of your heavy duty lifting requirements. Which other lift in the industry can achieve up to 50 lifting cycles without battery charging? You get optimum productivity in the workshop. No more expensive downtime because of battery charging!
The 'green' standard in lifting technology!
The EARTHLIFT is the most environmentally-friendly wireless mobile column lift in the world, setting the ‘green standard’ in the international heavy duty lifting industry. The EARTHLIFT allows workshops worldwide to combine socially responsible business practices, with the highest possible level of ease of operation and efficiency.
- Lifting column made of recyclable components
- Biodegradable oil in a closed hydraulic system
- Batteries are recyclable
- Electronic components according to environmental norms, RoH
Full-color Touch Screen control
The revolutionary ebright smart control combines intuitive ease of use with maximum visual information about the lifting process. The main advantages:
- Touch Screen control, even when wearing gloves
- User-specific options, such as choice of language
- Full-colour screen, graphically highly attractive
- All relevant information available at a glance
The principle of the Active Energy Retrieval System is as brilliant as it is simple: to use the energy generated by the raised vehicle as it comes back down. In other words: regain the gravitational energy!
Choose between a lifting capacity of 8.5 or 10 tons
Both 8.5 ton and 10 ton EARTHLIFT models are available. The 8.5 ton EARTHLIFT model for example is ideal for super single tyres. For fleets or workshops requiring extra lifting capacity, there is the 10 ton EARTHLIFT model.
Simple recharging with 230V
Although recharging is less frequent with the EARTHLIFT, each column is fitted with two deep cycle marine batteries which can simply be recharged with a 230V energy source.
Lifetime guarantee
The patented synthetic runner wheel system is self-lubricating and therefore does not require any maintenance
Minimum repair, maximum safety
The Stertil-Koni wireless mobile EARTHLIFT means that you are not faced with expensive repair bills for failing cables. Above all safety first and foremost and no cables means no tripping hazard.
Other built-in features of the EARTHLIFT column lift which give you the benefit of enhanced safety are:
- Independent mechanical gravity locking pawl, starts at 125 mm
- Locking profile with 35 mm increments, the smallest available in the industry, provides maximum safety
- Vehicle damage prevention due to 250 mm between lift and vehicle
- Automatic overload protection
- Precision synchronisation starts at 15 mm height difference between the columns
The revolutionary ebright smart control system
The ebright smart control system has been designed by Stertil-Koni as the next generation in operating mobile lifts. The smart controls are visually attractive anintuitive. The control box is manufactured with high quality materials. The operating system uses 24V DC low voltage, is splash-proof (IP65) and complies with the regulations of EN ISO 13849 1.
Features ebright
- High resolution 7” touch screen
- Owner/User configurable system with user ID key
- Individual user settings for setting language and dimensions
- Protection against unauthorized use due to personalised ID key
- Maintenance notifications
- Visual display of maximum programmable lifting height if set
- Warning & failure information
- Operation manual available if required
- Tracking of specific operations and information codes
- Reliable stable wireless connection
- Intuitive controls with actual data about the lift:
- Indication for Single, All or Pair operation mode
- Information about how many columns are in the set
(up to 32 columns)
- Actual lifting height displayed
ebright mobile columns lifts
- Load indication shown on every individual column
- Lifting and lowering speed can be manually adjusted on the touch screen
- Battery status information
- Protection against unauthorized use by means of a personalised ID key
