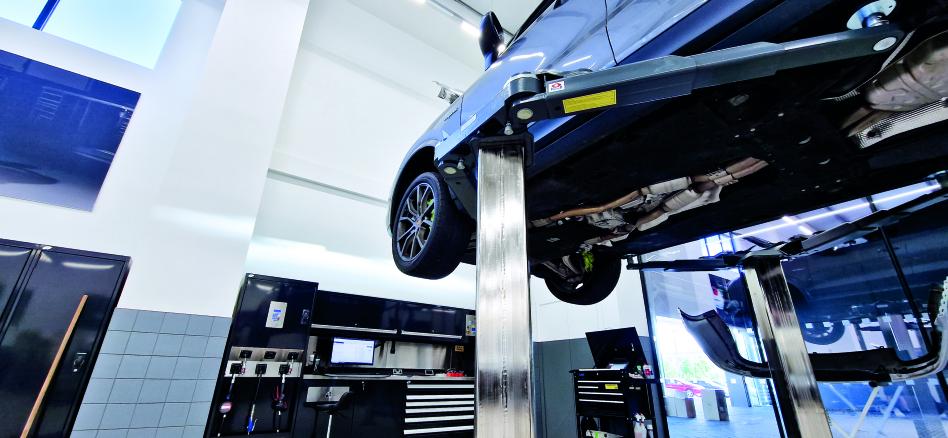

The two-post inground lifts with swing arms are ideal to pick up vehicles in the sill area or at the frame. They are suitable for small vehicles up to vans (up to 3.5 / 4.5 / 5.5 or 6.5 tonnes) with a long wheelbase. Thanks to the optimised vehicle pick-up with maximum accessibility, they are perfect for repairs under the vehicle. The triple or quadruple telescopic swing arm support also enable stepless adjustment for a large and flexible pick-up range.
More Highlights:
Special support for electric cars
Optimally flat swing arm extensions with different bottom swing heights with ideal extension length and load capacity
Smooth-running support arm extension due to optimum guidance with robust end stop with solid stop plates
Large clearance for easy approach to the lift with chamfered edges on the swing arm carrier to protect the rims
Precise pick-up of vehicles due to height-adjustable support discs with thread and plug-in system
Multiflexible plug-in system for support extenders or special supports for various vehicle types for secure, positive-locking vehicle fixation in the product range
Plug-in wheel supports
Comes standard with fully rubberised support disc without metal parts
Automatically engaging support arm lock, which is convenient and ergonomic to operate and particularly suitable for manual readjustment of the support arms
Integrated tool tray on swing arm carrier included in standard scope of delivery
Optional hinged-lid frame for flush-floor installation and flexible use of the workplace
Optional extension of lift travel by 156 mm possible in conjunction with deeper installation box
