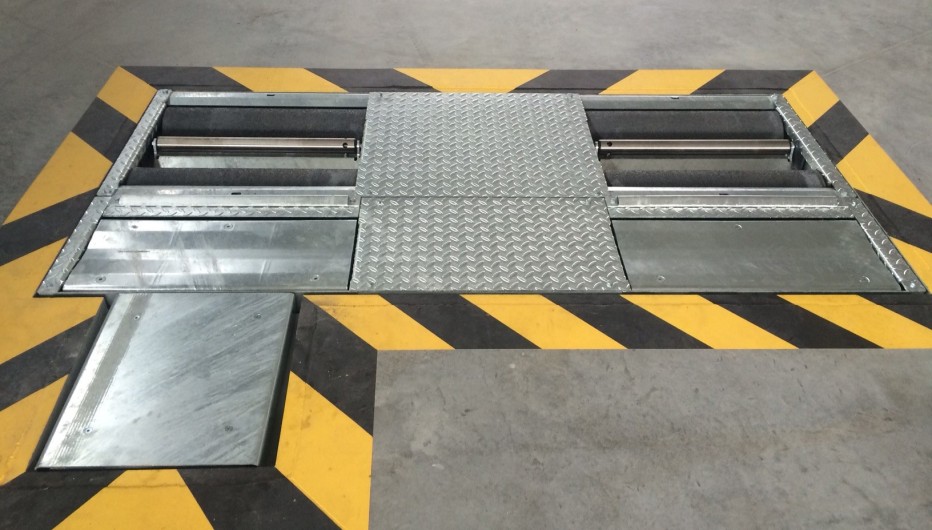

Heavy good vehicle (HGV) roller Brake tester up to 20 tons per axle

• Full intergrated solution
• PC box | 27’’ touch screen
• Compact and ergonomic totem
• Software| S9110
• Side slip (option)
• Galvanised frame
• HF remote controler
• Interconnectable or stand-alone
• Display repeater (option)
• Epoxy aluminium rollers
• Remote upgrade and assistance
• Data security| OTClan protocol
• §Two separated frame
• Blocking roller feature
• Twin-chain transmission
• Inox presence sensor roll
•  Compact frame

SPECFICATION

• Size (module) : 136 x 80 x 57 cm
• Load per axle max : 20 T
• Engine: 15 KW
• Test speed: 2,5 km/h
• Measurement range : 0-40 000 daN
• Distance in between two wheels : 80-280 cm
• Power supply : 340V – 50 Hz
• Weighing range : 0 à 32T

CAP2700 electronic camera headlamp is an expert system for controlling new lighting technologies.

• All types of headlamps, including extra-large LEDs
• Detailed pre- and post-diagnostic report - Multi-zone use - Modes: expert, adjustment and pre-check
• Calibration of camera-coupled headlamps (AFS, anti-glaring system, Matrix beam, etc.)


The CAP2700 can be used anywhere in the workshop in just a few minutes:

• Establish an expert examination of dipped-beam headlamps
• Improve driver safety
• Guarantee headlamp conformity
• Professionalise the lighting business
• Build up a database of results

In conjunction with ADAS calibration equipment / multi-make diagnostic tools, it can be used to calibrate LED Matrix beam by adjusting horizontal and vertical offsets.

ADD-ON Module

Add-on module for positioning on ADAS gantries for calibration in the vehicle's thrust axis from software on the PC/tablet of the ADAS tool

The advanced AFS (Advanced Front lighting System) function can be used to adjust, calibrate and parameters set-up of Matrix LED headlights. It has be used in conjunction with a manufacturer's tool and procedure

Full digital measurement corrected in real time by the multi-axis inclinometer

• XXL lens compatible with extra-wide LED projectors
• 7" colour capacitive touch screen
• Linux OS and S2700WH software
• Windows-based remote software and display
• Green alignment laser visible on all types of body
• Work Intuitive positioning aid
• Validation buttons for accelerated procedures
• ANYWHERE modules (vehicle tilt compensation)
• Connectivity: wired and wifi 2.4 / 5G Hz
