CAPELEC Sas

CAP9110 HGV roller brake tester | Up to 20t per axle

Trade fair innovation

CAP9110 HGV roller brake tester | Up to 20t per axle

CAPELEC Sas
Supplier profileAll products
Contact supplierContact persons

Description

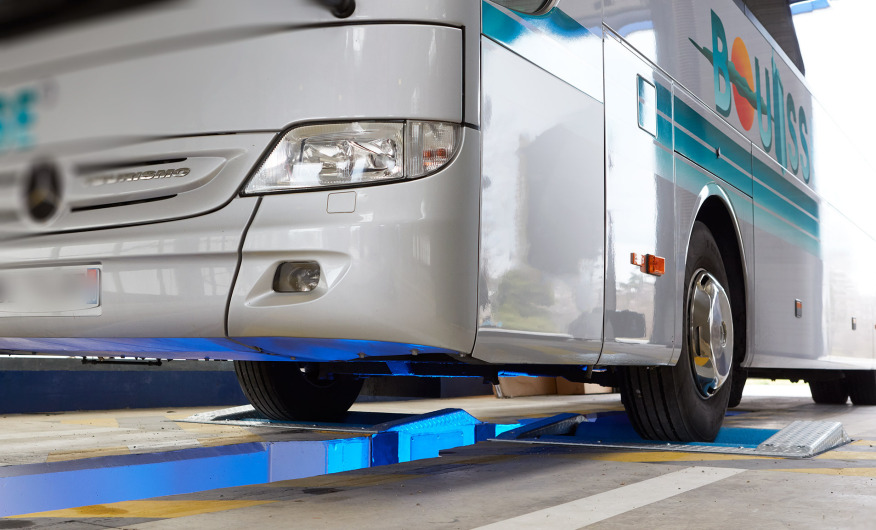

Heavy good vehicle (HGV) roller Brake tester up to 20 tons per axle

  • Full intergrated solution
  • PC box | 27’’ touch screen
  • Compact and ergonomic totem
  • Software| S9110
  • Side slip (option)
  • Galvanised frame
  • HF remote controler
  • Interconnectable or stand-alone
  • Display repeater (option)
  • Epoxy aluminium rollers
  • Remote upgrade and assistance
  • Data security| OTClan protocol
  • §Two separated frame
  • Blocking roller feature
  • Twin-chain transmission
  • Inox presence sensor roll
  •  Compact frame



SPECFICATION

  • Size (module) : 136 x 80 x 57 cm
  • Load per axle max : 20 T
  • Engine: 15 KW
  • Test speed: 2,5 km/h
  • Measurement range : 0-40 000 daN
  • Distance in between two wheels : 80-280 cm
  • Power supply : 340V – 50 Hz
  • Weighing range : 0 à 32T



More from us

Our website

More products by CAPELEC Sas

Trade fair innovation

CAP3600 Wireless and touchscreen combo gas analyzer, smokemeter and Particulate measurement for Diesel, LPG and gasoline engines

Touch screen CAP3600 is wireless, accurate and affordable exhaust gas analyzer , smokemeter and particulates measurement for Diesel, Gazoline, LPG engines (automotive, trucks, camping car, tractor, industrial trucks).

  • PC box | touchscreen (23-27'')
  • QWERTY keyboard
  • Software: WN OS & WIN3600
  • Design totem
  • Wireless features
  • Safe data transmission : OTC LAN (otclan) / GIEGLAN
  • Remote control
  • Distance maintenance
  • Made in France




GAS ANALYZER | GAZOLINE

  • Complying with standard : OIML R99 0 Class, ISO 3930 and BAR97
  • Dual mode : diagnostic and vehicle inspection
  • Measuring the concentrations of : Hydrocarbons (HC), Carbon monoxide (CO), and Carbon dioxide (CO²), Oxygen (O²)
  • Treatment of O2 Sensor input
  • Treatment of Nox Sensor input
  • Warm-up time :< 9 minutes at 0°C (1 minute minimum ) for full performance
  • Response time : < 5 seconds for Co, Co2, HC
  • Operating temperature : -10°C to 55 °C
  • Storage temperature : -20°C to 70°C
  • Humidity : 0 to 95 % relative
  • Ambient pressure : 750 mBar to 1150 mBar
  • HC | Normal resolution : 0 to 2000ppm | High resolution: Propane 2001 to 20000ppm Propane
  • CO 0 to 5%
  • CO2 0 to 20%
  • O2 0 to 25%
  • Nox 0 to 5000 ppm
  • Engine speed 0 to 9999 rpm
  • Oil temperature 0 to 150°C
  • Corrected CO 0 to 10%
  • Air/fuel coefficient (Lambda) 0 to 9,99

SMOKEMETER | DIESEL

  • Portable cell
  • Wireless connexion (Bluetooth module CAP1221)
  • Opacity analysis function, display of the opacity curve
  • Auto adjustment to zero value
  • No calibration
  • Low most accumulation
  • Robust and light

PARTICULATE MEASUREMENT | DIESEL

  • Ext DC (Extended Diffusion Charging) technology.
  • logging free technology
  • Low maintenance
  • New field of precision and sensitivity
  • No operation fluids required
  • Insensitive to vibrations & chocks
  • Easy to use
  • Short (1m) or long (4m) heated probe (100°C)
  • Wireless connexion (Integrated Bluetooth module)
  • Mobile cell
Trade fair innovation

CAP9010 Test Lane | 3-mode : brakes, suspensions & side slip testers Light vehicles

3-mode Test Lane, brake tester, suspension tester & side slip testers, for light vehicles

CAP9010

  • Full integrated solution
  • PC box | WIN OS
  • Touchscreen| 23-27''
  • Ergonomic and compact totem
  • Roadworthiness software | S9010
  • Light Vehicles | private cars, SUV, 4WD
  • Galvanised steel frame
  • Remote Control | CAP1000
  • Wireless BT pedometer| CAP9520
  • 4WD mode| Inverted rotation
  • Interconnectable or independent
  • Epoxy aluminium and high adhesion rollers
  • Assistance to positioning
  • Suspension tests| shift phase
  • Remote upgrade and remote assistance
  • Data Security| OTC Lan



BRAKE TESTER

  • Dimensions : 232 x 69 x 28 cm
  • Axle max load : 4 t
  • Motor power : 4 Kw (ABM germany)
  • Test speed : 5 km/h
  • Measurement range : 0-750 daN
  • Path: 80-220 cm
  • Aluminium rollers high resistance and adhesion
  • Wireless Pedometer (bluetooth)
  • Options : Progressive start & roller stop, coverage patches

SUSPENSIONS TESTER

  • Dimensions : 232 x 43 x 28 cm
  • Frequence : 0-25Hz
  • Axle max load : 4 t
  • Motor power : 3 Kw
  • Test Method: Phase shift
  • (applying manufacturer references)
  • Path: 80-220 cm

SIDE SLIP TESTER

  • Dimensions : 45 x 52 x 7 cm
  • Measurement range : 20/-20m/Km
  • Axle max load : 4 t



CAP2700 Electronic Headlight beam tester system for PTI & ADAS, Light vehicle, HGV, trucks, motorcycles

CAP2700 electronic camera headlamp is an expert system for controlling new lighting technologies.

  • All types of headlamps, including extra-large LEDs
  • Detailed pre- and post-diagnostic report - Multi-zone use - Modes: expert, adjustment and pre-check
  • Calibration of camera-coupled headlamps (AFS, anti-glaring system, Matrix beam, etc.)

The CAP2700 can be used anywhere in the workshop in just a few minutes:

  • Establish an expert examination of dipped-beam headlamps
  • Improve driver safety
  • Guarantee headlamp conformity
  • Professionalise the lighting business
  • Build up a database of results

In conjunction with ADAS calibration equipment / multi-make diagnostic tools, it can be used to calibrate LED Matrix beam by adjusting horizontal and vertical offsets.

ADD-ON Module

Add-on module for positioning on ADAS gantries for calibration in the vehicle's thrust axis from software on the PC/tablet of the ADAS tool

The advanced AFS (Advanced Front lighting System) function can be used to adjust, calibrate and parameters set-up of Matrix LED headlights. It has be used in conjunction with a manufacturer's tool and procedure

Full digital measurement corrected in real time by the multi-axis inclinometer

  • XXL lens compatible with extra-wide LED projectors
  • 7" colour capacitive touch screen
  • Linux OS and S2700WH software
  • Windows-based remote software and display
  • Green alignment laser visible on all types of body
  • Work Intuitive positioning aid
  • Validation buttons for accelerated procedures
  • ANYWHERE modules (vehicle tilt compensation)
  • Connectivity: wired and wifi 2.4 / 5G Hz
