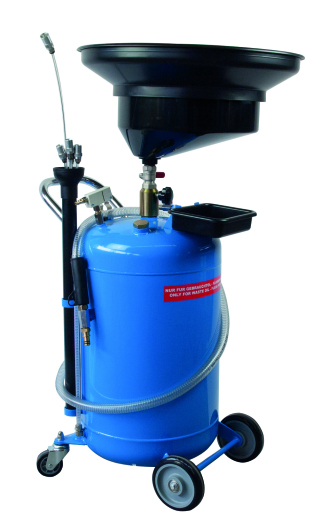

Waste oil evacuation system modell AOS 1005/3

Waste oil evacuation system modell AOS 1005/3

RAPID GROUP GmbH

Supplier profile All products

Contact supplier

Description

These containers are suitable for waste oil collection (GF AIII VbF) from machines and vehicles. Emptying by a principle of vakuum. Volume 80 ltr. Suction speed: Approx. 3 ltr./min, at a oil temperature of 80 °C. Emptying: with compressed air. Multi purpose unit for suction and collection of waste oil:

Vertically adjustable rubber grip handle
4 rollers, 2 of them steering rollers
Emptying by compressed air
Incl. suction probe type SO-kit
collecting waste oil below carlifts
Incl. funnel Ø 600 mm
Vertically adjustable 1200 - 1600 mm
Dim. approx. 600 x 600 x 1200 mm (LxWxH), 35 kg
