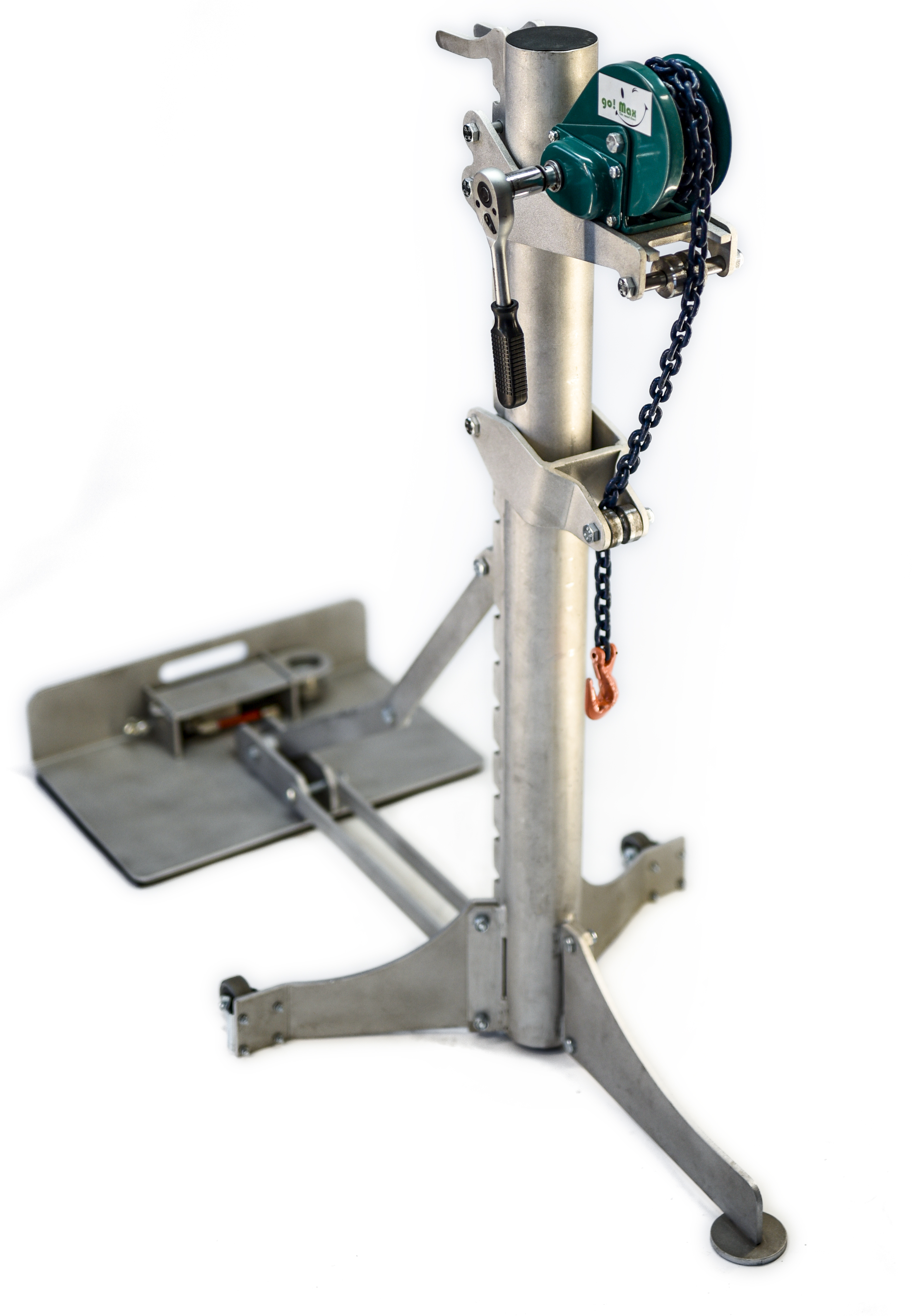

Quick Pullers for Body Repair

Precise and efficient repair with Nitrolaq quick pullers

Nitrolaq offers three models of quick pullers that are perfectly tailored to the needs of your body shop:

go!Max basic:

• Pulling force: 250 kg
• Lightweight and compact
• Easy to use

go!Max classic:

• Pulling force: 545 kg
• Versatile for different body damage
• Robust construction
• High pulling force for precise repairs

HydroMax:

• Pulling force: 1,000 kg
• For demanding repairs as an alternative to small straightening benches
• Hydraulic drive for maximum power and precision
• High-quality components for a long service life

All Nitrolaq quick pullers are:

• Made of high-quality aluminum
• Made in Italy
• Available worldwide

Advantages of Nitrolaq quick pullers:

• Fast and efficient repair
• Precise results
• Easy to use
• Robust construction
• Long service life

With Nitrolaq quick pullers you can:

• Shorten repair times
• Improve the quality of your repairs
• Satisfy your customers

Nitrogen as a Paint Carrier for Revolutionary Paint Jobs

Experience the advantages of nitrogen as a paint carrier:

• 20% to 40% paint savings: Precise and even color distribution significantly reduces material consumption.
• Less overspray: The fine spray minimizes overspray, saving time and material.
• Wet-on-wet painting: Allows for multi-coat painting without drying times between coats.
• Reduced drying times: Rapid drying with nitrogen shortens the process time and increases productivity.
• No orange peel effect: Achieve smooth, even surfaces without orange peel.
• Climate-independent: Nitrogen does not absorb moisture, so paint quality remains consistent regardless of ambient conditions.
• Extended filter life: The dry air reduces filter contamination and saves maintenance costs.
• Reduced primer: In many cases, primer can be reduced or eliminated altogether due to the improved adhesion of the paint.
• No paint runs: The precise paint distribution prevents the formation of unsightly paint runs.
• 50% shorter drying time: Save time and energy with significantly faster paint drying.

Nitrogen revolutionizes painting technology:

The use of nitrogen as a paint carrier replaces conventional compressed air and offers an innovative method for high-quality finishing while saving costs.

• Pure nitrogen: Up to 95% pure nitrogen, free of contaminants, ensures optimal paint application.
• Improved viscosity: Heating the nitrogen reduces the viscosity of the paint, reducing the need for solvents.
• Less overspray: Precise paint distribution minimizes overspray, saving material and time.
• Uniform surfaces: Nitrogen ensures smooth, even paint finishes without orange peel.
• Climate-independent painting: Paint quality remains consistent regardless of ambient conditions.

Nitrogen for the highest demands:

The quality of the nitrogen used has a direct impact on the painting results. High-quality nitrogen guarantees:

• Homogeneous and stable paint films: Precise paint distribution ensures even surfaces.
• Reduced paint consumption: Optimal paint application minimizes material consumption.
• Process repeatability: Consistent paint quality regardless of ambient conditions ensures reproducible results.

Experience the future of painting with nitrogen!

Discover the many advantages of nitrogen as a paint carrier and revolutionize your painting processes with this innovative technology.

Advantages

Painting:

• Elimination of orange peel effect
• 50% reduction in drying time
• Easy and quick application
• Exceptional aesthetic result with water-based paints and optimization of their consumption

Industry:

• Heating of compressed air for tools/special applications
• Protection of compressed air powered equipment
• Heating of compressed air for tool defrosting
• Prevention of contaminants and condensation in pressure gauges and instrumentation
• Hot air jet drying in industrial washers for washing metals and mechanical parts

General:

• PID (Proportional, Integral, Derivative) system. The system avoids unnecessary energy consumption and guarantees the maintenance of the set temperature, with a delta of ± 1 °C.
• Flexymaster tube of our own production. Lightweight, easy to handle and extremely flexible, the Flexymaster tube is insulated to maintain the inlet temperature with a maximum loss of 5 °C and is covered with a special protective sheath.
• Flexyhot tube of our own production. Lightweight, easy to handle and extremely flexible. The Flexyhot tube can be supplied either insulated or non-insulated. It allows to have the fluid available immediately at the desired temperature and to keep it constant up to the work point.
• Modular system. Depending on the needs of the end user, the following are supplied on request:
  • Pressure reducer that guarantees an inlet air flow at constant pressure
  • Solenoid valve that allows the air inlet to be interrupted by simply turning off the heater
  • Filter system (active carbon filter and coalescing filter)
  • Flexymaster tube
  • Self-supporting frame for mobile applications

Application sectors and description

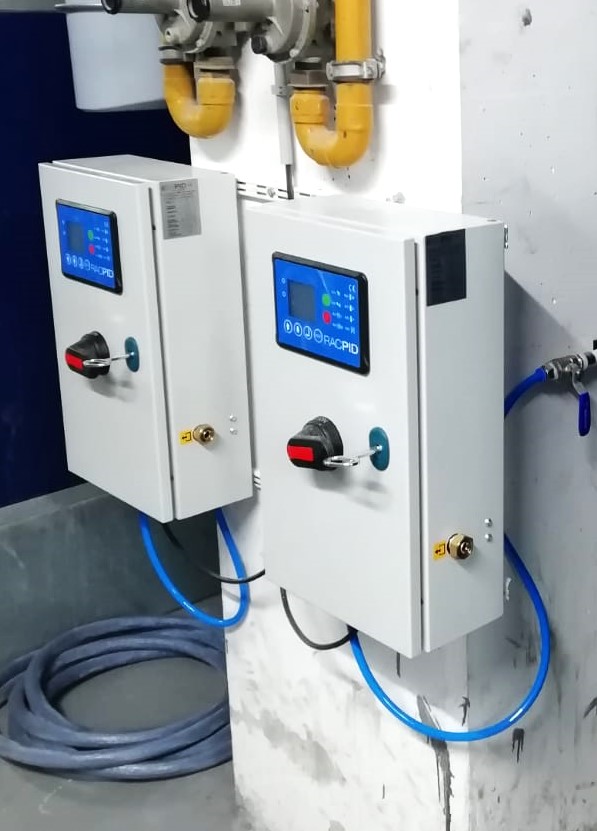

The RACPID 206 heater can be used in the following sectors:

• Bodywork
• Industrial painting
• Wood and furniture industry
• Industry
• Aeronautics
• Naval
• Carpentry
• Medical/dental

By setting and maintaining a constant outlet temperature, the advantages for painting are evident both during application and drying. Thanks to the RACPID 206, in fact, the problems caused by low temperatures in winter that do not allow the paints to be nebulized at the correct temperatures, and by the relative humidity in summer which, if lower than the dew point of the ambient temperature, can cause condensation that contaminates the paint, are eliminated. Once the paint has been applied, the RACPID 206 can also be used simply to blow hot air onto the surface.

RACPID 206 is not just a thermoregulator, it also offers an optional dual filter system consisting of: a coalescing filter with automatic condensate drain for the removal of oil mists, lubricating oil vapors, cooling oil, etc. which reduces the oil residue in the air to only 0.003 mg/m3 (class 1 - ISO 8573-1:2010) and an active carbon filter that purifies the air to obtain a particulate residue of less than 0.003 µm. After 1,500 hours of operation of the heater, a message appears inviting the replacement of the filters, this message appears both in the version with and without filters.

The RACPID 206 boasts a customized control panel and software based on the PID (proportional, integral, derivative) control algorithm, guarantees the constant maintenance of the set temperature and is able to heat the air up to a maximum of 100 °C. The PID system also reduces unnecessary energy waste.

The electronic controller stores energy consumption data and by entering the kwh cost in the dedicated parameter, it is possible to extract the exact data of the energy cost.

Accessories

To increase the performance of the RACPID 206 heater, we have created the following accessories:

• Flexymaster insulated hose
• Flexyhot heated hose
• Solenoid valve
• Pressure reducer
• Self-supporting frame for mobile applications

Insulated hose Lengths 5 - 10 - 12 m.

Heated hose Lengths 5 - 10 - 12 - 15 m.

Solenoid valve Allows the air inlet to be interrupted by simply turning off the heater

Pressure reducer: Guarantees an inlet air flow at constant pressure

Self-supporting frame for mobile applications Structure specially designed to easily transport the heater

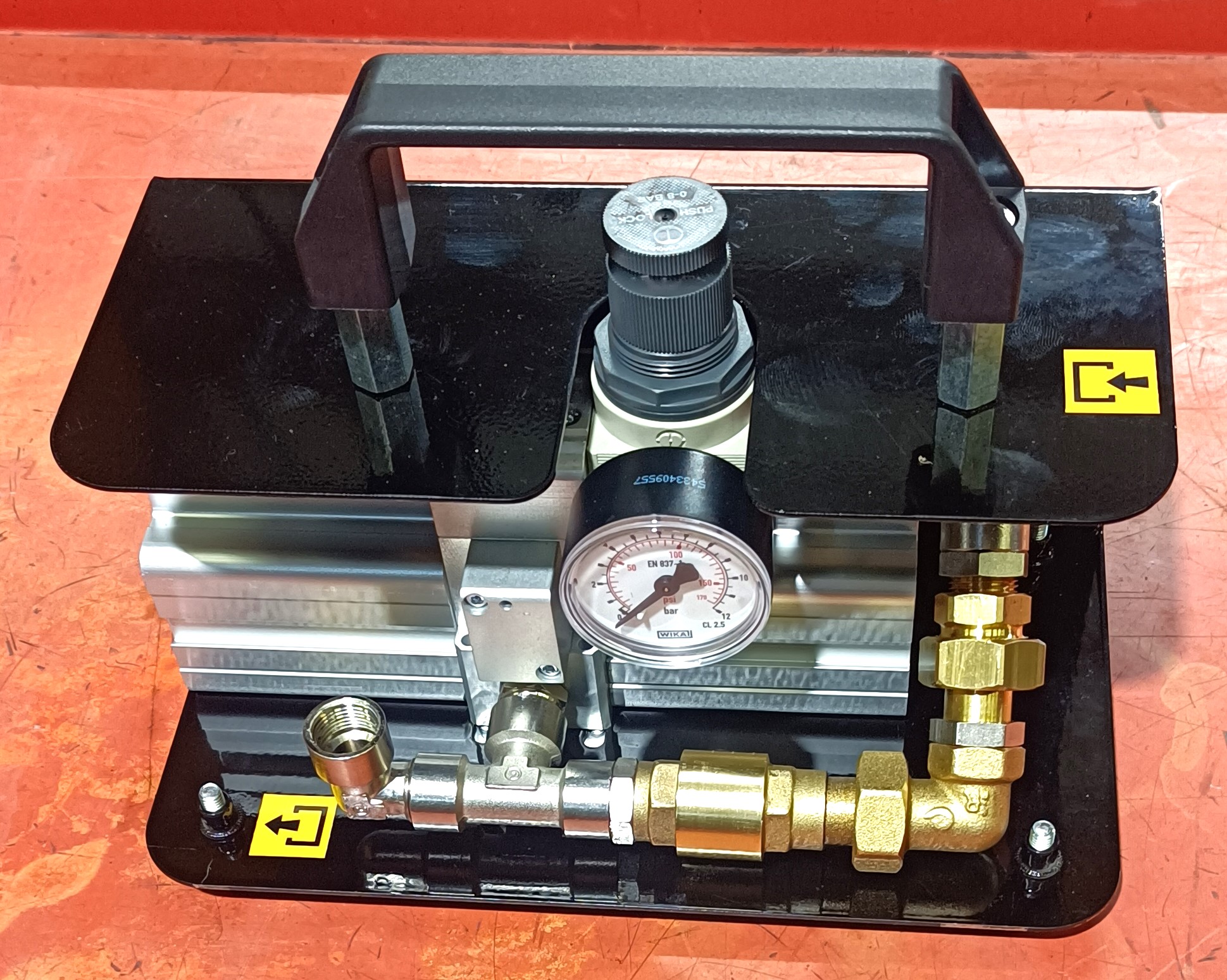

Air Pressure Booster: Power and Precision for Tire Mounting

Increase pressure and precisely control airflow

The air pressure booster is an automatic pneumatic device that doubles the input air pressure, providing a powerful and controlled airflow for your industrial needs.

Benefits of the air pressure booster:

• 100% pressure increase: Doubles the input air pressure, providing more power for your applications.
• Precisely controlled airflow: Precisely adjust the airflow to achieve optimal results in every situation.
• Safe pneumatic operation: Avoids the risks associated with using electrical devices in hazardous environments.
• Low maintenance: Robust construction and high-quality components ensure a long service life and minimal maintenance.
• Integrated check valves: Maintain outlet pressure even after inlet pressure is removed, for greater safety and reliability.

Applications:

• Tire mounting: Enables precise and efficient tire mounting on rims, even for large and heavy tires.
• Industrial applications: Supplies compressed air for a variety of industrial applications, such as tools, machines, and pneumatic systems.
• Automotive workshop: Provides a reliable source of compressed air for various tasks in the automotive workshop, such as painting, sandblasting, and welding.

Technical features:

• Input air pressure: 6 bar to 8 bar
• Output air pressure: Up to 16 bar (adjustable)
• Maximum airflow: 300 l/min
• Temperature range: -10°C to +60°C
• Connection thread: 1/2" NPT

Accessories:

• Pressure regulator: Allows for precise adjustment of the output air pressure.
• Filter: Removes impurities and moisture from the air.
• Hose: Connects the air pressure booster to the tool or application.

The air pressure booster is a versatile and robust device that is ideal for use in a variety of industrial applications.
