The TR470 reconditions in a very easy and precise way all kind of brake disc, drum or flywheel of cars and light trucks and, with proper accessories even of heavy duty vehicles.

The monolithic frame of cast iron provides high mechanical characteristics assuring excellent features of sturdiness and rigidity.

The convenient Combination Disc/Drum tool holder assembly avoids the continuous exchange of tool holder all the times it switches from disc to drum and vice versa.

The cross slide feed with variable speed that assures always the best surface finishing.

The Adjustable spindle speed with 3 positions to get always the proper cutting speed according to the diameter of work piece.

The standard equipment, including a 30 mm shaft and a wide set of centering cones and blocking bells, allows a quick and accurate centring of work piece.

The optional equipment AP50, including the 50 mm shaft as well as proper cones and spacers, extends the working capacity up to the rotors and drums of heavy duty vehicles

Specifications

Min - Max drum capacity 150÷710 mm

Max drum depth 210 mm

Max disc capacity 860 mm

Max disc depth 150 mm

Max disc thickness 60 mm

Spindle speed 70–100–145 rpm

Variable speed feed 0÷27 mm/min

Spindle motor power 0,75 kW

The RP1400CNC is a resurfacing machine for cylinder heads and engine blocks of cars and trucks as well as for all flat surfaces which require a maximum accuracy of the contact surfaces. The construction technology combines highly innovative solutions such as the brushless motor for automatic positioning and precise plate mill controlled by CNC to established technologies such as linear guides and ball screws drive feed. The axes and the speed of rotation of the cutter are controlled by an inverter is in fact possible to control the speed of advancement. The control panel is an industrial touch screen, equipped with a simple and intuitive program. The RP 1400 CNC can be provided with mill cutter with tool holder for insert of CBN-PCD diameter with 405mm for smoothing of the surfaces in cast iron or aluminum. For heads with precombustion chamber you can use a special tool that ensures a perfect finish them.

The RP 1400 CNC is defined the “Smart Resurfacer” thanks to a laser sensor wich scan the surface of the heads, and recognizing the profile to automate the milling operations.

Table travel 1400 mm

Max working length 1195 mm

Max working width 410 mm

Min - Max working height 190÷710 mm

Useful table surface 1100x335 mm

Milling plate diameter 405 mm (16)

Spindle rotation speed 300÷1200 RPM

Variable table feed speed 0÷1500 mm/min

Spindle motor 2,2kW

Table motor 0.75 kW

Feed torque motor 1.27 Nm

Dimensions (LxWxH) 2500x1000x1900 mm

Weight 1410 kg

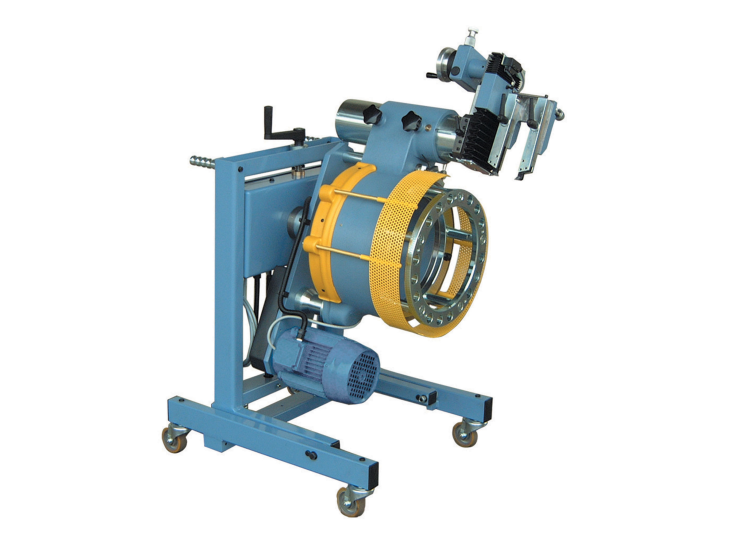

The TD 502 completely changes the concept of truck and buses disc reconditioning. No more time lost dismantling the disc for bench turning but an on-board application of the disc lathe. This revolutionary idea has developed a machine that minimize the set-up time thanks to very simple operations. It's mounted on a self-aligning trolley (swinging and height adjustable) that always guarantees the perfect matching between machine and hub (with no need for alignment or centering operations by means dials). The body machine construction made of cast iron has a convenient obstacle free central part which doesn't interfere with the truck reducer (expecially on rear axles), allowing a machine positioning very close to the disc for a much more precise reconditioning job. Moreover the intermitted and adjustable feed grants an exceptional finishing on any surface.

Max working diameter 500 mm

Min working diameter 120 mm

Max disc thickness 65 mm

Max working width 140 mm

Rotation speed 60 rpm

Variable intermittent feed 0÷0,3 mm/rev

Motor power 1.5 kW

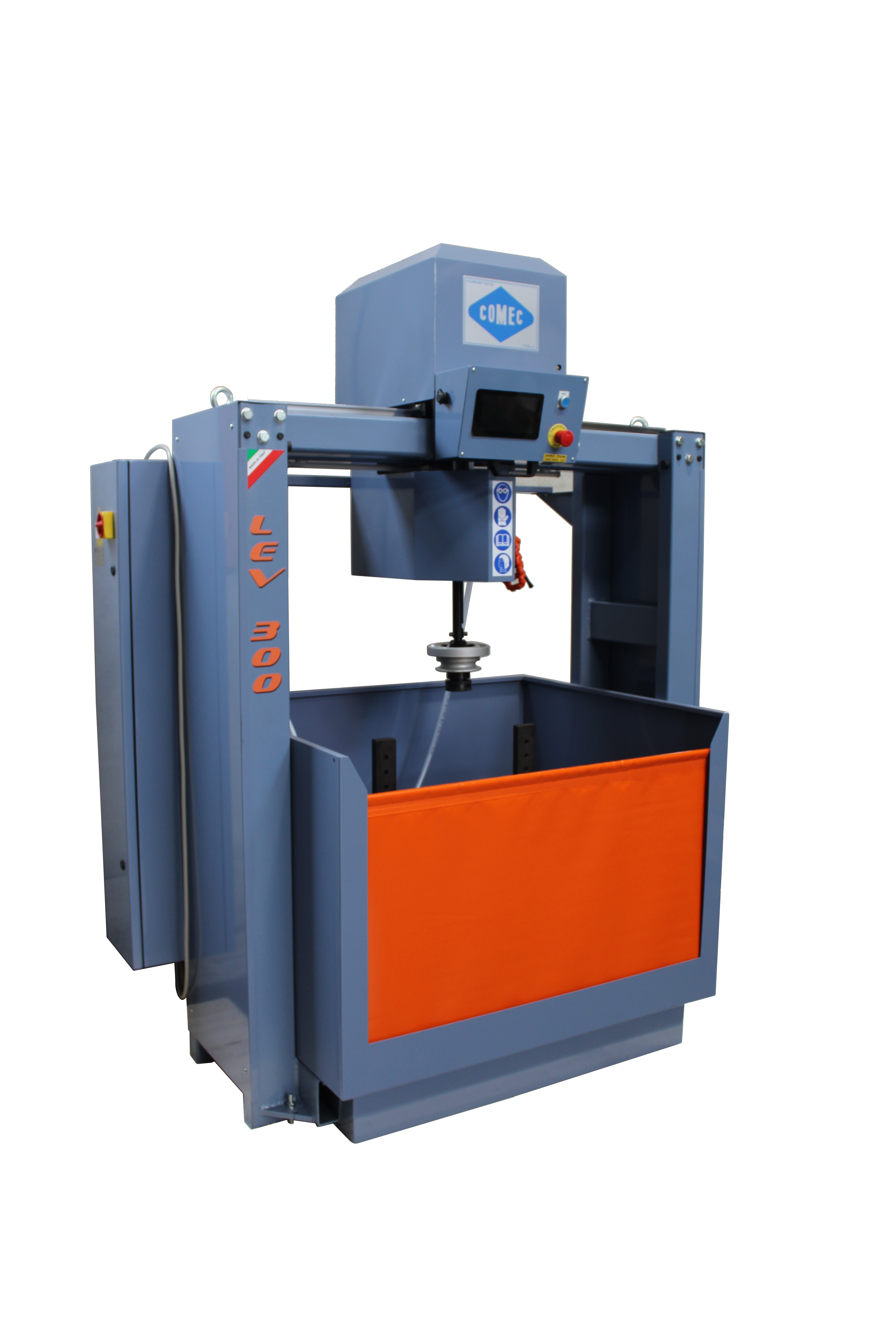

The LEV300 is a machine specifically engineered for cylinder honing of cylinder blocks, as well as for all other kind of precise industrial applications where such operation is requested.

The sturdy construction of the machine offers a high structural rigidity, thereby assuring an extremely accurate finishing.
The honing head feed system is carried out through a recirculating ball screw, and the rotation is activated by a powerful electrical motor.
Thanks to the touch screen control system, which is located in front of the operator, it is possible to enter the work parameters to be calculated by the integrated software, thus speeding up the operation and increasing the honing head's rotation speed.

Specifications

Min-Max honing diameter 25÷500 mm
Max spindle travel 300 mm
Spindle rotation speed 0÷150 rpm
Max distance table-honing head 600 mm
Max longitudinal head travel 780 mm
Max workpiece dimensions 900x800x550 mm
Spindle motor 0,75kW
Honer Feed motor 1,5 kW (7Nm)
Cooling pump motor 0,15kW
Dimensions (LxWxH) 1560x1020x2160 mm
Net weight 600 Kg
