About us
- More than 35 years experience
- Worldwide supplier of high quality vehicle test equipment
- Revolutionary innovation
- Fully automated test lanes
- Wide and deep product range
Since the foundation in 1977, BM Autoteknik A/S has developed and manufactured roller brake testers and test line systems to workshops and vehicle inspection bodies all over the world.
BM is mainly trading internationally through our network of international distributors. These companies import and handle all marketing, sales, and after sales support to the end-user. Key staff of the distributor is trained and certified by BM Autoteknik A/S in order to provide excellent service to the end-user on the individual markets.
BM Autoteknik A/S has always focused on quality over quantity and concentrating on doing what we do best. Therefore, our product range is limited to equipment, which is designed for testing the "under body" systems of the vehicle. This includes roller brake testers, play detectors, suspension testers, side slip testers and test lane systems.
Today, we have one of the widest and deepest product ranges in the industry including advanced mobile roller brake tester systems for both light and heavy vehicles.
BM Autoteknik A/S offers a state of the art IT system, BM FlexCheck, which can combine both BM products and third party products to perform as a complete integrated vehicle inspection concept. BM FlexCheck features both the production system, nationwide link of data from multiple stations with management supervision tools and reporting as well as a website with booking integrated all the way down to the production system.
Innovation
As we focus on quality and meeting specific customer requirements, BM Autoteknik A/S has also managed to set the industry standard over the years.
BM Autoteknik A/S was the first company in the world to introduce a roller brake tester for heavy vehicles, which can lift the roller bed hydraulically in order to establish load simulation. This was done in 1982 - decades before our competitors.
More about us
Special Interests

Keywords
- Bremsenprüfstände
- Bremsverzögerung Messer
- Automat
- Prüfstraßen
- Gelenkspieltester
Our Products

BM MC Lane

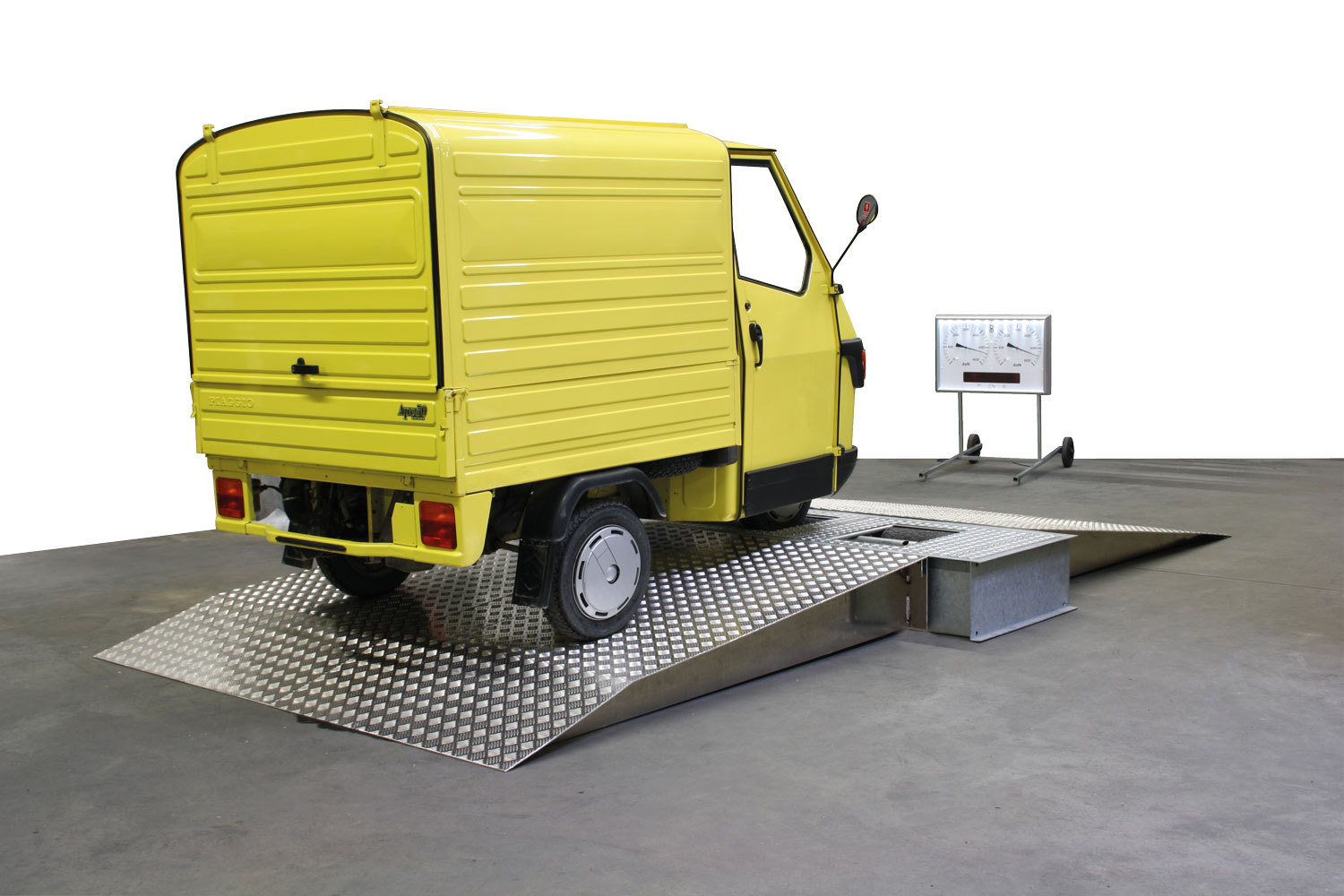

BM1010 is a strong in-ground and on-ground brake tester for testing motorcycles with axle load up to 750 kg. The BM1010 is approved by MOT in England. The brake tester can be supplied with an extra tacho tester roller bed for testing the speed of the motorcycle.
The BM1010 is modular built and can be configured to brake test of the following vehicles:
- Motorcycles
- Quads
- 3-wheelers (TUK TUK)
The BM1010 can optionally be connected to a PC Windows program for storing data. The optional tacho tester is connected to the same electronics as the brake tester and can test speed on both self drive wheel as well as a wheel, where the 2.2 kW motor drives the wheel to its maximum speed. In both cases the maximum test speed is 160 km/h.
The BM1010 brake tester features a long range of options, which allows for a configuration, which can meet most customer requirements including:
- Infrared remote or PDA control
- Pedal force measurement
- Automatic wheel weighing system
- Connection to local or remote PC with BM Windows software
- Prepared for connection to self-/motor drive tacho test for test of speedometer
- Connection to BM FlexCheck
The BM1010 is equipped with the same electronics and software as the other BM brake tester models for light vehicles BM3010, BM4010, BM7010 and BM9010 and therefore the BM1010 offers the same high test standard and data processing as these models.
The design of BM1010 is made to a very high standard both in terms of quality and safety. All steel is hot galvanized and the wear surface of rollers is based on mesh steel to ensure long lifetime and accurate measurement.
The BM1010 can be installed in most workshops or even on-ground.
The BM1010 is as standard supplied with a display having one large analogue reading of brake force and 50 mm high bright digital readout of brake efficiency and pedal force. The display can be mounted either on the wall saving floor space or on floor column devices.
Read more: http://bmtest.dk/Default.aspx?ID=55

Universal Vehicle Inspection Lane

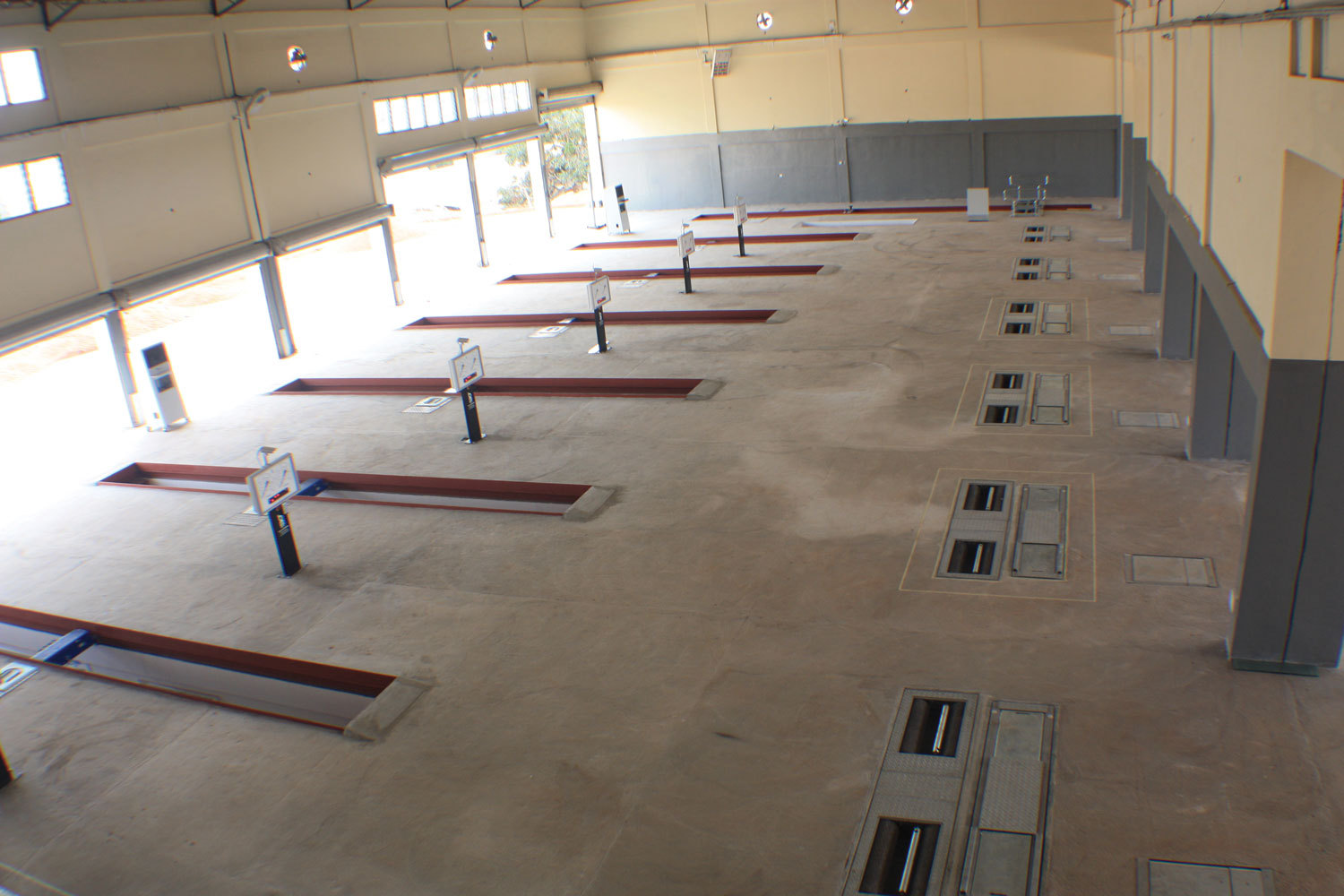

The BM Universal Inspection Lane is fully automated and includes the latest technology for the collection of test data. The system consists of state of the art test equipment from a range of suppliers all of which has obtained “Proof of Concept” from some of the most prestigious vehicle inspection bodies in countries like England, Ireland, Lithuania, and Denmark.
The BM Universal Inspection Lane is designed for the heavy use and high throughput experienced in the vehicle inspection environment. The equipment fulfils all CEE directives and is customised to meet the exact requirements of each individual market and Regulatory Body. The system is fully automated via the BM FlexCheck Vehicle Inspection IT system.
- Different makes and models of electronic test equipment can be connected to BM FlexCheck via Bluetooth.
- With BM FlexCheck you can create lane designs with less test equipment than with conventional vehicle inspection IT systems.
- The vehicle inspection company or agency will always have a choice, when purchasing such electronic test equipment (such as brake testers, headlight testers, emission testers, speed testers etc), which will effectively ensure competitive purchase prices now and in the future.
- In case the vehicle inspection company has already purchased electronic test equipment, then BM FlexCheck can most likely be connected to this equipment and ensure, that additional and unnecessary capital investment is reduced or avoided.
As BM FlexCheck is based on a wireless design between computers and electronic test equipment additional cost savings are obtained:
- The installation of BM FlexCheck does not require expensive cabling between the various products to the test lane PC. This is also an advantage, if for instance the emission equipment is installed outdoor due to health and safety regulations.
- Virtual inspection lanes can easily be implemented, where several lanes share only one piece of electronic test equipment. An example of a virtual lane is where two or three lanes share one brake tester, one emission tester, one suspension tester and one headlight tester, but each lane is equipped with separate inspection pits and/or vehicle lifts.
The BM Universal Inspection Lane comes in two variants and includes:
BM40A – Light vehicles
- BM FlexCheck IT system
- BM4010 Roller brake tester
- BM40010 Suspension tester
- BM810 Si de slip tester
- BM250 Wheel play detector
- BM3201 Combined emission tester
- BM2500 Headlight tester
- Noise level meter 2240 from Brüel and Kjær
- Additional test equipment can be added such as:
- Handheld decelerometer
- EOBD check
- Automatic camera solution with vehicle photo on inspection printout
BM70A – Heavy vehicles
- BM FlexCheck IT system
- BM14200 Roller brake tester
- BM53000 Wheel play detector
- BM40010 Suspension tester
- BM910 Side slip tester
- BM605 Speedometer tester
- BM3201 Combined emission tester
- BM2500 Headlight tester
- Noise level meter 2240 from Brüel and Kjær
- Additional test equipment can be added such as:
- Handheld decelerometer
- Mobile EBS testing equipment
- EOBD check
- Automatic camera solution with vehicle photo on inspection printout

BM Trailer solution

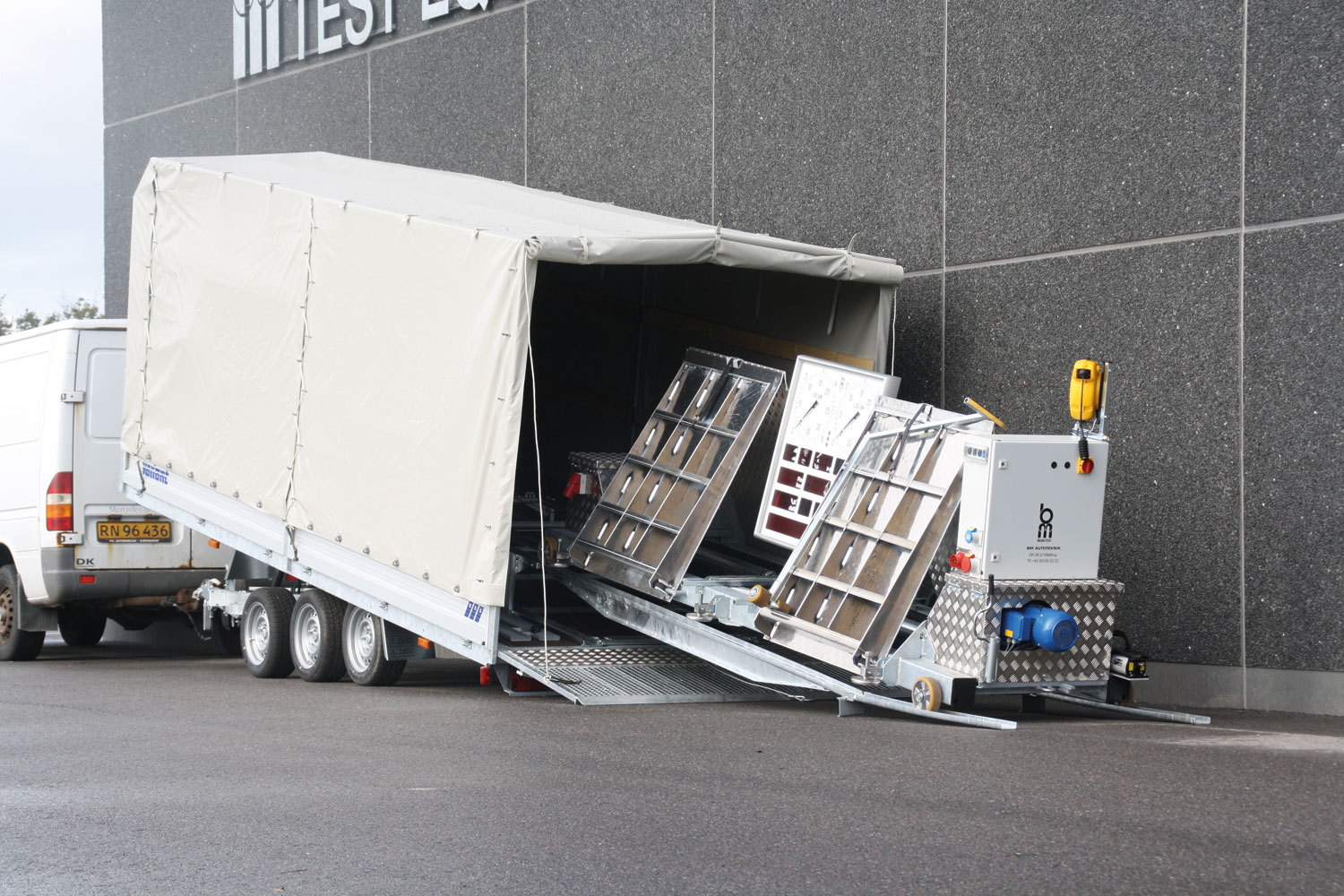

BM has developed a unique transport frame system, which can be mounted onto a standard trailer with tilt function. The transport system is modularly designed and covers means of transportation of:
- BM20200 mobile brake tester.
- BM53000 mobile wheel play detector.
- BM910 side slip
- Transport trailer for BM20200, BM53000, and BM910
- Generator onboard the trailer
The transport system has a number of important benefits including ensuring equal distribution of weight onto the full area of the trailer bed, fixation of equipment during transport and correct angle for avoiding bottom out when loading and unloading the equipment.
The test equipment can be placed directly on the workshop floor without need of expensive civil work and offer a capacity of testing vehicles with up to 20 Ton axle load. Installation time is between 10 and 30 minutes and the mobile test line can be supplied with – or without the transport trailer solution.
With the BM20200 mobile brake tester the repair technician can perform efficient and fast diagnostics of the vehicle brake system and hereby enhance the brake repair work at a lower cost. When brake repair is completed, the repair technician will use the BM20200 to verify the functionality of the brake system and provide a high quality assurance of the work to the benefit of the customer.
The BM53000 is a tool which allows for a fast inspection of the wear components of the steering axles as well as inspecting the mechanical condition of all other axles on the vehicle. This inspection will allow the repair technician to detect and repair dangerous wear problems before delivering back the vehicle to the customer in a safe and improved condition.
The BM910 is placed on-ground and supported by a drive-over plate for the other wheel, so good toe in/out measurement can be obtained.
The BM20200 mobile brake tester, BM53000 mobile wheel play detector and BM910 on-ground side slip meter meet and support most workshops’ and vehicle inspection companies’ objective of providing and enhancing high quality service to their customers in a cost effective and efficient manner.
Read more: http://bmtest.dk/Default.aspx?ID=1599

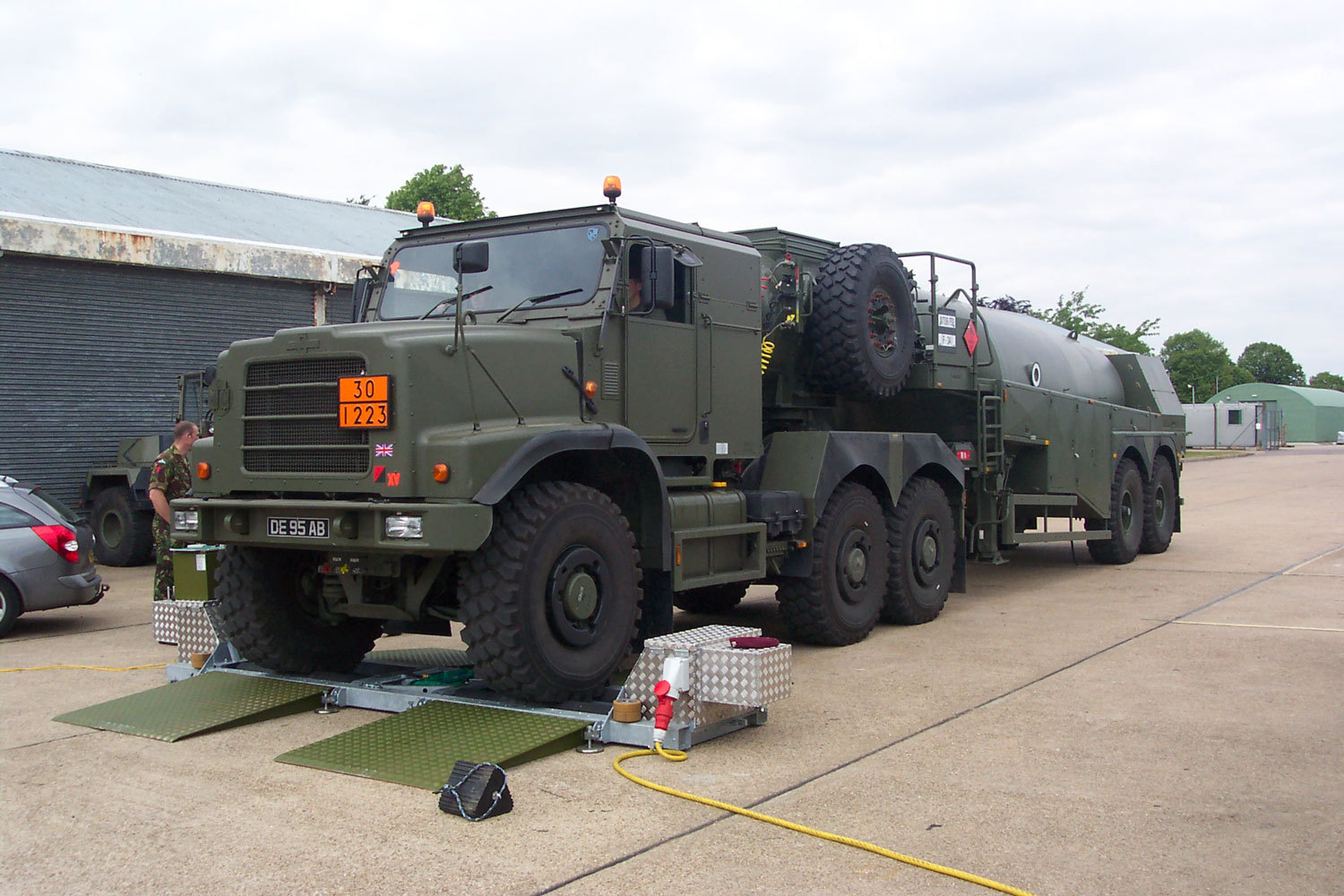

Special solutions - Military/Police
BM Autoteknik A/S has over the last 35 years developed special solutions in cooperation with a variation of customers with special requirements.
Container and Flatrack solutions for mobile equipment have been developed together with international Road Police - and Military organisations.
Other unique results are some of the most unique load simulation systems development for - and in cooperation with - some of the most esteemed vehicle inspection organisations in the world including VOSA, VTNZ and AB Svensk Bilprovning.
Through these projects, BM Autoteknik A/S has established a profound understanding of the product quality requirements linked to such applications and today it is an important element of the companies to provide cost effective solutions to new challenges.
Read more: http://bmtest.dk/Default.aspx?ID=160

BM2900 Automatischer Scheinwerfer Tester

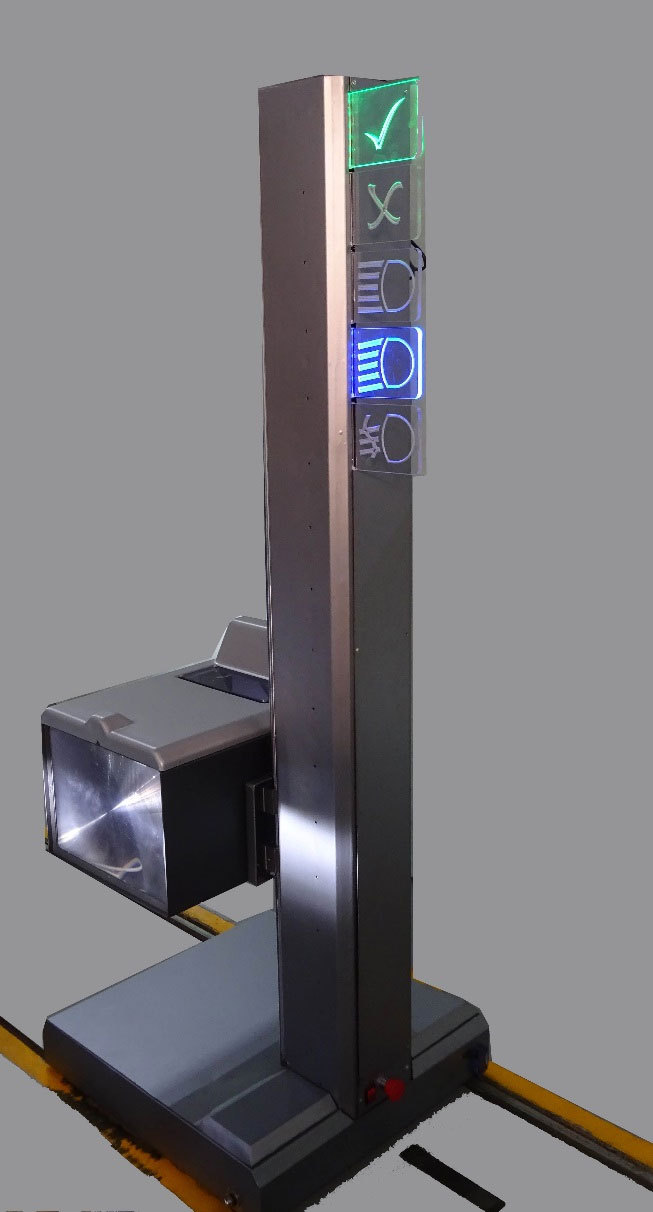

BM2900 headlight tester is a fully automated robot headlight tester that is installed on rails on the floor. The tester can test high, low and fog beams and all types of lamps (halogen, xenon and LED). The tester moves on 4 wheels along the 4.5 m rails on the floor and thanks to photo diodes in the main column, it contains automatic positioning in front of the headligts of the vehicle.
The vehicles positioning is detected and the LED head-up display will assist the driver during the inspection regarding vehicle positioning and change from one light source to another.
Furthermore the tester has a full wireless solution for power supply and transmission enabling interaction with inspection lane and ability to communicate with a PC. Also integration with the BM FlexCheck vehicle inspection IT system is possible. The IT system allows for establishing fully automated one or multilane test facilities. The BM2900 is controlled via a wireless remote control.
