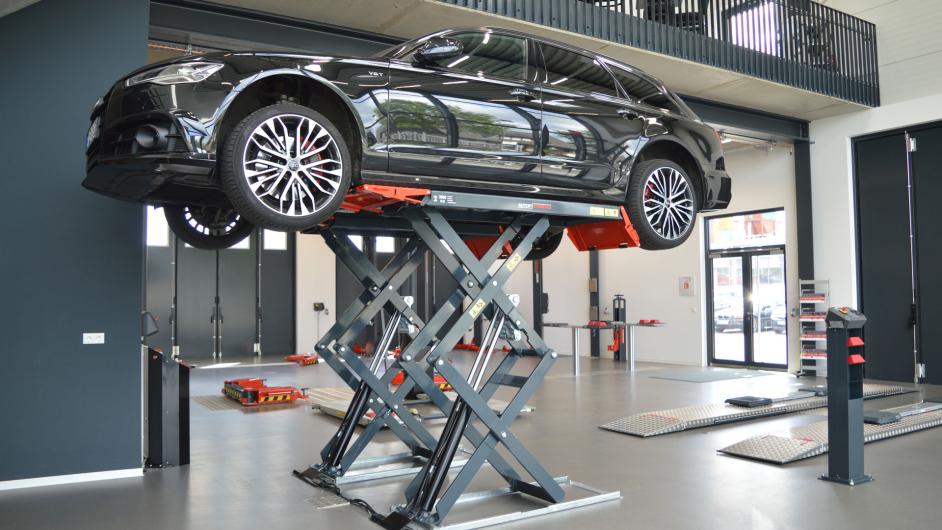

Electro-hydraulic double scissor lift, 3.5 t capacity

Application:

• Check-in
• Repair and maintenance

• Double master / slave system, therefore no compressed air and no safety ratchet necessary
• Self-locking parachute valves in cylinders against sudden increase of speed
• Control column with push buttons, integrated pump unit and alarm signal
• Electronic synchronization through photo sensor and reflector, stops lift from 50 mm difference in height
• Emergency lowering valves can manually be opened
• Sturdy scissor construction for high directional stability
• Ramps made of tear plates, for easy drive-on, also with wet wheels
• Base frame galvanized as standard
• No mechanical connection between scissor sections, therefore free gangway
• Lubrication free teflon sliding bearings in all joints
• Optimum lifting area from small passenger car up to VW T6 short wheel base / BMW series 7 long (G12)
• Low minimum height ≤ 100 mm, for perfect drive-over situation, also for flat vehicles
• No fixed drive-on direction, lift is reversible, flexible positioning of control column. Recommended: front left side
• Rubber blocks 1 set = 4 pcs, H=40 mm, as well as hose and calbe covers included in scope of delivery

Standard colours:

• Platforms & scissor: RAL 7016 – grey
• Ramps: RAL 3020 – red

Versions

• Available with different voltages
• For surface-mounting or recession, with the same lift version
• G = galvanized platforms

Options

• Set of expansion bolts
• LED-lighting set for surface-mounted installation
• Installation frame galvanized, for recessed installation
• Set rubber blocks, 20, 40, 60, 70, 80 and 100 mm
• Hose extensions incl. covers (+ 2 meter)
• Additional long drive-over ramps 1 set = 4 pcs, L=XXXX mm, for lowered cars
• Cross bar for lifting 4x4 vehicles
• Special colours available on request!
