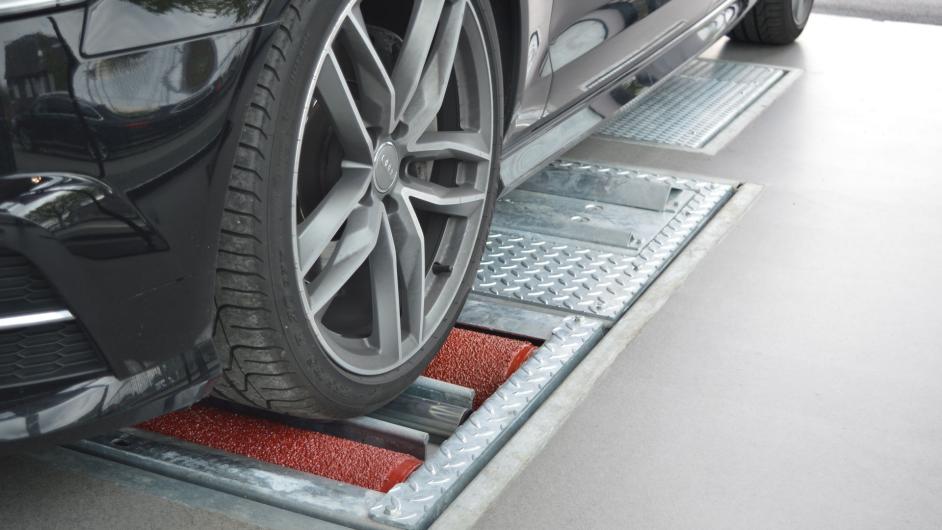

Roller Testlane for check-in, repair and maintenance, testing equipment, general inspection


• Galvanized, enclosed roller set
• 205 mm rollers with welded profile surface
• Test width: 800 mm to 2200 mm (optional 800 - 2800 mm)
• Height adjustment screws
• Wear resisting electronic measuring system DMS
• 50 mm sensory rollers in stainless steel
• Prepared for retro-fitting of weighing device
• Modular system, all roller sets can be extended to test lanes
• Compact electric / switchbox, prepared for upgrade
• Drive-over axle load 4,0 to (optional 5 t)
• Brake force 4,5 kN (optional 6 kN)
• Equipped as standard with drive-off device
• Manual / Automatic mode
• Delayed switch-on, start-up monitoring
• Testing program for electronic parking brakes
• Lockable main switch
• Suspension tester Boge system, galvanized bottom group
• Galvanized test plates
• Large easily read analog display

Versions

• Galvanized roller set and suspension tester
• 205 mm rollers with welded profile surface
• Electrical / switch box with motor protection, control electronics, lockable main switch, 12 m pre-cabled

Options

• Test width 800 - 2800 mm
• Foundation frame
• Permanent formwork
• Plastic-coated rollers
• Pneumatic lowering/ lifting device
• Raising kit
• Suspension tester
• Tramming plate
• Manually reversible rotation and measuring device
• Automatic four wheel recognition (patented)
• EDOS (Easy drive-out system - patented)
• Roller cover plate
• Remote control
• LED digital display
• Pedal force meter
• Weighing device
• PC connection & ASA live stream
• Minicomputer ASA live stream
• PC software display, basic, test lane and office

Drive-over load: 4,000 kg
Test speed: 5 km/h
Motors: 2 x 3 kW (option 2 x 4 kW)
Roller diameter: 205 mm
Test width: 800 - 2,200 mm (option 800 - 2,800 mm)
Brake force: 4.5 kN (option 6 kN)
Test load: 2.6 t
Power supply: 3 x 400 V, N, PE 50 Hz
