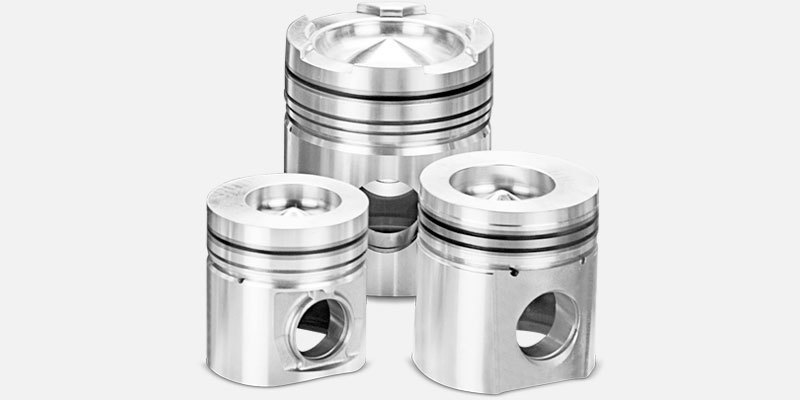

Arrow Pistons are manufactured using high strength alloys and employing advanced manufacturing techniques to provide flawless quality which is entirely significant to boost the performance of an engine. The high conductivity of these materials promotes cool running and optimum performance and the light but robust design ensures efficient operation over extended periods of time. Resistance to wear ring grooves, skins and gudgeon pin hole is greatly increased to ensure dimensional stability in service. All alloy piston castings are correctly heat treated and aged for maximum strength and durability.

Being a leading manufacturer and exporter of Pistons in India, we specialize in manufacturing these pistons in custom designs and dimensions to meet the specifications and demands of our customers across the World. All our Pistons are made with strict adherence to international standards and can be used as OEM replacements across a wide range of vehicles.

TYPES:

Alfin Type

Steel Strip Type

Cooling Gallery

Normal Piston

Production Capacity: 0.6 million pieces per annum

Material: Aluminium

Hardness (HRB): 70

Chemical Composition

Name: Copper (Cu)

Minimum: 1.00

Maximum: 1.50

Name: Magnesium (Mg)

Minimum: 1.00

Maximum: 1.50

Name: Silicon (Si)

Minimum: 12.00

Maximum: 14.00

Name: Manganese (Mn)

Max: 0.20

Aluminium (Al)

Other than above, we can offer material compositions using Iron, Nickel, Zink, Lead, Tin, Titanium or as per customer specifications meeting to international standards
