Two Refrigerant Ready

The new generation EKM PRO is designed to work with both R134a and R1234yf refrigerants after discharging all the refrigerants from the tank. According to the new regulation, any newly introduced vehicle that requires new vehicle type approval after the 31st December 2012, will need to be fitted with an Air Conditioning system filled with the new gas R1234yf.

Android Operating System A beautiful design and advanced technology were incorporated in EKM PRO to create a truly unique device. EKM PRO comes equipped with a 7" android tablet. Thanks to the BLUETOOTH technology the operator can control and follow the operations via tablet from a distance. All updates can be done free from the internet via a Wi-Fi connection.

Remote Repair Service In case of a malfunction, Elci technicians can remotely connect to your tablet to diagnose and fix your problems quickly.

Main Features

Recovery, recycling, air purge, oil drain, vacuum, leak test, oil injection, and refrigerant recharge operations are performed in a sequence automatically.

8GB memory, 1.2 GHz processor.

7-inch touch screen, 1024×600 resolution.

Easy-to-use control panel.

High-efficiency refrigerant recovery.

Automatic leak detection via high sensitivity vacuum sensor.

ABS Housing.

High sensitivity temperature sensor.

High-pressure protection system.

Automatic tank full warning & shut-off.

Automatic oil drain.

Automatic oil injection.

Automatic UV dye injection.

Automatic air purge.

Filter drier to remove acid, moisture, and particulates from the refrigerant.

Thermal printer with 57mm paper.

Cooling fans.

Electronic scale.

Refrigerant storage tank.

Refrigerant management system to track charged, recovered, and added refrigerant.

Refrigerant database that contains up-to-date refrigerant quantities of passenger cars and commercial vehicles.

Maintenance reminders for filter-drier, vacuum pump oil, and compressor oil.

Heater blanker to speed up charging by maintaining a constant temperature.

Storage tray for tools.

Four swivel casters for excellent maneuverability.

Technical Features

Compressor: 3/8 HP 12 cc hermetic

Dimensions: 55 cm x 113 cm x 58 cm

Display: 7″ touch screen, 1.2 GHz CPU

Filter Drier Capacity: 150 kg

Hose Length: 300 cm

Operating Range: 8° to 49° C

Power Supply: 220 V ± 10% / 50 Hz

Recovery Rate: 450 gr/min

Refrigerant Types: R134a | R1234yf

Scale Resolution: ± 5 gr for refrigerants, ± 1 gr for oils

Storage Tank Capacity: 15 kg

Vacuum Pump: 10.2 m³/h

Weight: 95 kg

Optional Features

Refrigerant Identifier for R1234yf

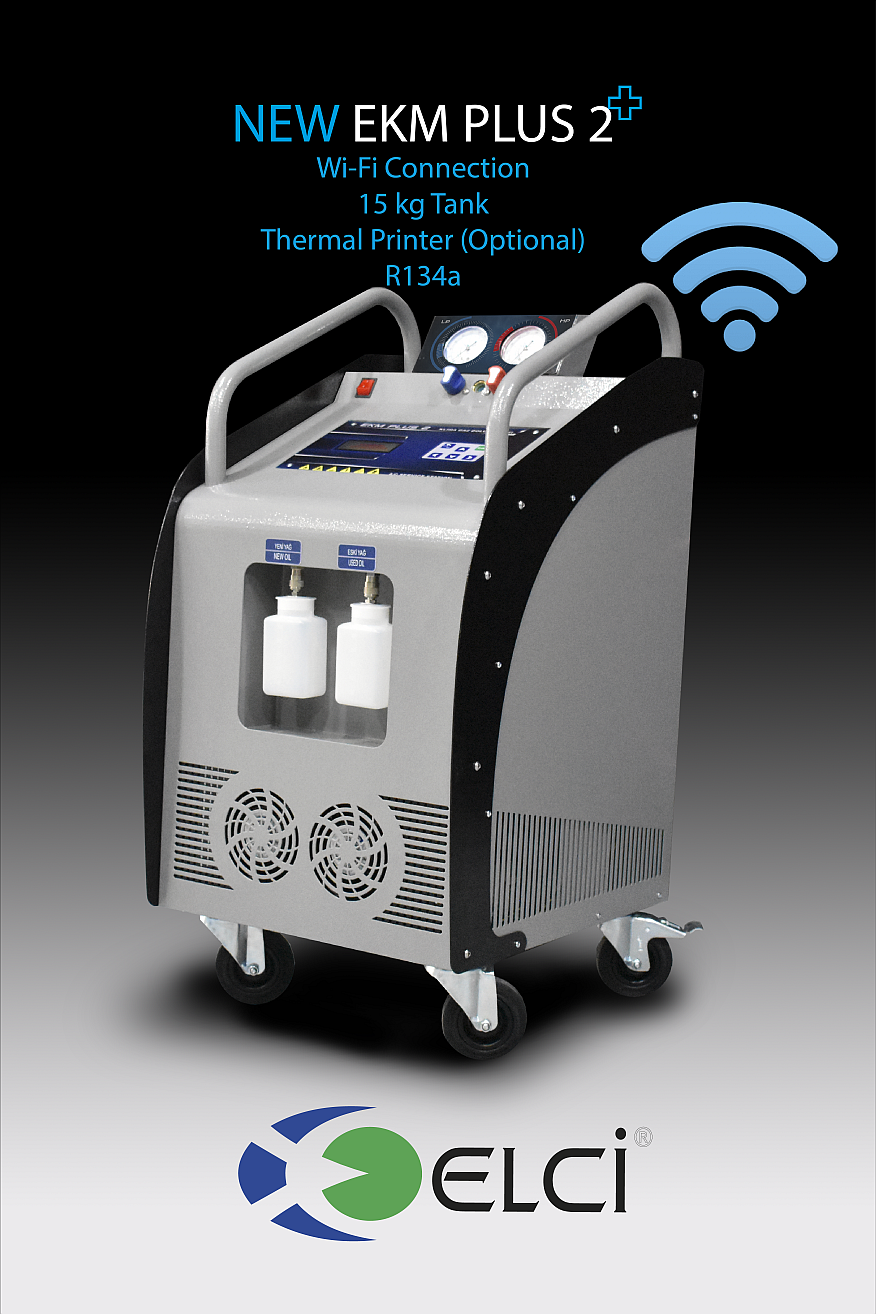

New Design, New Service Opportunities Not only for daily workshop routine but also portable. With the new EKM Plus 2 portable service station, especially for heavy-duty construction and agricultural machines, ships can be serviced at the place. Easy to carry station allows the operator to service the vehicles on the field. No need to go to a service station in case your a/c system fails at the construction area or during the harvest or during a cruise. Carry and service. Service Everywhere By the help of the 2000 Watt inverter, the station can be operated by 12 Volts where 220V is not available (optional).

Main Features
Recovery, recycling, air purge, oil drain, vacuum, leak test, oil injection, and refrigerant recharge operations are performed in a sequence automatically

Microprocessor controlled

LCD display Easy-to-use control panel

High-efficiency refrigerant recovery

Automatic leak detection via high sensitivity vacuum sensor

Metal Housing

High sensitivity temperature sensor

High-pressure protection system

Automatic tank full warning & shut-off

Oil drain

Oil injection

Automatic air purge

Filter drier to remove acid, moisture, and particulates from the refrigerant

Cooling fans

Electronic scale

Refrigerant storage tank

Refrigerant management system to track charged, recovered, and added refrigerant

Refrigerant database that contains up-to-date refrigerant quantities of passenger cars and commercial vehicles

Maintenance reminders for filter-drier, vacuum pump oil, and compressor oil

Storage pocket for tools

Two swivel casters for excellent maneuverability

Technical Features

Compressor: 1/3 HP 12 cc hermetic

Dimensions: 46 cm x 93 cm x 63 cm

Display: 4×20 character LCD display

Filter Drier Capacity: 100 kg

Hose Length: 300 cm

Operating Range: 8° to 49° C

Power Supply: 220 V ± 10% / 50 Hz

Recovery Rate: 250 gr/min

Refrigerant Types: R134a

Scale Resolution:± 5 gr

Storage Tank Capacity: 15 kg

Vacuum Pump: 3 m³/h (51 lt/min)

Weight: 68 kg

Optional Features

Printer

Inverter: 2000W 12V DC – 220V AC

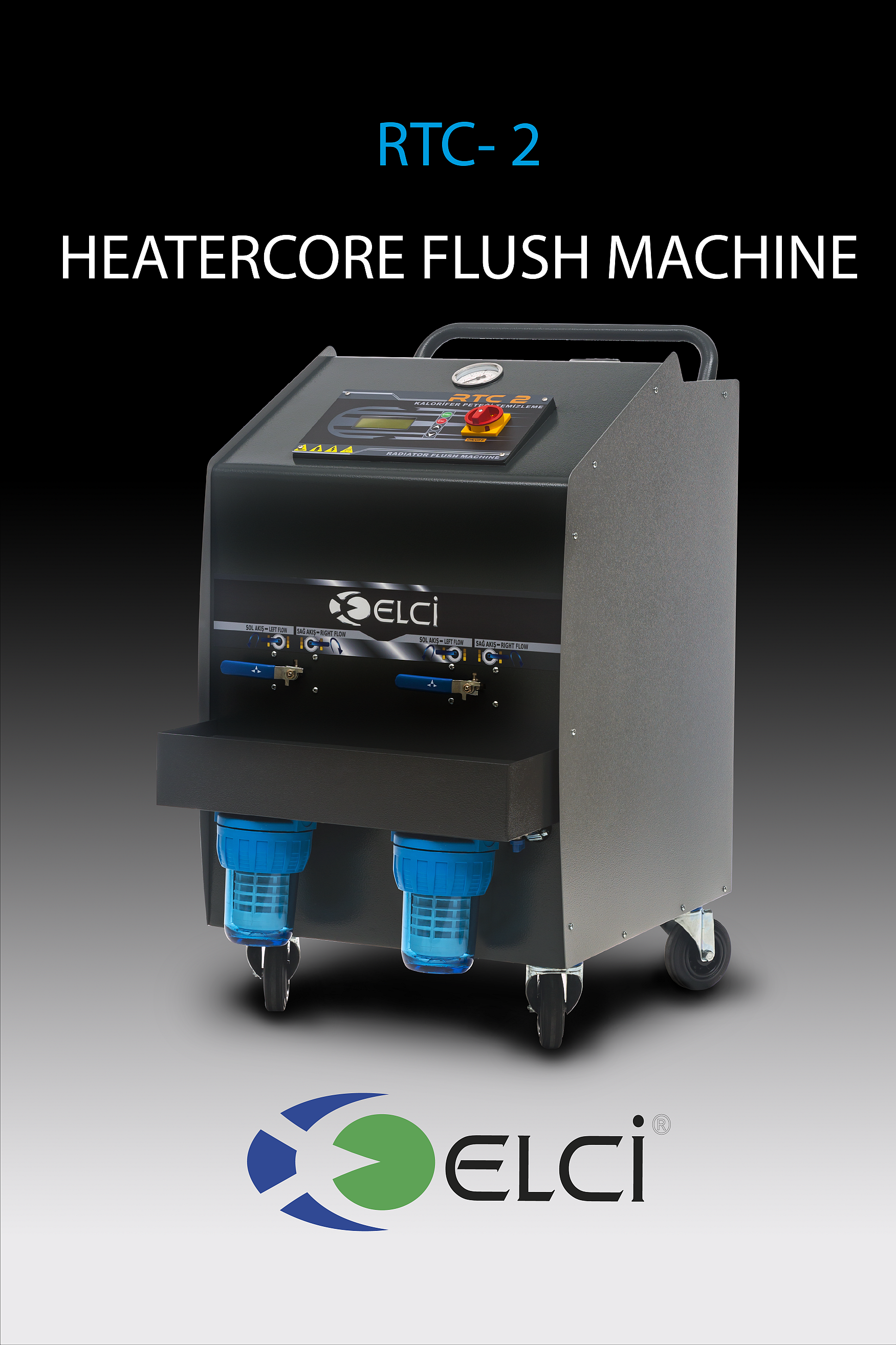

Service Without Removing the Dashboard

In course of time, a cooling system may lose efficiency due to the rust deposits, dirt, grease, scale, grime & solder in the system.

Radiator core clogging is a common problem for older vehicles. The cooling system efficiency can be reduced drastically to restrict the cooling flow. Reduced heat transfer can lead to possible overheating of the system and cause a costly repair. RTC-2 is designed to repair and increase the performance of the radiator system in vehicles. There is no need to remove the dashboard. The operator can easily make the connection with two hoses then the microprocessor automatically handles operations without user interference.

Advantages

• No need to remove the dashboard, saves time
• Connects practically with two hoses
• Heats faster with a special high-pressure tank thus causing lower energy consumption
• Helps regain heating-cooling power for all kinds of vehicles

Specifications

• Flushes water circulation parts for heating or cooling including the radiator, heater cores, engine block, coolant channels
• Microprocessor controlled
• LCD display
• Easy-to-use control panel
• LPG vaporizer regulator
• Automatic gearbox oil heating – cooling system
• Water-cooled intercooler radiator
• Continuous tracking of flush duration
• Detecting and monitoring the clogged radiator via a pressure gauge
• Can switch water rotation by using valves
• Filters out dirt, rust, etc. particles
• Adjustable flush duration
• Electronic filter life monitoring and warning
• Pump maintenance warning
• Monitors the number of flushed cars
• Automatic program ending
• Low water level warning
• Automatic full tank warning
• Automatic heating system

Technical Specifications

Dimensions: 60 cm x 105 cm x 48 cm

Display: 4×20 character LCD display

Heater: 2000 W

Power Supply: 220 V ± 10% / 50 Hz

Storage Tank Capacity: 15L

Water Pump: 35 L/min

Weight: 40kg

RTC-2 should be ordered with ELC-C125 Elci Flush Clean Liquid 30 liters (For 60 applications).

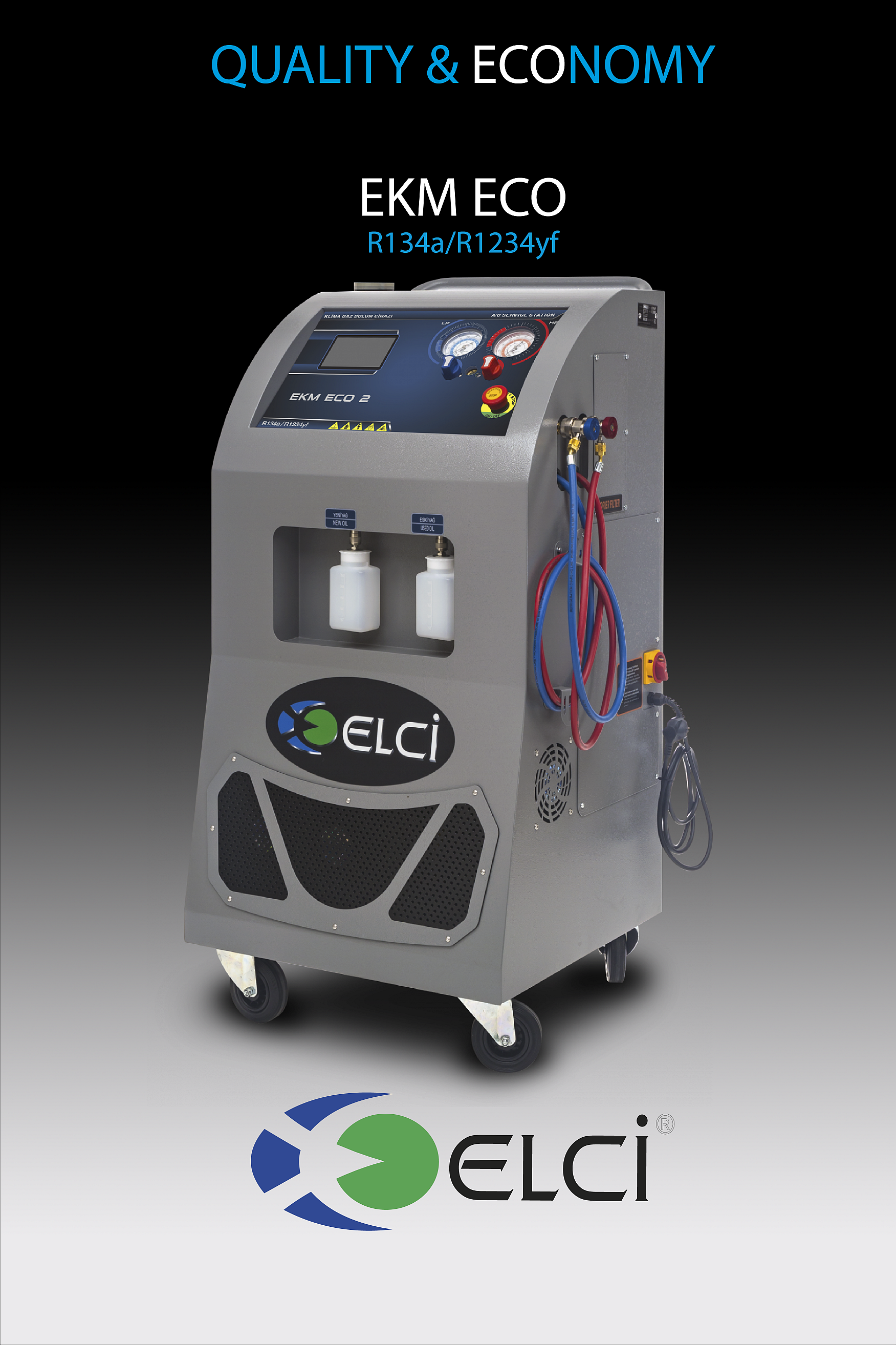

MAIN FEATURES

Microprocessor controlled

5-inch color touch screen

Wi-Fi connection for software and database updates

Easy to use control panel

Electronic scale

High-efficiency refrigerant recovery that meets ARI standards

Automatic follow-up of programmed operations

Vehicle database

Can be configured to work with R134a or R1234yf after discharging all the refrigerant from the storage tank

High sensitivity vacuum sensor

Automatic leak detection (visible and audible)

Automatic tank full warning & shut off

High sensitivity pressure sensor

High sensitivity temperature sensor

Automatic air purge

Filter-drier to remove the acid, moisture, and particles from the refrigerant

Custom design oil separation unit for the reuse of the recovered oil

Automatic oil drain

Automatic oil injection

Heater blanker to speed up charging by maintaining a constant temperature

High-pressure protection system

Maintenance reminders for filter-drier, vacuum pump oil, and compressor oil

Refrigerant management system to track charged, recovered, and added refrigerant

Thermal printer with 57 mm paper

TECHNICAL SPECIFICATIONS

Compressor: 3/8 hp 12 cc hermetic

Vacuum Pump: 10.2 m³/h (170 lt/min)

Low Pressure Gauge: 15 Bar

High Pressure Gauge: 30 Bar

Display: 5-inch color touch screen

Electronic Scale Resolution: +/- 5 gr

Refrigerant Tank Capacity: 25 kg

Filter Capacity: 150 kg

Refrigerant: R1234yf - R134a

Hose: 300 cm

Temperature Range: 8-49 °C

Max. Recovery Rate: 450 gr/min

Size: 55 cm X 53 cm X 111 cm

Weight: 89 kg

Power Supply: 220V ± 10% / 50 Hz

OPTIONAL FEATURES

System Flush Kit

Storage Tank Capacity: 35 kg

Refrigerant Type: R407C – R404

MAIN FEATURES

Microprocessor controlled

5-inch color touch screen

Wi-Fi connection for software and database updates

Easy to use control panel

Electronic scale

High-efficiency refrigerant recovery that meets ARI standards

Automatic follow-up of programmed operations

Vehicle database

Can be configured to work with R134a or R1234yf after discharging all the refrigerant from the storage tank

High sensitivity vacuum sensor

Automatic leak detection (visible and audible)

Automatic tank full warning & shut off

High sensitivity pressure sensor

High sensitivity temperature sensor

Automatic air purge

Filter-drier to remove the acid, moisture, and particles from the refrigerant

Custom design oil separation unit for the reuse of the recovered oil

Used oil drain

New oil injection

High-speed refrigerant charging

High-pressure protection system

Maintenance reminders for filter-drier, vacuum pump oil, and compressor oil

Refrigerant management system to track charged, recovered, and added refrigerant

TECHNICAL SPECIFICATIONS

Compressor: 3/8 hp 12 cc hermetic

Vacuum Pump: 6 m³/h (100lt/min)

Low Pressure Gauge: 15 Bar

High Pressure Gauge: 30 Bar

Display: 5 inch color touch screen

Electronic Scale Resolution: +/- 5 gr

Refrigerant Tank Capacity: 15 kg

Filter Capacity: 150 kg

Refrigerant: R1234yf - R134a

Hose: 300 cm

Temperature Range: 8-49 °C

Max. Recovery Rate: 450 gr/min

Size: 55 cm X 53 cm X 111 cm

Weight: 76 kg

Power Supply: 220V ± 10% / 50 Hz

Optional Features

Printer

Storage Tank Capacity: 25 kg

Storage Tank Capacity: 35 kg
