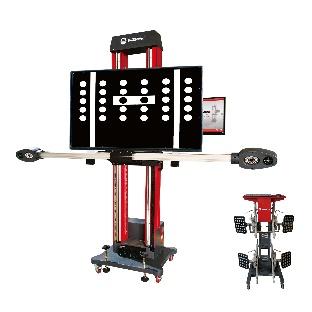

Products Advantages:

Automatic tracking beam,technician can

make measurement and adjustment on

different of lifting levels . 5.0MP high accurac)

camera

with 43”LED TV and 20”LCD display, fully

shows glamour of 3D technology.

Self-developed ultimate 3D software,

showing honour of high-level customer.

Adopt exclusive height target plate and

software, precise measurement of vehicle

body height.

Camera automatic tracking

Precise measurement of vehicle body height

Suitable for checking plenty of vehicle

models.

Basic Functions:

Parameters measurement such as camber, Caster, Kingpin inclination, Toe-in & Toe-out, Set back, Thrust angle.

Extension Functions:

Removing Tire Adjustment(Purchasing Rim adapter),Body Dimension Measurement,

Steering Wheel Adjustment,Engine Bay Adjustment,

Toe Curvature Measurement(Purchasing B5 Tool Kits), Lock Toe Adjustment,

Camber Measurement of Zero Toe,Scrub Radius Measurement,Rolling Radius Measurement,

Body Height Measurement

Automatic tracking beam

1.Wireless dual power 24V battery power supply, stable lifting and convenient movement;

2.Microcomputer software automatic and manual dual function lifting and leveling technology eliminates the risk of vehicle rollover due to asynchronous lifting and improves lifting safety;

3.Electromagnetic mechanical safety lock, with a safety distance of 100mm for each level of locking, meeting the requirements of EU CE certification, stable performance, and high safety;

4.Humanized secondary descent warning design. When descending at a distance of 350mm from the ground, it is necessary to press the button again to descend at a slow speed, and there is a warning beep to prevent foot pressure safety

5.Users can freely combine four, six, eight, or multiple pillars according to the needs of the vehicle model、

Feature:

1.The unique Y-shaped structure can achieve complete vertical lifting and lowering; the space at the bottom of the platform can be effectively used to improve operation efficiency.

2.Microcomputer intelligent control system, friendly and easy controlled panel, LCD touch screen control and display the height information real-time, automatic alarm for electrical faults etc.

3.The dual hydraulic pump station control system can realize real-time and precise leveling of the two platforms to ensure safe operation.

4.High-precision laser ranging module, real-time monitoring and measuring the height of the platform, to ensure the synchronization of the platform's lifting.

5.Equipped with PVC waterproof power socket and LED lighting.

Equipped with mechanical and hydraulic dual safety lock to ensure the safety of people and vehicles.

Feature:

1.The unique Y-shaped structure can achieve complete vertical lifting and lowering; the space at the bottom of the platform can be effectively used to improve operation efficiency.

2.Microcomputer intelligent control system, friendly and easy controlled panel, LCD touch screen control and display the height information real-time, automatic alarm for electrical faults etc.

3.The dual hydraulic pump station control system can realize real-time and precise leveling of the two platforms to ensure safe operation.

4.High-precision laser ranging module, real-time monitoring and measuring the height of the platform, to ensure the synchronization of the platform's lifting.

5.Equipped with PVC waterproof power socket and LED lighting.

Equipped with mechanical and hydraulic dual safety lock to ensure the safety of people and vehicles.
