• Electro-hydraulic pantograph lift with vertical raising, free of interference on the floor, ideal for the maintenance and lifting of lorries, trucks and vehicles of big capacity.
  Standard platform lenght: 9.000 mm, 10.000 mm, 11.000 mm;

  Upon request customizable lenght (min. 6.000 mm and max 15.000 mm).

  Versions:
  -Available for Surface Mount or Flush Mount installation
  -Available also in the mechanical version
  - Available also in the Twin Version, where the lift can work individually or, when necessary, also simultaneously and automatically syncronized.

  MAIN FEATURES :
  • Lift Capacity: 35.000 kg EN 1493; symmetrical loading 53.000 kg
  • Collapsed Height = 390 mm
  • Runway Length: from 7.000 mm up to 15.000 mm
  • Platform width = 930 mm
  • Maximum height = 2.910 mm
  • Electronic balance system with automatic leveling
  • The runway has been designed to be used with the lifting traverse T5 and T7 with upper and lower sliding

• Innovation and quality have always been of Paramount importance at O.ME.R S.p.A. The new MCO series of wireless heavy-duty electro-hydraulic mobile columns have been designed to increase potential lifting solutions for workshops servicing both commercial or public sector vehicles. The new MCO columns were also designed to compliment popular Omer Kar and Vega platform liftings systems currently in service Worldwide.

  capacity 8600 kg / 19000 Ibs

  Lifting stroke:1700 mm / 66.9''

  Speed:2 cm/s -0,8'' /s

  Column sizes: Height 2280 mm / 89.8'' ; Width 1150 mm /45.3''; Depth: 1374 mm /54.1''

  Main Characteristics:

  wireless technology or conventional cable communication

  7'' colour LCD touch screen

  adjustable lifting forkes

  premium quality "GEL" style storage batteries

  Trolley "easy role"

  We have now available the new MCO 6.5 and MCO 7.5

• Lem: hydraulic lift trolley

  Lifting capacity 1400 kg

  It is used to facilitate and safely perform the installation and removal of HV Batteries, electric car battery packs, transmissions, gearboxes, clutches, engines and various components of the car chassis.

  Gripping points with 4 height-adjustable pads and extensions that can be pulled out in both directions

  Support surface plate with threads every 120 mm to house support templates for the parts of the car (engines, clutches, gearboxes )

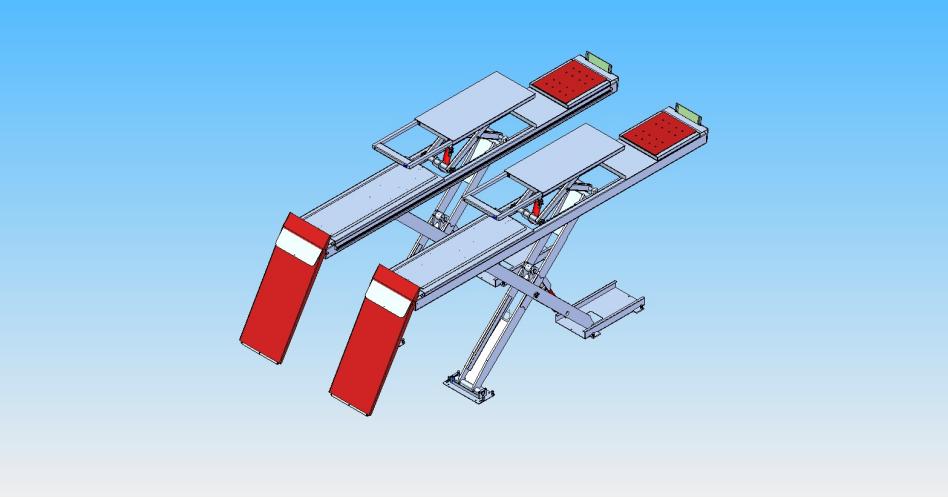

Electro-hydraulic lift, vertical lifting, for alignment purposes, meets all the requirements of the new long base vehicles, with capacity of 5.500 kg (EN1493)
LT capacity 4.000 kg

Main features:
Lift capacity: 5.500 kg EN 1493; symmetrical loading 7.500 kg
LT capacity: 4.000 kg
Platform lenght : 5.200 mm -5.600 -6.000 mm
Platform widht : 650 mm
Collapsed height : 240 mmin the N version - 290 mm in the CT/LT version
Max Height: 2055 mm
Modularity: It is possible to customize the platform lenght from 4.500 to 6.000 mm
Accessories:
Available "LTS" for the lenghts of 5.600 and 6.000 mm with capacity of 4000 kg and extensions of 3050 mm and different sets of lifting tools suitable for the light commercial vans

Pneumatic lockable turntables over the control cabinet

• Electro-hydraulic pantograph lift with vertical raising, free of interference on the floor, ideal for the maintenance and lifting of lorries, trucks and vehicles of big capacity.
  Standard platform lenght: 9.000 mm, 10.000 mm, 11.000 mm;

  Upon request customizable lenght (min. 6.000 mm and max 15.000 mm).

  Versions:
  -Available for Surface Mount or Flush Mount installation
  -Available also in the mechanical version
  - Available also in the Twin Version, where the lift can work individually or, when necessary, also simultaneously and automatically syncronized.

  MAIN FEATURES :
  • Lift Capacity: 35.000 kg EN 1493; symmetrical loading 53.000 kg
  • Collapsed Height = 390 mm
  • Runway Length: from 7.000 mm up to 15.000 mm
  • Platform width = 930 mm
  • Maximum height = 2.910 mm
  • Electronic balance system with automatic leveling
  • The runway has been designed to be used with the lifting traverse T5 and T7 with upper and lower sliding

• Innovation and quality have always been of Paramount importance at O.ME.R S.p.A. The new MCO series of wireless heavy-duty electro-hydraulic mobile columns have been designed to increase potential lifting solutions for workshops servicing both commercial or public sector vehicles. The new MCO columns were also designed to compliment popular Omer Kar and Vega platform liftings systems currently in service Worldwide.

  capacity 8600 kg / 19000 Ibs

  Lifting stroke:1700 mm / 66.9''

  Speed:2 cm/s -0,8'' /s

  Column sizes: Height 2280 mm / 89.8'' ; Width 1150 mm /45.3''; Depth: 1374 mm /54.1''

  Main Characteristics:

  wireless technology or conventional cable communication

  7'' colour LCD touch screen

  adjustable lifting forkes

  premium quality "GEL" style storage batteries

  Trolley "easy role"

  We have now available the new MCO 6.5 and MCO 7.5

• Lem: hydraulic lift trolley

  Lifting capacity 1400 kg

  It is used to facilitate and safely perform the installation and removal of HV Batteries, electric car battery packs, transmissions, gearboxes, clutches, engines and various components of the car chassis.

  Gripping points with 4 height-adjustable pads and extensions that can be pulled out in both directions

  Support surface plate with threads every 120 mm to house support templates for the parts of the car (engines, clutches, gearboxes )
