SNIPER WA100 ist das Spitzenmodell mit automatischer Aufhebung der Kameras, Schrank auf Räder und vereinfachter Software. Das Modell die dank einer schnellen und intuitiven Automatisierung zuverlässige Ergebnisse in Echtzeit gewährleistet.

• Mobile cameras: automatic adjustment in the correct position according to the lift height
• Full performance with wheelbase, track and diagonal, wheel diameter, caster angle and friction range measurements
• Measurements with 2 targets for long vehicles
• Single raised wheel run-out: useful in small spaces
• Identification of driving problems, resulting from measures not contemplated in the specifications
• User-friendly interface: using it and printing the final report are quick and easy

Super Automatic Wheel Balancer

The MB900 P is a cutting-edge wheel balancer designed for exceptional precision and unprecedented speed. It measures wheel dimensions and correction planes, detects unbalance, and corrects OPB (One Plane Balancing), rim, and tire runout. Additionally, it offers Hubmatch and direct matching capabilities.

Key Features:

• Touchless Measurement: The MB900 P features a touchless wheel distance and diameter measuring system that accurately detects the dimensions of any profile. The sonar system automatically detects rim width.
• Laser Accuracy: A laser pointer indicates the exact position for stick-on weights inside the rim, ensuring precise corrections. A line laser on the upper part of the wheel assists in applying clip-on weights accurately.
• Automatic Functions: The balancer includes automatic rotation and locking of the wheel in the weight position and pneumatic wheel locking for reduced floor-to-floor time and accurate centering.
• OPB Program: The OPB program, under suitable conditions, indicates the exact point inside the rim to balance the wheel with a single counterweight, minimizing both static and dynamic imbalance. The AutoAdaptive software calculates the tolerance value to eliminate vibrations perceived on the steering wheel, enhancing driving comfort.
• Sonar EMS: The system automatically and quickly measures eccentricity during the normal balancing cycle, providing fast indications for possible matching and HubMatch. The Tyre Set software helps determine the best wheel positioning on the vehicle to minimize vibrations.

The MB550-2 from M&B Engineering is an advanced wheel balancer designed for precision and ease of use, integrating cutting-edge technology to ensure accurate and efficient wheel balancing.

Precision and Efficiency

The MB550-2 features a 17″ touchscreen, an automatic gauge for precise measurement of distance and diameter, and a sonar system for automatic detection of rim width. These features ensure high precision in balancing operations, essential for optimal vehicle performance and tire longevity.

User-Friendly Operation

This wheel balancer is equipped with an intuitive interface that simplifies the balancing process, reducing training time and enhancing productivity. The touchscreen display and straightforward controls make it easy to operate, regardless of the user's experience level.

Robust Construction

Designed for durability, the MB550-2 is built to withstand the demands of a busy workshop environment. Its robust construction and high-quality components ensure long-term reliability and consistent performance.

Versatile Functionality

The MB550-2 is versatile, capable of handling various wheel sizes and types. It includes an automatic approach system that stops the wheel close to the correction points and an electric brake to lock the wheel in position, facilitating efficient servicing of different vehicle models.

Advanced Features

Additional advanced features include a laser line and LED light for accurate application of stick-on weights and options for manual or pneumatic locking (MB550P), enhancing the machine's versatility and ease of use.

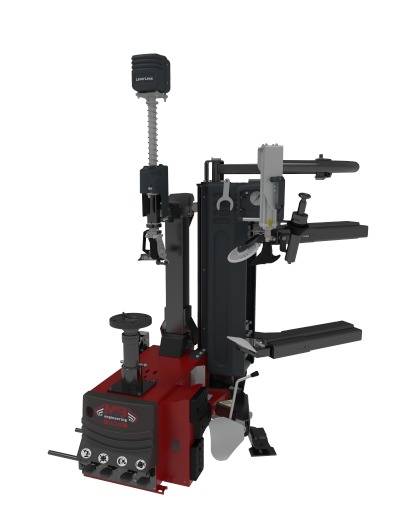

41 mm hexagonal vertical arm with device to minimize tolerances and 50×50 mm horizontal arm to reduce flexures in case of Run-flat tyres. Simultaneous vertical and horizontal arm locking system, vertical arm with spring return. Pneumatic rear tilting post granting the maximum rigidity.
TC722/24 Turntable with locking capacity up to 27”. The square plate rounded at the corners facilitates the disassembly of the second bead. Plate is equipped with a system with opposing jaws and with two cylinders of Ø 80 mm, guarantees an optimal clamping force on all types of rims. Jaws with replaceable tips.
PG version (standard) with the inflation device fitted with a fixed control instrument with graduated gauge and pedal control. Bead breaker with ergonomic arm to operate on wheels of 15” in width.
Removable pedal unit for easy maintenance. Four pedals aligned in the front.
Motor with dual rotation clockwise and counterclockwise and double speed controlled by pedal (7 / 14 rpm).
Motoinverter Version (on request) with in-house produced board. Stepless 0-16 rpm speed variation.

SNIPER WA100 ist das Spitzenmodell mit automatischer Aufhebung der Kameras, Schrank auf Räder und vereinfachter Software. Das Modell die dank einer schnellen und intuitiven Automatisierung zuverlässige Ergebnisse in Echtzeit gewährleistet.

• Mobile cameras: automatic adjustment in the correct position according to the lift height
• Full performance with wheelbase, track and diagonal, wheel diameter, caster angle and friction range measurements
• Measurements with 2 targets for long vehicles
• Single raised wheel run-out: useful in small spaces
• Identification of driving problems, resulting from measures not contemplated in the specifications
• User-friendly interface: using it and printing the final report are quick and easy

Super Automatic Wheel Balancer

The MB900 P is a cutting-edge wheel balancer designed for exceptional precision and unprecedented speed. It measures wheel dimensions and correction planes, detects unbalance, and corrects OPB (One Plane Balancing), rim, and tire runout. Additionally, it offers Hubmatch and direct matching capabilities.

Key Features:

• Touchless Measurement: The MB900 P features a touchless wheel distance and diameter measuring system that accurately detects the dimensions of any profile. The sonar system automatically detects rim width.
• Laser Accuracy: A laser pointer indicates the exact position for stick-on weights inside the rim, ensuring precise corrections. A line laser on the upper part of the wheel assists in applying clip-on weights accurately.
• Automatic Functions: The balancer includes automatic rotation and locking of the wheel in the weight position and pneumatic wheel locking for reduced floor-to-floor time and accurate centering.
• OPB Program: The OPB program, under suitable conditions, indicates the exact point inside the rim to balance the wheel with a single counterweight, minimizing both static and dynamic imbalance. The AutoAdaptive software calculates the tolerance value to eliminate vibrations perceived on the steering wheel, enhancing driving comfort.
• Sonar EMS: The system automatically and quickly measures eccentricity during the normal balancing cycle, providing fast indications for possible matching and HubMatch. The Tyre Set software helps determine the best wheel positioning on the vehicle to minimize vibrations.

The MB550-2 from M&B Engineering is an advanced wheel balancer designed for precision and ease of use, integrating cutting-edge technology to ensure accurate and efficient wheel balancing.

Precision and Efficiency

The MB550-2 features a 17″ touchscreen, an automatic gauge for precise measurement of distance and diameter, and a sonar system for automatic detection of rim width. These features ensure high precision in balancing operations, essential for optimal vehicle performance and tire longevity.

User-Friendly Operation

This wheel balancer is equipped with an intuitive interface that simplifies the balancing process, reducing training time and enhancing productivity. The touchscreen display and straightforward controls make it easy to operate, regardless of the user's experience level.

Robust Construction

Designed for durability, the MB550-2 is built to withstand the demands of a busy workshop environment. Its robust construction and high-quality components ensure long-term reliability and consistent performance.

Versatile Functionality

The MB550-2 is versatile, capable of handling various wheel sizes and types. It includes an automatic approach system that stops the wheel close to the correction points and an electric brake to lock the wheel in position, facilitating efficient servicing of different vehicle models.

Advanced Features

Additional advanced features include a laser line and LED light for accurate application of stick-on weights and options for manual or pneumatic locking (MB550P), enhancing the machine's versatility and ease of use.
