• 10.25” colour TFT screen with 1280X480 resolution
• LED based static telltales on dial
• Accepts digital/ Analog/ CAN2.0B signals & CVBS video input for RPAS view
• Multitone buzzer
• Plug & play connectors
• EMC compliant design

The AFT fuel level sensor is a highly advanced sensor for continuously measuring the level of the fuel medium in the tank. It uses Capacitive sensing technology to measure the fuel level with high accuracy

The unique feature of this sensor is that it auto compensates when a liquid with a different dielectric constant value e.g. if it is used in a tank of conventional diesel then the user can refill with petrol and sensor will correct the output level automatically

Key Features :-

• Linear Output : 0.5 VDC (Empty Level) to 5 VDC (Full level)
• Integrted fuel delivery tubes:-

a) Suction Tube for suction of Fuel from Fuel tank to Engine

b) Return tube for return of left out fuel after combustion from engine to Fuel tank

• Additional fuel delivery tubes:- can be used for running any auxilary engines in vehicles
• Ingress Protection IP 66
• Available in Customized Length

Liquid Type:- Diesel, Biodiesel, Kerosene, Petrol

• 2 Nos. high quality Sonceboz stepper motor driven gauges

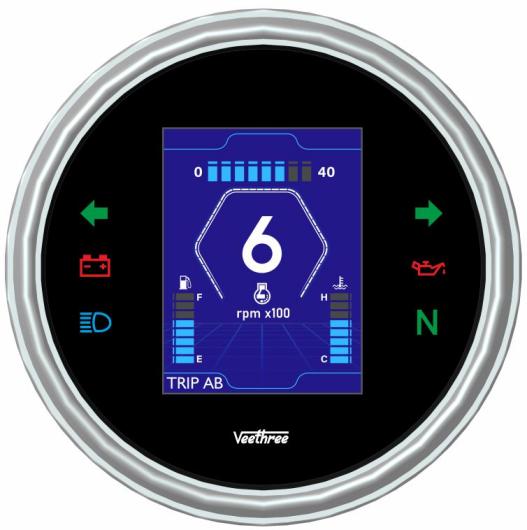

• 3.5” TFT display of resolution 320 × 240

• Provision of more than 36 static tell-tale indicators

• Accepts 12 digital & 6 analog inputs

• IP65 compliant from front / EMC compliant

• Robust design for heavy duty application (Off-road vehicles)

• Multitone Buzzer for audio warning.

• Multiple inputs including CAN 2.0B(J1939) support available.

• Plug & Play type of 20 pin x 2 Molex connectors

• 7.0” colored TFT with 800 x 480 resolution

• Screen navigation through 6 Capacitive Touch buttons on screen

• Analog camera interface for reverse park assistance

• Software Updatable through UDS Boot Loader.

• Accepts 7 Analog inputs (3 resistive, 2 Voltage, 2 frequency) and 15 Digital inputs.

• CAN2.0B interface.

• Plug and Play connectors

• 10.25” colour TFT screen with 1280X480 resolution
• LED based static telltales on dial
• Accepts digital/ Analog/ CAN2.0B signals & CVBS video input for RPAS view
• Multitone buzzer
• Plug & play connectors
• EMC compliant design

The AFT fuel level sensor is a highly advanced sensor for continuously measuring the level of the fuel medium in the tank. It uses Capacitive sensing technology to measure the fuel level with high accuracy

The unique feature of this sensor is that it auto compensates when a liquid with a different dielectric constant value e.g. if it is used in a tank of conventional diesel then the user can refill with petrol and sensor will correct the output level automatically

Key Features :-

• Linear Output : 0.5 VDC (Empty Level) to 5 VDC (Full level)
• Integrted fuel delivery tubes:-

a) Suction Tube for suction of Fuel from Fuel tank to Engine

b) Return tube for return of left out fuel after combustion from engine to Fuel tank

• Additional fuel delivery tubes:- can be used for running any auxilary engines in vehicles
• Ingress Protection IP 66
• Available in Customized Length

Liquid Type:- Diesel, Biodiesel, Kerosene, Petrol

• 2 Nos. high quality Sonceboz stepper motor driven gauges

• 3.5” TFT display of resolution 320 × 240

• Provision of more than 36 static tell-tale indicators

• Accepts 12 digital & 6 analog inputs

• IP65 compliant from front / EMC compliant

• Robust design for heavy duty application (Off-road vehicles)

• Multitone Buzzer for audio warning.

• Multiple inputs including CAN 2.0B(J1939) support available.

• Plug & Play type of 20 pin x 2 Molex connectors
