Hi-Five Products Developing Co., Ltd.

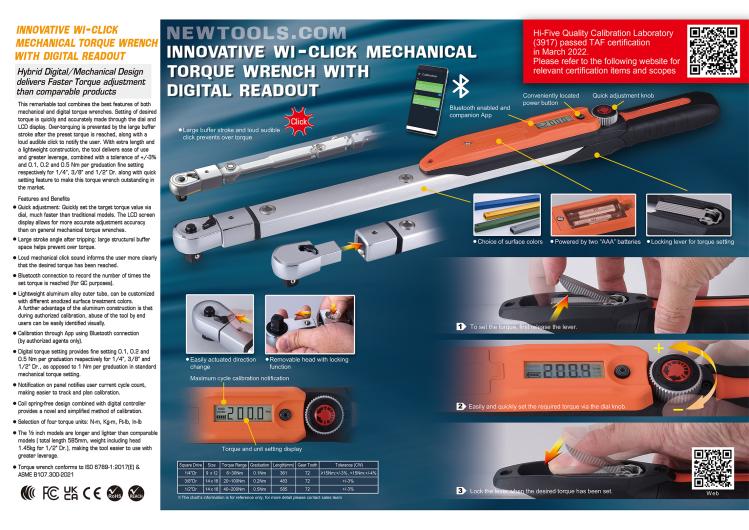

Innovative Wi-Click Torque Wrench With Digital Readout

Description

Quick adjustment: Quickly set the target torque value via dial, much faster than traditional models. The LCD screen display allows for more accurate adjustment accuracy than on general mechanical torque wrenches.
Large stroke angle after tripping: large structural buffer space helps prevent over torque.
Loud mechanical click sound informs the user more clearly that the desired torque has been reached.
Bluetooth connection to record the number of times the set torque is reached (for QC purposes).
Lightweight aluminum alloy outer tube, can be customized with different anodized surface treatment colors. A further advantage of the aluminum construction is thatduring authorized calibration, abuse of the tool by end users can be easily identified visually.
Calibration through App using Bluetooth connection (by authorized agents only).
Digital torque setting provides fine setting 0.1, 0.2 and 0.5 Nm per graduation respectively for 1/4”, 3/8” and 1/2” Dr., as opposed to 1 Nm per graduation in standard mechanical torque setting.
Notification on panel notifies user current cycle count, making easier to track and plan calibration.
Coil spring-free design combined with digital controller provides a novel and simplified method of calibration.
Selection of four torque units: N-m, Kg-m, Ft-lb, In-lb
The ½ inch models are longer and lighter than comparable models ( total length 585mm, weight including head 1.45kg for 1/2" Dr.), making the tool easier to use with greater leverage.
Torque wrench conforms to ISO 6789-1:2017(E) & ASME B107.300-2021
