We are supplying Parts to Transmission as Spacers, geared Spacers, thrust Washers, Lock washers to heavy vehicle and Commercial Vehicles also.

Also we are making parts required in gear boxes for automotive and non automotive. Applications as lifts, hoist crains etc.

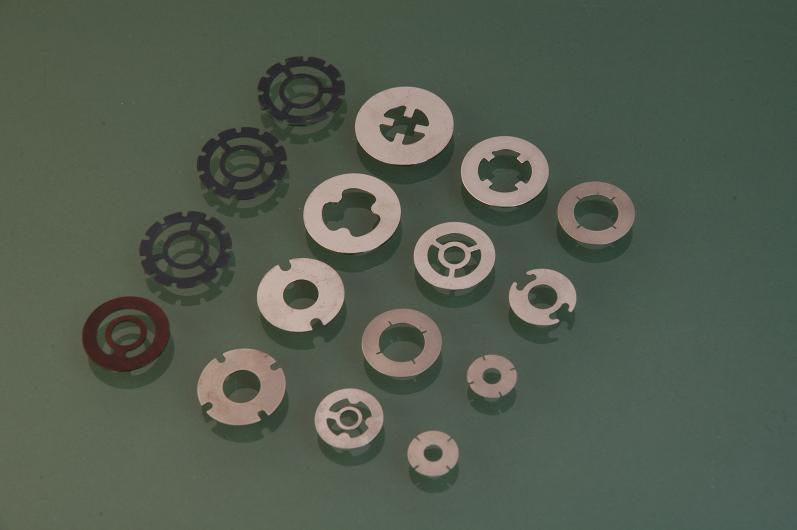

Spacers Thrust washers Retainer caps Lock washer Thickness – 0.05 to 8mm Diameter – 12 mm to 400 mm Material: SAE 1010, 1020,1050, SAE 1065, 1075, 1080 Additional Process: Heat Treatment - Hardening & Tempering
(HRC 48 - 52)
Carbonitriding - (R15N 89 - 91)
Case Depth - (0.15 mm to 0.5 mm)
Core Hardness - (HRC 40)

Shims are used to fill teh gaps during assembly of Geaars on Splined Shafts, it to avoid Backlash and provide 100% power.

The Orific valves play a very imnportant role during rebound and lets the oil/gas flows smoothely.

These are shock absorber components used in damper of shock absorber. It is special material we are importing from Sweden, Germany, France and Japan.

• Major valve manufacturers in India
• Right damping force
• Consistency in shox quality
• Noise free shox
• Long life of shox
• No customer complaints
• Competitive cost

• Plain / disc valves
• Orifice valves
• Recoil deflection valves / leak valves
• Leaf springs
• Thickness – 0.08 mm to 0.505 mm
• Diameter – 8mm to 50 mm
• Material: Spring Steel Hardened & Tempered (Carbon 0.9 - 1.05 %)
• Hardness - 450 HV - 610 HV
• Special Stainless Steel Hardness 510 HV
• Additional Process: Stress Relieving
