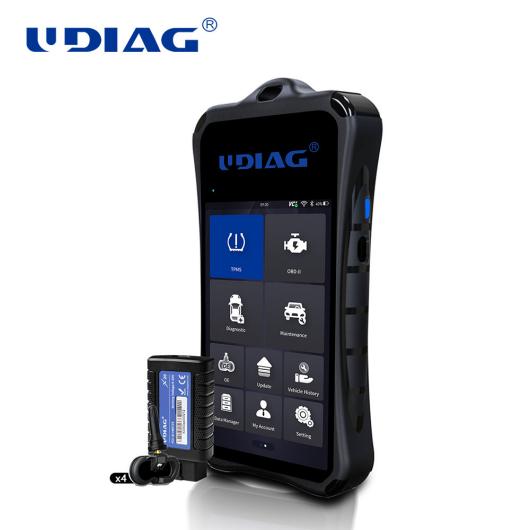

X-20 is the new generation of TPMS servicing and diagnostic scan tool. It supports wireless diagnostics on all available car system modules, to read and clear codes, view freeze frame, check live data and ECU information, etc. It is also a professional TPMS servicing tool,which can activate and decode universal TPMS sensors, program UDIAGTPMS sensors and diagnose the original car tire pressure monitoring system.

X-20 integrates the most useful 10 service functions: ABS Bleeding, BRT, TPS, DPF, EPB, Injector, Oil Reset, SAS, Transmission Adaptation and Change Tire Size. X-20 will bring you a fresh new TPMS servicing experience.

Model Name

X-20

Screen

5.5'' TFT Capacitive LCD screen; 720*1280 pixel

Operation System

Android 9.0

Processor

Quad-core, 1.3GHz

Memory

2GB

SSD Hard drive

32GB

Communication interface

Built-in WlFI 802.11 b/g/n Wireless LAN

USB2.0 OTG/standard USB 2.0 HOST

Bluetooth specification v2.1+EDR; Bluetooth 4.0 Low Energy(LE)(10-20 m)

Built-in Battery

5000mAh, Lithium-polymer battery, chargeable via 5V USB power supply

Working Temperature

-10 to 70℃

Storage Temperature

-20 to 80℃

Operating Humidity

5%-95% Non-Condensing

Dimensions

195*100*25mm(L*W*H)

Weight

0.87kg (Main unit)
