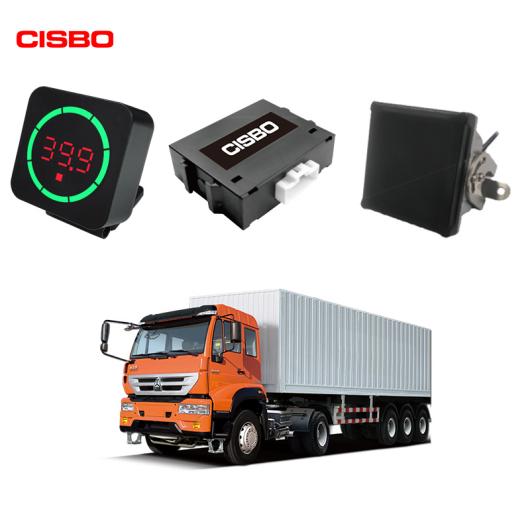

1.77G HZ MICROWAVE RADAR SENSOR

2.The system includes 1 right front radar,1 right rear radar,1 MCU,2 LED lights,1 buzzer, a set of cables, etc.

3,The radar probe frequency is 77GHz.

4, Wide voltage design DC9-36V, can be widely used in cars,SUVs, MPVs, trucks, buses, engineering vehicles, etc. .

5, With an advanced radar chip, an antenna of 2 Transmit 4 Receiving(2T4R) and an antenna horizontal angle of 120 degrees, more than 100 targets can be detected simultaneously with high-speed computing capabilities. The precise ranging angle is realized to ensure a comprehensive forecast of the rear car, while the third lane of the car is not 10 100 miles away.

6, The detection range is 3 x 7 m for the front right radar and 3 x 20 m for the rear right radar.

7, With such functions: BSD (Blind Spot Detection),LCA(Lane Change Assist), including RCTA (Reversing Across Traffic Alert ),Overtaking Alarm System (AOA),Same Speed Alarm (Blind Zone Hold) System, And Wide-Turn Assist Alarm System (WTA) for a total of six functions

8, The driver is alerted to a careful lane change via LED lights and buzzer alarms.

9, Power management IC design, low power consumption, long working hours.

10, Waterproof design with IP67 grade.

11, Operating temperature: from -40 to 85°C

12, Adjustable mounting bracket for all types of installation.

Easy to install on windshield or number plate , no need detach bumper. it just takes around 30 minutes to finish the installation,save time and money Through installing 1pcs of 77GHz millimeter wave sensors on the car rear windshield , when the car is moving, if any moving object closer to blind area( 3 meter from right and left side ,30 meters from behind）,the object will be detected by system sensor , the LED indicator will turn on and keep shining for reminding driver, in this condition, if the driver wants to change the lane, the buzzer will beep sounds for reminder. .

1. overtaking warning （AOA)

2. same speed warning（Alarm when the target car at the same speed ）

3. Lane change assistant warning (LCA )

4. Blind spot detection warning (BSD)

5. rear cross traffic alert ( RCTA )

6. Voltage : 9-36V ,wide voltage compatiable

Large vehicles, difficult conditions,greater danger!

This product is a radar early warning system equipped with a high-performance 77GHZ millimeter-wave sensor a+ 7'' recording monitor +4 AHD 1080P camera .The product displays the distance data of the reversing obstacle on the LCD display, and reminds the situation in time through the built-in buzzer of the Led display, so that the driver can accurately grasp the reversing situation.

This product will respond to stationary or moving objects When reversing, the detection range of obstacles is the maximum area of 4*40m.

The 4*40m detect range could be ajusted before delivering from our factory

1.77G HZ MICROWAVE RADAR SENSOR

2.The system includes 1 right front radar,1 right rear radar,1 MCU,2 LED lights,1 buzzer, a set of cables, etc.

3,The radar probe frequency is 77GHz.

4, Wide voltage design DC9-36V, can be widely used in cars,SUVs, MPVs, trucks, buses, engineering vehicles, etc. .

5, With an advanced radar chip, an antenna of 2 Transmit 4 Receiving(2T4R) and an antenna horizontal angle of 120 degrees, more than 100 targets can be detected simultaneously with high-speed computing capabilities. The precise ranging angle is realized to ensure a comprehensive forecast of the rear car, while the third lane of the car is not 10 100 miles away.

6, The detection range is 3 x 7 m for the front right radar and 3 x 20 m for the rear right radar.

7, With such functions: BSD (Blind Spot Detection),LCA(Lane Change Assist), including RCTA (Reversing Across Traffic Alert ),Overtaking Alarm System (AOA),Same Speed Alarm (Blind Zone Hold) System, And Wide-Turn Assist Alarm System (WTA) for a total of six functions

8, The driver is alerted to a careful lane change via LED lights and buzzer alarms.

9, Power management IC design, low power consumption, long working hours.

10, Waterproof design with IP67 grade.

11, Operating temperature: from -40 to 85°C

12, Adjustable mounting bracket for all types of installation.

Easy to install on windshield or number plate , no need detach bumper. it just takes around 30 minutes to finish the installation,save time and money Through installing 1pcs of 77GHz millimeter wave sensors on the car rear windshield , when the car is moving, if any moving object closer to blind area( 3 meter from right and left side ,30 meters from behind）,the object will be detected by system sensor , the LED indicator will turn on and keep shining for reminding driver, in this condition, if the driver wants to change the lane, the buzzer will beep sounds for reminder. .

1. overtaking warning （AOA)

2. same speed warning（Alarm when the target car at the same speed ）

3. Lane change assistant warning (LCA )

4. Blind spot detection warning (BSD)

5. rear cross traffic alert ( RCTA )

6. Voltage : 9-36V ,wide voltage compatiable
