MOIS right side blind spot detection system
MOIS right side blind spot detection system
Description
1.77G HZ MICROWAVE RADAR SENSOR

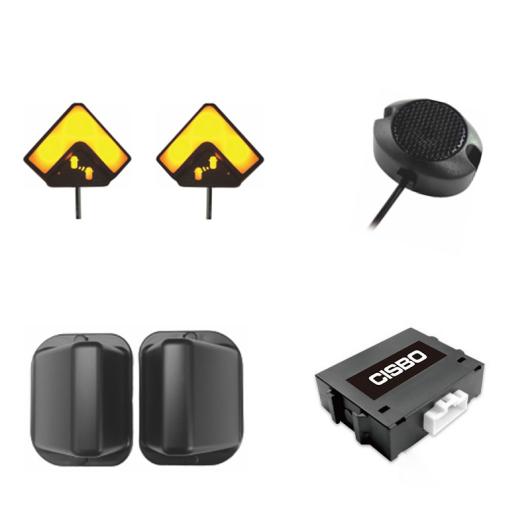

2.The system includes 1 right front radar,1 right rear radar,1 MCU,2 LED lights,1 buzzer, a set of cables, etc.
3,The radar probe frequency is 77GHz.
4, Wide voltage design DC9-36V, can be widely used in cars,SUVs, MPVs, trucks, buses, engineering vehicles, etc. .
5, With an advanced radar chip, an antenna of 2 Transmit 4 Receiving(2T4R) and an antenna horizontal angle of 120 degrees, more than 100 targets can be detected simultaneously with high-speed computing capabilities. The precise ranging angle is realized to ensure a comprehensive forecast of the rear car, while the third lane of the car is not 10 100 miles away.
6, The detection range is 3 x 7 m for the front right radar and 3 x 20 m for the rear right radar.
7, With such functions: BSD (Blind Spot Detection),LCA(Lane Change Assist), including RCTA (Reversing Across Traffic Alert ),Overtaking Alarm System (AOA),Same Speed Alarm (Blind Zone Hold) System, And Wide-Turn Assist Alarm System (WTA) for a total of six functions
8, The driver is alerted to a careful lane change via LED lights and buzzer alarms.
9, Power management IC design, low power consumption, long working hours.
10, Waterproof design with IP67 grade.
11, Operating temperature: from -40 to 85°C
12, Adjustable mounting bracket for all types of installation.
