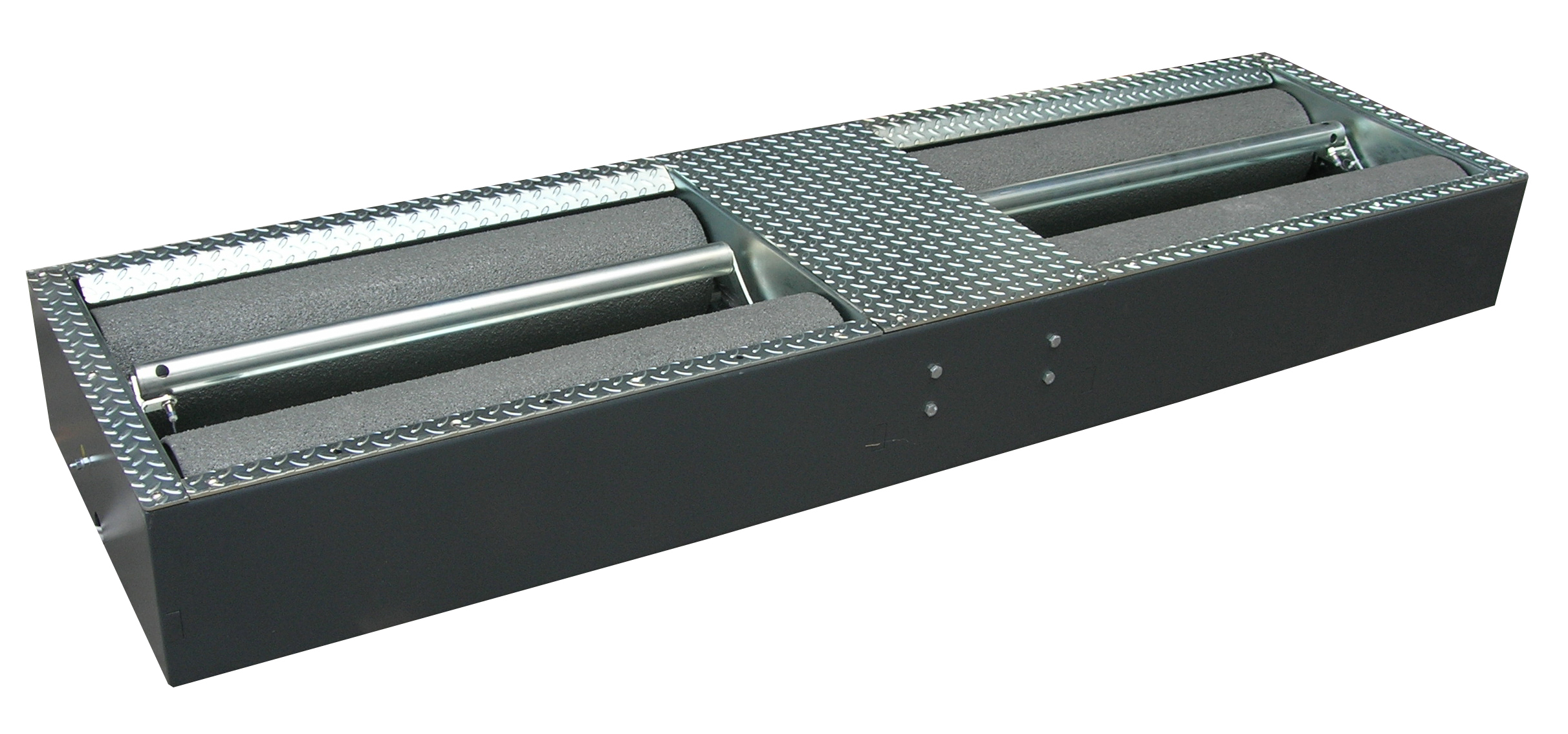

ROLLER BRAKE TESTER

Roller brake tester production includes an extended range of models, realized to
satisfy technical specifications of many countries worldwide.
Different production lines has been set up distinguishing instruments for the Italian
market, where actually the most requested brake tester is the universal one, able to
test cars, mopeds, motorcycles, 3-wheelers, quad and 4-wheel light vehicles with
total weight ≤3,5 Tons, from the ones for the foreign markets which consider different
technical specifications in every country depending on the vehicle category to be
tested.

Even in a product line like the roller test benches one, considered a traditional one
with low in ovation possibilities, Vamag has been able to introduce important news
such as the metal roller with 10 years warranty, both for cars and heavy duty
vehicles.

In 2015 was presented the first combined brake & speed test bench (all in one
instrument), for which an International Patent was deposited and that represents a
unique instruments through the world.

A complete range of brake tester for any kind of vehicle is available in our catalogue.

RBT3500 XS series (XS, XS C4, XS-Q & XS-QL):
Roller brake tester for cars, motorcycles, 3/4-wheel light vehicles, quad, atv &
commercial vehicles with total weight ≤ 3.5 T.

RBT3500 C7:
Roller brake tester for cars, motorcycles, 3/4-wheel light vehicles, quad &
commercial vehicles with total weight ≤ 7.5 T.

RBT/C SERIES (RBT/C, C1, C2):
Roller brake tester for trucks, buses, heavy commercial / industrial vehicles & cars
(dual speed option)

RBT1000:
Roller brake tester for motorcycles, 3-wheel vehicles, mopeds (Piaggio MP3
included)

INTEGRATED WEIGHTING SYSTEM AVAILABLE ON ALL THE MODELS.

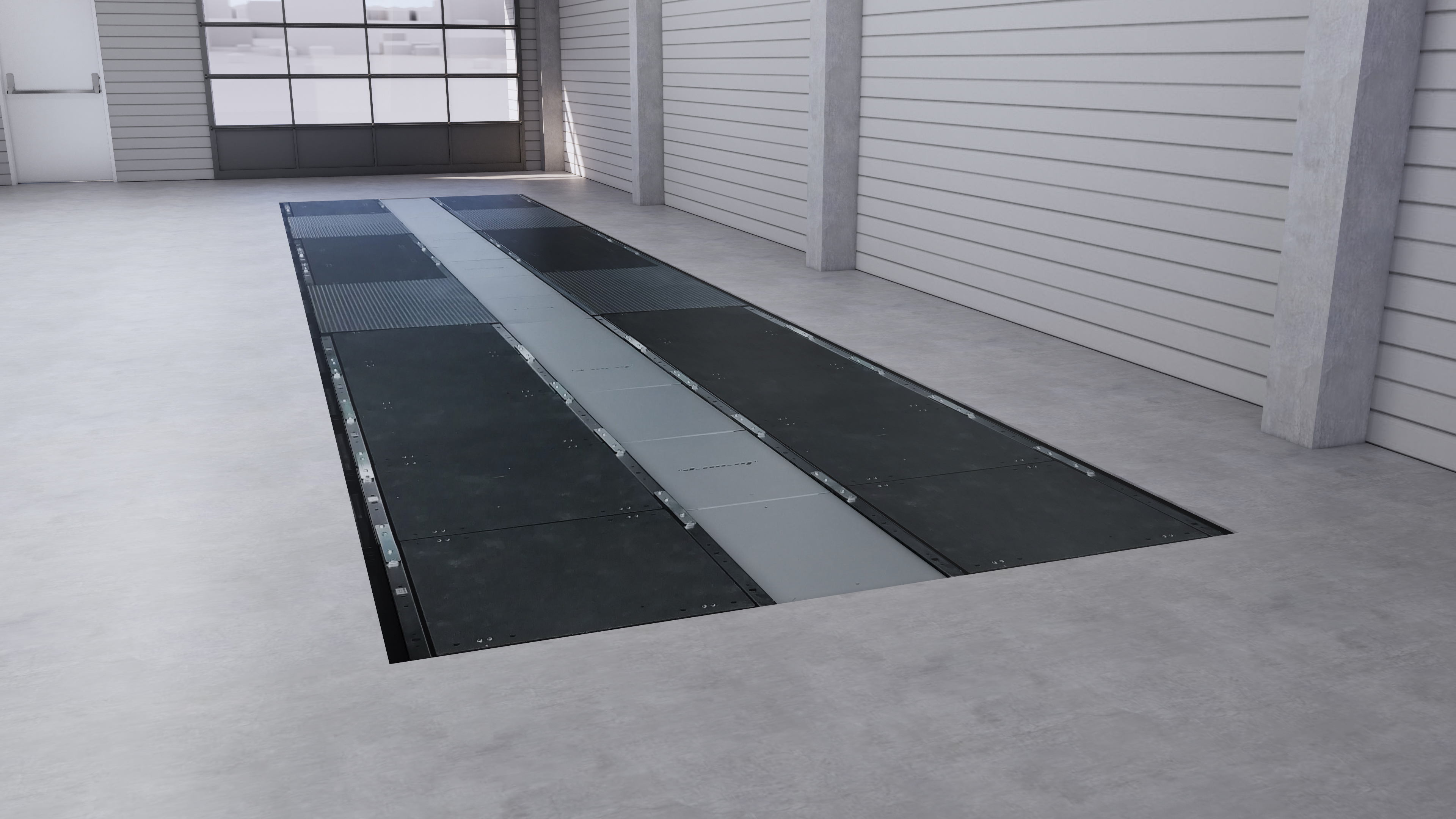

Platform BRAKE / WEIGHT / SUSPENSION / YAW DEVIATION tester for heavy duty vehicles.

The quickest, easiest and more profitable DYNAMIC TEST with platform brake /weight tester for HGV in the market. With an easy installation , in ground (70 mm eight ) or fixed on the floor , it measures all the «standard values » that can be measured with platforms , in a more accurate and quick way:

• Wheel / axle and max brake force
• Total brake efficiency of the vehicle
• Static and dynamic weight of the vehicle DaN
• Brake weight imbalance
• Every platform measures both vertical (weight) and horizontal brake ) forces
• Friction force
• Test speed

MULTI PLD/C also measure the following values (PATENTED BY MULTI PLD/C)

• SHOCK ABSORBER DAMPING
• YAW DEVIATION
• CENTER OF GRAVITY / CENTER OF THE FORCES
• SCISSOR EFFECT
• ADVANCED / DELAYED BRAKING TIME OF EACH AXLE

PLATFORMS ARE THE REPLACEMENT OF THE STREET SURFACE. ENSURING THE BEST GRIP COEFFICIENT BOTH IN DRY AND WET CONDITIONS.

NO LIMITS IN THE CONFIGURATIONS TO BE CREATED & IN THE NUMBER OF PLATES TO
BE USED. CUSTOM CONFIGURATIONS AVAILABLE ON DEMAND.

A new Business
Don't change jobs, change the way you work

Most vehicles entering your company need to realign the vehicle trim. There are
many reasons for this and incorrect alignment often leads to uneven tire wear,
excessive fuel consumption and the lack of necessary safety when braking and
driving. Lack of time and of proper equipment drive away many opportunities for both
your company and your customers.

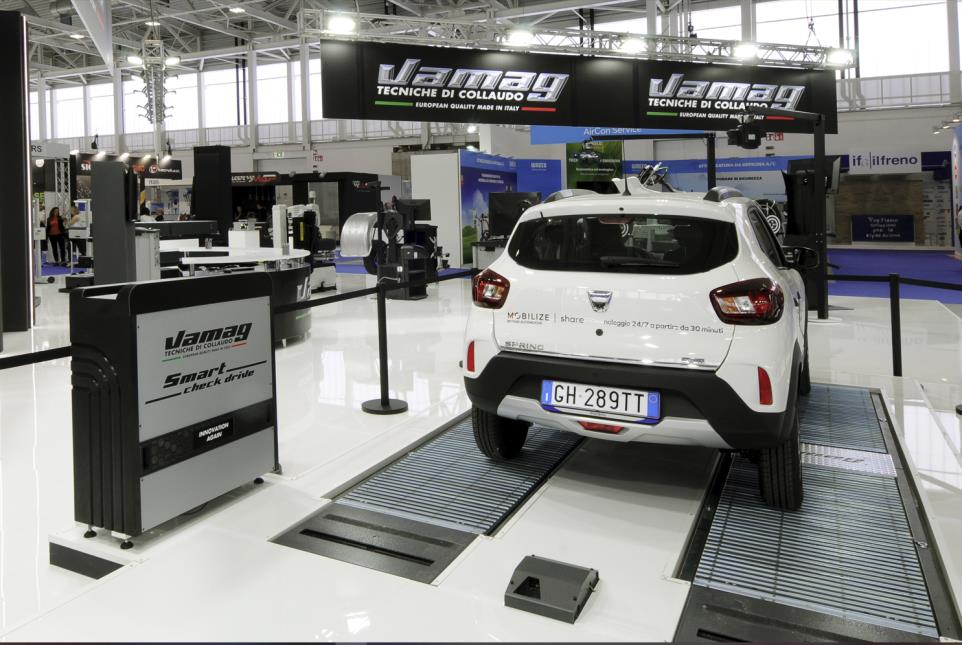

Through the One-Stop dynamic diagnosis, the Acceptance software reveals new
opportunities for intervention and business:

• Easily check every vehicle
• Multiply your alignment and support sales
• Stand-alone operation simplifies acceptance work
• Improve the professionalism and image of your company
• Increase your profits further

• Dynamic Side Slip Test - Rapid Side Slip Test
• Smart Check - 3D Wheel Trim Analysis
• SBT Tread Laser - Tire tread laser profiler
• Break Test - Brakes, suspension and yaw
• Visual Inspection - Bodywork, Glasses and Rims

Your acceptance is connected

The software, also conceived by Vamag, is able to generate in a few seconds a
complete report of the individual checks and of the overall status of the vehicle.
Based on these results, visible on the screen and coded in red, green and yellow
colours (depending on the priorities), the customer becomes aware in real time of
any other anomalies (in addition to those that took him to the workshop) and can
decide what to do.

As can be seen from this description, acceptance can become a business
opportunity for your workshop, using objective data to inform the customer. Based on
your initiative, you can propose maintenance actions on the bodywork, on the rims,
replacement of the mats and wiper blades and much more.

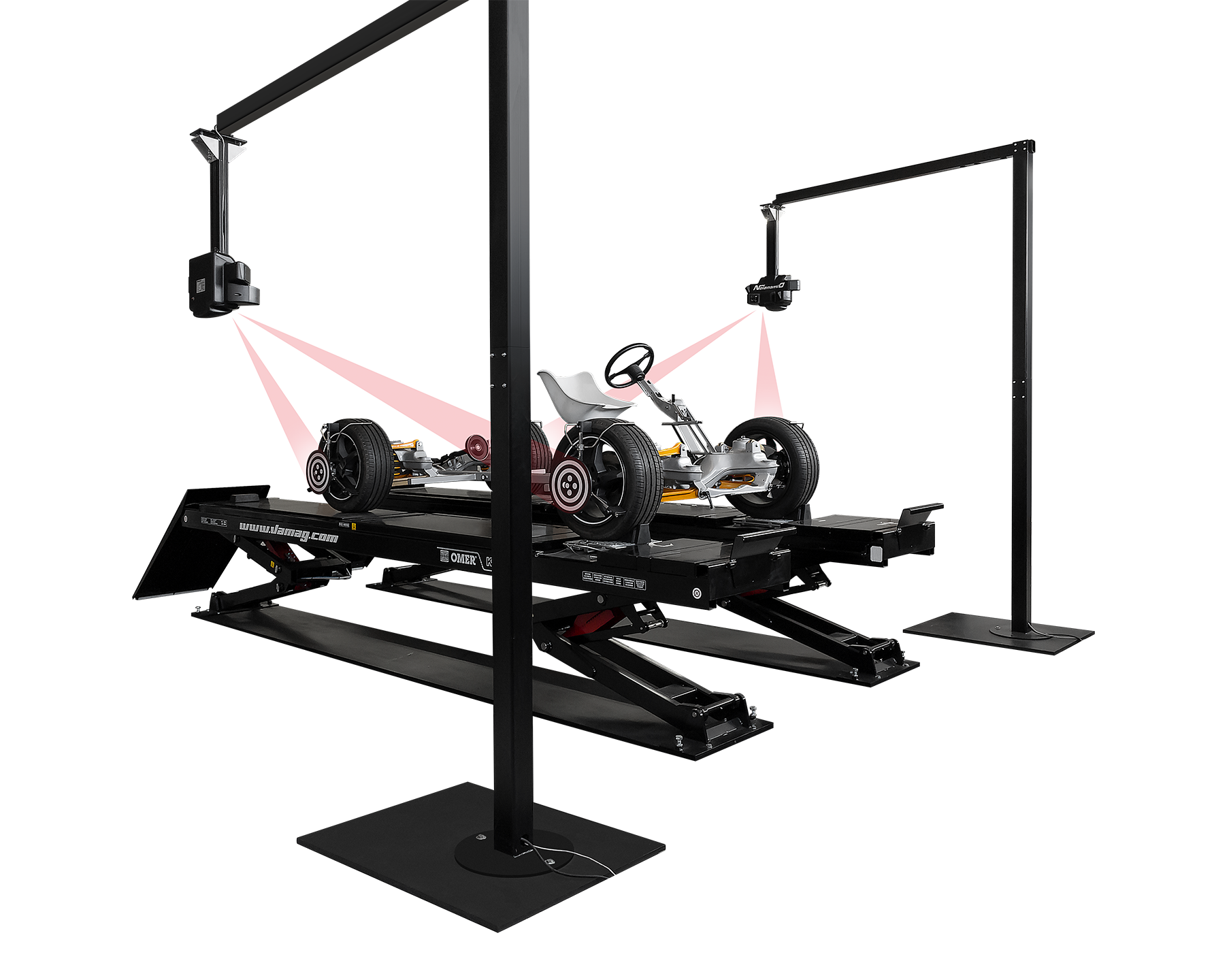

TheVamag New Dimension 3D wheel alignment system is the result of the higher company resources investment, which covers the instrument with 6 International Patents.

An ambitious project developed with the experience of Vamag developers and the proprietary data-processing software which allowed the realization of one of the more rapid and precise 3D vehicle’s geometry measurement system in the market.

Floor / ceiling installation or using stand mounted on the floor, the New Dimension has been able to suit the most complex standard of some countries and the most different workshop layouts.

The direct vision technology using high-resolution cameras and its particular predisposition for side view of the target applied on vehicle’s tyres, which make it a drive-through system, take undeniable advantages in terms of data acquisition speed and linear measurement precision.

Data visualization software with 3D graphics and Autodata databank, both updated by web, allow to access to always-updated information of the available measurements and regulations.

Instant alignment data acquisition - Run-out compensation can be skipped.

Thanks to the ND system, the Patented measurement method and the hang-on-tyre clamps, the operator can skip run-out compensation without losing any precision! ALL THE DATA CAN BE MEASURED IN LESS THAN 30 SECONDS.

• New Vamag Patented technology
• High-resolution camera acquisition system
• Instant alignment data acquisition
• Versatile installations
• Full clearance of the working area
• No need for run-out compensation (it can be done, if needed)
• Drive through bay
• Lift-independent
• Wide selection of clamps
• Option: RoboSterz for complete automatic procedure
• & much more...

VERSATILE INSTALLATION

The new entry in the VAMAG range of NewDimension 3D wheel aligners to fulfill the market request for a competitive full 3D without the burdens of traditional technology.

Floor, ceiling and wall installation for full clearance of the working area
Versatile installation to fit any workin’ bay layout
Side way positioned camera heads to allow flexible installation
Possibility to install it with scissor, pantograph, 2 - 4 columns lifting device and pit
Quick alignment check by means of comprehensive measurement display
Accurate adjustment using single wheel display
Friendly software for easy operations

FREE WORKING AREA with no obstacle for the operator to move around.

DRIVE THROUGH BAY: Possibility to install it in any part of the workshop (both with a lift or in a pit). Camera heads are located on either sides of the working bay.

FULL CLEARANCE OF THE WORKING AREA. Camera heads positioned at 2,4 meters height (ND-C) on either sides of the working bay, at 90 - 140 cm distance from the lift.

LIFT INDEPENDENT: Possibility to install the ND with any kind of lift. Camera view is not affected by lift columns.

WIDE CAMERAS FIELD OF VIEW: Fixed cameras reading values during the whole wheel alignment procedure. Full clearance of the working area

THE MEASUREMENT SOFTWARE:

• Intuitiveandfriendly
• Software-driven operations
• Easy-graphic icons simplify operational procedures
• Instant parameters acquisition and display
• 3D graphics

AUTOMATIC CASTER SWING

Caster swing can be performed at 6°- 10°- 20°. There’s no need to set up the degrees from the settings, simply click on the icon to change the value.

Using the RoboSterz (Patented robot which makes the caster swing automatically) the procedure is 100% automatic and the operator can save a lot of time doing other works in the meanwhile the robot is working.

RoboSterz also allows one-man operation.

ANGLES

• One window to include all the alignment data, both measured and reference
• Jack-up procedure to freeze the data while the vehicle is lifted up
• Automatic caster swing using RoboSterz

LINEAR MEASUREMENT

• Additional measurement displayed all together in one window
• Possibility to insert tyre’s dimension
• Automatic calculation of the dimension of the clamp used

SOFTWARE-DRIVEN procedure

2ndWHEEL ALIGNMENT POINT

DYNAMIC STEERING CORRECTION

VIRTUAL PLAN procedure

JACK-UP procedure

INTEGRATED DATABASE WITH MORE THAN 40.000 VEHICLES DATA

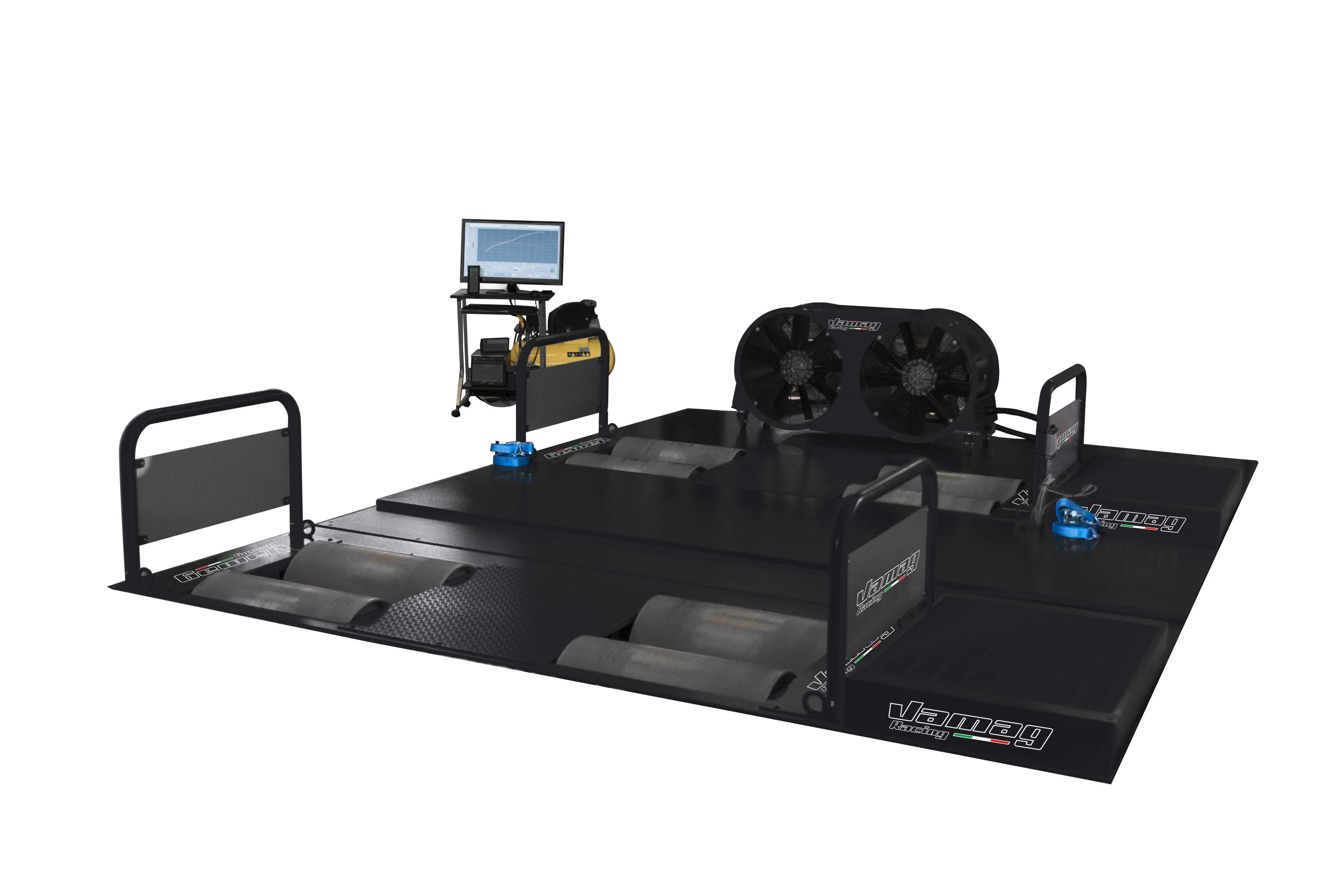

DYNORACE

Dyno products are diagnostic tools crucial for testing performance of cars, bikes, heavy duty and agricultural vehicles in the safest way. In particular, the eddy current braked system supplied by the Dyno line allows to simulate real road conditions to test the dynamic working of the vehicle in specific situations.

This practical approach avoids dangerous tests on the road, so increasing tuners’ safety while wiping out all road risks. Dynamometers of the Dyno line are currently supplied to many different users: technical centers for test and certification, repair shops and garages, engine tuning centers and race teams, R&D centers, high schools and Universities, transport ministerial authorities, vehicle manufacturers, magazines of the transport sector.

The compact size of this device, the user-friendly logic and the versatility of its software, as well as the accuracy of assessments make Dynorace the ideal machine for servicing both workshops willing to integrate a diagnostic graph and tuning/developing centers involved in motorsport.

The possibility to recreate working defects/problems occurred on the road and the repeatability of the tests performed (which involves the stability of the measured data) have always been pursued as primary target in the development of the device. The consequence of this approach is the continuous improvement of our range of dynamometers in the past few years which also means the highest trustworthiness of the results acquired during the tests.

The use of eddy current brakes (theoretical braking power over 500 Hp for each axle) allows dynamic tests like:

• Test of duration
• Regenerative procedure of diesel particulate filter
• Test of fuel consumption
• Research and development on vehicles
• Test of vehicle’s working and quality

The mechanical reliability of the dynamometer is determined by the use of high quality parts, laser technology and lower tolerance in the production process. This method allows to offer a superior quality and a more performing range of dynamometers. Therefore, the mechanical maintenance of the dyno is reduced, less frequent and simplified.

This is valid also for the hydraulic system offered in the HLS® version: as a term of comparison, dyno with belts to transfer the traction between front/rear axle require a careful technical monitoring every 40 hours of use and frequent inspections to verify the correct set-up.

A complete RANGE for CARS, TRUCKS, MOTORCYCLES & TRACTORS is available.

The version supplied with HLS® system (Hydraulic Link System) allow the hydraulic link between front/rear axles to determine the same devolution speed: this is why tests on vehicles, that could not be dynoed otherwise (because of their four wheel drive with electronic/mechanical system distributing engine torque between front/rear axles in a non-proportional way), can be safely carried out with HLS® system. This feature therefore constrains electronic systems like traction, stability and braking control so making the test possible.

DYNORACE is the only dynamometer with the possibility to link or disconnect front/rear axles thanks to this HLS® system, in case of vehicles that do not require this link or when this link can be even dangerous.

The choice of the hydraulic system rather than toothed belts or driving shafts was preferred to guarantee maximum safety during tests with high torque and high revolution of the rollers. This also allows to use rollers with smaller diameter so having a more compact size of the whole dyno, that can anyway be adapted to the vehicle being tested thanks to a motorized reducer. Moreover, all dynamometers of the DYNORACE line are mechanically engineered to support max 2.500 kg per axle and are equipped with a blocking and lifting system of the rollers in order to make this operation easier and again, safer.

Finally, Dynorace line is accessoried by items that can better support or complete its tests. The electric and electronic part managing the working of the dyno is common to all versions (a panel next to the dynamometer), while the software managing is carried out through a Personal Computer.

The data acquired can be integrated by additional parameters made available by the analog acquisition system and a kit to assess the wide band oxygen value. Lastly, the centrifugal fan is important to avoid the increase of temperature of the intake air and therefore overheating of the engine. This fan can be connected to an inverter to link the air speed to the one of the vehicle being tested, so to better simulate road conditions.

Special mention for our NEW OBDII data interface, which permits the visualization and recording of additional 4 parameters from the vehicle diagnostics of cars, pick-up trucks and light commercial vehicles.

The selection can be done through all the parameters supported via OBDII.Moreover, at the end of the test, the OBDII data interface allows to delete the errors detected from the vehicle diagnostics.
