SATA compressed air filters provide clean compressed air without any compromises for perfect painting results. Even the tiniest quantities of oil vapours, dirt particles and increased humidity can cause coating flaws, and consequently time-consuming, costly rework. Only perfectly clean compressed air ensures perfect painting results that meet the highest quality requirements.

Impeccable compressed air is especially important when using ambient air independent breathing protection equipment, effectively protecting the user's respiratory tract from paint mist and vapours.

The SATA filter series 500 is available either as a one-stage sintered filter with water and oil separator, as a two-stage combination filter with sintered and fine filter, or as a three-stage filter unit with additional sintered activated charcoal filter.

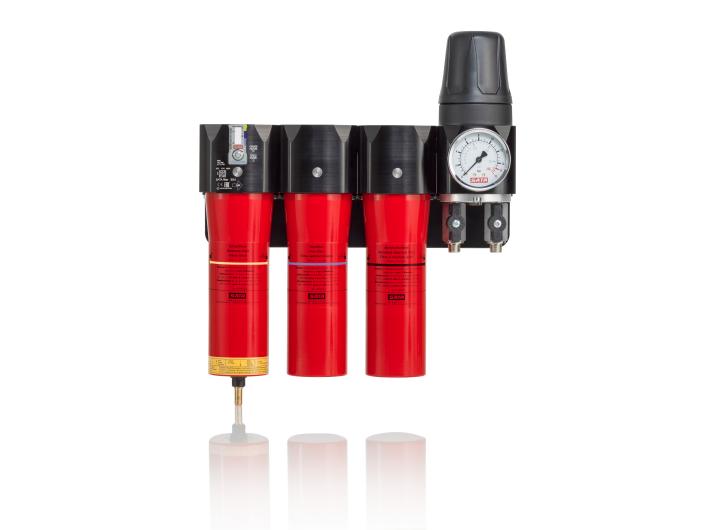

SATA filter 584 – 3-stage combi filter:
Sintered filter / fine filter / activated charcoal filter

SATA filter 544 – 2-stage combi filter:
like the SATA filter 584, however, without activated charcoal - with the use of supplied-air respirators, it requires a belt unit with activated charcoal adsorber

SATA filter 524 – Single-stage sintered filter

SATA filter 564 – 1-stage activated charcoal filter
Activated charcoal filter for an easy retrofitting of the SATA filter 544

Product benefits

• Higher absorption of contaminations (compared to SATA filter 484) due to the new sintered activated charcoal filter
• Synchronised maintenance: Filter maintenance only necessary every six months for all stages
• Maintenance-free bayonet lock with haptic and acoustic feedback
• Fine filter and activated charcoal filter cartridges fit perfectly by simply being inserted – no screw fittings or additional seals
• Simple plug-in system for upgrading SATA filter 544 to 584
• Maintenance-free sealing elements
  Line connection possible either from the left or the right side
• Air flow at 6 bar: 3,800 Nl/min
