Professional spray guns for extruding and spraying single component sealing products (MS-POLYMER) contained in standard cartridges. Thanks to the multi-possibilities of product’s adjustment and material’s atomisation, it is possible to obtain surface with a strong or light orange peel effect and profiles of various widths and thicknesses, according to specific requirements.

Applications
Extrusion and spray sealing products, single-components (MS-Polymer)

Body
High quality drop-forged brass nickel-plated body

Pressure
Working pressure 3-5 bar / maximum pressure allowed 8 bar

Air consump.
Approximate air consumption 200-300 l/min

Connection
Connector 1⁄4” gas male

Noise level
<80 dBA

Weight
1200 g.

Nozzles
1,6 - 2,5 mm

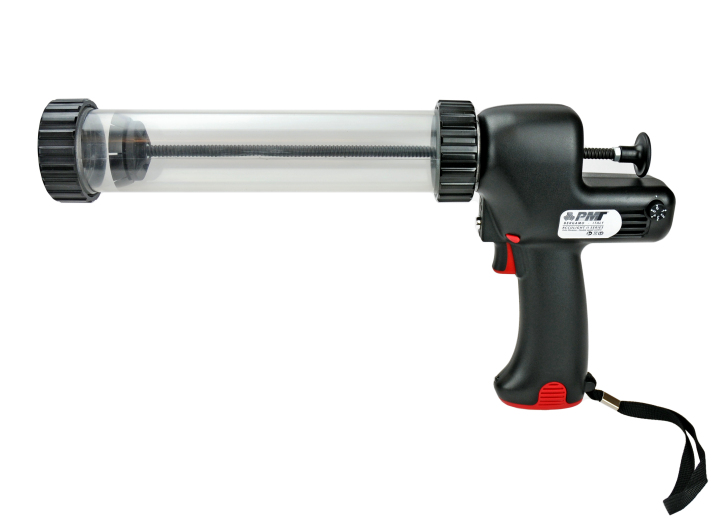

Pneumatic applicator for the extrusion of sealers and adhesives, packaged in standard cartridges (especially suitable for aluminium cartridges) or soft-packs.Thanks to the piston single-stage the product is not in contact with under pressure air.

Way of Extrusion
Mechanical (by means of a piston)

Weight
1300 g.

Pressure
4-8 bar

Length tube
512 mm

Max. Force
160 Kgf (8 bar)*

Connection
1/4 male gas

Noise level
<80 dBA

Features
Pressure reducer integrated dump valve integrated(dripless)

*CSG 450 POWER available 360 Kgf (8 bar)

Professional spray gun suitable for any type of paint, both solvent and water based. Especially useful in carpentry, coachwork, construction, industrial and marine, and for funds and finish. The upper reservoir gravity PA6 is characterized by a screw closure with “drop-off system” and is available with a capacity of 600 ml. The nozzles are available in different sizes depending on the specific needs.

Single-piece head with built-in nozzle
Fully interchangeable

Applications
Paints both solvent & water based

Nozzles
Ø 1,2 - 1,3 - 1,4 - 1,5 - 1,7 - 1,8 - 2,0 - 2,5 mm

Optional: Ø 1,0 - 1,6 - 1,9 - 2,2 - 3,0 mm

Pressure work
2-4 bar

Tank
600 ml PA6

Weight
710 g.

Connection
1⁄4 Male

Professional gun for the application and spray of protective and soundproofing materials like gravel protection, vibration-damping, bituminous paints, bituminous and protective waxes both solvent and water based. Thanks to the tank’s capacity, which is under pressure, the gun can work both with loose products and using the standard cans. Provided with different types of probes for applications in various parts of vehicles, even  in difficult to reach areas.

Applications
Application and spray of protective and sounproofing materials both solvent and water based

Body
High quality drop-forged brass nickel-plated body

Pressure
Working pressure 2-4 bar / maximum pressure allowed 8 bar

Air consump.
Approximate air consumption 200-300 l/min

Connection
Connector 1⁄4” gas male

Noise level
<80 dBA

Weight
1600 g.
