Descriptions:

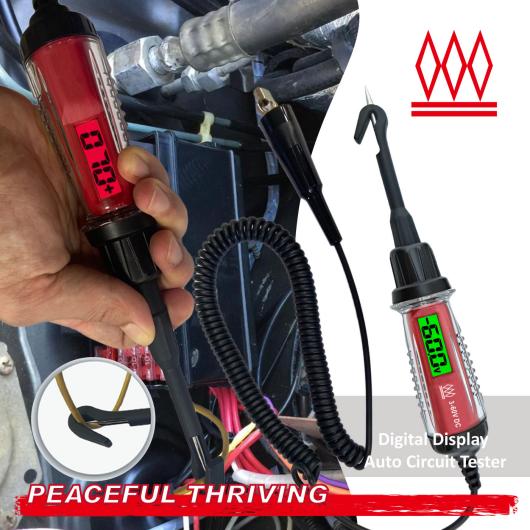

This is a DC voltage tester with smart over-voltage protection and warning for vehicle repair. It is able to measure the voltage value and indicating the polarity with different color background light. The over-voltage

Features:

DC Voltage Measurement: 3.0 ~ 60.0V DC

Accuracy: (1%+0.3)V

Wire Hooker and Piercing

4 Level Over-Voltage Protection and Warning

LCD with Dual Color Polarity Indication

Low Power Consumption

Computer Safe

Battery: CR2032

Descriptions:

Multi-function Voltage Tester is a professional 2-pole voltage tester, which provides electricians with a versatile high quality Voltage and Continuity tester. Suitable for checking DC 6-1000V and AC 24-1000V. CAT IV 1000V voltage category also for checking high voltage on electric / Hybrid vehicles.

Features Function:

• AC / DC Polarity Measurement
• Voltage Measurement
• High Voltage Indication
• Phase Rotation Test
• Non-contact Voltage Sensing
• Continuity Test
• Illumination

Features:

With GS and CE Approval.

Protection class: IP 65

Auto power off.

LCD resolution 1V.

Illumination for testing point.

Display range: 6-1000VDC, 24-1000VAC.

Probe cap to protect user and test probe.

Dual switch for protection & function switch.

Polarity indication LED lights up when voltage approximate ≧ 24V AC/DC.

Descriptions:

The multi-function automobile tester has LCD display to indicate the measured result. It has polarity detection with the LEDs for a positive and negative indication of DC voltage. For auto use, the functions included the measurement of DC voltage and current, signal frequency and max/min voltage, resistance, temperature and power providing testing.

Features:

Illumination

DC Voltage Measurement

Signal Frequency and Max / Min Voltage Measurement

Resistance Measurement

Current Measurement

Power Providing Test

With accessories of thermocouple and for temperature measurement.

Specifications:

Supply voltage: 12-24V DC system

Voltage measurement range: 0-70V

Dc current measurement range: 0-5A DC

Frequency measurement range: 0-300KHz (square wave)

Resistance measurement range: 0-200KΩ

Measured temperature range: -50-500°C / -58-932°F

Measurement: Testing probe≦150°C / 302°F

Descriptions:

This is the device to test 3 popular vehicle relays. The testing result will be displayed by LED indication. Technician is able to use the device to figure out the condition of the relay, and so speculating the problem in the vehicle.

Features:

Vehicle relay testing for 3 most popular kind of relays.

Power Supplied: 12V / 24V vehicle battery

Support both 4 pin / 5 pin relay.

Problem pin indication.

Working Temperature: 0 ~ 50°C ( 32 ~ 122°F ); < 85%RH

Storage Temperature: -20 ~ 60°C ( -4 ~ 140°F ); < 85%RH

Descriptions:

This is a DC voltage tester with smart over-voltage protection and warning for vehicle repair. It is able to measure the voltage value and indicating the polarity with different color background light. The over-voltage

Features:

DC Voltage Measurement: 3.0 ~ 60.0V DC

Accuracy: (1%+0.3)V

Wire Hooker and Piercing

4 Level Over-Voltage Protection and Warning

LCD with Dual Color Polarity Indication

Low Power Consumption

Computer Safe

Battery: CR2032

Descriptions:

Multi-function Voltage Tester is a professional 2-pole voltage tester, which provides electricians with a versatile high quality Voltage and Continuity tester. Suitable for checking DC 6-1000V and AC 24-1000V. CAT IV 1000V voltage category also for checking high voltage on electric / Hybrid vehicles.

Features Function:

• AC / DC Polarity Measurement
• Voltage Measurement
• High Voltage Indication
• Phase Rotation Test
• Non-contact Voltage Sensing
• Continuity Test
• Illumination

Features:

With GS and CE Approval.

Protection class: IP 65

Auto power off.

LCD resolution 1V.

Illumination for testing point.

Display range: 6-1000VDC, 24-1000VAC.

Probe cap to protect user and test probe.

Dual switch for protection & function switch.

Polarity indication LED lights up when voltage approximate ≧ 24V AC/DC.

Descriptions:

The multi-function automobile tester has LCD display to indicate the measured result. It has polarity detection with the LEDs for a positive and negative indication of DC voltage. For auto use, the functions included the measurement of DC voltage and current, signal frequency and max/min voltage, resistance, temperature and power providing testing.

Features:

Illumination

DC Voltage Measurement

Signal Frequency and Max / Min Voltage Measurement

Resistance Measurement

Current Measurement

Power Providing Test

With accessories of thermocouple and for temperature measurement.

Specifications:

Supply voltage: 12-24V DC system

Voltage measurement range: 0-70V

Dc current measurement range: 0-5A DC

Frequency measurement range: 0-300KHz (square wave)

Resistance measurement range: 0-200KΩ

Measured temperature range: -50-500°C / -58-932°F

Measurement: Testing probe≦150°C / 302°F
