HEKO Z.T.S.i W.R. Henryk Konieczny

Ceiling filter for paint booths

Ceiling filter for paint booths

HEKO Z.T.S.i W.R. Henryk Konieczny

Description

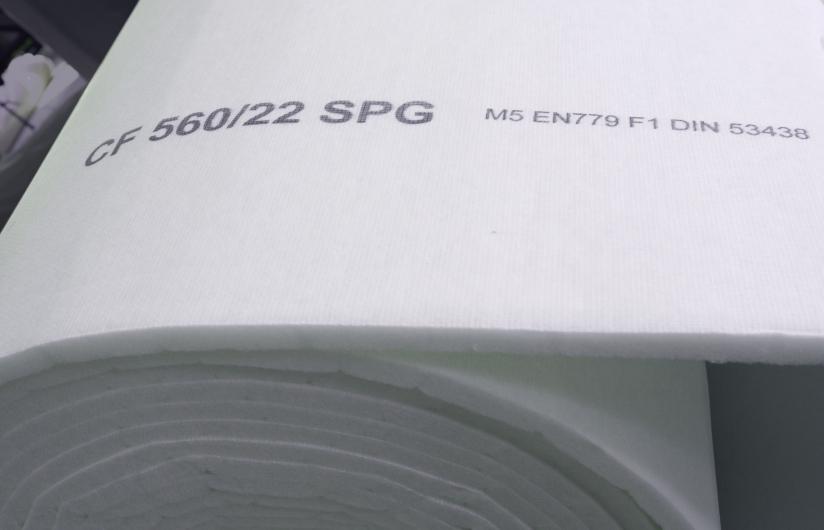

Härdi Paint CF 560/22 SPG

M5 premium ceiling filter with tackyfier and scrim for high requirements.

Filter classification: M5

Areal density: 560 g/m²

Thickness: 22 mm

Initial pressure drop: 32 Pa

  • Progressive layer of fibers
  • Increased safety with scro, on the air leaving side
  • Additional safety thanks to coating with tackifier
  • Flame retardent followong DIN 53438 (F1)
  • Max operating temperature 100 °C, Peak 120 °C
  • Dust holding capacity 360 g/m2
  • Customized print
  • Available in roll form or cuts

Applications

  • Ceiling filters for paint booths and spray booths

Härdi Filter HCF 500 SPG

ECO ceiling filter for paint shops with particularly low pressure loss and scrim.

Filter classification: M5

Areal density: 350 g/m²

Thickness: 14 mm

Initial pressure drop: 23 Pa

  • Progressive fiber construction
  • Increased safety with scrim on the air leaving side
  • Additional safety thanks to RLS coating with tackifier
  • Flame retardent according to DIN 53438 (F1)
  • Max operating temperature 100 °C, Peak 120 °C
  • Customized print
  • Available in rolls or cuts

Applications

  • Final filtration of the incoming air in painting and drying systems (ceiling filters)
