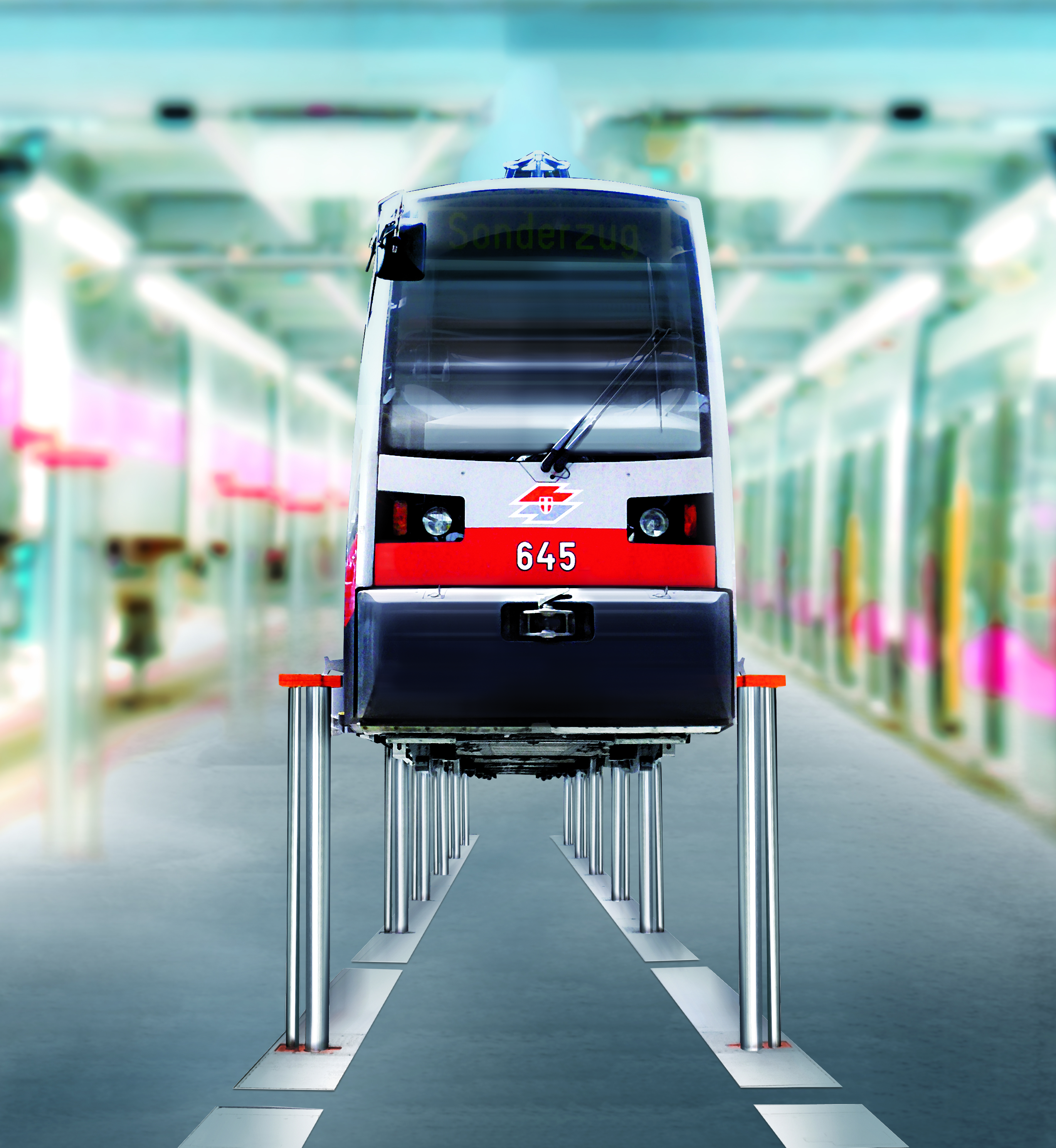

With the lifting platforms from JAB, even entire rail vehicles can be reliably lifted hydraulically. There is no need for an additional working pit, so that all work can be carried out comfortably from workshop level. The lifting platforms offer you unlimited possibilities for the care, maintenance and repair of your rail vehicles

Combined track beams and car body lifting systems: Combination of inner jack (track beam jack) and outer jack (body jack) for bogie replacement, no working pit is required. All work can be carried out comfortably from workshop level. Project planning and execution exactly tailored to the respective framework conditions such as installation situation, vehicle fleet, in-house work processes, etc. Within the framework of a detailed requirements analysis, we develop the respective customized concept.

Lift with double telescopic swivel arms and height-adjustable support plates. The swivel arm lift is an excellent choice for use in all repair work that arises.

FACTS

• Load capacity: 3.500 kg
• Punch distance: 2.500 mm
• Underswing height: 98 mm
• Installation depth: 2.350 mm
• Oil quantity: 10 l
• Connected load: 2 kw
• The lifted vehicle is almost unrestrictedly accessible, ensuring optimum working conditions.
• The swivel arm system offers the greatest possible pickup variety.

HIGHLIGHTS

• Redundant design due to two independent hydraulic cylinders.
• Anti-rotation device over the entire stroke path.
• All forces are absorbed by the foundation frame.
• Drive unit and all components easily accessible.

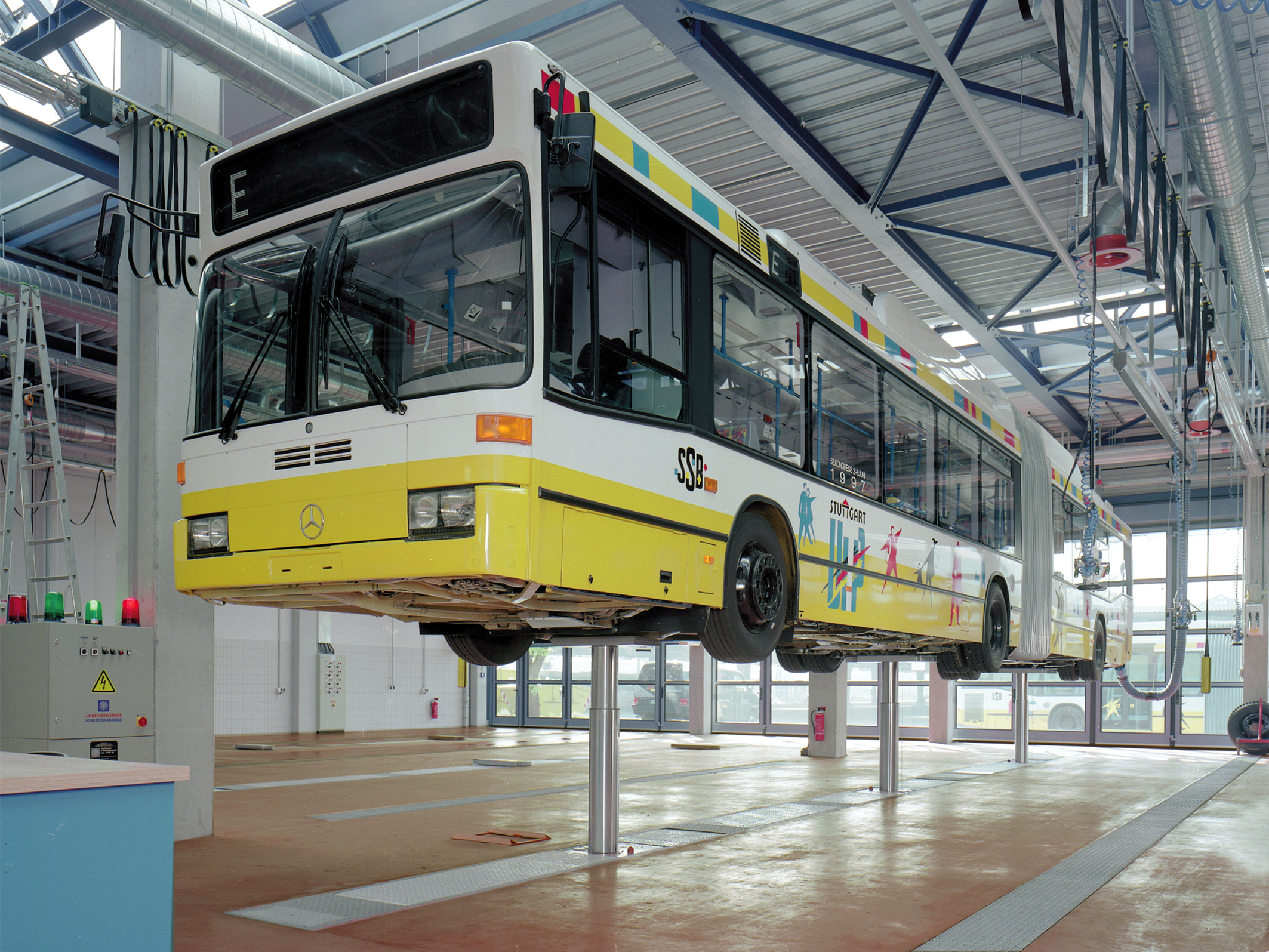

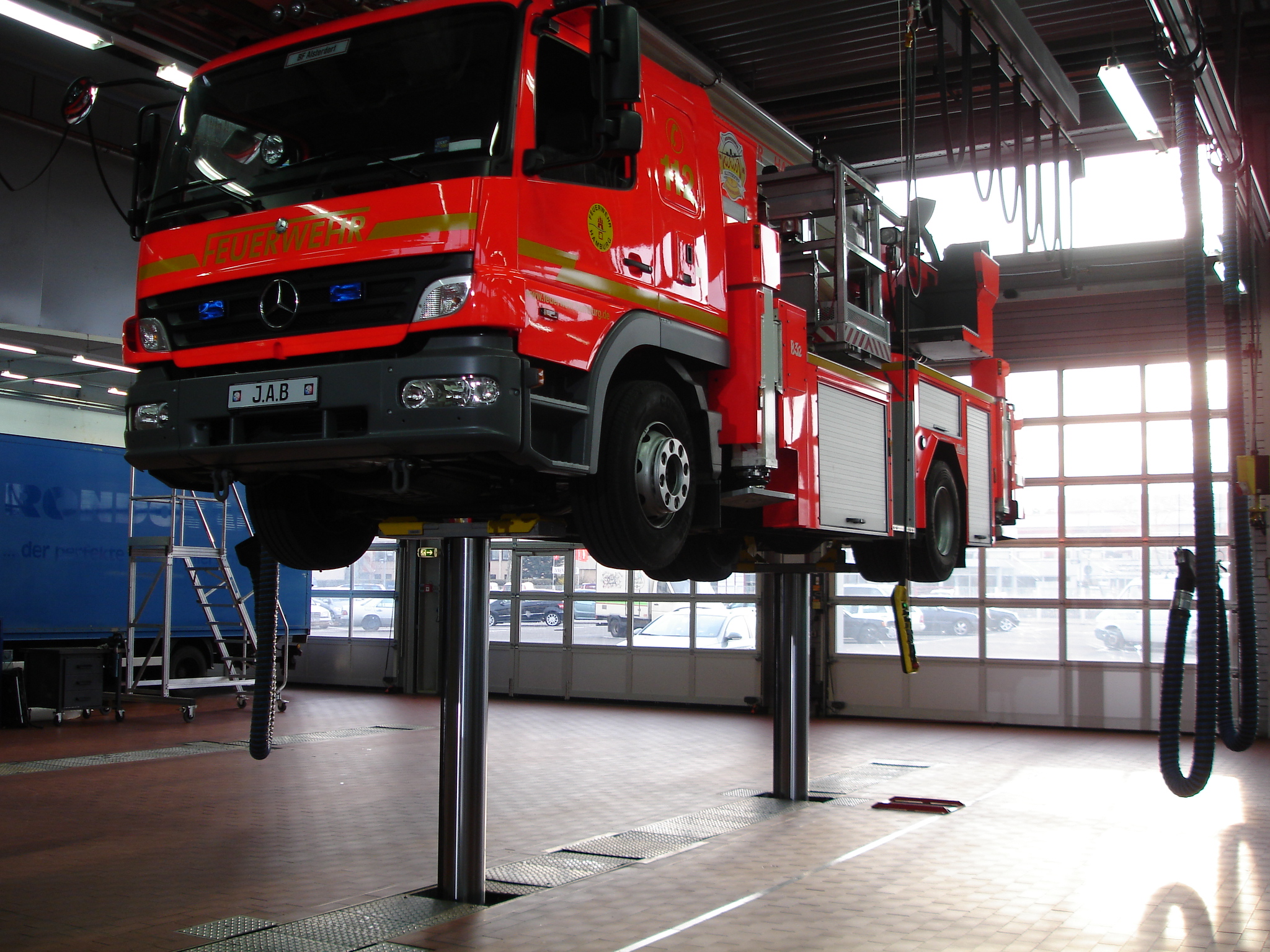

Universal Truck/Bus lift with a lifting capacity of 2 x 16 to. The lifting units are equipped with telescopic cylinders. The pit is closed with an aluminum segment covering. One lifting unit is stationary, one lifting unit is designed to be movable with a travel range of 3,100 mm. The foundation frame is hot galvanized. For installation in prepared concrete foundation (on site).

• No. lifting units: 2 Pieces
• Lifting capacity per lifting unit: 16.000 kg
• Total lifting capacity: 32.000 kg
• Piston diameter: 214/190 mm
• Lifting height: 1.900 mm
• Moving range: 1 x 3.100 mm
• Installation depth: 1.750 mm
• Lifting/lowering time: 85 sek
• Total oil filling: 250 Liter
• Power connection: 2 x 4,1 KW
• Electrical connection: 400 V, 3 AC+N/PE, 50 Hz, 32 A
• Lifting capacity segment covering: 6.500 kg

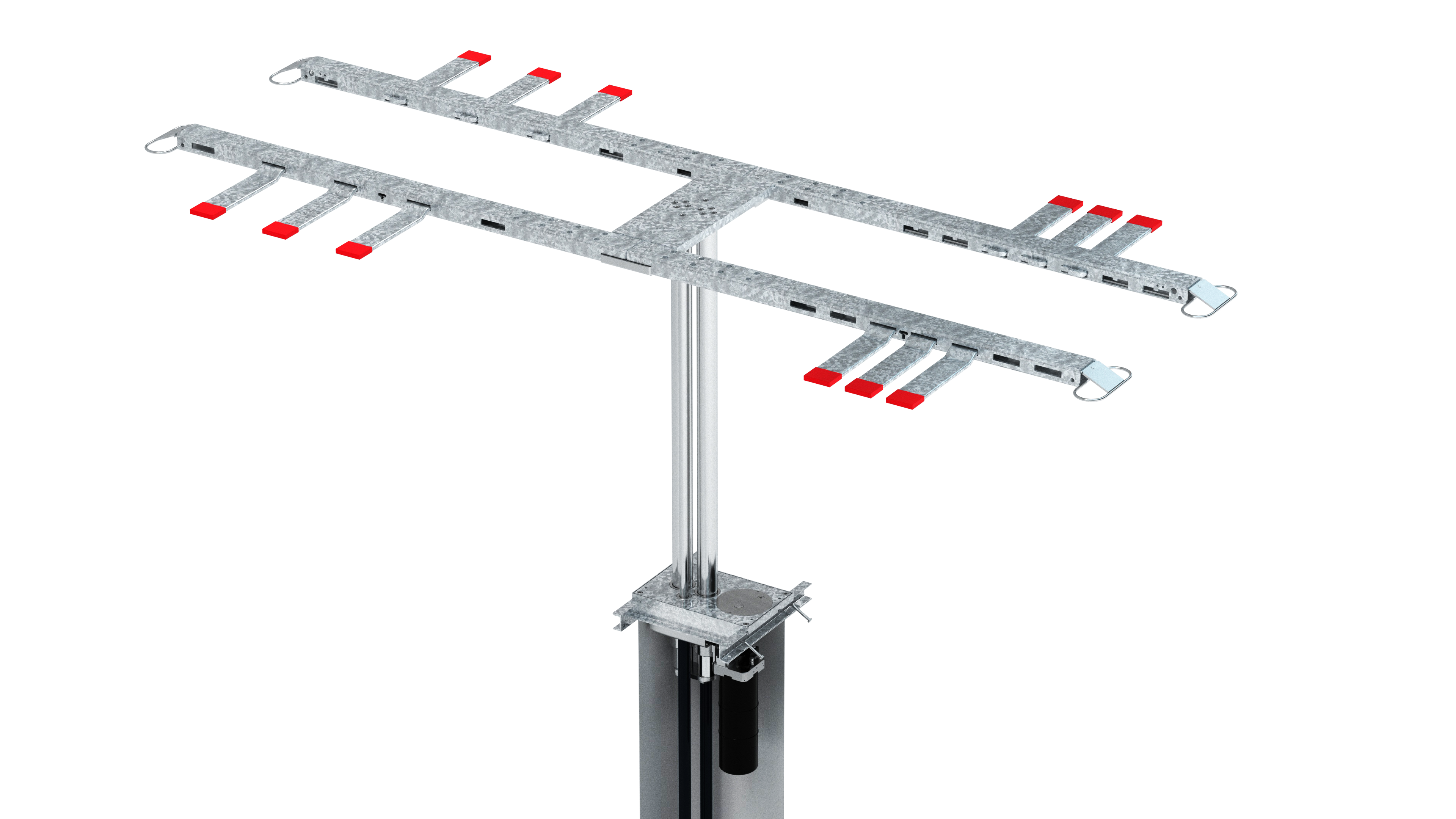

Fast, uncomplicated and safe vehicle pick-up is a decisive plus point of this advanced pick-up concept. The "Essmann" drive-on system impresses with the low drive-on height of the spring leaves (20 mm) as well as automatic centering of the wheels.

FACTS

• Load capacity: 3.500 kg
• Lifting height: 1.880 mm
• Traversing height: 80 mm
• Installation depth: 2.350 mm
• Oil quantity: 10 l
• Connected load: 2 kw
• The standard hot-dip galvanized design ensures the best possible corrosion protection and is thus particularly suitable for the washing area.
• The standard hot-dip galvanized design ensures the best possible corrosion protection and is thus particularly suitable for the washing area.
• The AE 35 girder bridge is suitable for wheelbases from 1,800 to 3,400 mm.

HIGHLIGHTS

• Redundant design due to two independent hydraulic cylinders
• Anti-rotation device over the entire stroke path
• Absorption of all moments by additional guide rods
• Hydraulic unit directly flanged
• Optimum accessibility to engine compartment, vehicle interior and bodywork
• Minimum setup times
