Single-Headed Rocking Piston Compressor

Model: ZWS250 Series (220V 50Hz)

Rated Power: 350 w (0.47 hp)

Rated Flow Rate: 24 l/min (0.85 cfm) @ 3 bar (43.5 psi)

Max Flow: 42.5 l/min (1.5 cfm)

Max Continuous Pressure: 3 bar (43.5 psi)

Max Pressure Level: 5 bar (73 psi) intermittent

Max Restart Pressure: N/A

Max Vacuum Level: -880 mbar (26” Hg)

Dimensions: L 184 mm (7.25"), W 103 mm (4.06"), H 163 mm (6.42")

Weight: 5.3 Kg (11.7 lb)

Application: Fragrance dispenser

Twin-Headed Rocking Piston Compressor

Model: ZW400 Series (220V 50Hz)

Rated Power: 610 w (0.82 hp)

Rated Flow Rate: 110 l/min (3.88 cfm) @ 2 bar (29 psi)

Max Flow: 127 l/min (4.48 cfm)

Max Continuous Pressure: 2 bar (29 psi)

Max Pressure Level: 2.5 bar (36.3 psi) intermittent

Max Restart Pressure: N/A

Max Vacuum Level: -800 mbar (23.6” Hg)

Dimensions: L 246 mm (9.69"), W 136.4 mm (5.37"), H 187.8 mm (7.39")

Weight: 8.4 Kg (18.5 lb)

Application: High-flow air inflation

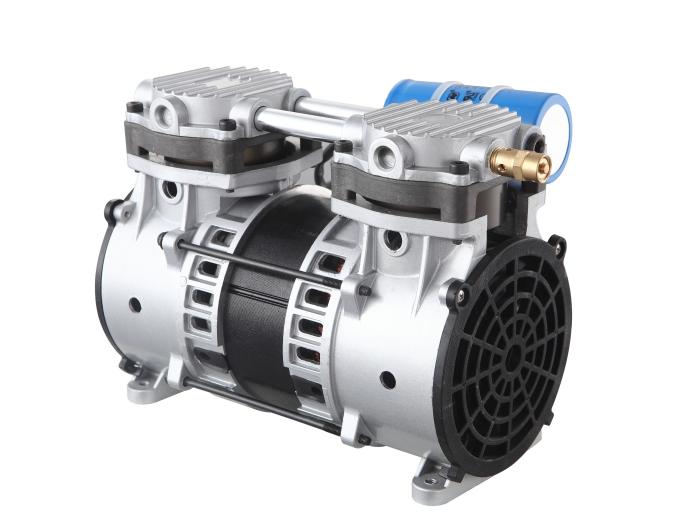

Twin-Headed Rocking Piston Compressor

Model: ZW1100 Series (220V 50Hz)

Rated Power: 1300 w (1.74 hp)

Rated Flow Rate: 103 l/min (3.64 cfm) @ 8bar (116 psi)

Max Flow: 170 l/min (6.0 cfm)

Max Continuous Pressure: 10 bar (145 psi)

Max Pressure Level: 11 bar (160 psi) intermittent

Max Restart Pressure: N/A

Max Vacuum Level: -850 mbar (25.1” Hg)

Dimensions: L 320 mm (12.6"), W 179 mm (7.05"), H 283 mm (11.14")

Weight: 17.6 Kg (38.8 lb)

Application: High-pressure air inflation

Twin-Headed Rocking Piston Compressor

Model: ZW700 Series (220V 50Hz)

Rated Power: 800 w (1.07 hp)

Rated Flow Rate: 25 l/min (0.88 cfm) at 10 bar (145 psi)

Max Flow: 120 l/min (4.23 cfm)

Max Continuous Pressure: 10 bar (145 psi)

Max Pressure Level: 11 bar (160 psi) intermittent

Max Restart Pressure: 7 bar (102 psi)

Max Vacuum Level: -880 mbar (26” Hg)

Dimensions: L 250 mm (9.85"), W 165 mm (6.5"), H 220 mm (8.66")

Weight: 13.5 Kg (29.8 lb)

Application: Heavy Goods Vehicle tyre inflation
