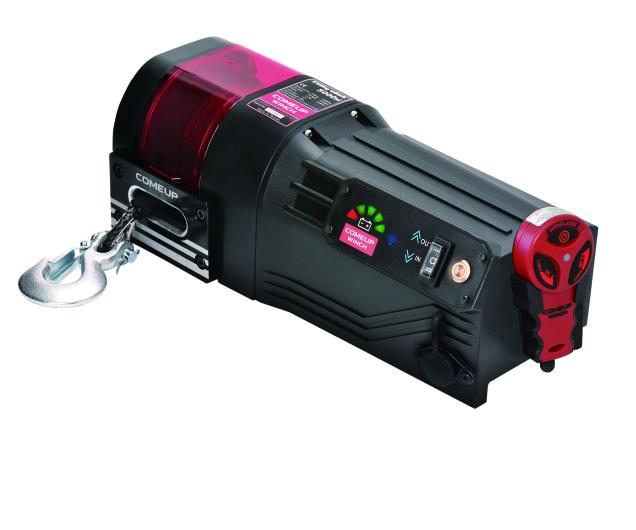

6,000 lb Utility Duty Winch

• Compact and light weight allows a wide range of application. For example: crane hoist, gear motor, lifting winch, boat trailer winch, equipment lift, lifter, rack lift, cargo lift.
• High torque permanent magnet motor delivers heavy line pull at lower amp and slip free dynamic brake.
• Compound gear wheel gearbox delivers the most reliable and durable performance of winch under the most rugged conditions.
• Sliding pin and ring gear clutch for rapid free spool.
• Double mechanical ratchets brake and motor dynamic brake ensure holding the load without slippage.
• Manual override in case power is lost
• 12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
• Built-in digital signal two way wireless remote control and waterproof remote control w/5 m (17’) cord.
• Intelligence Dashboard (IDB) functions:
  - On/Off switch prevents the vehicle battery from draining when not in use.
  - With LED fan-shaped battery life indicator.
  - Wireless signal icon that is continuously illuminated to confirm the wireless remote is paired with the winch.

• Triple 8.0 hp 12V series wound motors for the ultimate in power and high speed line pull.
• Three submersible sealed contactors w/silver-alloy contact pads for proven reliability in extreme conditions.
• Rugged 3 stage spur gear train for maximum durability in competition use.
• Dual braking system includes ratchet brake inside the gear box cover and air actuated brakes at each motor.
• Air actuated clutch for driver controlled free spool allowing rapid rope pay-out.
• Can be converted to the 2 motor M2 for various competition conditions.
• Long drum version available to hold up to 60m (197ft) of rope.
• Retrieval speed of up to 73 mpm (239.5 fpm).
• Standard 33.6:1 gear ratio with optional 28:1 and 41.5:1 gear sets available.

9.07 Tonnes Hydraulic Recovery Winch

• Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
• 7 cm3/rev highly efficient and constant operating torque motor with 9,070 kg / 20,000 lb capacity
• Hardened 2 stage planetary gear train with 30:1 gear ratio provides faster line speed
• Built-in air clutch for rapid wire rope payout
• The Multi-Disc Brake (MDB) patented for holding full load
• Great for severe duty trailers, roll-back carriers, and commercial recovery application
• Roller fairlead, cable tensioner and two ways counterbalance valve supplied
• Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.

4.3 Tonnes Self-Recovery Winch

• 12V DC severe duty winch rated at 9,500 lb pulling meets and exceeds your expectations.
• Heavy duty series wound motor equipped with thermal protection switch alters.
• Trendy design on winch body with new stylish control pack dedicated to provide excellent winching experience.
• Convertible control pack plus winch external wiring cable connection design allows quick and convenient remote mounting options.
• Control pack equipped with on-top display screen shows battery level and offers solenoid malfunction alarm function.
• Newly designed wireless and wired controllers offer better holding and reliable operation.
• Wired controller has magnet design, allowing it to put on idle vehicle body.
• Hardened steel, 3-stage planetary gear train for efficient and reliable operation.
• 12-strand construction synthetic rope is coated to improve abrasion and has no water absorption.
• The U.S., Germany, U.K., France, etc., patented mechanical cone brake outside the drum expedites heat dispersion and also makes the winch ideal for use with synthetic rope.
• Meets SAE J706, CE Machinery Directive 2006/42/EC and CE Electromagnetic Compatibility Directive 2014/30/EU.
• Built-in radio control module includes functions:
  - On/off switch prevents the vehicle battery from draining when no use
  - Motor over-heating warning by LED indicators and beeper

6,000 lb Utility Duty Winch

• Compact and light weight allows a wide range of application. For example: crane hoist, gear motor, lifting winch, boat trailer winch, equipment lift, lifter, rack lift, cargo lift.
• High torque permanent magnet motor delivers heavy line pull at lower amp and slip free dynamic brake.
• Compound gear wheel gearbox delivers the most reliable and durable performance of winch under the most rugged conditions.
• Sliding pin and ring gear clutch for rapid free spool.
• Double mechanical ratchets brake and motor dynamic brake ensure holding the load without slippage.
• Manual override in case power is lost
• 12 strand construction synthetic rope, coated to improve abrasion resistance and to protect from the ingress of dirt and grit.
• Built-in digital signal two way wireless remote control and waterproof remote control w/5 m (17’) cord.
• Intelligence Dashboard (IDB) functions:
  - On/Off switch prevents the vehicle battery from draining when not in use.
  - With LED fan-shaped battery life indicator.
  - Wireless signal icon that is continuously illuminated to confirm the wireless remote is paired with the winch.

• Triple 8.0 hp 12V series wound motors for the ultimate in power and high speed line pull.
• Three submersible sealed contactors w/silver-alloy contact pads for proven reliability in extreme conditions.
• Rugged 3 stage spur gear train for maximum durability in competition use.
• Dual braking system includes ratchet brake inside the gear box cover and air actuated brakes at each motor.
• Air actuated clutch for driver controlled free spool allowing rapid rope pay-out.
• Can be converted to the 2 motor M2 for various competition conditions.
• Long drum version available to hold up to 60m (197ft) of rope.
• Retrieval speed of up to 73 mpm (239.5 fpm).
• Standard 33.6:1 gear ratio with optional 28:1 and 41.5:1 gear sets available.

9.07 Tonnes Hydraulic Recovery Winch

• Powered by a PTO (power take off unit) driven pump with variable recovery speeds for high working rate
• 7 cm3/rev highly efficient and constant operating torque motor with 9,070 kg / 20,000 lb capacity
• Hardened 2 stage planetary gear train with 30:1 gear ratio provides faster line speed
• Built-in air clutch for rapid wire rope payout
• The Multi-Disc Brake (MDB) patented for holding full load
• Great for severe duty trailers, roll-back carriers, and commercial recovery application
• Roller fairlead, cable tensioner and two ways counterbalance valve supplied
• Meets SAE J706 revised AUG2003, CE Machinery Directive 2006/42/EC and EN 14492-1 Power Driven Winches.
