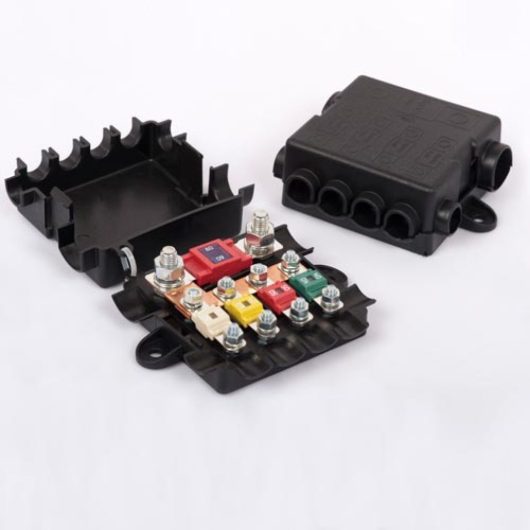

High-quality M5 and M8 Bolt Connected Fuse Holders

• It is modular so can be used by assembling each other to create multi-position holder
• The overhang in the cover provides improved protection of the terminals
• 30 mm distance between bolts for M5 type
• 51 mm distance between bolts for M8 type
• PA66-GF30 Body Material
• PA66 Cover Material
• Fuse Holder is patented with its all characteristics and innovations.

30-100 Amper High-quality Bolt on U Type Strip Fuses.

30-200 Amper High-quality Bolt on O Type Strip Fuses.

Complies with DIN72581-2 (for U-Type)

Complies with VAG Standards (for O-Type)

M5 Bolt Connection Holes (for U-Type)

M5 & M6 Bolt Connection Holes (for O-Type)

30 mm spaced between holes

Easy installation to Holders

RoHS & ELV Complaint

High-quality Modular Power Distribution Fuse Box with 20 pos. for Blade Type fuses

• Original design.
• Transparent cover.
• It is modular so can be used by assembling each other at any size, without limitation.
• It has air circulation canal to cool itself automatically.
• It has a receptacle for fuse puller. The fuse puller can be accessible at every time.
• It has two receptacles place for spare fuses.
• The fuse terminal is directly connected to the fuse. There isn’t any insertion part.
• The terminals can be used with spring or without spring.
• The connection flanges are asymmetric and this prevents any wrong assembling.
• The cover canals are also asymmetric so that cover cannot be a connected reverse direction.
• The material of fuse holder is made of special thermoplastic which is resistant to heat and stroke.
• Modular power distribution and Fuse Holder is patented with its all characteristics and innovations.

High-quality 32VDC 5-30 A Blade Type Fuses

• Meets all international specs,
• Transparent fuse bodies,
• Test points at top of the fuse,
• Element visible from outsides,
• High-temperature resistive plastics used for fuse body materials
• Self-extinguishing body materials
• Ratings marked on top.
• RoHS & ELV Compliant
