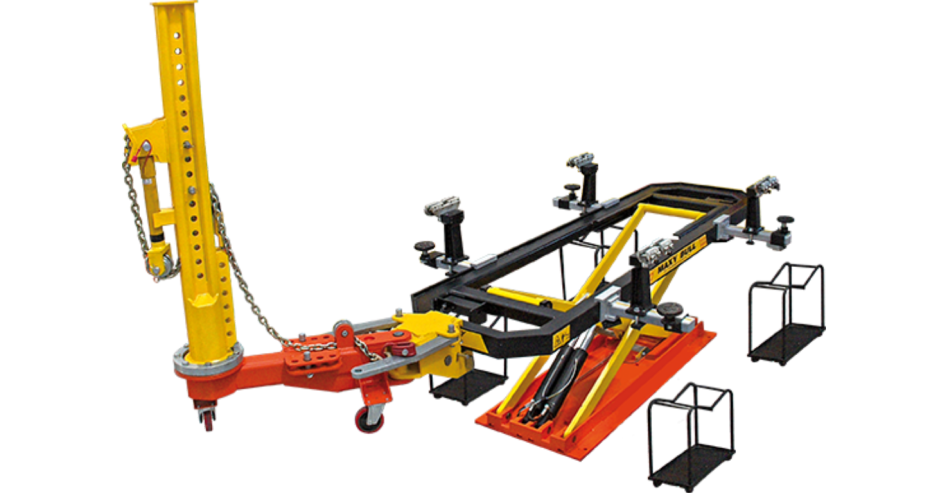

Straightening bench to reapair small and medium size damages. The frame firmness allows a quick and simple positioning of any type of vehicle by using 4 universal clamps only, without need for ramps.

MAIN TECHNICAL SPECIFICATIONS:

• Capacity: 3.000 kg
• Minimum height from the floor: 140 mm
• Maximum height from the floor: 1,312 mm
• Lifting time: 60 sec.
• Power supply: 230 – 400 V | 50 – 60 Hz | three-phase
• Weight: 1,400 kg
• Dimensions: 3,450 x 1,000 x 750 (h) mm

AVAILABLE OPTIONAL EQUIPMENT:

• Measuring devices;
• Clamps;
• Tool trolley;
• Chain;
• Additional vertical pulling arm;
• Cover for straightening bench installed at floor level
