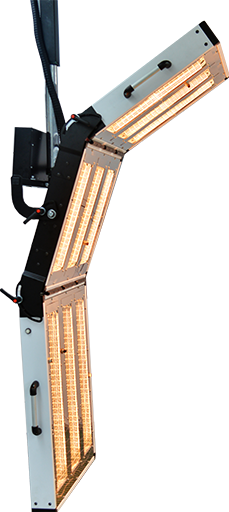

A few of many advantages offered by Infrared Arch Dryer are the following:

• the speed of drying, which is guaranteed by modern infrared technology
• the excellent quality of the final result, thanks to the contactless measurement system with automatic temperature control on the surface to be dried
• the considerable savings in terms of actual operating costs

In comparison with other models currently on the market, Arch Dryer is very compact and extremely versatile.

It is able to move in all directions: longitudinal, transversal and vertical (with a maximum range of 1.2 m) and can rotate on itself.
In combination with its precise and reliable distance sensors, it can perfectly follow the vehicle shape or the parts that have to be dried.

It can be installed in preparation stations or in spray booths. This system can handle up to 6 different preparation stations side by side, Arch Dryer can work in any of these preparation stations.
Furthermore, it can also be installed in single or double spray booths and can be used alone or in combination with a second system to create a complete arch (Arch Dryer Plus).

The control unit is placed outside the working area and, thanks to the large touch screen display, it is possible to manage and control all processing operations. The control software is efficient, very intuitive and easy to use.

MAIN TECHNICAL SPECIFICATIONS

• Number of ceiling lights: 3, with 3 short-wave paint dryers;
• power supply: 400v 3F 50-60 Hz;
• power: 9 x 1500 W;
• Control mode: fully computerised

OTHER SPECIFICATIONS

• Temperature and distance control;
• personalization of the drying programs;
• no. 5 stepper motors for the longitudinal movement
