Hydraulic wheel lift system ESH-HWB 3441/5161/6881
Beschreibung

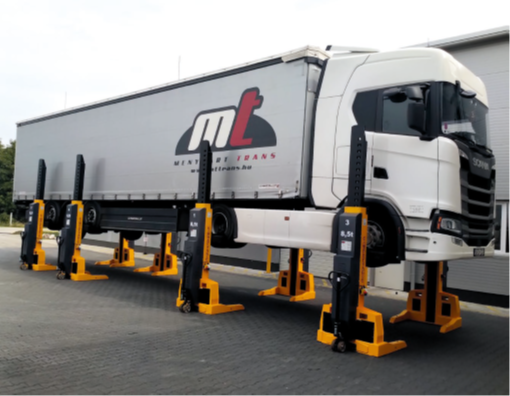

The hydraulic, battery-powered lifting jacks, each with a lifting capacity of 8.5 tons, can be used with 4, 6, or 8 columns and are suitable for lifting all commercial vehicles. A special version with a lifting capacity of 10 tons per column is also available. Each lifting jack is equipped with an adjustable wheel fork, control unit, 24 V batteries for numerous load lifts, an integrated charger, and a hydraulic undercarriage. The wirelessly controlled lifting jacks can be quickly deployed for all outdoor and indoor work without tripping hazards. The integrated forklift pockets allow easy transportation over longer distances.
Technical Specifications
- Lifting capacity per column: 8.5 tons
- Total lifting capacity: 34 tons, 51 tons, 68 tons
- Lifting height: 1,700 mm
- Lifting time: ~ 90 seconds
- Fork for wheel diameter: 600–1,300 mm
- Weight per column: ~ 680 kg
- Column height: 2,274 – 4,002 mm
- Column length: 1,300 mm
- Column width: 1,100 mm
- Batteries: 24 V, 85 AH
- Charger at each column: 230 V
