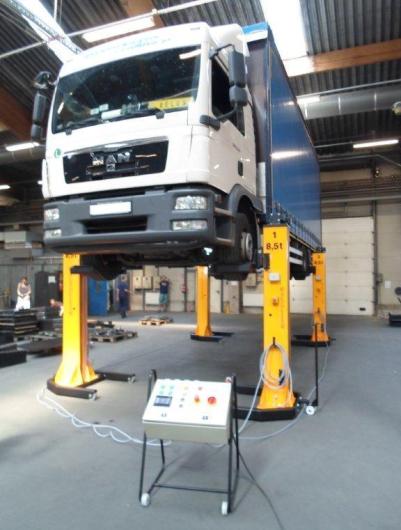

The electro-mechanical lifting system ESH 3441 with 8,5 t capacity per column can be used as systems with 4, 6 or 8 columns for all kind of road vehicles. The controlbox with LCD display is included with the delivery. The controlling system is programmed like, that the columns can be driven single, in pair or all together. The easy handling of the chassis provides a fast and secure placement of the columns.

The lift can be used for all needs because of numerous accessories like axle stands with different heights, traverses or ramp sets.

The mobile lift ESH 3441 proves itself, like any other jack of the ESH series in efficiency, easy handling and function.

• Lifting capacity per column 8,5 t
• Total capacity 34 t
• Lifting height 1.868 mm
• Stroke 1.700 mm
• Lifting time ca. 60 sec
• Net weight per column ca. 500 kg
• Height per column 2.700 mm
• Length per column 1.090 mm
• Width per column 980 mm
• Electrical power  400 V/3 Ph/50 Hz
• Colour RAL 1028
