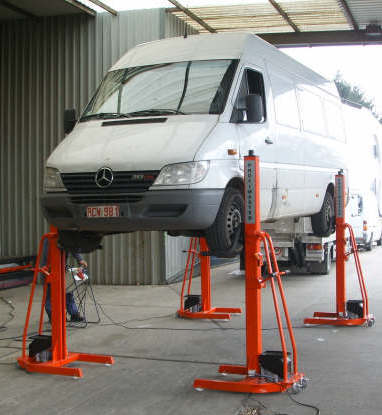

The lightweight constructed mobile column lift ESH 0441 enables an easy and comfortable moving of the lifting columns. The lift can be used for small buses and off road vehicles up to 3,5 t weight. Optional crossbeams for lifting small trailers or caravans are available. By the use of axle stands wheel free lifting is possible. (e.g. working on the brakes)

• Lifting capacity per column 1.000 kg
• Total capacity 3.500 kg
• Lifting height 1.968 mm
• Stroke 1.800 mm
• Lifting time ca. 50 sec
• Fork for tyre diameter 600 – 800 mm
• Net weight per column ca. 150 kg
• Height per column 2.280 mm
• Length per column 1.035 mm
• Width per column 640 mm
• Electrical power  400 V/3 Ph/50 Hz
• Colour RAL 5002

One of our most common and popular lifting system for our customers is the ESH 1041. It consists of 4 columns with capacity up to 2,5 t each column. The innovative lifting equipment proves efficiency and long-life cycle. Especially fast working in addition to productivity and high quality is guaranteed, because of the max. lifting time is just 60 sec. for 1.800 mm height of stroke. The motor power is 4x 1,5 kW with power requirement 400 Volt.

The lift can be used for buses and trucks up to 10 t weight. Also motorhomes can be lifted. Through the long lifting forks the pendently car body does not matter. Optional crossbeams for lifting small trailers or caravans are available. Also vans or passenger cars can be lifted by using the small wheel adapters. By the use of axle stands wheelfree lifting is possible.

• Lifting capacity per column 2,5 t
• Total capacity 10 t
• Lifting height 1.968 mm
• Stroke 1.800 mm
• Lifting time ca. 60 sec
• Fork for tyre diameter 600 – 1.080 mm
• Net weight per column ca. 250 kg
• Height per column 2.452 mm
• Length per column 1.195 mm
• Width per column 951 mm
• Electrical power  400 V/3 Ph/50 Hz
• Colour RAL 5002

The mobile lift ProfiMaster 3000 is all-purpose for lifting cars, small buses and different vehicles up to 2,5 t weight. The single column lift works with 230 Volt with an electrical power of 1,1 kW.

The universal lifter with a wide range of accessories is flexible and variable in application and function. For example it can be converted to a mobile crane or a gearbox lifter.

The vehicle can be placed in an individually appropriate position, that the working area is best illuminated and always allows upright and ergonomic working. Hence the ProfiMaster 3000 is perfect for welding, grinding and painting works.

Decide to go for easy, fast and effective working with ProfiMaster 3000.

ProfiMaster ECO

(manual version) Capacity and lifting height like ProfiMaster 3000. Lifting time depends on the used driving tool (handwheel, drilling machine, cordless screwdriver pneumatic tool)

• Lifting capacity per column 1.250 kg
• Max. weight of the car by using one column 2.500 kg
• Lifting height 980 mm
• Lifting time ca. 30 sec
• Electrical power  230 V, 50 Hz
• Performance per column 1,1 kW
• Colour RAL 3020

The electro-mechanical lifting system ESH 3441 with 8,5 t capacity per column can be used as systems with 4, 6 or 8 columns for all kind of road vehicles. The controlbox with LCD display is included with the delivery. The controlling system is programmed like, that the columns can be driven single, in pair or all together. The easy handling of the chassis provides a fast and secure placement of the columns.

The lift can be used for all needs because of numerous accessories like axle stands with different heights, traverses or ramp sets.

The mobile lift ESH 3441 proves itself, like any other jack of the ESH series in efficiency, easy handling and function.

• Lifting capacity per column 8,5 t
• Total capacity 34 t
• Lifting height 1.868 mm
• Stroke 1.700 mm
• Lifting time ca. 60 sec
• Net weight per column ca. 500 kg
• Height per column 2.700 mm
• Length per column 1.090 mm
• Width per column 980 mm
• Electrical power  400 V/3 Ph/50 Hz
• Colour RAL 1028

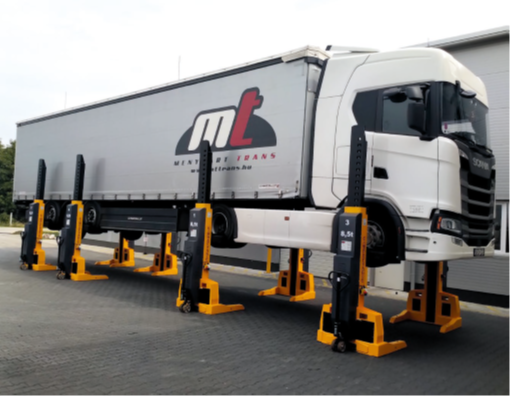

The hydraulic, battery-powered lifting jacks, each with a lifting capacity of 8.5 tons, can be used with 4, 6, or 8 columns and are suitable for lifting all commercial vehicles. A special version with a lifting capacity of 10 tons per column is also available. Each lifting jack is equipped with an adjustable wheel fork, control unit, 24 V batteries for numerous load lifts, an integrated charger, and a hydraulic undercarriage. The wirelessly controlled lifting jacks can be quickly deployed for all outdoor and indoor work without tripping hazards. The integrated forklift pockets allow easy transportation over longer distances.

Technical Specifications

• Lifting capacity per column: 8.5 tons
• Total lifting capacity: 34 tons, 51 tons, 68 tons
• Lifting height: 1,700 mm
• Lifting time: ~ 90 seconds
• Fork for wheel diameter: 600–1,300 mm
• Weight per column: ~ 680 kg
• Column height: 2,274 – 4,002 mm
• Column length: 1,300 mm
• Column width: 1,100 mm
• Batteries: 24 V, 85 AH
• Charger at each column: 230 V
