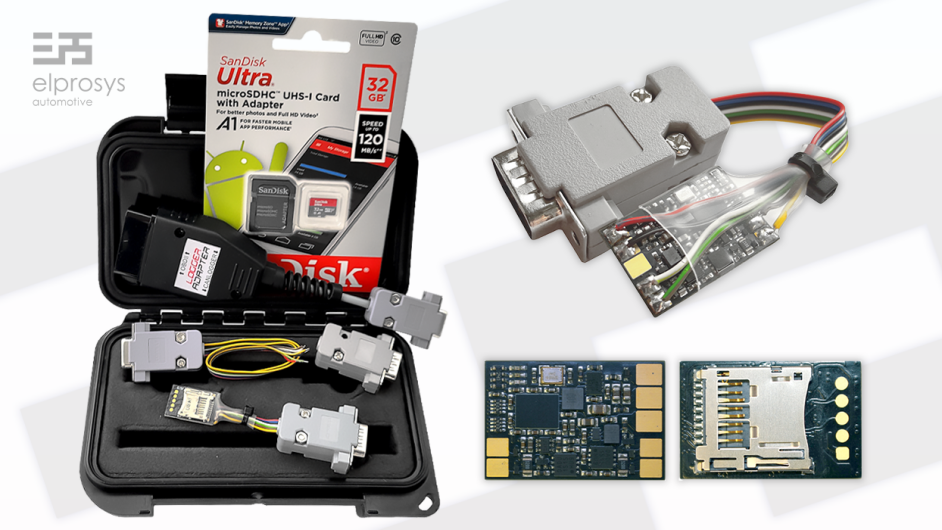

Can Data Logger dual channel device
Beschreibung
Can Data Logger is a dual channel device which allows logging Can signals on microSD card in real time. It supports both 29-bit and 11-bit CAN identifiers and ISO 15765 protocols. Additionally high quality processor (200 MHz) guarantees minimum consumption of power and optimum performance.
Basic functions of Can Data Logger are:
Ability to logging to two CAN-BUS channels in real time with CAN-Gateway function
CAN-BUS signal generating such as Ignition, RPM, speed, switches (for programming, testing ECU’s outside car).
CAN-BUS messages modification, filtering.
CAN-BUS signal converting (for programming, testing ECU’s outside car).
Can Data Logger description:
CANGateway function - converting CAN signals with different speeds.
CAN-BUS Logging frames from two channels with same or different speeds.
Filtering CAN-BUS frames according to script.txt file.
Generating CAN-BUS frames according to script.txt file.
Modification of CAN-BUS frames according to script.txt file.
Electronic CAN-BUS termination resistors.
Power supply - 5 Volts or 12 Volts.
Software update using microSD card.
Possibility of modification and configuration via PC tool - CanGateway Manager.
No loss of any CAN- BUS frames when logging into two channels at the same time, with maximum speed.
